ERD Hygienic (3A/USDA approved) Electric Actuators

ERD 22, 25, and 30 are being transitioned to the improved design of the RSH hygienic actuator family. Contact Tolomatic for support.

ERD hygienic electric actuators are approved by 3A and USDA for food and beverage applications.

Tolomatic’s line of hygienically designed all stainless steel electric actuators offer up to 7868 lbf (35 kN) and they are the perfect solution for food and beverage applications where higher forces are required for pressing, pumping, cutting or slicing. Use the Tolomatic Your Motor Here® database to select from a wide variety of stainless steel motor manufacturers for a complete all stainless package.

  • 3 body sizes with 300 series stainless steel construction
  • Ball, acme and roller screw choices
  • Force/thrust capabilities up to 7,868 lbf (35 kN)
  • Stroke lengths up to 39.4 inches (1 m)
  • IP69K, clean in place compatible
  • USDA and 3A (#14159-1-2010) approved hygienic option for over food operation
  • Simplified (lower cost) machine design by eliminating protective guards enclosures for standard actuators

ERD 22, 25, and 30 are being transitioned to the improved design of the RSH hygienic actuator family. Contact Tolomatic for support.

ERD Hygienic Max Stroke

Size ERD Hygienic 22 ERD Hygienic 25 ERD Hygienic 30
Standard 39.4 in. 39.4 in. 48 in.
Metric 1,000 mm 1,000 mm 1,219 mm

ERD Hygienic Max Force

Size ERD Hygienic 22 ERD Hygienic 25 ERD Hygienic 30
Standard 1,700 lbf 4,159 lbf 7,868 lbf
Metric 7,562 N 18,500 N 34,999 N

ERD Hygienic Max Speed

Size ERD Hygienic 22 ERD Hygienic 25 ERD Hygienic 30
Standard 50 in/sec 58 in/sec 58 in/sec
Metric 1,270 mm/sec 1,473 mm/sec 1,473 mm/sec

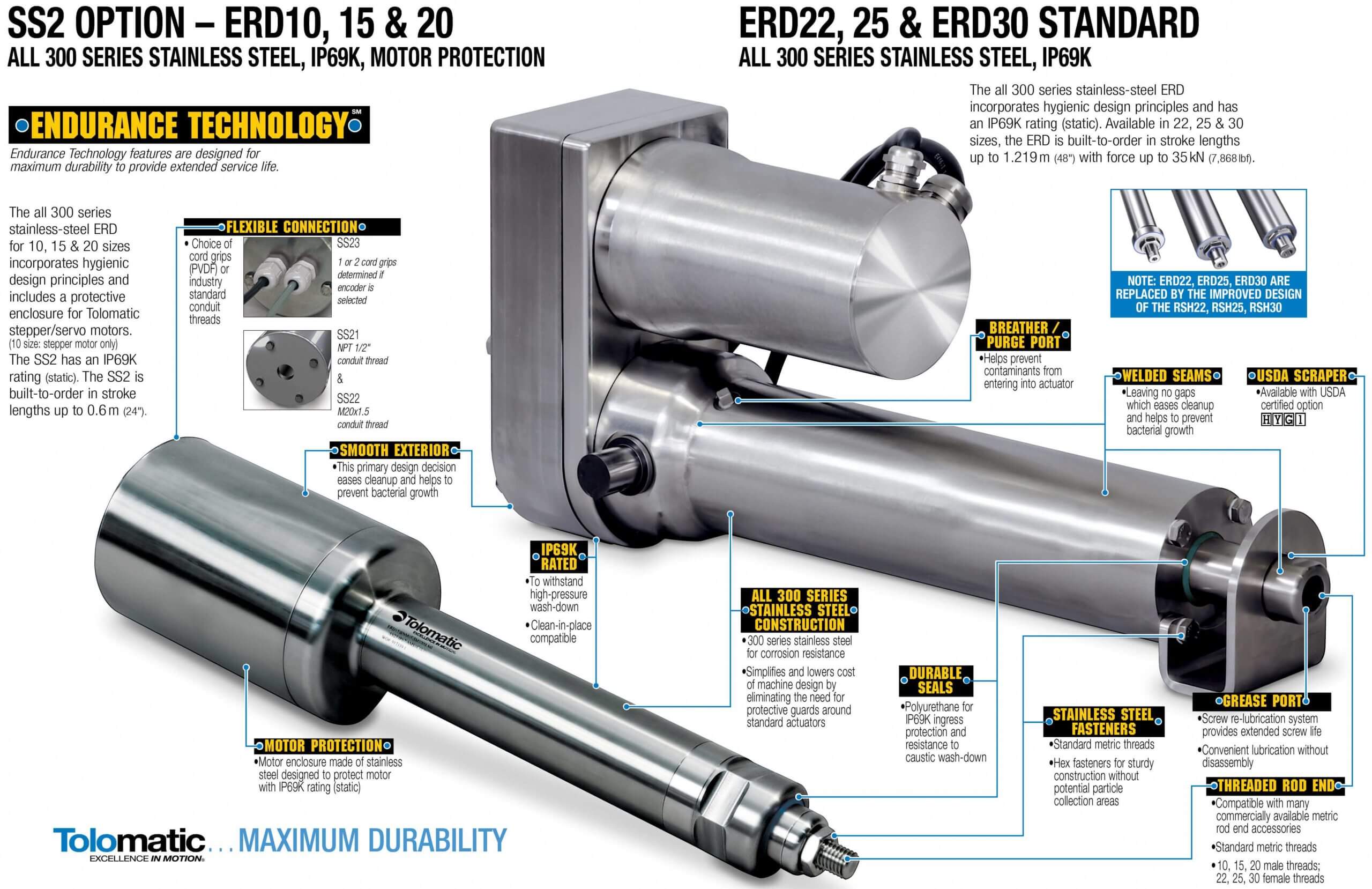

ERD Hygienic Features

ERD Motor Choices

ERD Switch Specifications

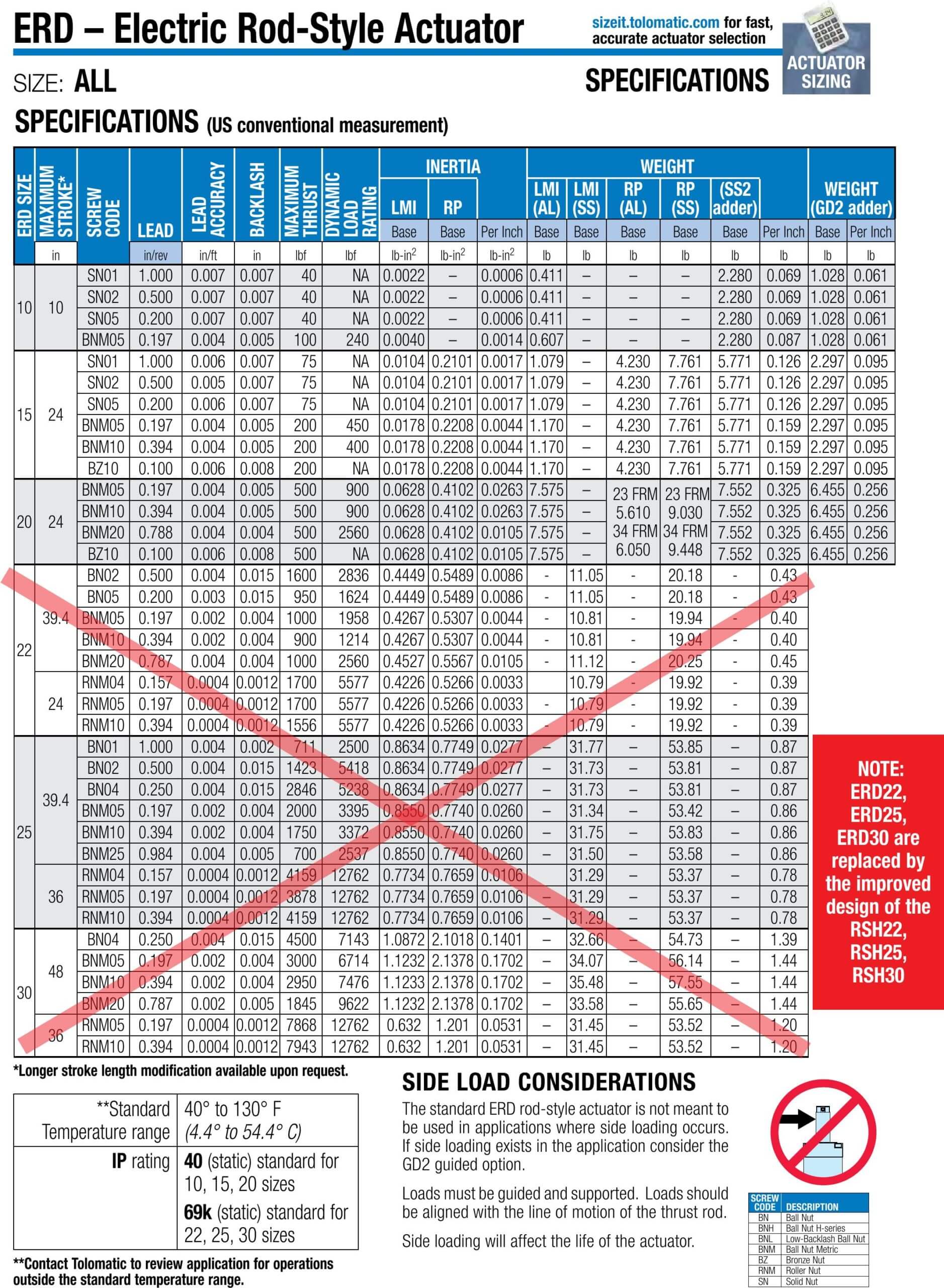

Specifications ERD Hygienic US measurements

Specifications ERD Hygienic Metric measurements

ERD 22 Critical Speed, Thrust vs Stroke, & Screw Life

ERD 25 Critical Speed, Thrust vs Stroke, & Screw Life

ERD 30 Critical Speed, Thrust vs Stroke, & Screw Life

Re-Lubrication Recommendation

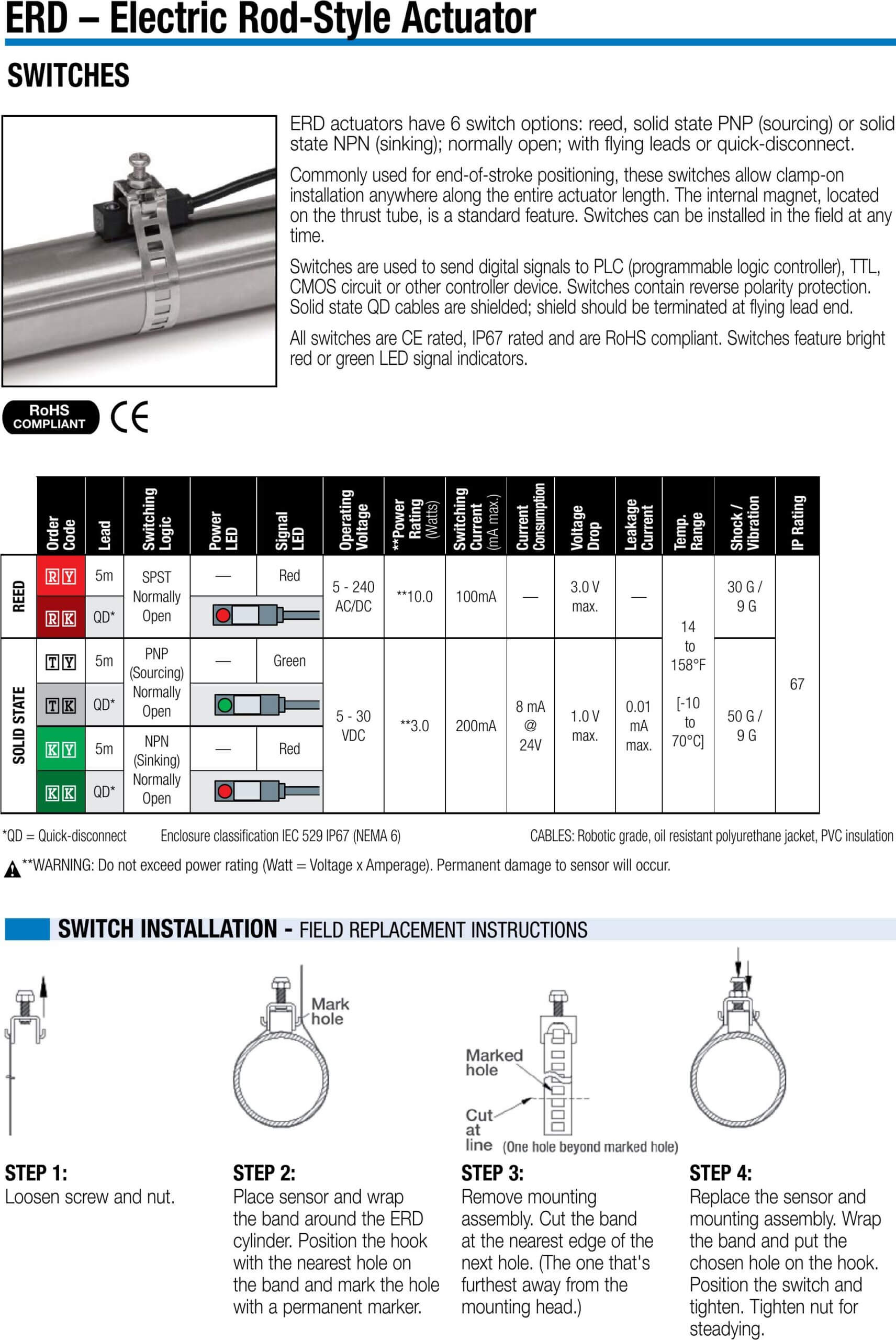

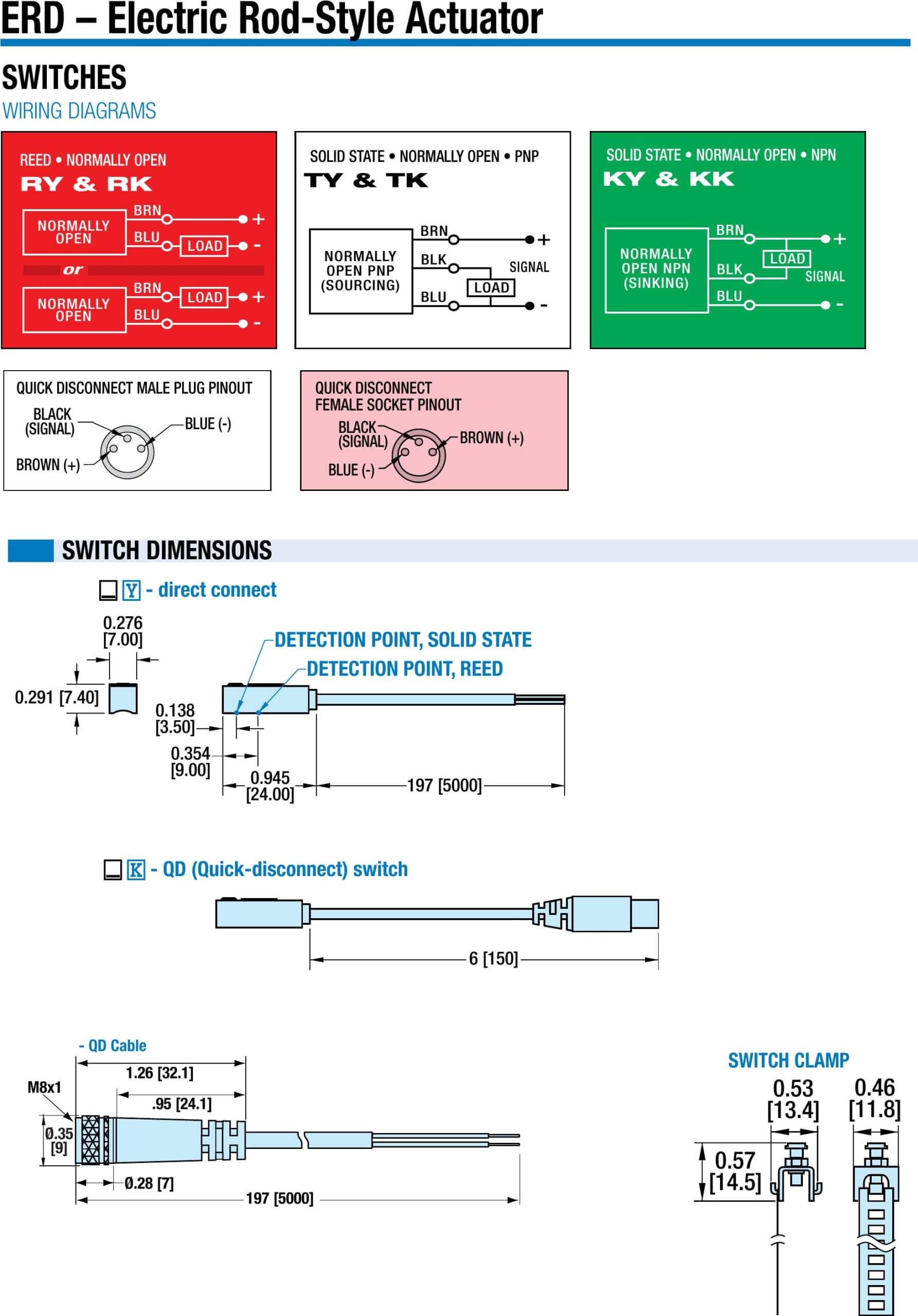

ERD Switch Wiring Diagrams & Dimensions

ERD 22/25/30 Dimensions

Option: Foot Mount, Trunnion Mount (Rear), IP69K Ingress Protection Rating

Information Center:

English
Chinese
German
Spanish

Terms & Conditions

White Papers

Cheese Cutting

Product Family: Electric
Product Used: RSH30 Hygienic Electric Actuators

Cheese Production

Product Family: Electric
Product Used: ERD25 Rod-Style Electric Actuator

Pork Processing Plant

Product Family: Electric
Product Used: ERD25 Rod-Style Actuator

Powder Filling

Challenge: Filling a variety of container sizes.
Product Family: Electric
Product Used: ACSI & ERD Actuator

Case Positioning

Challenge: Case positioning of empty bottles for preparation of filling process
Product Family: Electric
Product Used: ERD Electric Actuator with ACSI motor/drive

Exercise Equipment

Challenge: An OEM manufacturer that makes high end resistance weight training equipment for fitness facilities needed actuators that slowly push or pull to provide the exact amount of resistance for the exercise.
Product Family: Electric Rod-Style Actuator
Product Used: ERD

Use the links below to locate a Tolomatic distributor in your area, find out more information on how to specify and configure your actuator, service parts information, and selection guidelines and tips.

Find a Tolomatic distributor

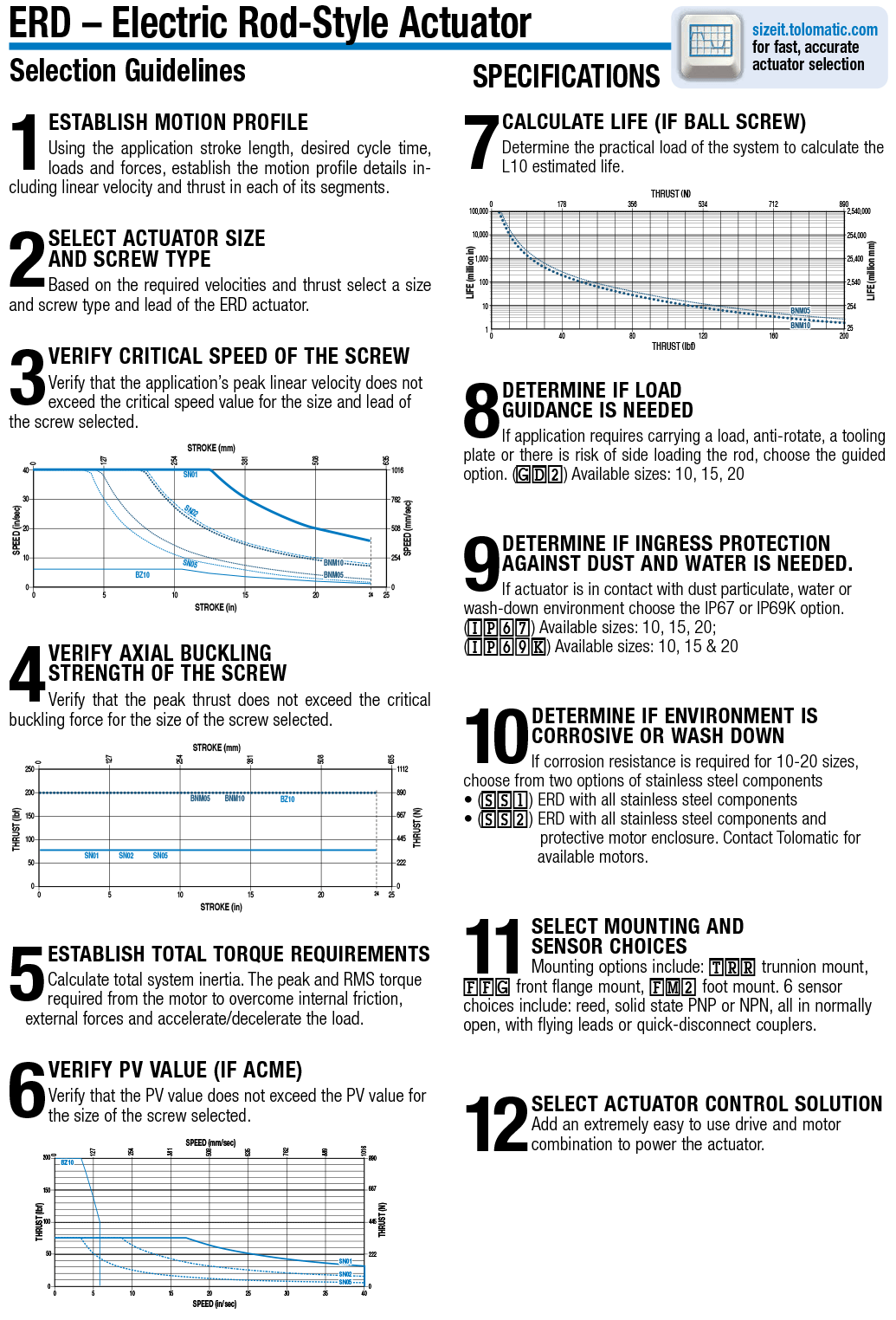

ERD Selection Guidelines
