Float-A-Shaft® 1 to 1 Ratio Right Angle Gearboxes with High Torque Roller Bearing
The Float-A-Shaft® 1 to 1 high torque right angle gearbox offers both standard mounting and flat base mounting for application flexibility and maximum torque capabilities of 1050 in-lbs (118.7 Nm).
- Mechanically retained roller bearing for durability
- Allows use of standard transmission shafting
- Hardened steel thrust races and bearings
- Races are keyed to shaft for simultaneous rotation
Float-a-Shaft: Standard 1:1 High Torque Features
Float-a-Shaft: Standard 1:1 High Torque Specs
Float-a-Shaft: Standard 1:1 High Torque Dimensions

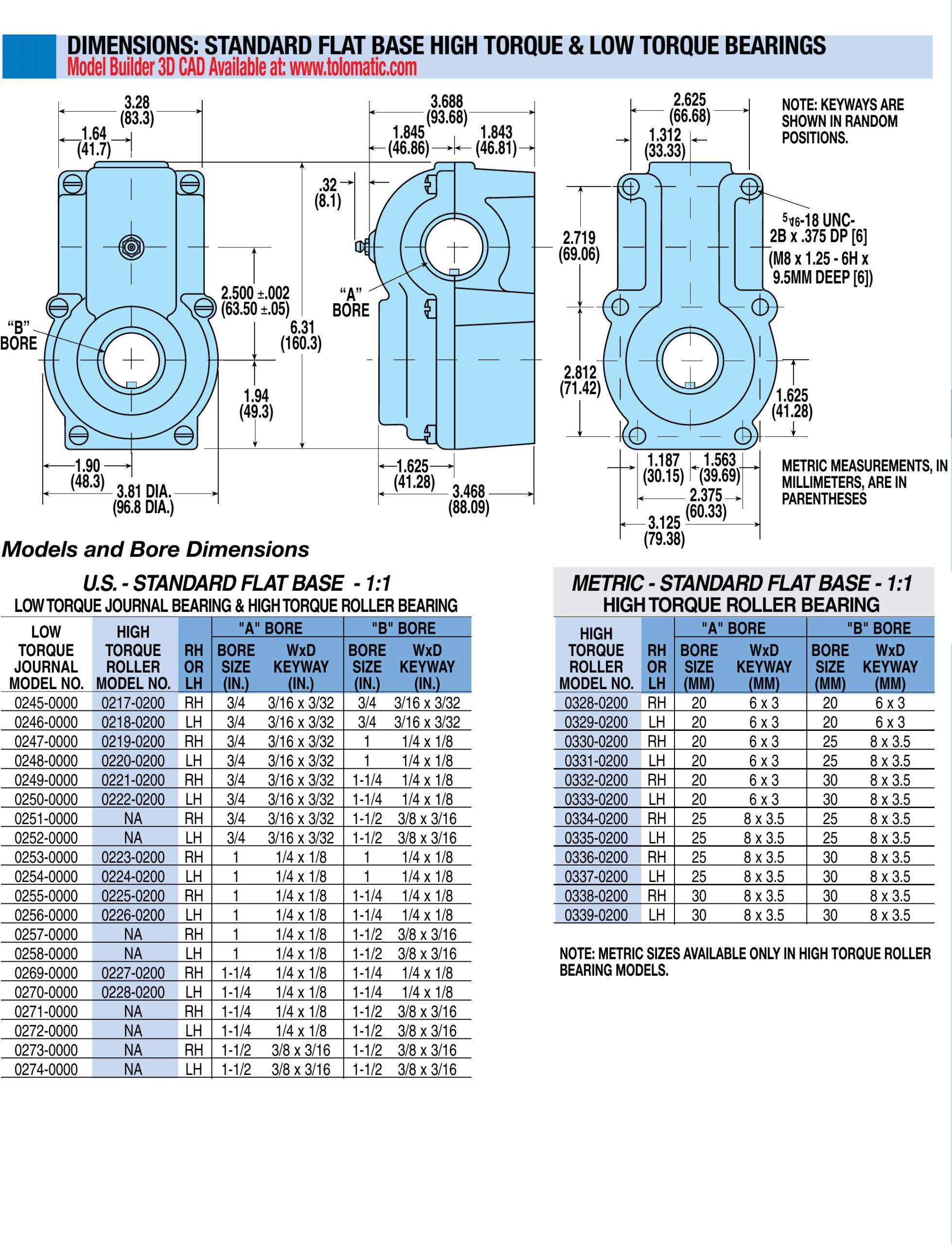

Float-a-Shaft: Standard 1:1 High Torque Flat Base Dimensions
Float-a-Shaft Rotation & Installation Guidelines
Online Ordering
| Part # | Description | Mount Type | Rotation | "A" Bore Size | "B" Bore Size | Cart |
|---|---|---|---|---|---|---|
| 0203-0200 | Float-a-Shaft: Standard 1:1 Ratio with High Torque Roller Bearing (U.S. Customary) | Standard Mount | RH | 3/4" | 3/4" |  |
| 0204-0200 | Float-a-Shaft: Standard 1:1 Ratio with High Torque Roller Bearing (U.S. Customary) | Standard Mount | LH | 3/4" | 3/4" | |
| 0205-0200 | Float-a-Shaft: Standard 1:1 Ratio with High Torque Roller Bearing (U.S. Customary) | Standard Mount | RH | 3/4" | 1" | |
| 0206-0200 | Float-a-Shaft: Standard 1:1 Ratio with High Torque Roller Bearing (U.S. Customary) | Standard Mount | LH | 3/4" | 1" | |
| 0207-0200 | Float-a-Shaft: Standard 1:1 Ratio with High Torque Roller Bearing (U.S. Customary) | Standard Mount | RH | 3/4" | 1-1/4" | |
| 0208-0200 | Float-a-Shaft: Standard 1:1 Ratio with High Torque Roller Bearing (U.S. Customary) | Standard Mount | LH | 3/4" | 1-1/4" | |
| 0209-0200 | Float-a-Shaft: Standard 1:1 Ratio with High Torque Roller Bearing (U.S. Customary) | Standard Mount | RH | 1" | 1" | |
| 0210-0200 | Float-a-Shaft: Standard 1:1 Ratio with High Torque Roller Bearing (U.S. Customary) | Standard Mount | LH | 1" | 1" | |
| 0211-0200 | Float-a-Shaft: Standard 1:1 Ratio with High Torque Roller Bearing (U.S. Customary) | Standard Mount | RH | 1" | 1-1/4" | |
| 0212-0200 | Float-a-Shaft: Standard 1:1 Ratio with High Torque Roller Bearing (U.S. Customary) | Standard Mount | LH | 1" | 1-1/4" | |
| 0213-0200 | Float-a-Shaft: Standard 1:1 Ratio with High Torque Roller Bearing (U.S. Customary) | Standard Mount | RH | 1-1/4" | 1-1/4" | |
| 0214-0200 | Float-a-Shaft: Standard 1:1 Ratio with High Torque Roller Bearing (U.S. Customary) | Standard Mount | LH | 1-1/4" | 1-1/4" | |
| 0308-0200 | Float-a-Shaft: Standard 1:1 Ratio with High Torque Roller Bearing (Metric) | Standard Mount | RH | 20 mm | 20 mm | |
| 0309-0200 | Float-a-Shaft: Standard 1:1 Ratio with High Torque Roller Bearing (Metric) | Standard Mount | LH | 20 mm | 20 mm | |
| 0310-0200 | Float-a-Shaft: Standard 1:1 Ratio with High Torque Roller Bearing (Metric) | Standard Mount | RH | 20 mm | 25 mm | |
| 0311-0200 | Float-a-Shaft: Standard 1:1 Ratio with High Torque Roller Bearing (Metric) | Standard Mount | LH | 20 mm | 25 mm | |
| 0312-0200 | Float-a-Shaft: Standard 1:1 Ratio with High Torque Roller Bearing (Metric) | Standard Mount | RH | 20 mm | 30 mm | |
| 0313-0200 | Float-a-Shaft: Standard 1:1 Ratio with High Torque Roller Bearing (Metric) | Standard Mount | LH | 20 mm | 30 mm | |
| 0314-0200 | Float-a-Shaft: Standard 1:1 Ratio with High Torque Roller Bearing (Metric) | Standard Mount | RH | 25 mm | 25 mm | |
| 0315-0200 | Float-a-Shaft: Standard 1:1 Ratio with High Torque Roller Bearing (Metric) | Standard Mount | LH | 25 mm | 25 mm | |
| 0316-0200 | Float-a-Shaft: Standard 1:1 Ratio with High Torque Roller Bearing (Metric) | Standard Mount | RH | 25 mm | 30 mm | |
| 0317-0200 | Float-a-Shaft: Standard 1:1 Ratio with High Torque Roller Bearing (Metric) | Standard Mount | LH | 25 mm | 30 mm | |
| 0318-0200 | Float-a-Shaft: Standard 1:1 Ratio with High Torque Roller Bearing (Metric) | Standard Mount | RH | 30 mm | 30 mm | |
| 0319-0200 | Float-a-Shaft: Standard 1:1 Ratio with High Torque Roller Bearing (Metric) | Standard Mount | LH | 30 mm | 30 mm | |
| 0217-0200 | Float-a-Shaft: Standard 1:1 Ratio with High Torque Roller Bearing (U.S. Customary) | Flat Base Mount | RH | 3/4" | 3/4" | |
| 0218-0200 | Float-a-Shaft: Standard 1:1 Ratio with High Torque Roller Bearing (U.S. Customary) | Flat Base Mount | LH | 3/4" | 3/4" | |
| 0219-0200 | Float-a-Shaft: Standard 1:1 Ratio with High Torque Roller Bearing (U.S. Customary) | Flat Base Mount | RH | 3/4" | 1" | |
| 0220-0200 | Float-a-Shaft: Standard 1:1 Ratio with High Torque Roller Bearing (U.S. Customary) | Flat Base Mount | LH | 3/4" | 1" | |
| 0221-0200 | Float-a-Shaft: Standard 1:1 Ratio with High Torque Roller Bearing (U.S. Customary) | Flat Base Mount | RH | 3/4" | 1-1/4" | |
| 0222-0200 | Float-a-Shaft: Standard 1:1 Ratio with High Torque Roller Bearing (U.S. Customary) | Flat Base Mount | LH | 3/4" | 1-1/4" | |
| 0223-0200 | Float-a-Shaft: Standard 1:1 Ratio with High Torque Roller Bearing (U.S. Customary) | Flat Base Mount | RH | 1" | 1" | |
| 0224-0200 | Float-a-Shaft: Standard 1:1 Ratio with High Torque Roller Bearing (U.S. Customary) | Flat Base Mount | LH | 1" | 1" | |
| 0225-0200 | Float-a-Shaft: Standard 1:1 Ratio with High Torque Roller Bearing (U.S. Customary) | Flat Base Mount | RH | 1" | 1-1/4" | |
| 0226-0200 | Float-a-Shaft: Standard 1:1 Ratio with High Torque Roller Bearing (U.S. Customary) | Flat Base Mount | LH | 1" | 1-1/4" | |
| 0227-0200 | Float-a-Shaft: Standard 1:1 Ratio with High Torque Roller Bearing (U.S. Customary) | Flat Base Mount | RH | 1-1/4" | 1-1/4" | |
| 0228-0200 | Float-a-Shaft: Standard 1:1 Ratio with High Torque Roller Bearing (U.S. Customary) | Flat Base Mount | LH | 1-1/4" | 1-1/4" | |
| 0328-0200 | Float-a-Shaft: Standard 1:1 Ratio with High Torque Roller Bearing (Metric) | Flat Base Mount | RH | 20 mm | 20 mm | |
| 0329-0200 | Float-a-Shaft: Standard 1:1 Ratio with High Torque Roller Bearing (Metric) | Flat Base Mount | LH | 20 mm | 20 mm | |
| 0330-0200 | Float-a-Shaft: Standard 1:1 Ratio with High Torque Roller Bearing (Metric) | Flat Base Mount | RH | 20 mm | 25 mm | |
| 0331-0200 | Float-a-Shaft: Standard 1:1 Ratio with High Torque Roller Bearing (Metric) | Flat Base Mount | LH | 20 mm | 25 mm | |
| 0332-0200 | Float-a-Shaft: Standard 1:1 Ratio with High Torque Roller Bearing (Metric) | Flat Base Mount | RH | 20 mm | 30 mm | |
| 0333-0200 | Float-a-Shaft: Standard 1:1 Ratio with High Torque Roller Bearing (Metric) | Flat Base Mount | LH | 20 mm | 30 mm | |
| 0334-0200 | Float-a-Shaft: Standard 1:1 Ratio with High Torque Roller Bearing (Metric) | Flat Base Mount | RH | 25 mm | 25 mm | |
| 0335-0200 | Float-a-Shaft: Standard 1:1 Ratio with High Torque Roller Bearing (Metric) | Flat Base Mount | LH | 25 mm | 25 mm | |
| 0336-0200 | Float-a-Shaft: Standard 1:1 Ratio with High Torque Roller Bearing (Metric) | Flat Base Mount | RH | 25 mm | 30 mm | |
| 0337-0200 | Float-a-Shaft: Standard 1:1 Ratio with High Torque Roller Bearing (Metric) | Flat Base Mount | LH | 25 mm | 30 mm | |
| 0338-0200 | Float-a-Shaft: Standard 1:1 Ratio with High Torque Roller Bearing (Metric) | Flat Base Mount | RH | 30 mm | 30 mm | |
| 0339-0200 | Float-a-Shaft: Standard 1:1 Ratio with High Torque Roller Bearing (Metric) | Flat Base Mount | LH | 30 mm | 30 mm | |
