Slide-Rite® Standard 1 to 1 Ratio Right Angle Gearboxes

Tolomatic’s standard size 1 to 1 Slide-Rite® right angle gearbox delivers up to 2480 in-lbs (280.2 Nm) of torque and offers the highest torque output of the Slide-Rite® series.

  • High torque ball bearing design
  • Solid one-piece aluminum housing seals gears from outside contaminants for smooth operation
  • Right- or left-hand rotation to convert power either direction
  • Easily slides axially along the drive or driven shaft for flexible positioning
  • Alloy steel helical gears for high performance

Slide-Rite: Standard 1:1 Features

Slide-Rite: Standard 1:1 Specs & Dimensions

Slide-Rite Rotation & Installation Guidelines

Online Ordering

Part # Description Rotation"A" Bore Size"A" Bore Keyway"B" Bore Size"B" Bore Keyway"C" DIM"D" DIMWeight Cart
0220-0400 Slide-Rite: Standard 1:1 (U.S. Customary) RH3/4"3/16" x 3/32"3/4"3/16" x 3/32".10".10"10.7 lbs
0221-0400 Slide-Rite: Standard 1:1 (U.S. Customary) LH3/4"3/16" x 3/32"3/4"3/16" x 3/32".10".10"10.7 lbs
0222-0400 Slide-Rite: Standard 1:1 (U.S. Customary) RH3/4"3/16" x 3/32"1"1/4" x 1/8".13".13"10.4 lbs
0223-0400 Slide-Rite: Standard 1:1 (U.S. Customary) LH3/4"3/16" x 3/32"1"1/4" x 1/8".13".13"10.4 lbs
0224-0400 Slide-Rite: Standard 1:1 (U.S. Customary) RH3/4"3/16" x 3/32"1-1/4"1/4" x 1/8".10".13"9.9 lbs
0225-0400 Slide-Rite: Standard 1:1 (U.S. Customary) LH3/4"3/16" x 3/32"1-1/4"1/4" x 1/8".10".13"9.9 lbs
0226-0400 Slide-Rite: Standard 1:1 (U.S. Customary) RH1"1/4" x 1/8"1"1/4" x 1/8".13".13"10.0 lbs
0227-0400 Slide-Rite: Standard 1:1 (U.S. Customary) LH1"1/4" x 1/8"1"1/4" x 1/8".13".13"10.0 lbs
0228-0400 Slide-Rite: Standard 1:1 (U.S. Customary) RH1"1/4" x 1/8"1-1/4"1/4" x 1/8".13".13"9.6 lbs
0229-0400 Slide-Rite: Standard 1:1 (U.S. Customary) LH1"1/4" x 1/8"1-1/4"1/4" x 1/8".13".13"9.6 lbs
0230-0400 Slide-Rite: Standard 1:1 (U.S. Customary) RH1-1/4"1/4" x 1/8"1-1/4"1/4" x 1/8".13".13"9.1 lbs
0231-0400 Slide-Rite: Standard 1:1 (U.S. Customary) LH1-1/4"1/4" x 1/8"1-1/4"1/4" x 1/8".13".13"9.1 lbs
0220-0410 Slide-Rite: Standard 1:1 (Metric) RH20 mm6 x 3 mm20 mm6 x 3 mm3.2 mm3.2 mm4.8 kg
0221-0410 Slide-Rite: Standard 1:1 (Metric) LH20 mm6 x 3 mm20 mm6 x 3 mm3.2 mm3.2 mm4.8 kg
0222-0410 Slide-Rite: Standard 1:1 (Metric) RH20 mm6 x 3 mm25 mm8 x 3.5 mm3.2 mm3.2 mm4.7 kg
0223-0410 Slide-Rite: Standard 1:1 (Metric) LH20 mm6 x 3 mm25 mm8 x 3.5 mm3.2 mm3.2 mm4.7 kg
0224-0410 Slide-Rite: Standard 1:1 (Metric) LH20 mm6 x 3 mm30 mm8 x 3.5 mm3.2 mm3.2 mm4.5 kg
0225-0410 Slide-Rite: Standard 1:1 (Metric) LH20 mm6 x 3 mm30 mm8 x 3.5 mm3.2 mm3.2 mm4.5 kg
0226-0410 Slide-Rite: Standard 1:1 (Metric) RH25 mm8 x 3.5 mm25 mm8 x 3.5 mm3.2 mm3.2 mm4.5 kg
0227-0410 Slide-Rite: Standard 1:1 (Metric) LH25 mm8 x 3.5 mm25 mm8 x 3.5 mm3.2 mm3.2 mm4.5 kg
0228-0410 Slide-Rite: Standard 1:1 (Metric) RH25 mm8 x 3.5 mm30 mm8 x 3.5 mm3.2 mm3.2 mm4.4 kg
0229-0410 Slide-Rite: Standard 1:1 (Metric) LH25 mm8 x 3.5 mm30 mm8 x 3.5 mm3.2 mm3.2 mm4.4 kg
0230-0410 Slide-Rite: Standard 1:1 (Metric) RH30 mm8 x 3.5 mm30 mm8 x 3.5 mm3.2 mm3.2 mm4.2 kg
0231-0410 Slide-Rite: Standard 1:1 (Metric) LH30 mm8 x 3.5 mm30 mm8 x 3.5 mm3.2 mm3.2 mm4.2 kg

Application Checklists

Use the links below to locate a Tolomatic distributor in your area, find out more information on how to specify, service parts information, and selection guidelines and tips.

Find a Tolomatic distributor

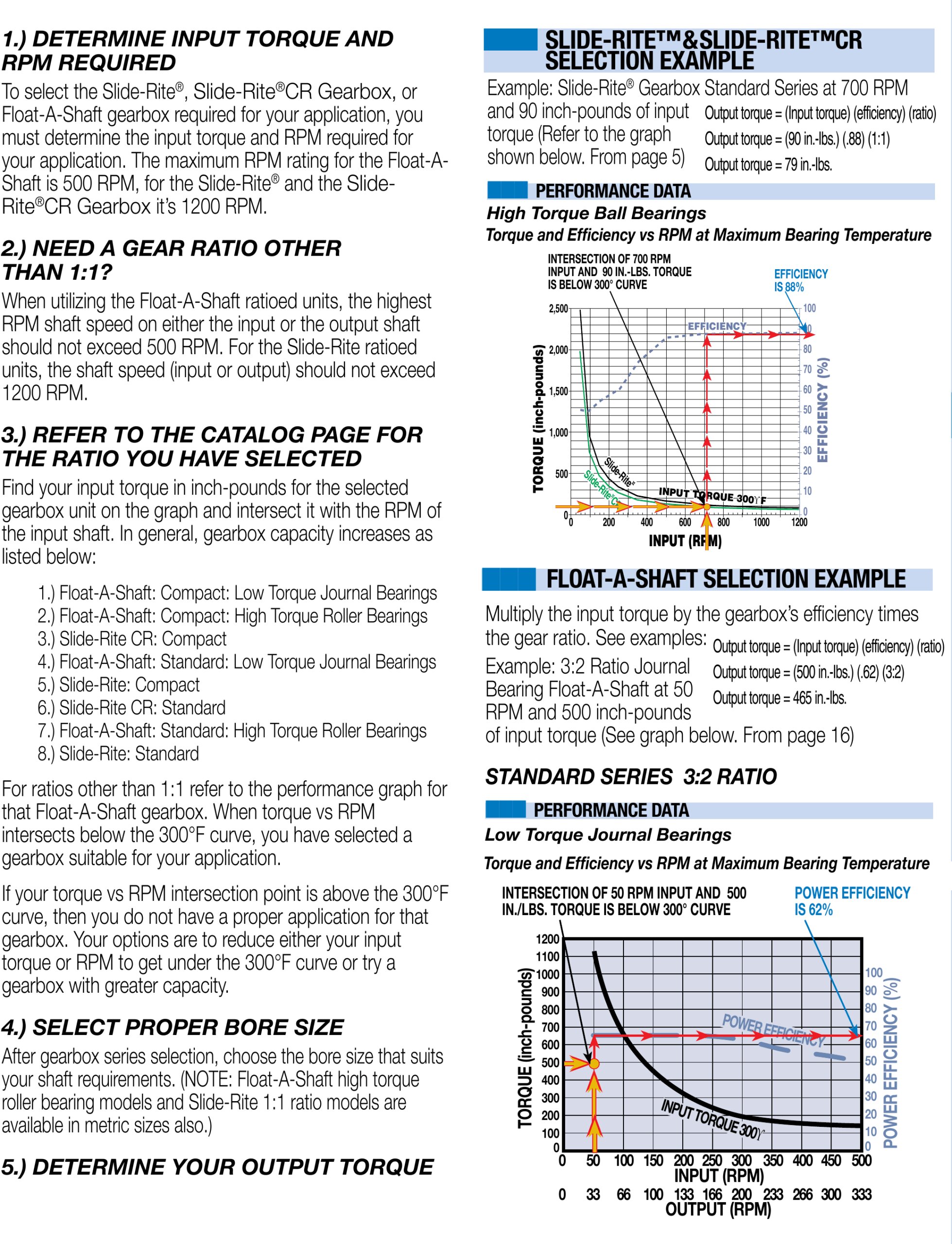

Slide-Rite Rotation & Selection Guidelines
