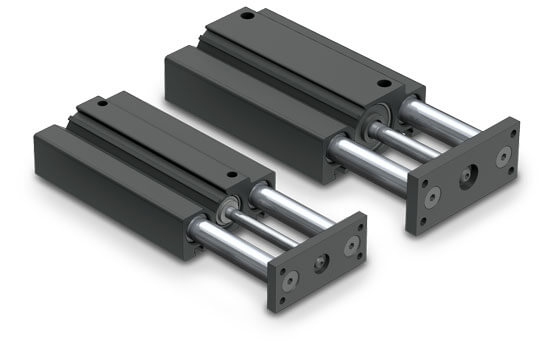

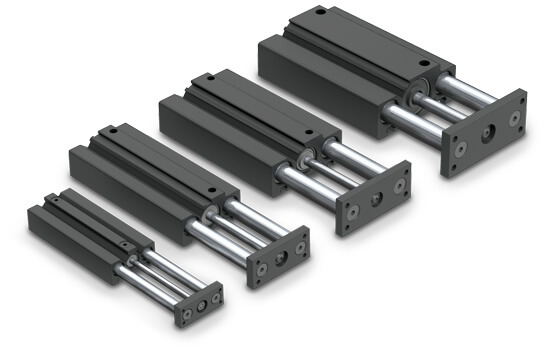

Power-Block 2 Guided Air Cylinders
The Power-Block 2 guided air cylinder offers stroke lengths up to 6 inches (154.2 mm) and thrusting capabilities over 300 lbs.
Tolomatic Power-Block 2 guided air cylinders provide increased power over the Power-Block series of thrusters. The longer stroke capabilities make them good choices for a variety of pick-and-place and material handling applications.
- Choice of linear ball or composite bearings
- Four bore sizes for a wide range of force output capabilities
- Available with Reed, Hall-effect or Triac switches
Size | PB2 10 | PB2 17 | PB2 20 | PB2 32 |
---|---|---|---|---|
Standard | 0.63 in | 1.06 in | 1.25 in | 2.00 in |
Metric | 16 mm | 27 mm | 32 mm | 51 mm |
Size | PB2 10 | PB2 17 | PB2 20 | PB2 32 |
---|---|---|---|---|
Standard | 6 in | 6 in | 6 in | 6 in |
Metric | 152 mm | 152 mm | 152 mm | 152 mm |
Size | PB2 10 | PB2 17 | PB2 20 | PB2 32 |
---|---|---|---|---|
Standard | 30 lbf | 88 lbf | 184 lbf | 471 lbf |
Metric | 133 N | 391 N | 818 N | 2,095 N |
Size | PB2 10 | PB2 17 | PB2 20 | PB2 32 |
---|---|---|---|---|
Standard | 16 lbs | 38 lbs | 48 lbs | 70 lbs |
Metric | 7 kg | 17 kg | 22 kg | 32 kg |

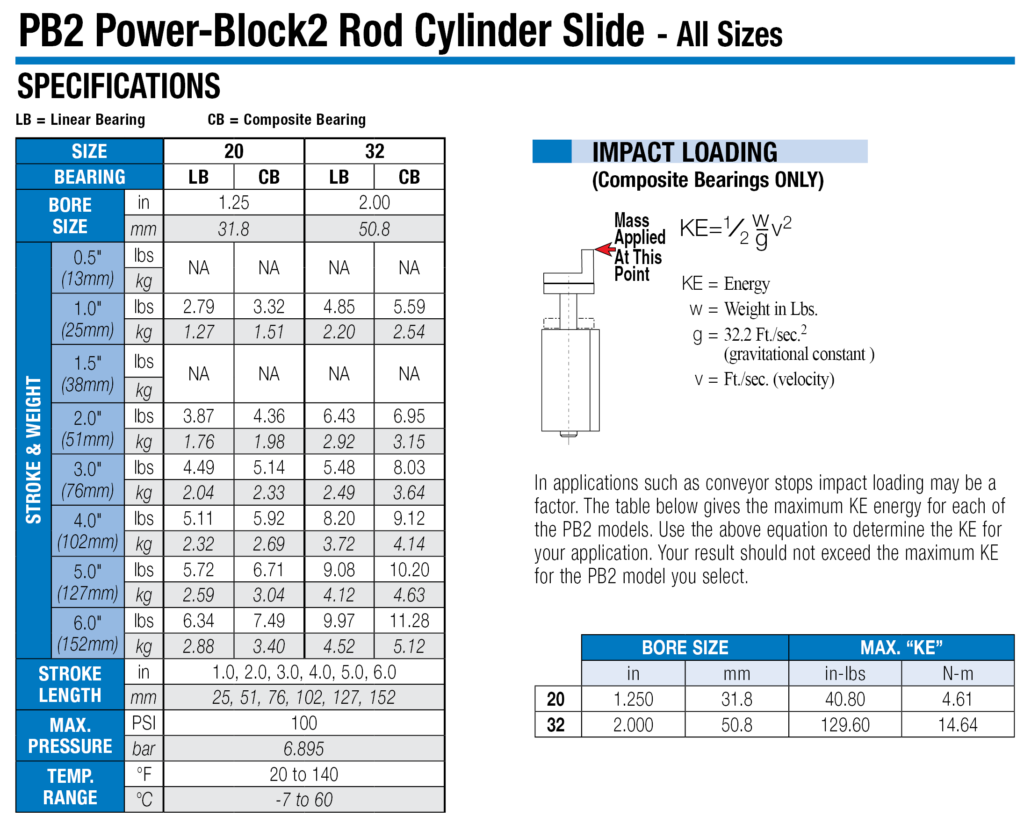

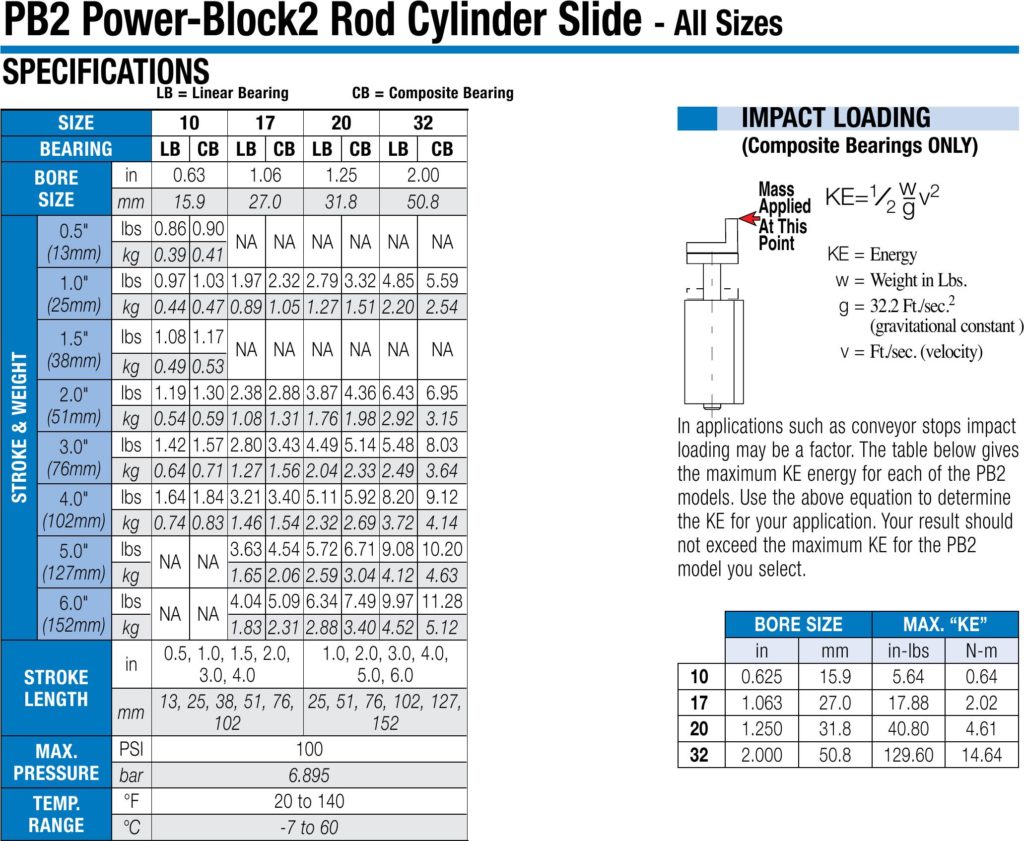

PB2 General Specs
![](https://www.tolomatic.com/wp-content/uploads/2022/06/09_pneu_25_PB-12.png)

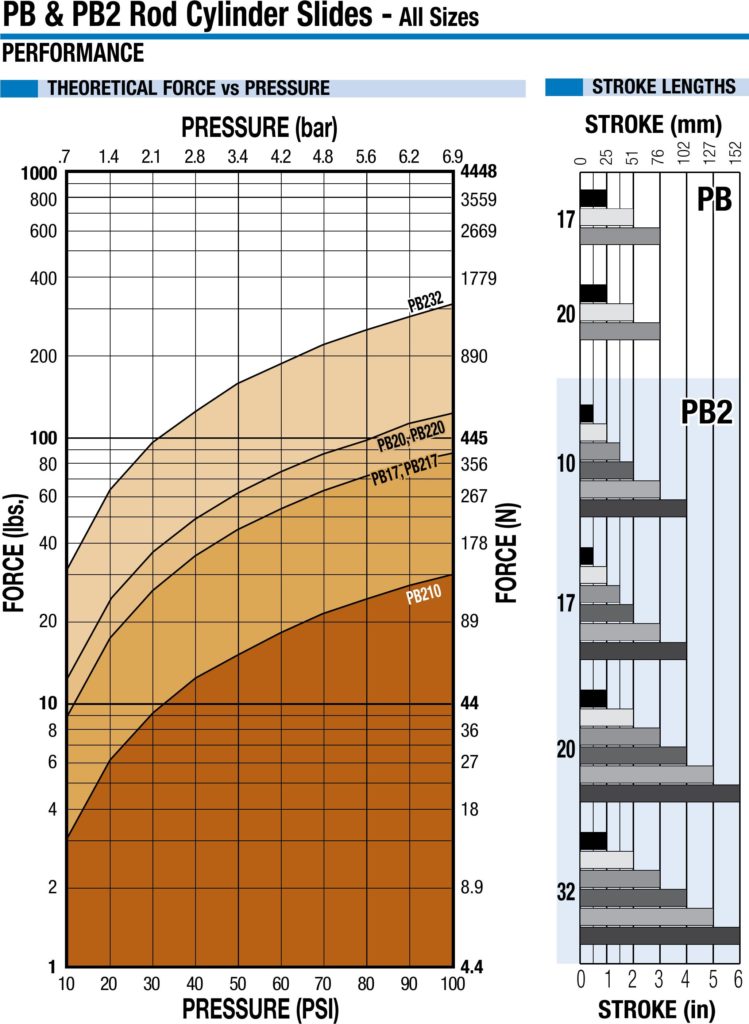

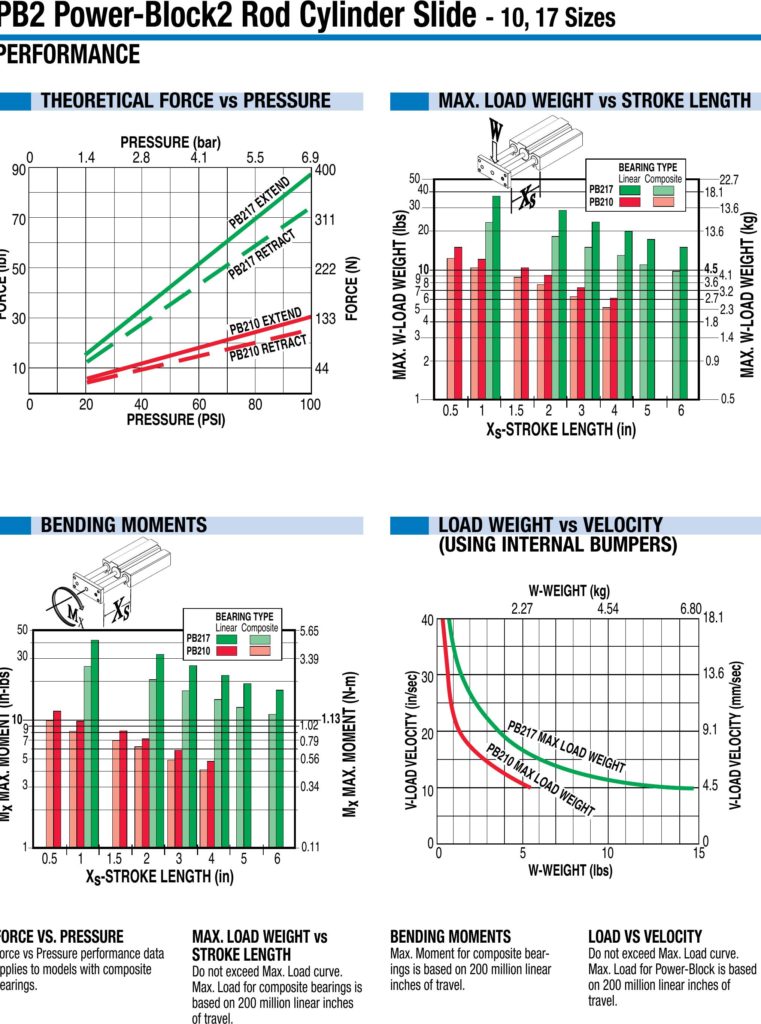

PB210, PB217 Performance Specs
![](https://www.tolomatic.com/wp-content/uploads/2024/07/09_pneu_25_PB-10-771x1024.png)

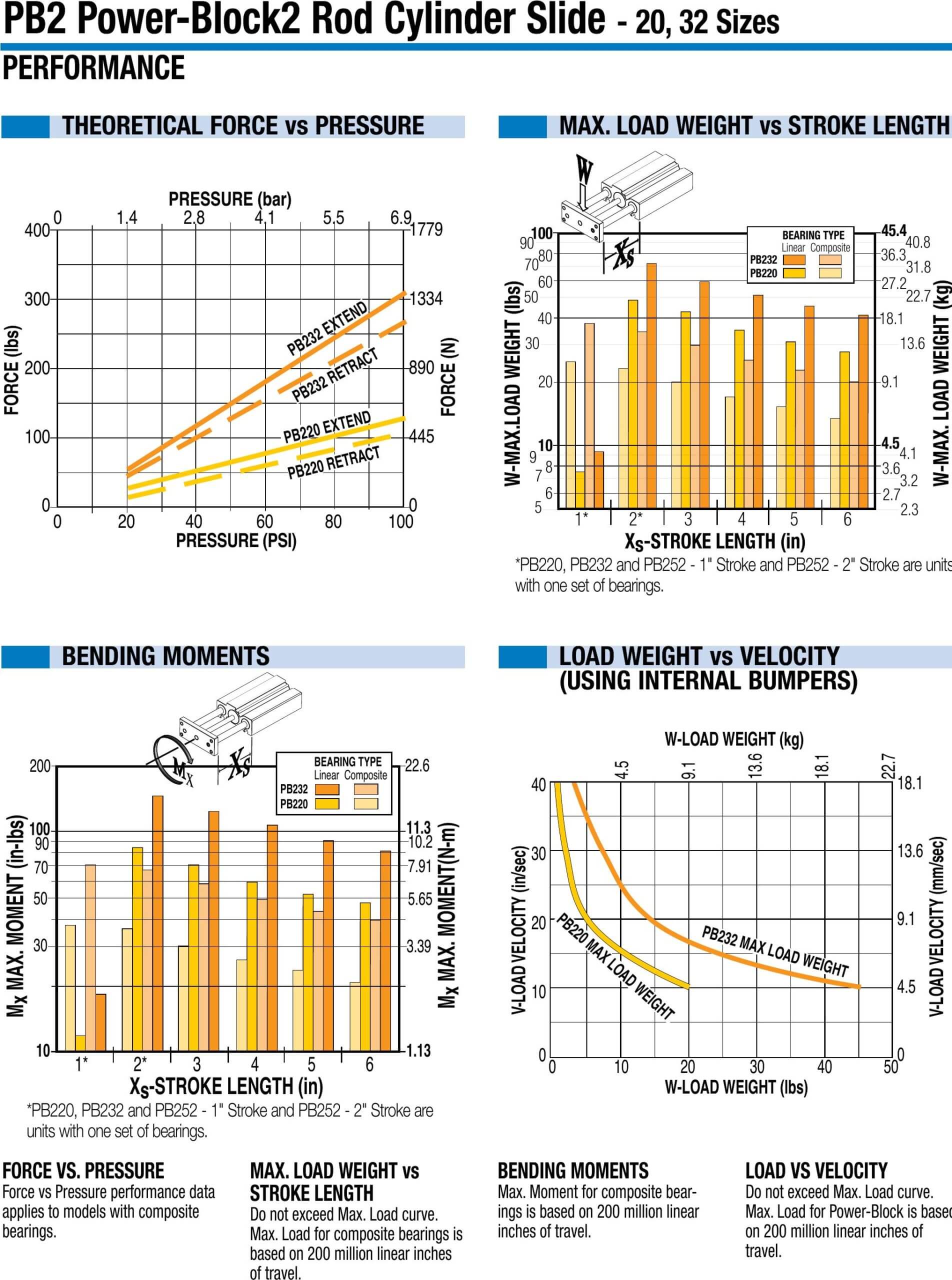

PB220/PB232 Performance Specs
![](https://www.tolomatic.com/wp-content/uploads/2022/06/6d505293796b4b35b19e11086d30b6b0-orig-762x1024.jpg)
PB & PB2 Switches
![](https://www.tolomatic.com/wp-content/uploads/2022/06/9f96b84b4aee4b15b6315e40d44ab1bf-orig-794x1024.jpg)

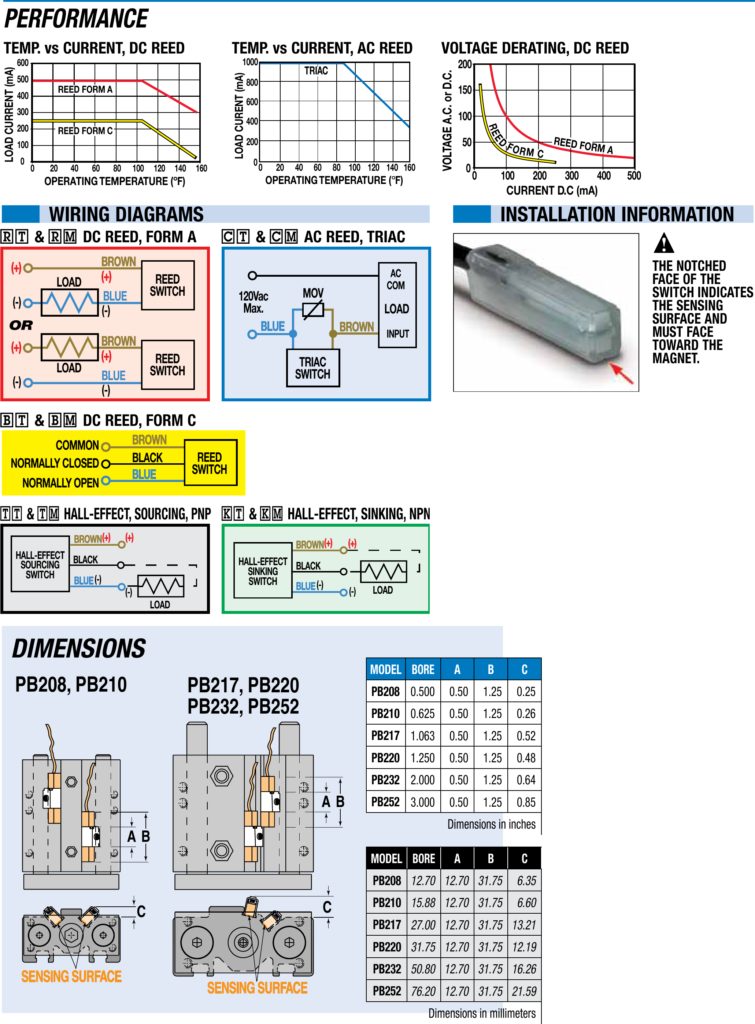

PB & PB2 Switches Performance, Wiring & Dimensions
![](https://www.tolomatic.com/wp-content/uploads/2022/06/09_pneu_23_PB8-756x1024.png)

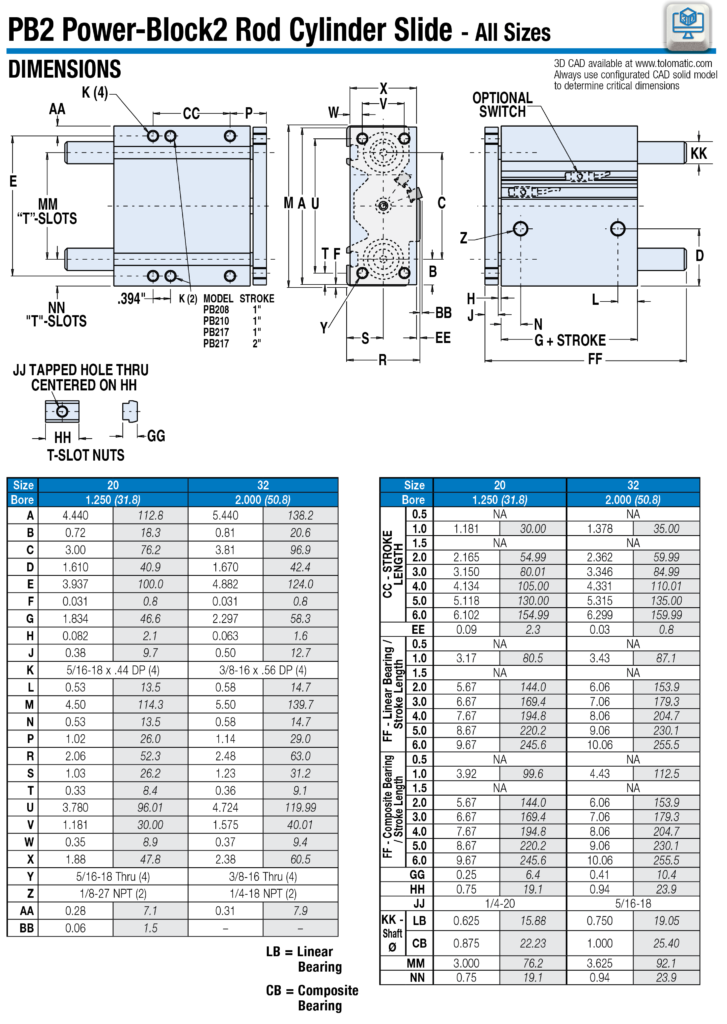

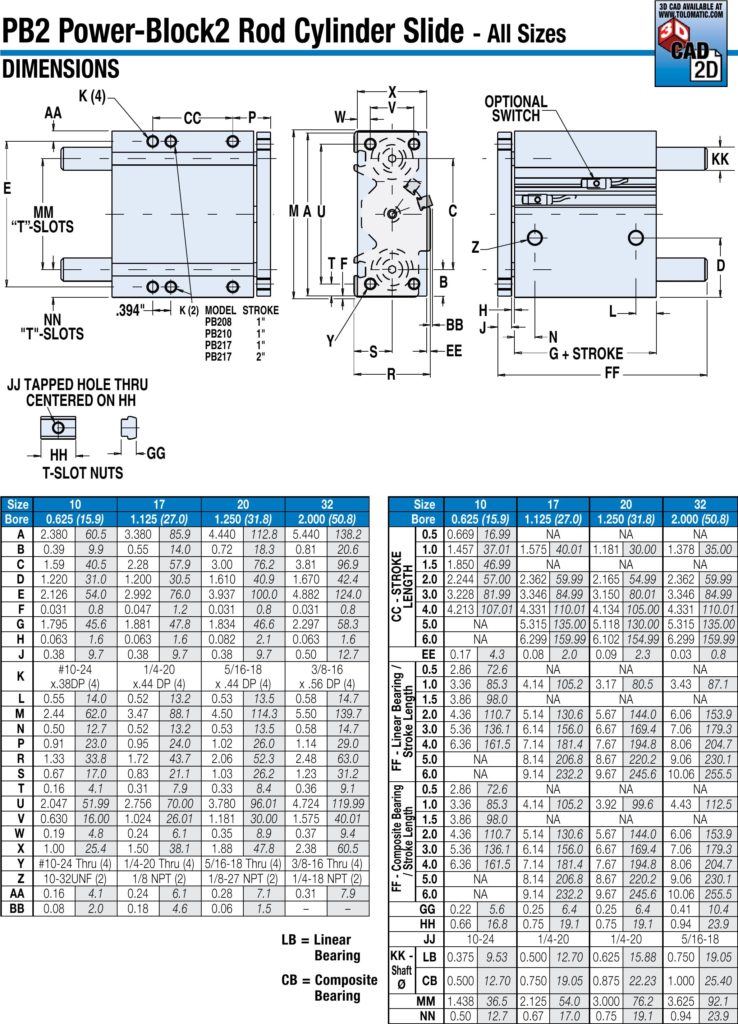

PB2 Dimensions
![](https://www.tolomatic.com/wp-content/uploads/2022/06/09_pneu_25_PB-13-787x1024.png)
Information Center:
English
Chinese
German
Spanish
Catalogs & Brochures
- Power-Block, PB2 Catalog
- SOLUCIONES DE CONTROL DE MOVIMIENTO (Spanish, Corporate Overview-Motion Control Solutions Brochure)
- Unternehmensübersicht (German, Corporate Overview brochure)
- Brochure sur l'entreprise Tolomatic (French, Corporate Overview-Linear Motion Solutions Brochure)
- Pneumatic Actuator Catalog
- OEM Actuator Solutions Brochure
Guides
Parts & Maintenance Sheets
Terms & Conditions
Application Checklists
Use the links below to locate a Tolomatic distributor in your area, find out more information on how to specify and configure your actuator, service parts information, and selection guidelines and tips.
Find a Tolomatic distributor

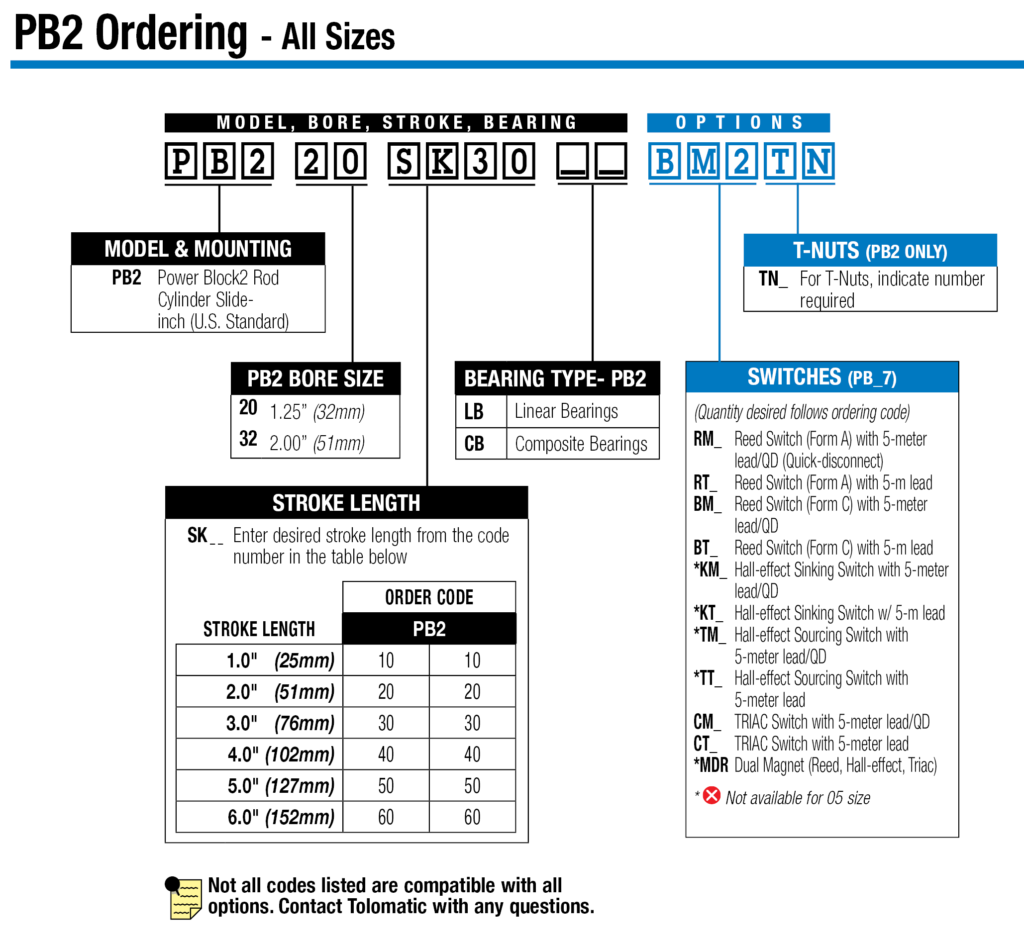

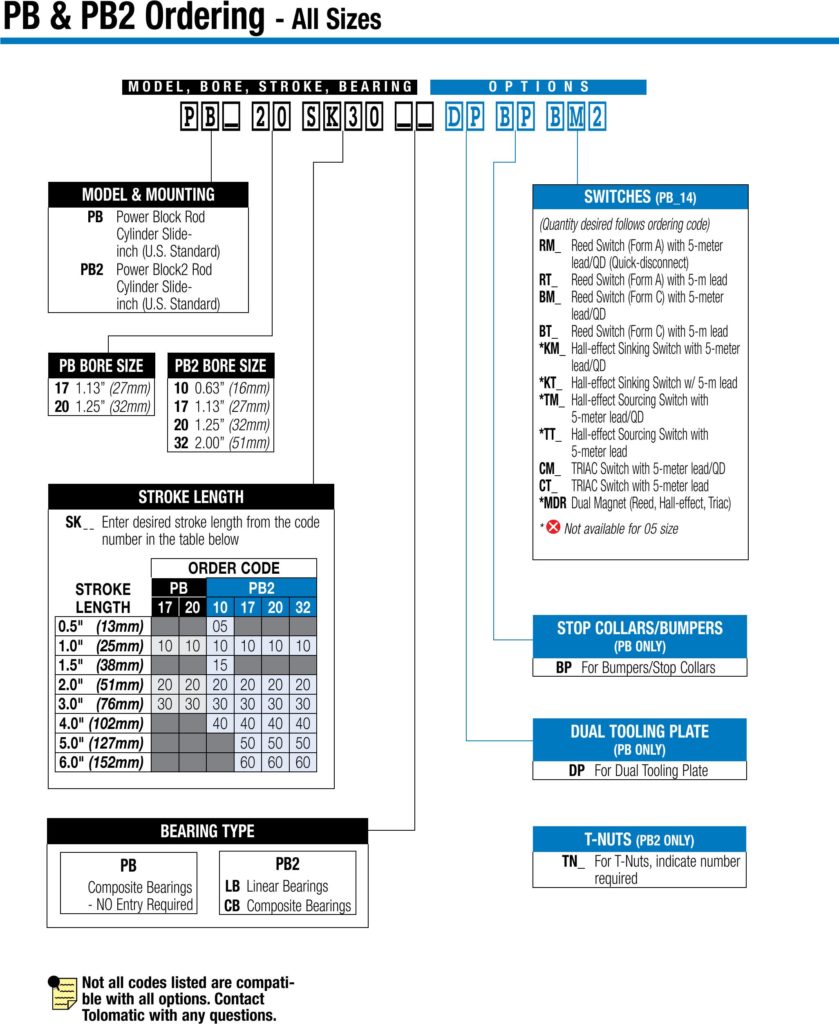

PB & PB2 Ordering
![](https://www.tolomatic.com/wp-content/uploads/2022/06/09_pneu_25_PB-20-759x1024.png)

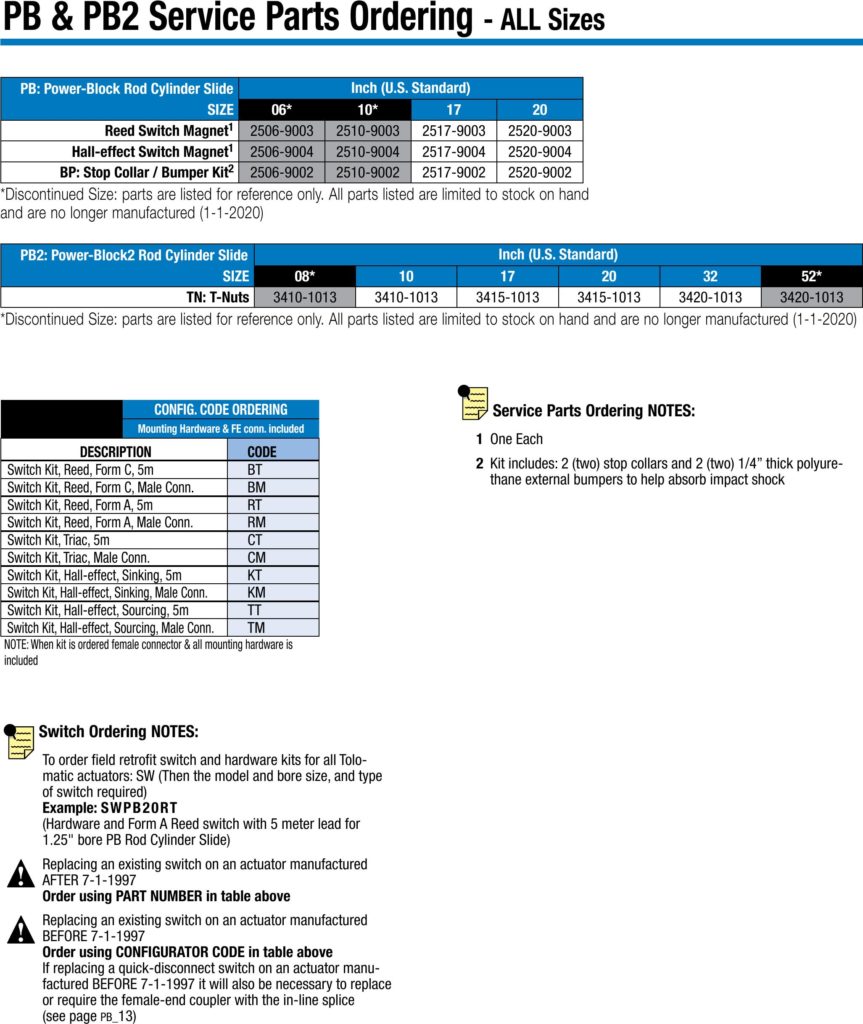

PB & PB2 Service Parts Ordering
![](https://www.tolomatic.com/wp-content/uploads/2022/06/09_pneu_25_PB-19-870x1024.png)

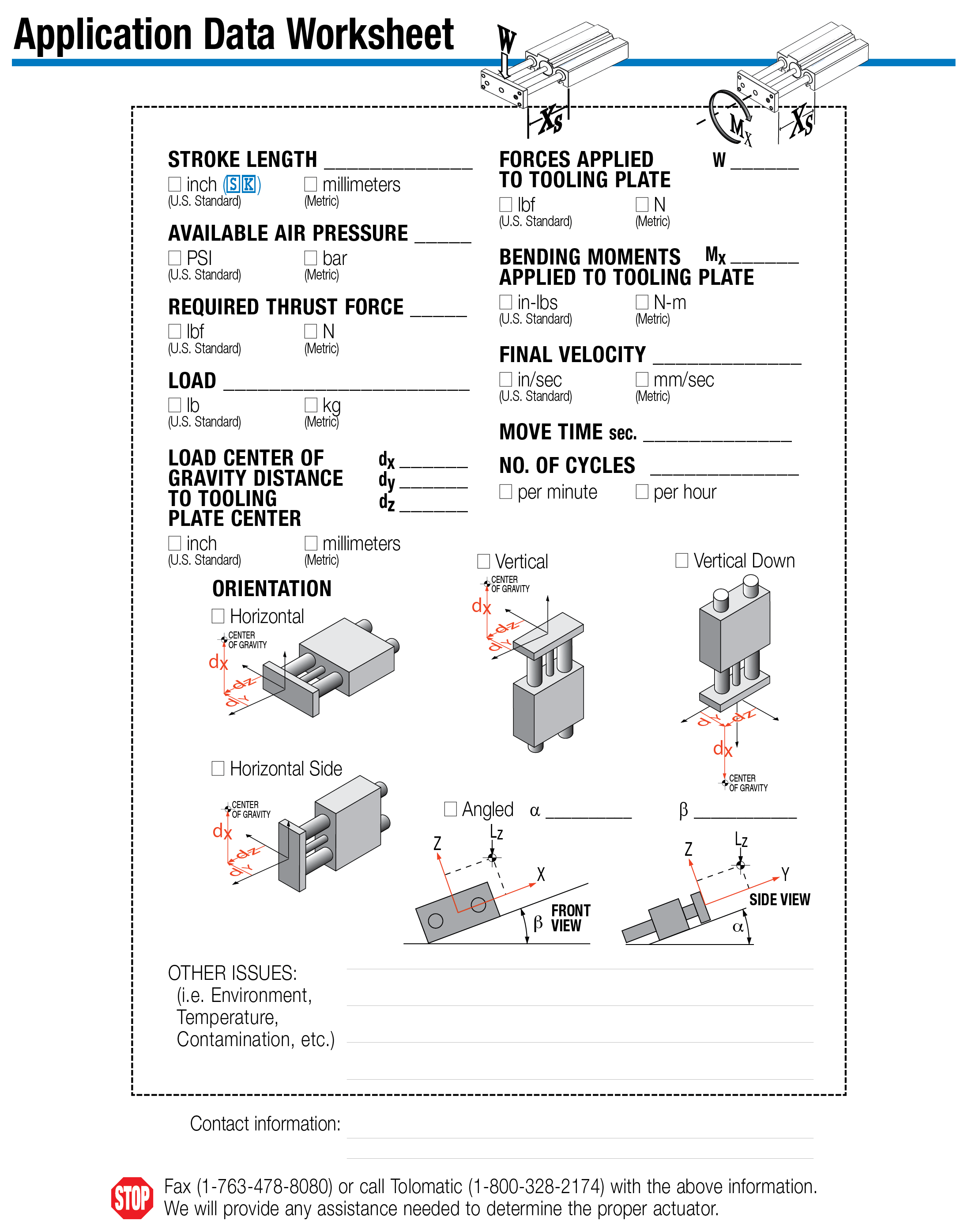

PB2 Application Data Worksheet
