H/ME20 Series Hydraulic/Mechanical Brake
The H/ME20 hydraulic and mechanical brakes are single acting and can be specified with long, short, or machined cam levers.
- Durable aluminum construction
- Replaceable high-grade friction material
- Optional Buna-N seals and floating bracket
- Maximum disc diameter of 16 inches (406 mm)
H/ME20 Features

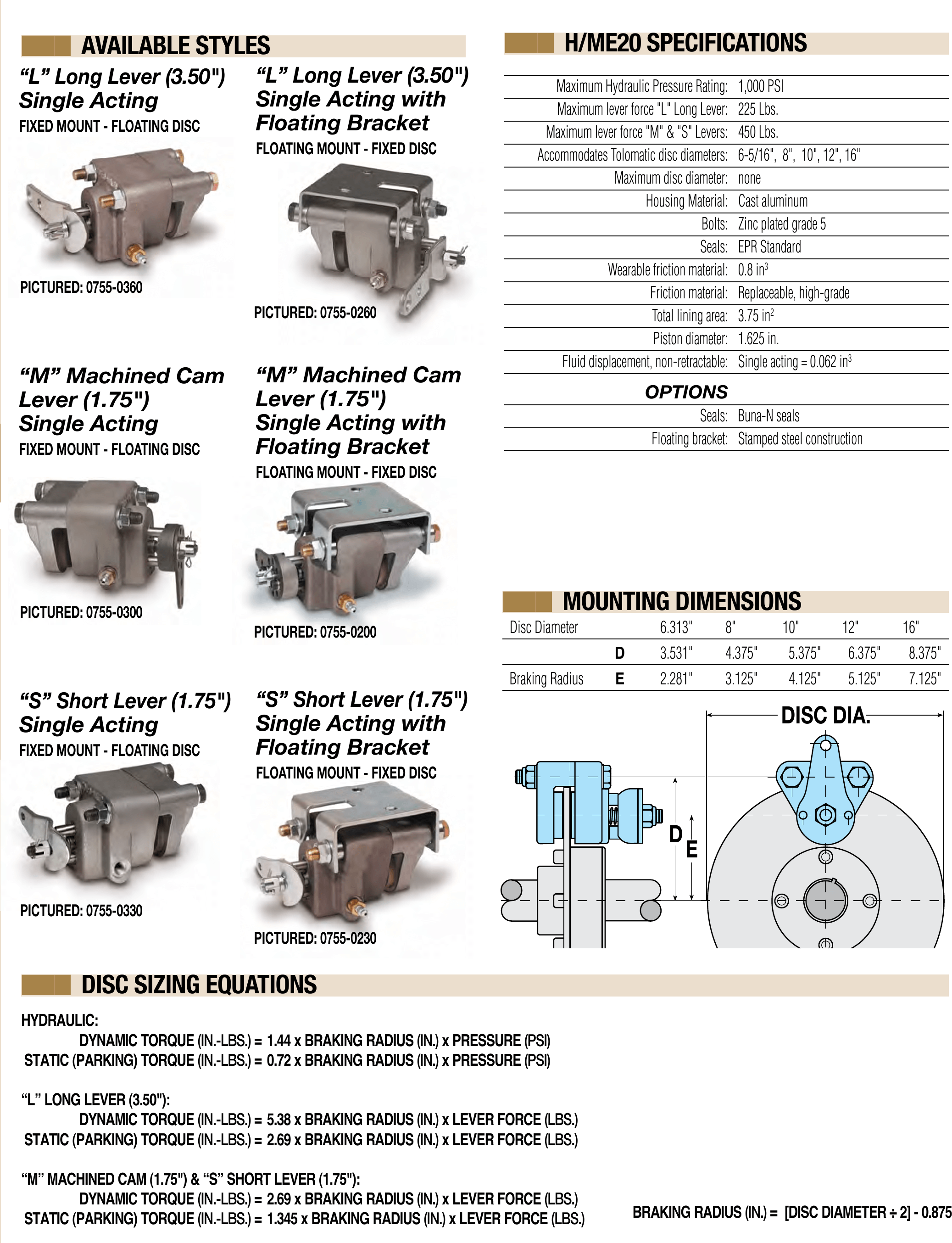

H/ME20 General Specs & Sizing
H/ME20 Performance Data

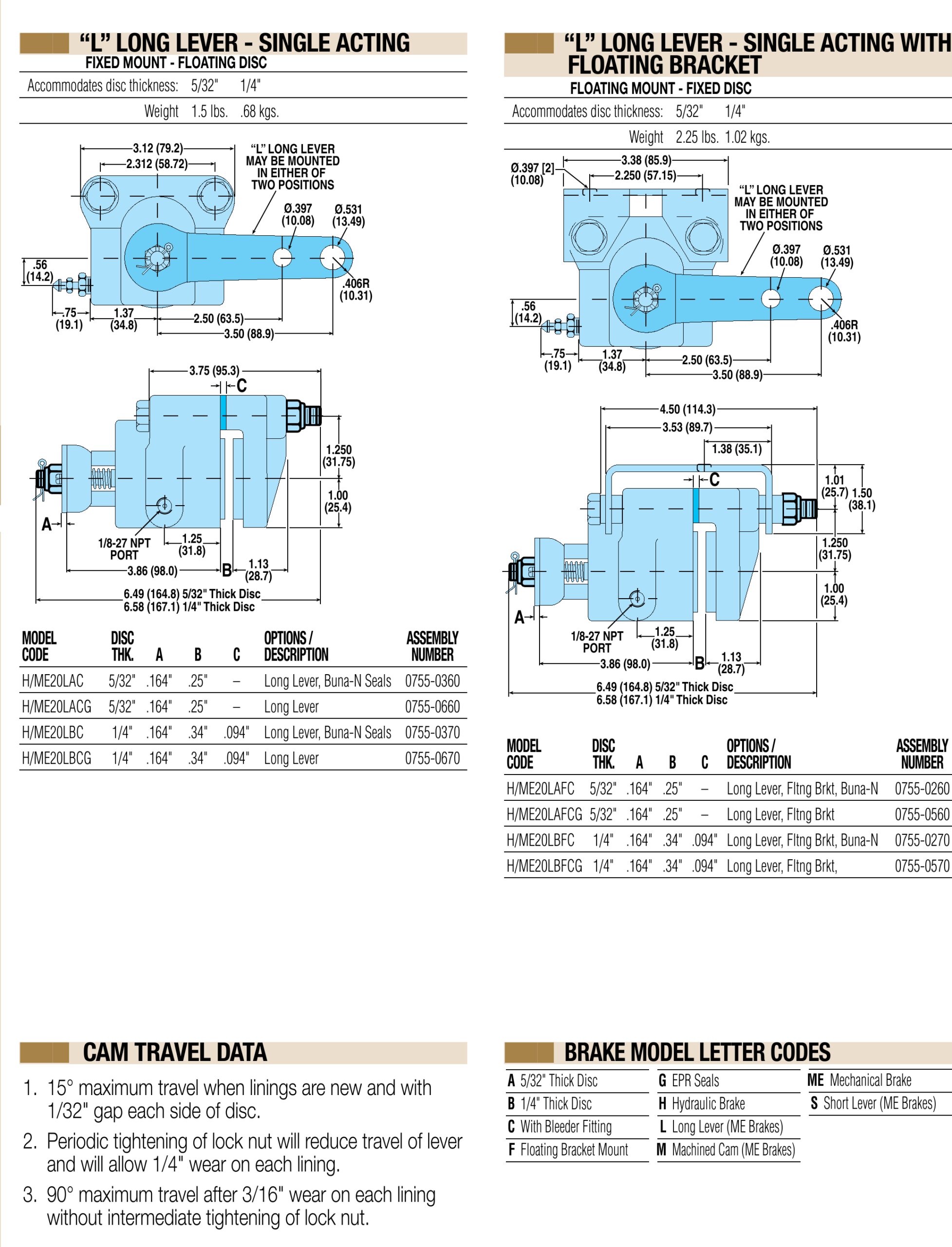

H/ME20 Long Lever Dimensions
H/ME20 Machined CAM & Short Lever Dimensions
Online Ordering
| Part # | Description | Model Code | "A" (in) | "B" (in) | "C" (in) | Disc Thickness (in) | Cart |
|---|---|---|---|---|---|---|---|
| 0755-0660 | Long Lever | HME20LACG | 0.16 | 0.25 | - | 5/32 |  |
| 0755-0370 | Long Lever, Buna-N Seals | HME20LBC | 0.16 | 0.34 | 0.09 | 1/4 | |
| 0755-0670 | Long Lever | HME20LBCG | 0.16 | 0.34 | 0.09 | 1/4 | |
| 0755-0260 | Long Lever, Floating Bracket, Buna-N Seals | HME20LAFC | 0.16 | 0.25 | - | 5/32 | |
| 0755-0560 | Long Lever, Floating Bracket | HME20LAFCG | 0.16 | 0.25 | - | 5/32 | |
| 0755-0270 | Long Lever, Floating Bracket, Buna-N Seals | HME20LBFC | 0.16 | 0.34 | 0.09 | 1/4 | |
| 0755-0570 | Long Lever, Floating Bracket | HME20LBFCG | 0.16 | 0.34 | 0.09 | 1/4 | |
| 0755-0300 | Machined Cam, Buna-N Seals | HME20MAC | 0.11 | 0.25 | - | 5/32 | |
| 0755-0600 | Machined Cam | HME20MACG | 0.11 | 0.25 | - | 5/32 | |
| 0755-0310 | Machined Cam, Buna-N Seals | HME20MBC | 0.11 | 0.34 | 0.09 | 1/4 | |
| 0755-0610 | Machined Cam | HME20MBCG | 0.11 | 0.34 | 0.09 | 1/4 | |
| 0755-0510 | Machined Cam, Floating Bracket | HME20MBFCG | 0.11 | 0.34 | 0.09 | 1/4 | |
| 0755-0630 | Short Lever | HME20SACG | 0.16 | 0.25 | - | 5/32 | |
| 0755-0640 | Short Lever | HME20SBCG | 0.16 | 0.34 | 0.09 | 1/4 | |
| 0755-0230 | Short Lever, Floating Bracket, Buna-N Seals | HME20SAFC | 0.16 | 0.25 | - | 5/32 | |
| 0755-0530 | Short Lever, Floating Bracket | HME20SAFCG | 0.16 | 0.25 | - | 5/32 | |
| 0755-0540 | Short Lever, Floating Bracket | HME20SBFCG | 0.16 | 0.34 | 0.09 | 1/4 | |
