Float-A-Shaft® 2 to 1 Ratio Right Angle Gearboxes with Low Torque Journal Bearing

The Float-A-Shaft® 2 to 1 low torque right angle gearbox offers maximum torques up to  720 in-lbs (81.4 Nm) depending on input RPMs. Models available with standard mounts and flat mounts.

  • Slides along shafting limited only by keyway length
  • Precision finish on mating surfaces for tight metal-to-metal assembly
  • Case forming lubricant reservoir
  • Races are keyed to shaft for simultaneous rotation

Float-a-Shaft: Standard 2:1 Low Torque Features

Float-a-Shaft: Standard 2:1 Low Torque Specs

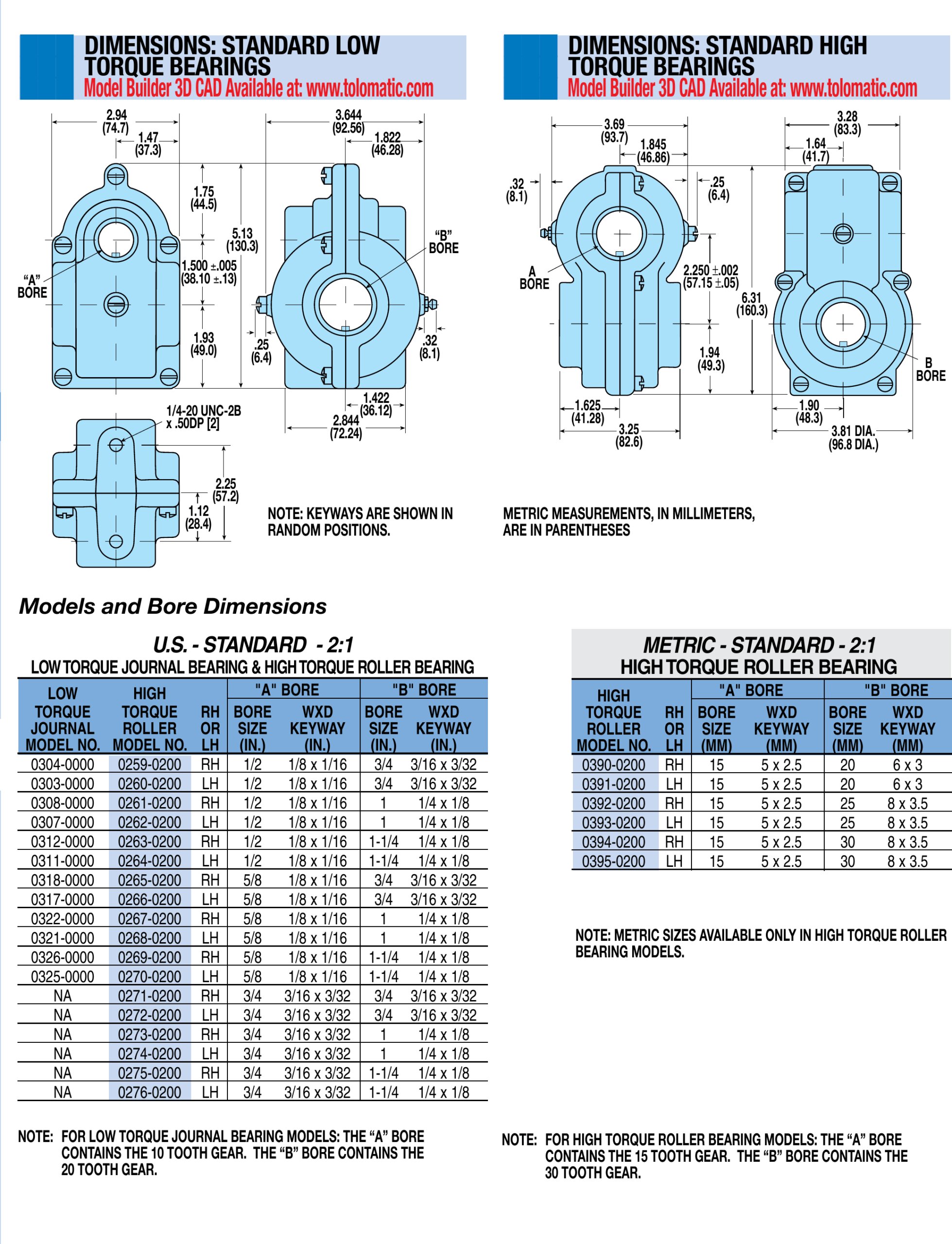

Float-a-Shaft: Standard 2:1 Low Torque Dimensions

Float-a-Shaft: Standard 2:1 Low Torque Flat Base Dimensions

Float-a-Shaft Rotation & Installation Guidelines

Online Ordering

Part # Description Mount TypeRotation"A" Bore Size"A" Bore Keyway"B" Bore Size"B" Bore Keyway Cart
0304-0000 Float-a-Shaft: Standard 2:1 Ratio with Low Torque Journal Bearing (U.S. Customary) Standard MountRH1/2"1/8" x 1/16"3/4"3/16" x 3/32"
0303-0000 Float-a-Shaft: Standard 2:1 Ratio with Low Torque Journal Bearing (U.S. Customary) Standard MountLH1/2"1/8" x 1/16"3/4"3/16" x 3/32"
0308-0000 Float-a-Shaft: Standard 2:1 Ratio with Low Torque Journal Bearing (U.S. Customary) Standard MountRH1/2"1/8" x 1/16"1"1/4" x 1/8"
0307-0000 Float-a-Shaft: Standard 2:1 Ratio with Low Torque Journal Bearing (U.S. Customary) Standard MountLH1/2"1/8" x 1/16"1"1/4" x 1/8"
0312-0000 Float-a-Shaft: Standard 2:1 Ratio with Low Torque Journal Bearing (U.S. Customary) Standard MountRH1/2"1/8" x 1/16"1-1/4"1/4" x 1/8"
0311-0000 Float-a-Shaft: Standard 2:1 Ratio with Low Torque Journal Bearing (U.S. Customary) Standard MountLH1/2"1/8" x 1/16"1-1/4"1/4" x 1/8"
0318-0000 Float-a-Shaft: Standard 2:1 Ratio with Low Torque Journal Bearing (U.S. Customary) Standard MountRH5/8"1/8" x 1/16"3/4"3/16" x 3/32"
0317-0000 Float-a-Shaft: Standard 2:1 Ratio with Low Torque Journal Bearing (U.S. Customary) Standard MountLH5/8"1/8" x 1/16"3/4"3/16" x 3/32"
0322-0000 Float-a-Shaft: Standard 2:1 Ratio with Low Torque Journal Bearing (U.S. Customary) Standard MountRH5/8"1/8" x 1/16"1"1/4" x 1/8"
0321-0000 Float-a-Shaft: Standard 2:1 Ratio with Low Torque Journal Bearing (U.S. Customary) Standard MountLH5/8"1/8" x 1/16"1"1/4" x 1/8"
0326-0000 Float-a-Shaft: Standard 2:1 Ratio with Low Torque Journal Bearing (U.S. Customary) Standard MountRH5/8"1/8" x 1/16"1-1/4"1/4" x 1/8"
0325-0000 Float-a-Shaft: Standard 2:1 Ratio with Low Torque Journal Bearing (U.S. Customary) Standard MountLH5/8"1/8" x 1/16"1-1/4"1/4" x 1/8"

Application Checklists

Use the links below to locate a Tolomatic distributor in your area, find out more information on how to specify, service parts information, and selection guidelines and tips.

Find a Tolomatic distributor

Float-a-Shaft Rotation & Selection Guidelines
