Packaging & Labeling

Plastics Thermoforming

Application Description
Open and close door on a clam shell vacuum sealer used for plastics thermoforming.

Case Packing Changeover

Product Family: Electric
Product Used: RSA Rod Actuator

Cosmetic Powder Forming/Pressing/Packing

Product Family: Electric
Product Used: RSA50 Rod Actuator with RP

Powder Filling

Challenge: Filling a variety of container sizes.
Product Family: Electric
Product Used: ACSI & ERD Actuator

Bag Positioning

Challenge: Accommodate bags of different sizes for filling and sealing.
Product Family: Electric
Product Used: B3S10 Rodless Screw Actuator

Carton Filling

Challenge: Position and fill cartons with correct product count.
Product Family: Electric
Product Used: MXB-P

Can Lid Transfer

Challenge: Pick and place can lid transfer for handling and packaging equipment
Product Family: Electric
Product Used: MXB

Box/Tray Former

Challenge: Corrugated box/tray former
Product Family: Electric
Product Used: RSA Rod-Style Actuator

Rotary Chuck Capping

Challenge: Rotary chuck capping system
Product Family: Electric
Product Used: B3S15

Case Positioning

Challenge: Case positioning of empty bottles for preparation of filling process
Product Family: Electric
Product Used: ERD Electric Actuator with ACSI motor/drive

Palletizing Can Lids

Challenge: Indexing can lids in preparation for palletizing by a pick & place robot.
Product Family: Electric
Product Used: MXB Rodless Belt-Drive Actuator with ACSI Integrated Servo Motor

Material Handling Solutions Brochure

Gantry & Multi-Axis Solutions Brochure

OEM Actuator Solutions Brochure

Electric screw actuators from Tolomatic improve accuracy and productivity of Thiele modular bagging system

Belt-drive actuators from Tolomatic deliver speed and positioning accuracy for innovative packaging technology

Machine Design webinar “Webinar: Electric Actuator Know-How for Machine Design Engineers”

Best Practices for Applying Electric Actuators in Hygienic Equipment

Multi-Axis Gantry Actuator Systems & Applications

RSA-HT Heavy Duty, High Force Electric Rod Linear Actuators

The RSA-HT heavy duty electric rod linear actuator accommodates larger motors and delivers high force with excellent accuracy and high speed. These high force electric linear actuators feature ball or roller screw selections, an enhanced high thrust bearing, and heavy duty internal bumpers. The standard grease zerk extends screw life by making relubrication easy and convenient without disassembly. RSA-HT actuators are suitable for valve actuation, punch press, injection molding and a wide range of other application.

ERD Low-cost Electric Cylinders for Pneumatic Cylinder Replacement

Economical electric rod cylinder that is compatible with NEMA & metric mount stepper and servo motors. Ideal for pneumatic replacement. Forces up to 500 lbf (2.2 kN).

B3S Ball Screw Linear Actuators

Tolomatic B3S ball screw linear actuators have an enclosed ball bearing design that accommodates heavy loads, high bending moments to deliver long service life.

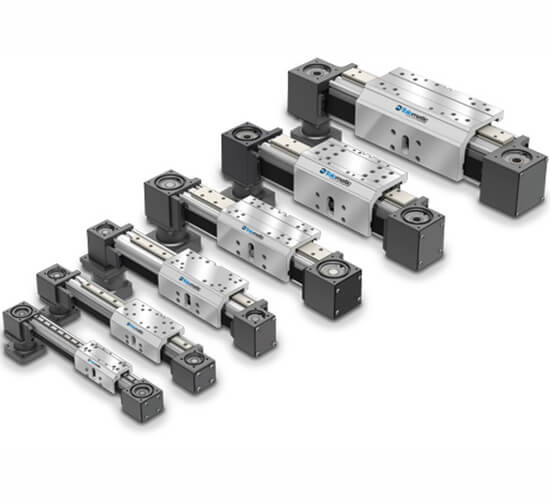

MXB-P Heavy Duty Linear Actuator

Linear actuator that uses a profiled rail bearing and belt drive train to move heavy loads at high speeds. Loads up to 1,290 lbs (586 kg).

GSA Linear Slide Actuators

Design that combines an electric rod actuator with guide rods, mounting blocks, and bearings. Ideal for applications requiring guidance and support of the load. Forces up to 950 lbf (4.2 kN).
