P20 Series Pneumatic Caliper Brake

The P20 pneumatic brake series provides up to 1000 in-lbs (113 Nm) of torque at a maximum pressure of 100 PSI (6.9 bar). The P20 pneumatic brake series offers single acting and double acting models.

  • Durable aluminum construction
  • Replaceable high-grade friction material
  • Buna-N seals are standard with EPR and Viton® seals as optional
  • Accommodates disc diameters up to 16 inches (406 mm)
  • Other options include retractable pistons and floating bracket

P20 Features

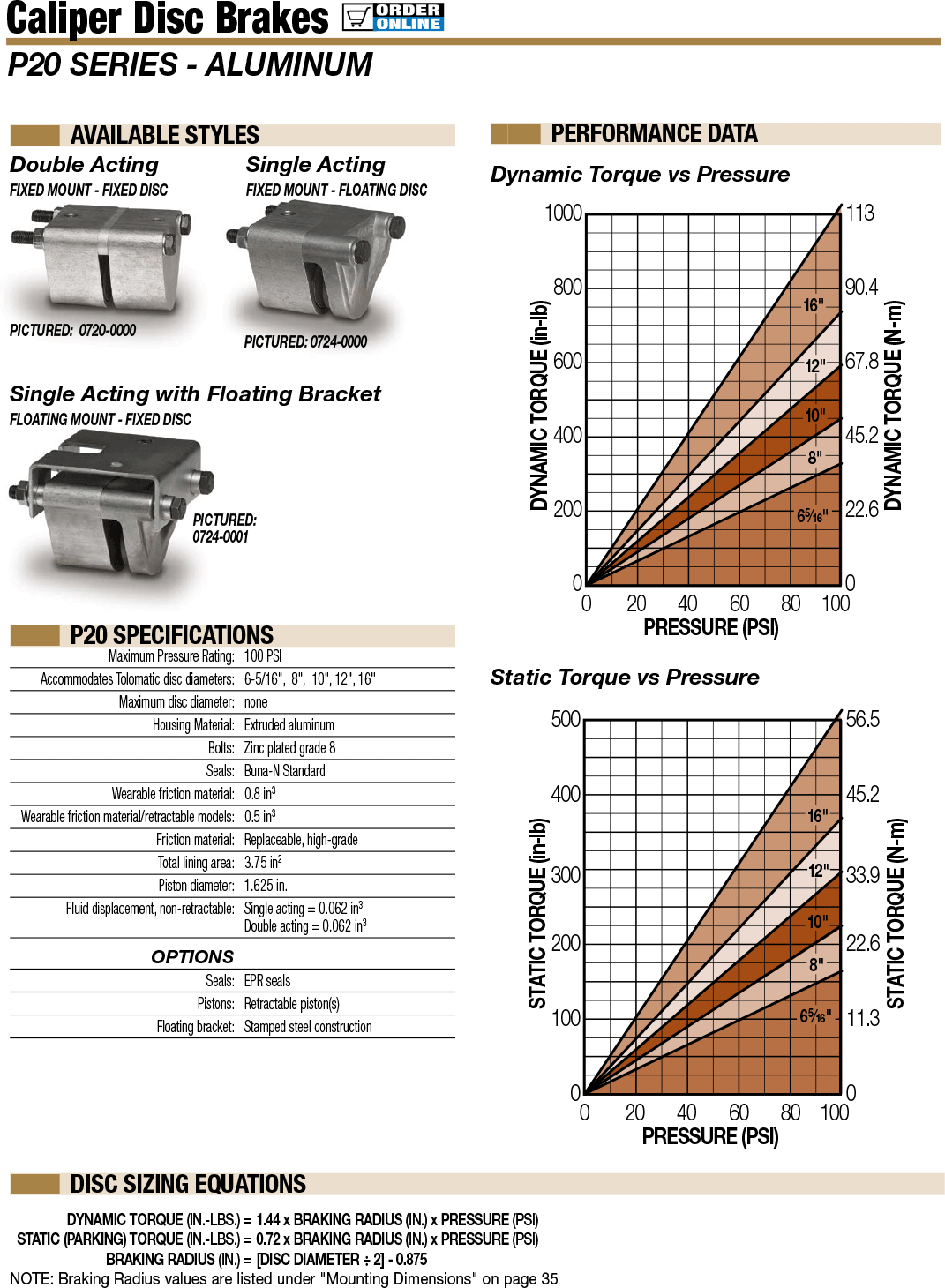

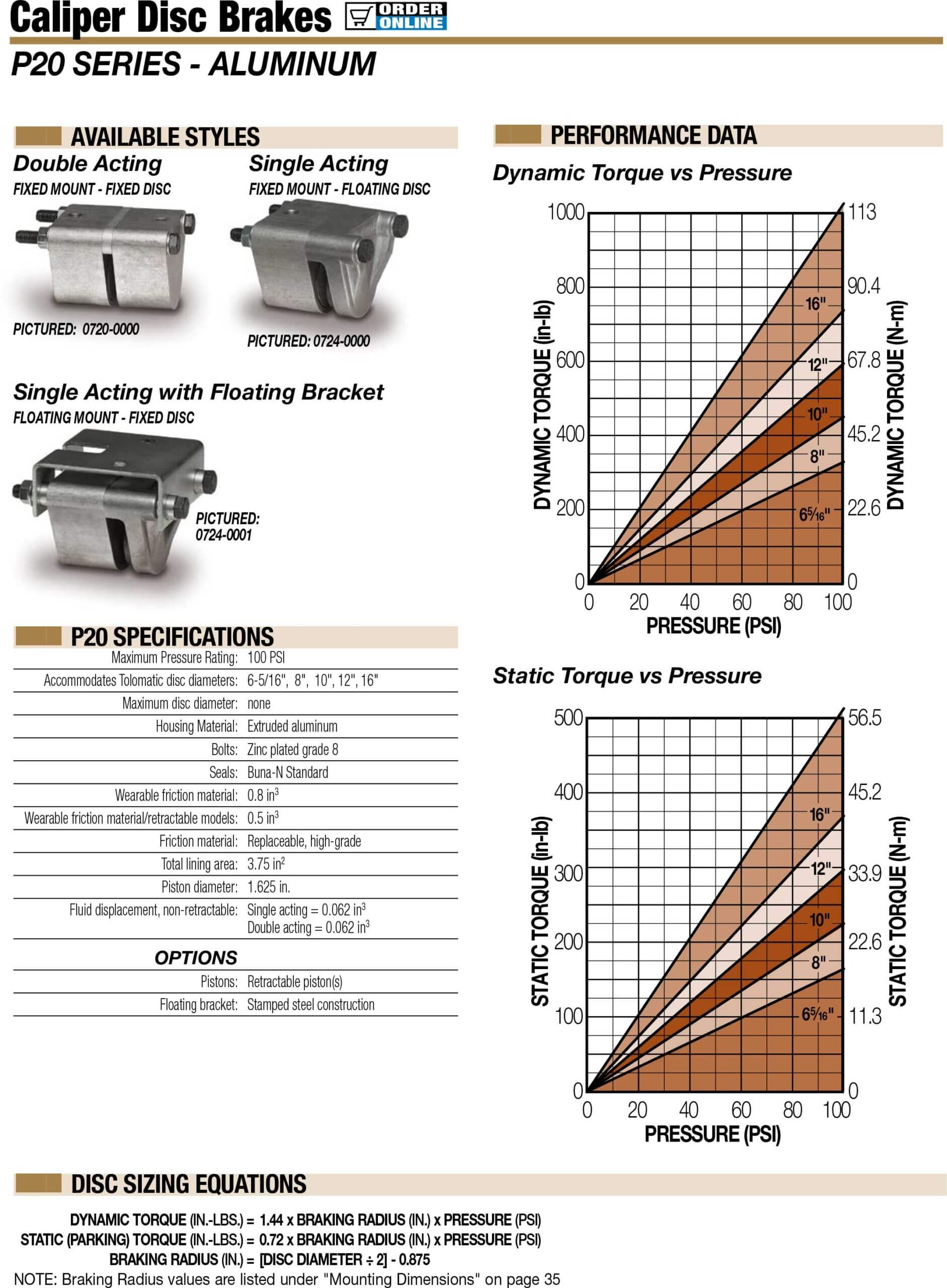

P20 Specs and Torque

P20 Dimensions

Online Ordering

Part # Description Disc Thickness (in)"A" (in)"B" (in)Model Code"C" (in)"D" (in) Cart
0720-0000 Double Acting 5/323.410.28P20DA--
0728-0000 Double Acting, Retractable Pistons 5/323.410.28P20DAR--
0721-0000 Double Acting 1/43.500.38P20DB--
0729-0000 Double Acting, Retractable Pistons 1/43.500.38P20DBR--
0720-0013 Double Acting 3/83.620.50P20DL--
0729-0001 Double Acting, Retractable Pistons 3/83.620.50P20DLR--
0725-0000 Double Acting 1/23.750.63P20DE--
0719-0000 Double Acting, Retractable Pistons 1/23.750.63P20DER--
0724-0000 Single Acting 5/32--P20SA2.94-
0722-0000 Single Acting 1/4--P20SB3.030.09
0722-0002 Single Acting 3/8--P20SL3.160.22
0724-0001 Single Acting, Floating Bracket 5/32--P20SAF2.94-
0722-0001 Single Acting, Floating Bracket 1/4--P20SBF0.093.03
Shrimp Processing & Peeling

Product Family: Power Transmission
Product Used: P20 Caliper Disc Brake
