ME220 Series Mechanical Disc Brake
The ME220 mechanical disc brake series provides up to 31,100 in-lbs (3503 Nm) of torque. ME220 mechanical disc brakes are single acting and available in fixed mount and floating disc or floating mount with fixed disc models.
- Durable aluminum or cast iron construction
- Replaceable high-grade friction material
- Accommodates disc diameters up to 16 inches (406 mm)
- Optional floating bracket

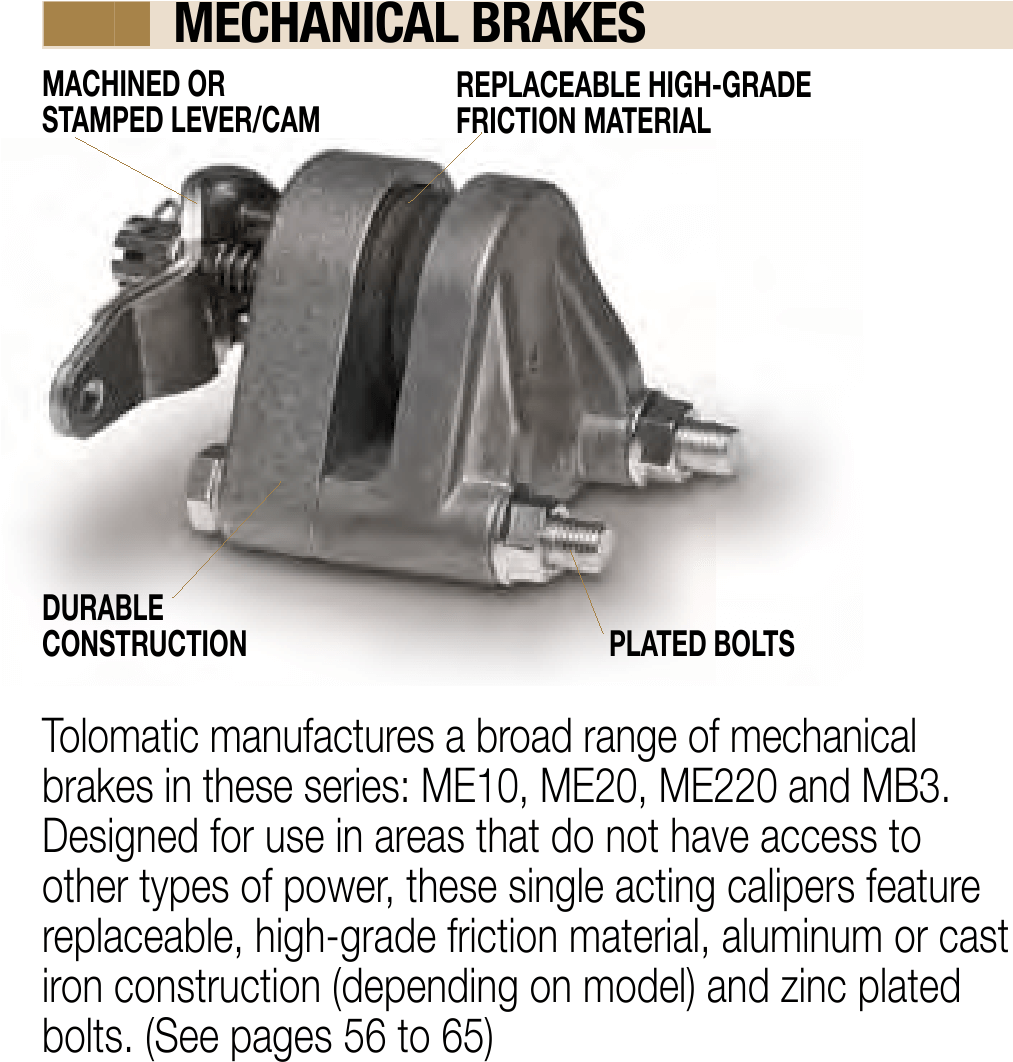

ME220 Features

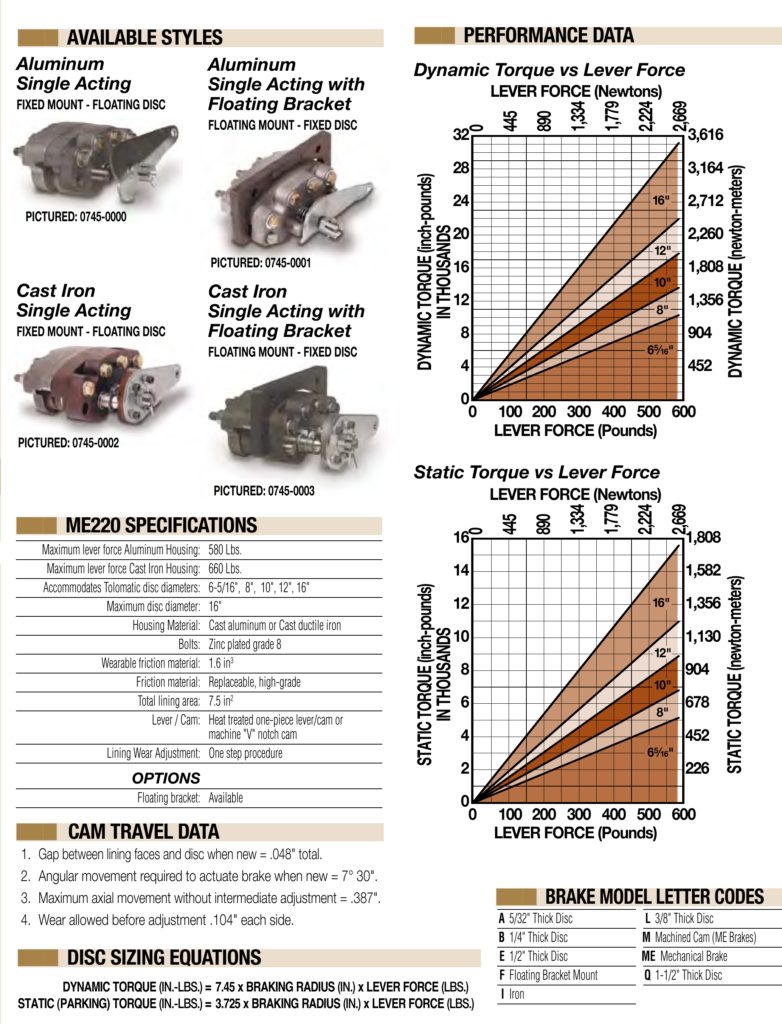

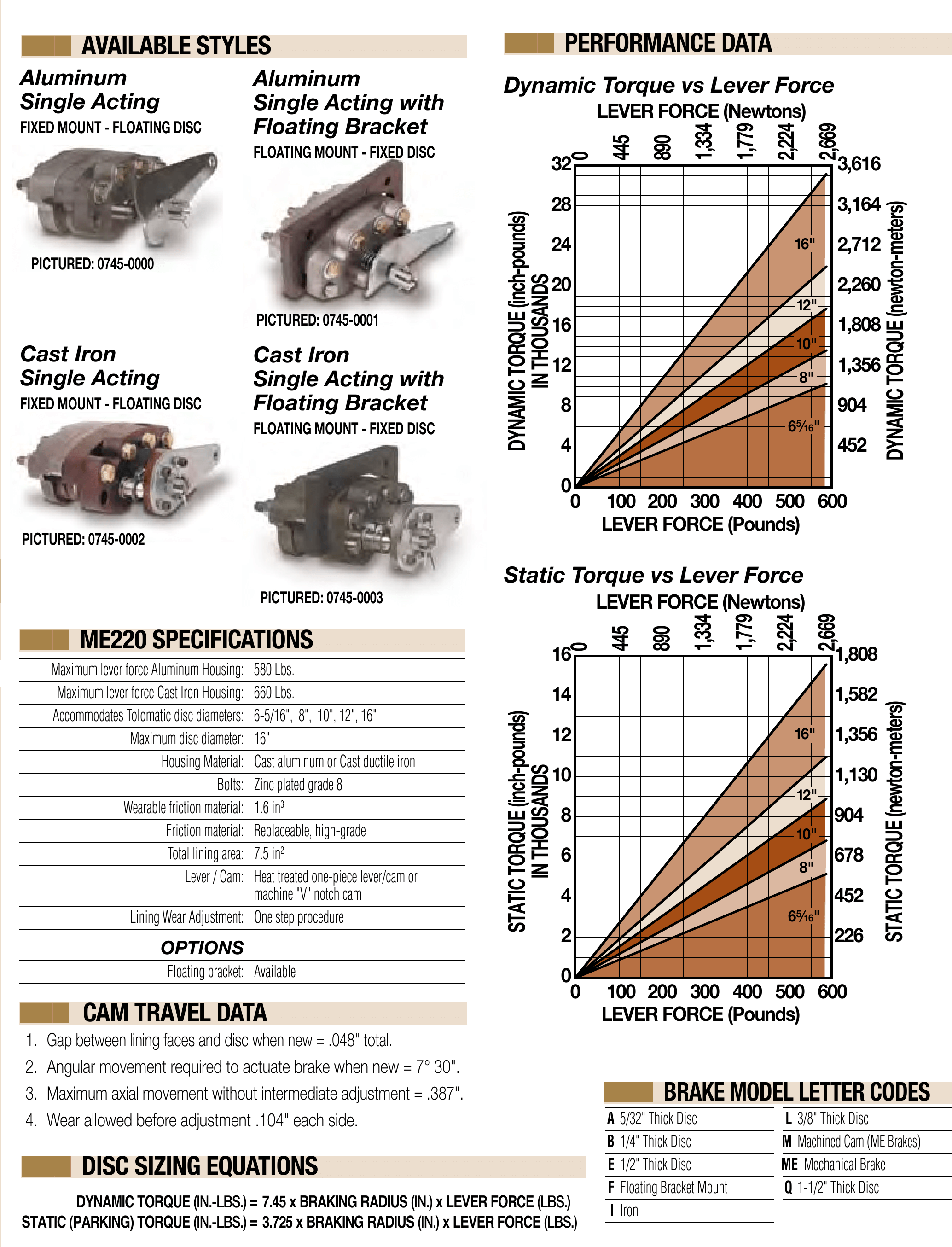

ME220 Specs & Torque
ME220 Dimensions
Online Ordering
| Part # | Description | Model Code | "A" (in) | "B" (in) | "C" (in) | Disc Thickness (in) | Cart |
|---|---|---|---|---|---|---|---|
| 0745-0000 | Mechanical Brake | ME220A | - | 3.03 | 5.12 | 5/32 |  |
| 0745-0002 | Machined Cam, Cast Iron | ME220MAI | 0.50 | 3.45 | 5.64 | 5/32 | |
| 0745-0010 | Mechanical Brake | ME220B | 0.09 | 3.13 | 5.22 | 1/4 | |
| 0745-0012 | Machined Cam, Cast Iron | ME220MBI | 0.59 | 3.55 | 5.73 | 1/4 | |
| 0745-0015 | Mechanical Brake | ME220L | 0.22 | 3.25 | 5.34 | 3/8 | |
| 0745-0020 | Mechanical Brake | ME220E | 0.34 | 3.38 | 5.47 | 1/2 | |
| 0745-0001 | Floating Bracket | ME220AF | - | 3.03 | 5.12 | 5/32 | |
| 0745-0003 | Floating Bracket, Machined Cam, Cast Iron | ME220MAFI | 0.50 | 3.45 | 5.64 | 5/32 | |
| 0745-0011 | Floating Bracket | ME220BF | 0.09 | 3.13 | 5.22 | 1/4 | |
| 0745-0013 | Floating Bracket, Machined Cam, Cast Iron | ME220MBFI | 0.59 | 3.55 | 5.73 | 1/4 | |
| 0745-0008 | Floating Bracket | ME220LF | 0.22 | 3.25 | 5.34 | 3/8 | |
| 0745-0017 | Floating Bracket, Machined Cam, Cast Iron | ME220MLFI | 0.72 | 3.67 | 5.86 | 3/8 | |
| 0745-0021 | Floating Bracket | ME220EF | 0.34 | 3.38 | 5.47 | 1/2 | |
| 0745-0024 | Floating Bracket, Machined Cam, Cast Iron | ME220MEFI | 0.84 | 3.80 | 5.98 | 1/2 | |
| 0745-0026 | Floating Bracket, Machined Cam, Cast Iron | ME220MQFI | 1.84 | 4.80 | 6.98 | 1-1/2 | |
