Fixed Hub & Disc Assemblies
Tolomatic fixed hub and disc assemblies are available with 6-5/16-, 8-, 10-, 12-, and 16-inch discs. Fixed hub and disc assemblies can be used with pneumatic, hydraulic, mechanical, or spring applied disc brakes.
- Carbon 1010 steel disc material
- Hubs are machined from cold rolled steel
- Includes socket head cap screws and keyway set screws
Fixed Hub & Disc Assemblies Features
Fixed Hub & Disc Assemblies Specs & Performance Data

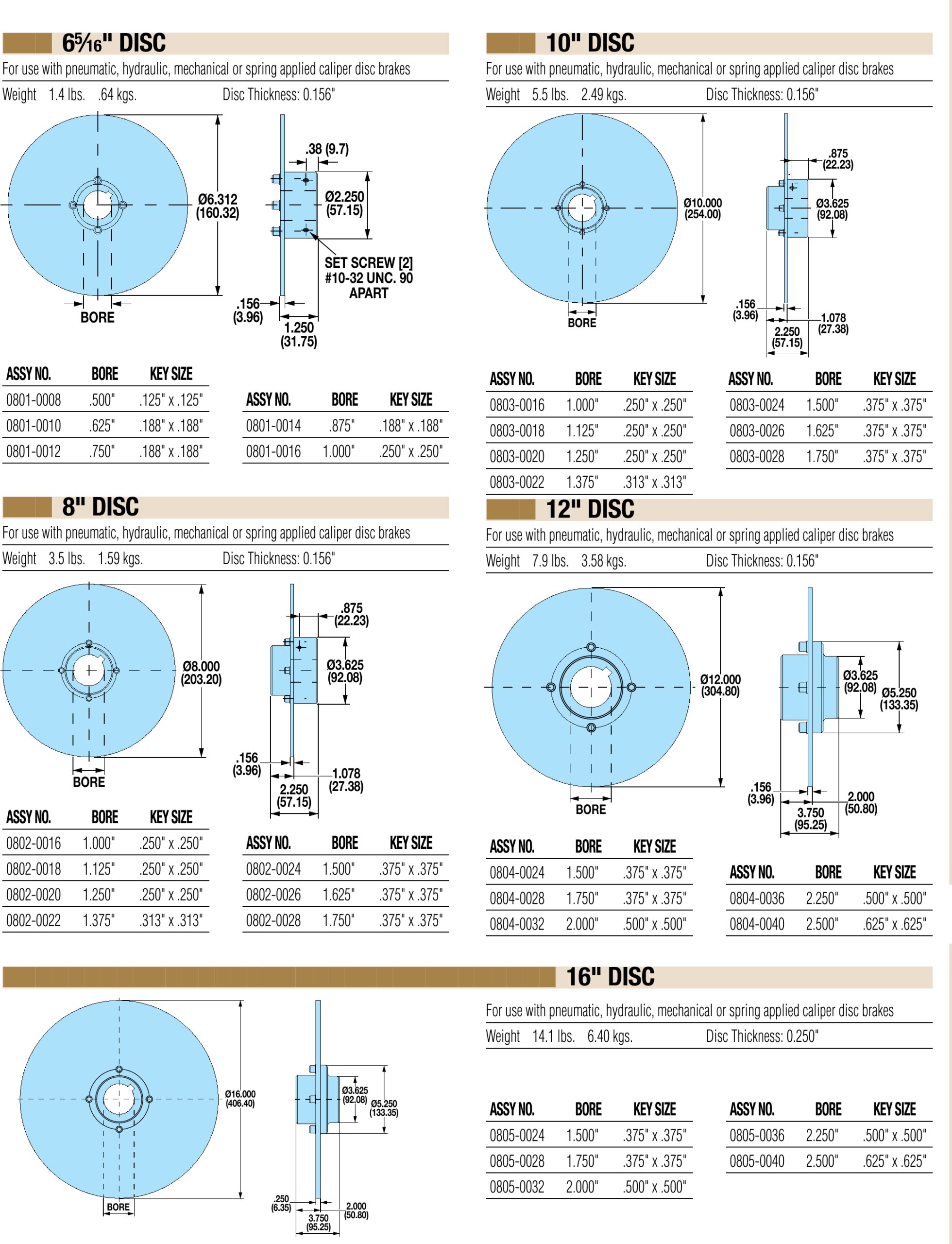

Fixed Hub & Disc Assemblies Dimensions
Online Ordering
| Part # | Description | Weight | Bore (in) | Key Size (in) | Cart |
|---|---|---|---|---|---|
| 0801-0008 | Fixed Hub & Disc Assemblies 6 5/16 | 1.40 | 0.50 | .125 x .125 |  |
| 0801-0010 | Fixed Hub & Disc Assemblies 6 5/16 | 1.40 | 0.63 | .188 x .188 | |
| 0801-0012 | Fixed Hub & Disc Assemblies 6 5/16 | 1.40 | 0.75 | .188 x .188 | |
| 0801-0014 | Fixed Hub & Disc Assemblies 6 5/16 | 1.40 | 0.88 | .188 x .188 | |
| 0801-0016 | Fixed Hub & Disc Assemblies 6 5/16 | 1.40 | 1.00 | .250 x .250 | |
| 0802-0016 | Fixed Hub & Disc Assemblies 8 | 3.50 | 1.00 | .250 x .250 | |
| 0802-0018 | Fixed Hub & Disc Assemblies 8 | 3.50 | 1.13 | .250 x .250 | |
| 0802-0020 | Fixed Hub & Disc Assemblies 8 | 3.50 | 1.25 | .250 x .250 | |
| 0802-0022 | Fixed Hub & Disc Assemblies 8 | 3.50 | 1.38 | .313 x .313 | |
| 0802-0024 | Fixed Hub & Disc Assemblies 8 | 3.50 | 1.50 | .375 x .375 | |
| 0802-0026 | Fixed Hub & Disc Assemblies 8 | 3.50 | 1.63 | .375 x .375 | |
| 0802-0028 | Fixed Hub & Disc Assemblies 8 | 3.50 | 1.75 | .375 x .375 | |
| 0803-0016 | Fixed Hub & Disc Assemblies 10 | 5.50 | 1.00 | .250 x .250 | |
| 0803-0018 | Fixed Hub & Disc Assemblies 10 | 5.50 | 1.13 | .250 x .250 | |
| 0803-0020 | Fixed Hub & Disc Assemblies 10 | 5.50 | 1.25 | .250 x .250 | |
| 0803-0022 | Fixed Hub & Disc Assemblies 10 | 5.50 | 1.38 | .313 x .313 | |
| 0803-0024 | Fixed Hub & Disc Assemblies 10 | 5.50 | 1.50 | .375 x .375 | |
| 0803-0026 | Fixed Hub & Disc Assemblies 10 | 5.50 | 1.63 | .375 x .375 | |
| 0803-0028 | Fixed Hub & Disc Assemblies 10 | 5.50 | 1.75 | .375 x .375 | |
| 0804-0024 | Fixed Hub & Disc Assemblies 12 | 7.90 | 1.50 | .375 x .375 | |
| 0804-0028 | Fixed Hub & Disc Assemblies 12 | 7.90 | 1.75 | .375 x .375 | |
| 0804-0032 | Fixed Hub & Disc Assemblies 12 | 7.90 | 2.00 | .500 x .500 | |
| 0804-0036 | Fixed Hub & Disc Assemblies 12 | 7.90 | 2.25 | .500 x .500 | |
| 0804-0040 | Fixed Hub & Disc Assemblies 12 | 7.90 | 2.50 | .625 x .625 | |
| 0805-0024 | Fixed Hub & Disc Assemblies 16 | 14.10 | 1.50 | .375 x .375 | |
| 0805-0028 | Fixed Hub & Disc Assemblies 16 | 14.10 | 1.75 | .375 x .375 | |
| 0805-0032 | Fixed Hub & Disc Assemblies 16 | 14.10 | 2.00 | .500 x .500 | |
| 0805-0036 | Fixed Hub & Disc Assemblies 16 | 14.10 | 2.25 | .500 x .500 | |
| 0805-0040 | Fixed Hub & Disc Assemblies 16 | 14.10 | 2.50 | .625 x .625 | |
