SWA/SWB ServoWeld® Integrated Actuators
ServoWeld® SWA & SWB integrated servo spot welding Actuators offer light weight with high performance.
Tolomatic’s ServoWeld family of lighter weight integrated servo motor actuators for resistance spot welding (RSW) provide a cost-effective actuator design and best-in-class performance. SWA/B actuators provide users the lowest lifetime cost (lowest cost per spot weld) by providing the highest quality welds (best force repeatability) combined with the longest lasting actuators. ServoWeld SWA/B integrated servo spot welding actuators are highly efficient, and the broad product family has many choices to optimize weight and performance.
SWA/SWB integrated servo motor actuators offer:
- 20+ million cycles for SWA models and 10+ million cycles for SWB
- Standard roller screw with highest dynamic load rating for more welds over competing roller screws, ball screws or pneumatic actuators
- Skewed motor windings designed for welding minimizes motor cogging for the best force repeatability
- Light-weight actuator design
- Forces to 4,000 lbf (17.8 kN)
- Optional water cooling
Features & Ordering
Download the SWA/SWB Brochure for full details on features
ServoWeld® SWA/SWB Integrated Motor Actuator Features
ServoWeld® SWA/SWB Ordering
Specifications
| Specifications | Units | 3 | 4 |
|---|---|---|---|
| Maximum Stroke | in (mm) | 6 (152) | 12 (305) |
| Maximum Force | lbf (kN) | 2,500 (11.1) | 4,950 (22.0) |
| Maximum Speed | in/sec (mm/sec) | 23 (584) | 23 (584) |

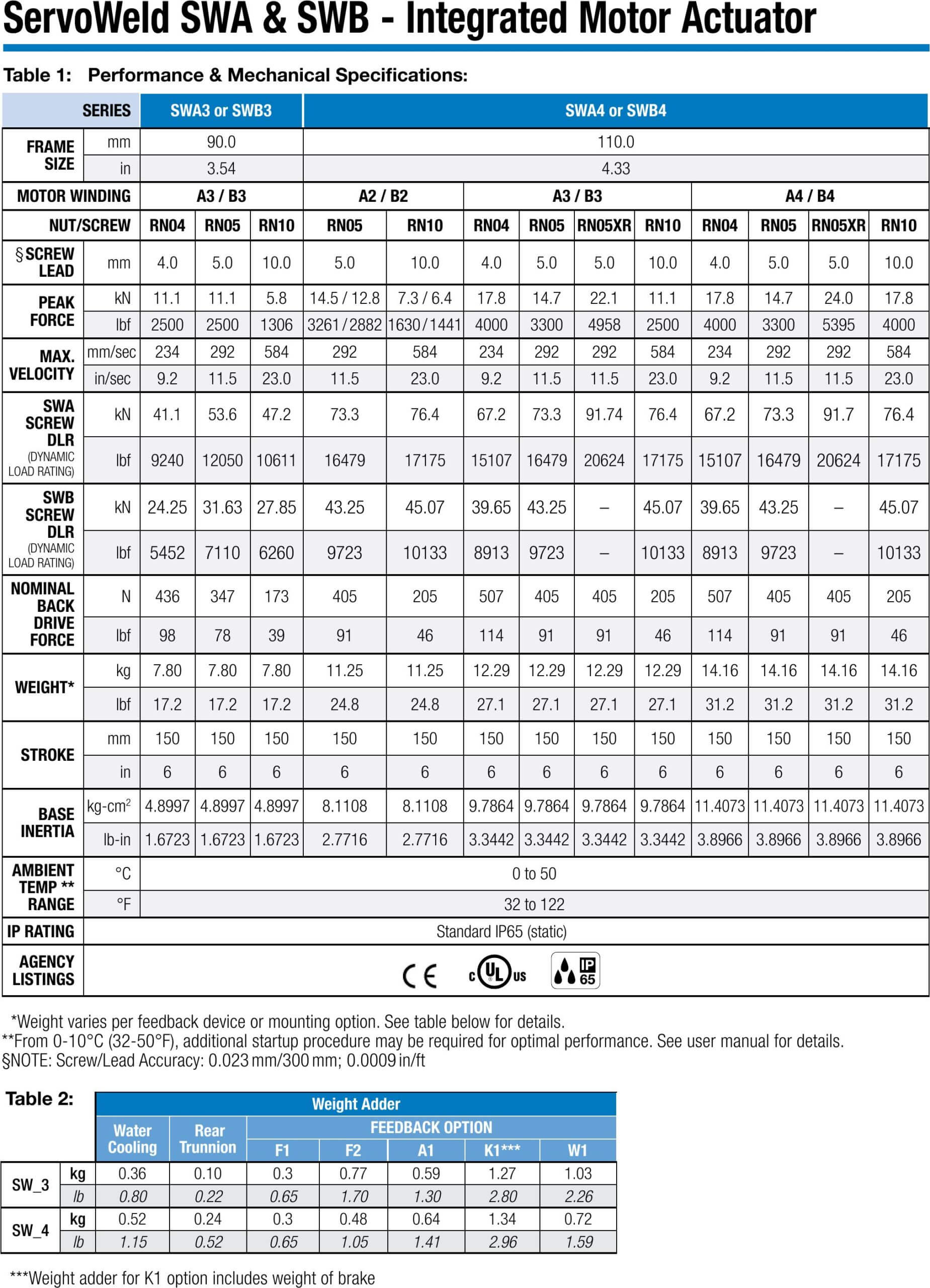

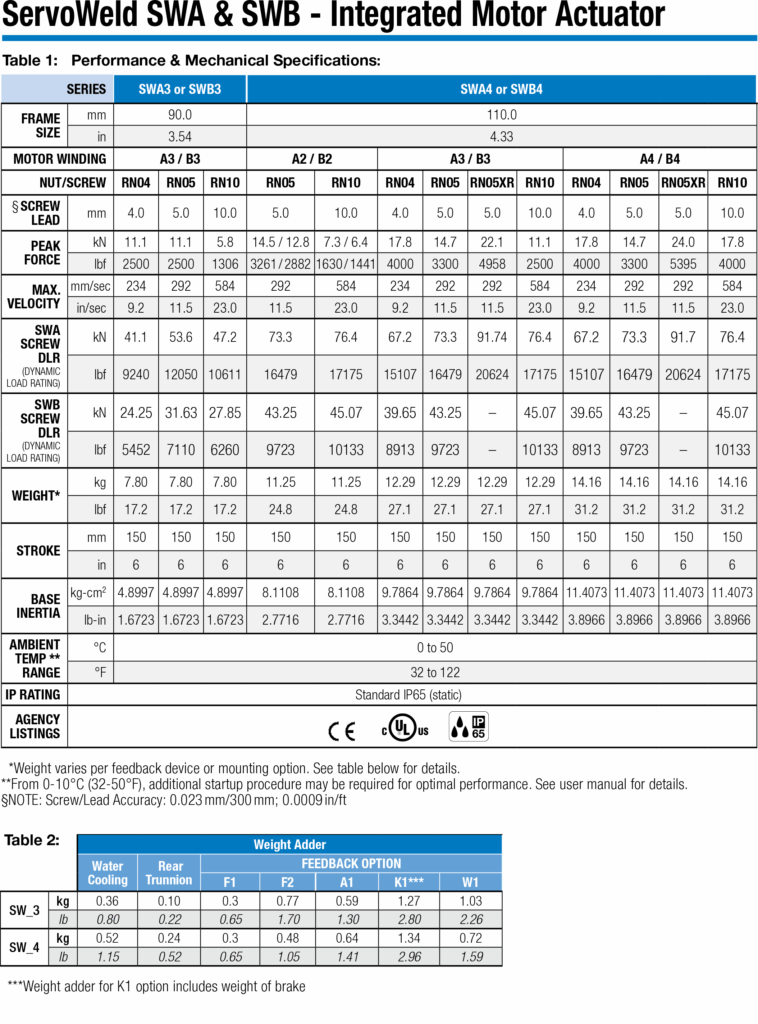

SWA Performance & Mechanical Specifications
| Series | SWA3 or SWB3 | SWA4 or SWB4 | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Frame Size | mm | 90.0 | 110.0 | |||||||||||
| in | 3.54 | 4.33 | ||||||||||||
| Motor Winding | A3 / B3 | A2 / B2 | A3 / B3 | A4 / B4 | ||||||||||
| Nut/Screw | RN04 | RN05 | RN10 | RN05 | RN10 | RN04 | RN05 | RN05XR | RN10 | RN04 | RN05 | RN05XR | RN10 | |
| § Screw Lead | mm | 4.0 | 5.0 | 10.0 | 5.0 | 10.0 | 4.0 | 5.0 | 5.0 | 10.0 | 4.0 | 5.0 | 5.0 | 10.0 |
| Peak Force | kN | 11.1 | 11.1 | 5.8 | 14.5 / 12.8 | 7.3 / 6.4 | 17.8 | 14.7 | 22.1 | 11.1 | 17.8 | 14.7 | 24.0 | 17.8 |
| lbf | 2,500 | 2,500 | 1,306 | 3,261 / 2,882 | 1,630 / 1,441 | 4,000 | 3,300 | 4,958 | 2,500 | 4,000 | 3,300 | 5,395 | 4,000 | |
| Max. Velocity | mm/sec | 234 | 292 | 584 | 292 | 584 | 234 | 292 | 292 | 584 | 234 | 292 | 292 | 584 |
| in/sec | 9.2 | 11.5 | 23.0 | 11.5 | 23.0 | 9.2 | 11.5 | 11.5 | 23.0 | 9.2 | 11.5 | 11.5 | 23.0 | |
| SWA Screw DLR (Dynamic Load Rating) | kN | 41.1 | 53.6 | 47.2 | 73.3 | 76.4 | 67.2 | 73.3 | 91.74 | 76.4 | 67.2 | 73.3 | 91.7 | 76.4 |
| lbf | 9,240 | 12,050 | 10,611 | 16,479 | 17,175 | 15,107 | 16,479 | 20,624 | 17,175 | 15,107 | 16,479 | 20,624 | 17,175 | |
| SWB Screw DLR (Dynamic Load Rating) | kN | 24.25 | 31.63 | 27.85 | 43.25 | 45.07 | 39.65 | 43.25 | – | 45.07 | 39.65 | 43.25 | – | 45.07 |
| lbf | 5,452 | 7,110 | 6,260 | 9,723 | 10,133 | 8,913 | 9,723 | – | 10,133 | 8,913 | 9,723 | – | 10,133 | |
| Weight* | kg | 7.80 | 7.80 | 7.80 | 11.25 | 11.25 | 12.29 | 12.29 | 12.29 | 12.29 | 14.16 | 14.16 | 14.16 | 14.16 |
| lbf | 17.2 | 17.2 | 17.2 | 24.8 | 24.8 | 27.1 | 27.1 | 27.1 | 27.1 | 31.2 | 31.2 | 31.2 | 31.2 | |
| Stroke | mm | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 |
| in | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | |
| Base Inertia | kg-cm2 | 4.8997 | 4.8997 | 4.8997 | 8.1108 | 8.1108 | 9.7864 | 9.7864 | 9.7864 | 9.7864 | 11.4073 | 11.4073 | 11.4073 | 11.4073 |
| lb-in | 1.6723 | 1.6723 | 1.6723 | 2.7716 | 2.7716 | 3.3442 | 3.3442 | 3.3442 | 3.3442 | 3.8966 | 3.8966 | 3.8966 | 3.8966 | |
| Ambient Temp Range** | °C | 0 to 50 | ||||||||||||
| °F | 32 to 122 | |||||||||||||
| IP Rating | Standard IP65 (static) | |||||||||||||
| Agency Listings | CE, UL, & IP65 | |||||||||||||
*Weight varies per feedback device or mounting option. See table below for details.
**From 0-10°C (32-50°F), additional startup procedure may be required for optimal performance. See user manual for details.
§NOTE: Screw/Lead Accuracy: 0.023 mm/300 mm; (0.0009 in/ft)
SWA Weight Adders
| Water Cooling | Rear Trunnion | Feedback Option | ||||||
|---|---|---|---|---|---|---|---|---|
| F1 | F2 | A1 | K1*** | W1 | ||||
| SW_3 | kg | 0.36 | 0.10 | 0.3 | 0.77 | 0.59 | 1.27 | 1.03 |
| lb | 0.80 | 0.22 | 0.65 | 1.70 | 1.30 | 2.80 | 2.26 | |
| SW_4 | kg | 0.52 | 0.24 | 0.3 | 0.48 | 0.64 | 1.34 | 0.72 |
| lb | 1.15 | 0.52 | 0.65 | 1.05 | 1.41 | 2.96 | 1.59 | |
***Weight adder for K1 option includes weight of brake

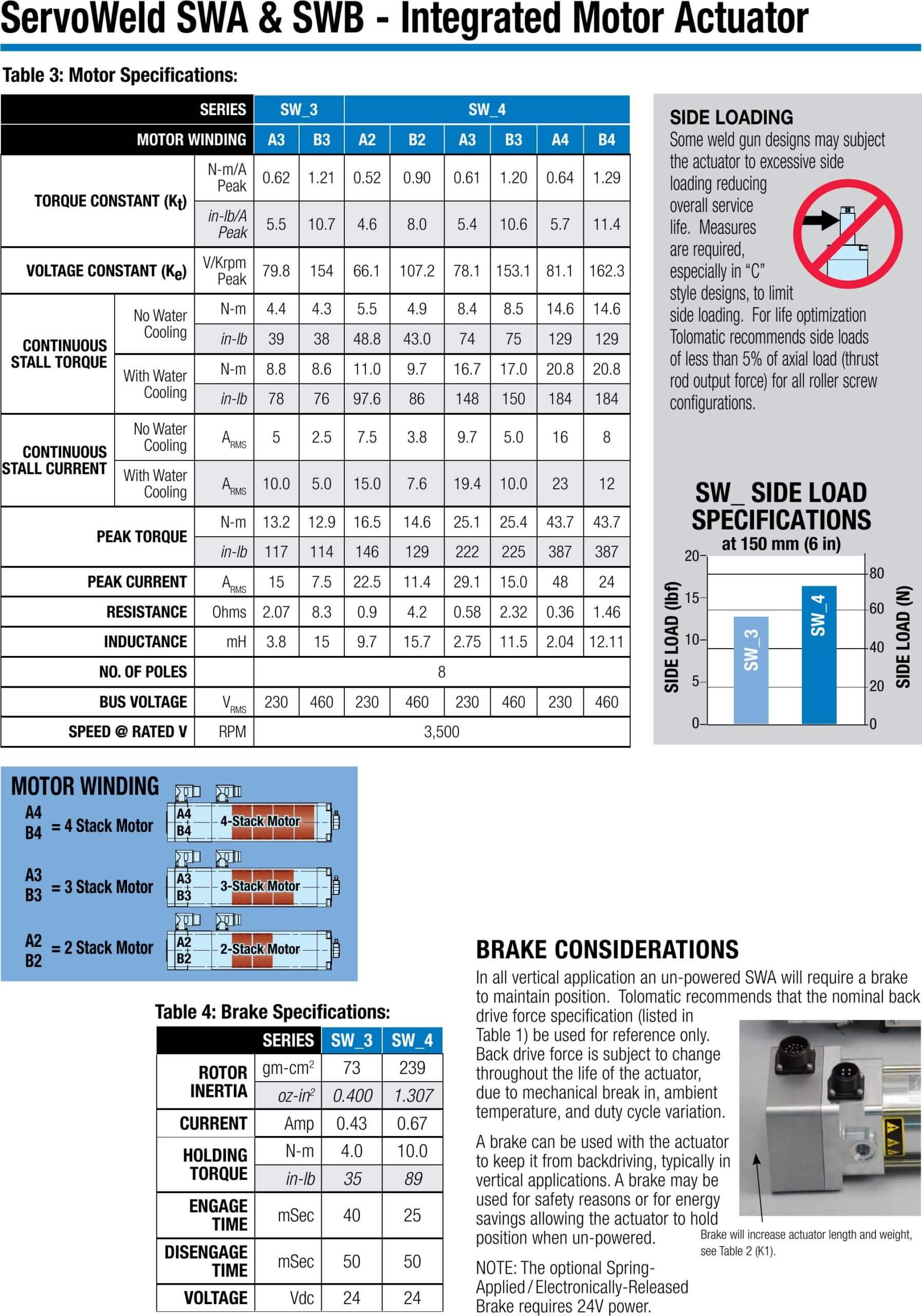

SWA Motor Specifications
| Series | SW_3 | SW_4 | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Motor Winding | A3 | B3 | A2 | B2 | A3 | B3 | A4 | B4 | ||
| Torque Constant (kt) | N-m/A Peak | 0.62 | 1.21 | 0.52 | 0.90 | 0.61 | 1.20 | 0.64 | 1.29 | |
| in-lb/A Peak | 5.5 | 10.7 | 4.6 | 8.0 | 5.4 | 10.6 | 5.7 | 11.4 | ||
| Voltage Constant (ke) | V/Krpm Peak | 79.8 | 154 | 66.1 | 107.2 | 78.1 | 153.1 | 81.1 | 162.3 | |
| Continuous Stall Torque | No Water Cooling | N-m | 4.4 | 4.3 | 5.5 | 4.9 | 8.4 | 8.5 | 14.6 | 14.6 |
| in-lb | 39 | 38 | 48.8 | 43.0 | 74 | 75 | 129 | 129 | ||
| With Water Cooling | N-m | 8.8 | 8.6 | 11.0 | 9.7 | 16.7 | 17.0 | 20.8 | 20.8 | |
| in-lb | 78 | 76 | 97.6 | 86 | 148 | 150 | 184 | 184 | ||
| Continuous Stall Current | No Water Cooling | A RMS | 5 | 2.5 | 7.5 | 3.8 | 9.7 | 5.0 | 16 | 8 |
| With Water Cooling | A RMS | 10.0 | 5.0 | 15.0 | 7.6 | 19.4 | 10.0 | 23 | 12 | |
| Peak Torque | N-m | 13.2 | 12.9 | 16.5 | 14.6 | 25.1 | 25.4 | 43.7 | 43.7 | |
| in-lb | 117 | 114 | 146 | 129 | 222 | 225 | 387 | 387 | ||
| Peak Current | A RMS | 15 | 7.5 | 22.5 | 11.4 | 29.1 | 15.0 | 48 | 24 | |
| Resistance | Ohms | 2.07 | 8.3 | 0.9 | 4.2 | 0.58 | 2.32 | 0.36 | 1.46 | |
| Inductance | mH | 3.8 | 15 | 3.65 | 15.7 | 2.75 | 11.5 | 2.04 | 8.9 | |
| No. of Poles | 8 | |||||||||
| Bus Voltage | V RMS | 230 | 460 | 230 | 460 | 230 | 460 | 230 | 460 | |
| Speed @ Rated V | RPM | 3,500 | ||||||||
SWA Brake Specifications
| Series | SW_3 | SW_4 | |
|---|---|---|---|
| Rotor Inertia | gm-cm2 | 73 | 239 |
| oz-in2 | 0.400 | 1.307 | |
| Current | Amp | 0.43 | 0.67 |
| Holding Torque | N-m | 4.0 | 10.0 |
| in-lb | 35 | 89 | |
| Engage Time | mSec | 40 | 25 |
| Disengage Time | mSec | 50 | 50 |
| Voltage | Vdc | 24 | 24 |
Dimensions
SWA/SWB Actuator Dimensions
