Float-A-Shaft® 2.5 to 1 Ratio Right Angle Gearboxes with Low Torque Journal Bearing

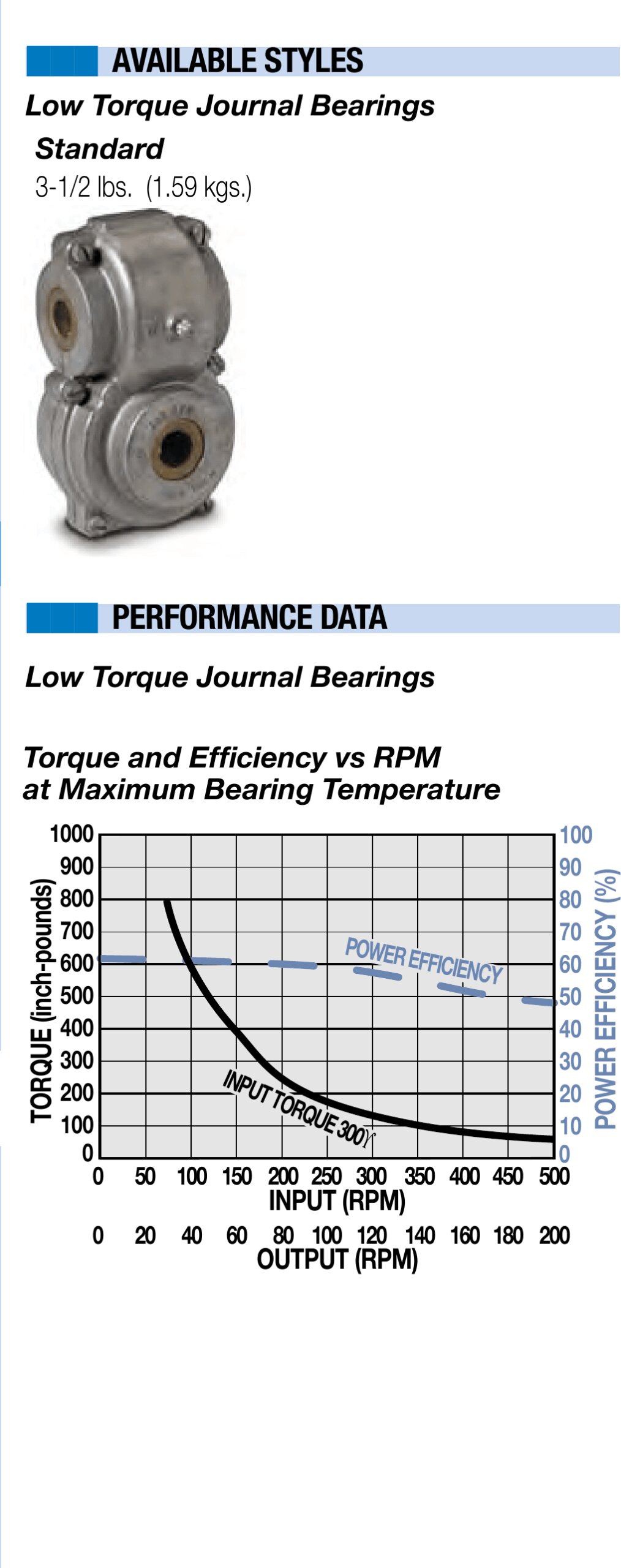

The Float-A-Shaft® 2.5 to 1 low torque right angle gearbox offers maximum torques up to 800 in-lbs (90.4 Nm) depending on input RPMs. Models available with standard mounts and flat mounts.
- Slides along shafting limited only by keyway length
- Precision finish on mating surfaces for tight metal-to-metal assembly
- Case forming lubricant reservoir
- Races are keyed to shaft for simultaneous rotation
Float-a-Shaft: Standard 2.5:1 Low Torque Features
Float-a-Shaft: Standard 2.5:1 Low Torque Specs
Float-a-Shaft: Standard 2.5:1 Low Torque Dimensions
Float-a-Shaft Rotation & Installation Guidelines
Online Ordering
| Part # | Description | Mount Type | Rotation | "A" Bore Size | "B" Bore Size | Cart |
|---|---|---|---|---|---|---|
| 0403-0000 | Float-a-Shaft: Standard 2.5:1 Ratio with Low Torque Journal Bearing (U.S. Customary) | Standard Mount | LH | 1/2" | 3/4" |  |
| 0404-0000 | Float-a-Shaft: Standard 2.5:1 Ratio with Low Torque Journal Bearing (U.S. Customary) | Standard Mount | RH | 1/2" | 3/4" | |
| 0407-0000 | Float-a-Shaft: Standard 2.5:1 Ratio with Low Torque Journal Bearing (U.S. Customary) | Standard Mount | LH | 1/2" | 1" | |
| 0408-0000 | Float-a-Shaft: Standard 2.5:1 Ratio with Low Torque Journal Bearing (U.S. Customary) | Standard Mount | RH | 1/2" | 1" | |
| 0411-0000 | Float-a-Shaft: Standard 2.5:1 Ratio with Low Torque Journal Bearing (U.S. Customary) | Standard Mount | LH | 1/2" | 1-1/4" | |
| 0412-0000 | Float-a-Shaft: Standard 2.5:1 Ratio with Low Torque Journal Bearing (U.S. Customary) | Standard Mount | RH | 1/2" | 1-1/4" | |
| 0417-0000 | Float-a-Shaft: Standard 2.5:1 Ratio with Low Torque Journal Bearing (U.S. Customary) | Standard Mount | LH | 5/8" | 3/4" | |
| 0418-0000 | Float-a-Shaft: Standard 2.5:1 Ratio with Low Torque Journal Bearing (U.S. Customary) | Standard Mount | RH | 5/8" | 3/4" | |
| 0421-0000 | Float-a-Shaft: Standard 2.5:1 Ratio with Low Torque Journal Bearing (U.S. Customary) | Standard Mount | LH | 5/8" | 1" | |
| 0422-0000 | Float-a-Shaft: Standard 2.5:1 Ratio with Low Torque Journal Bearing (U.S. Customary) | Standard Mount | RH | 5/8" | 1" | |
| 0425-0000 | Float-a-Shaft: Standard 2.5:1 Ratio with Low Torque Journal Bearing (U.S. Customary) | Standard Mount | LH | 5/8" | 1-1/4" | |
| 0426-0000 | Float-a-Shaft: Standard 2.5:1 Ratio with Low Torque Journal Bearing (U.S. Customary) | Standard Mount | RH | 5/8" | 1-1/4" | |
