SGB, Small Gearbox

We have expanded our proven Slide-Rite gearbox line with the smallest size featuring a smaller bore/shaft and small footprint. There are thousands of uses for this versatile gearbox.

SGB Features

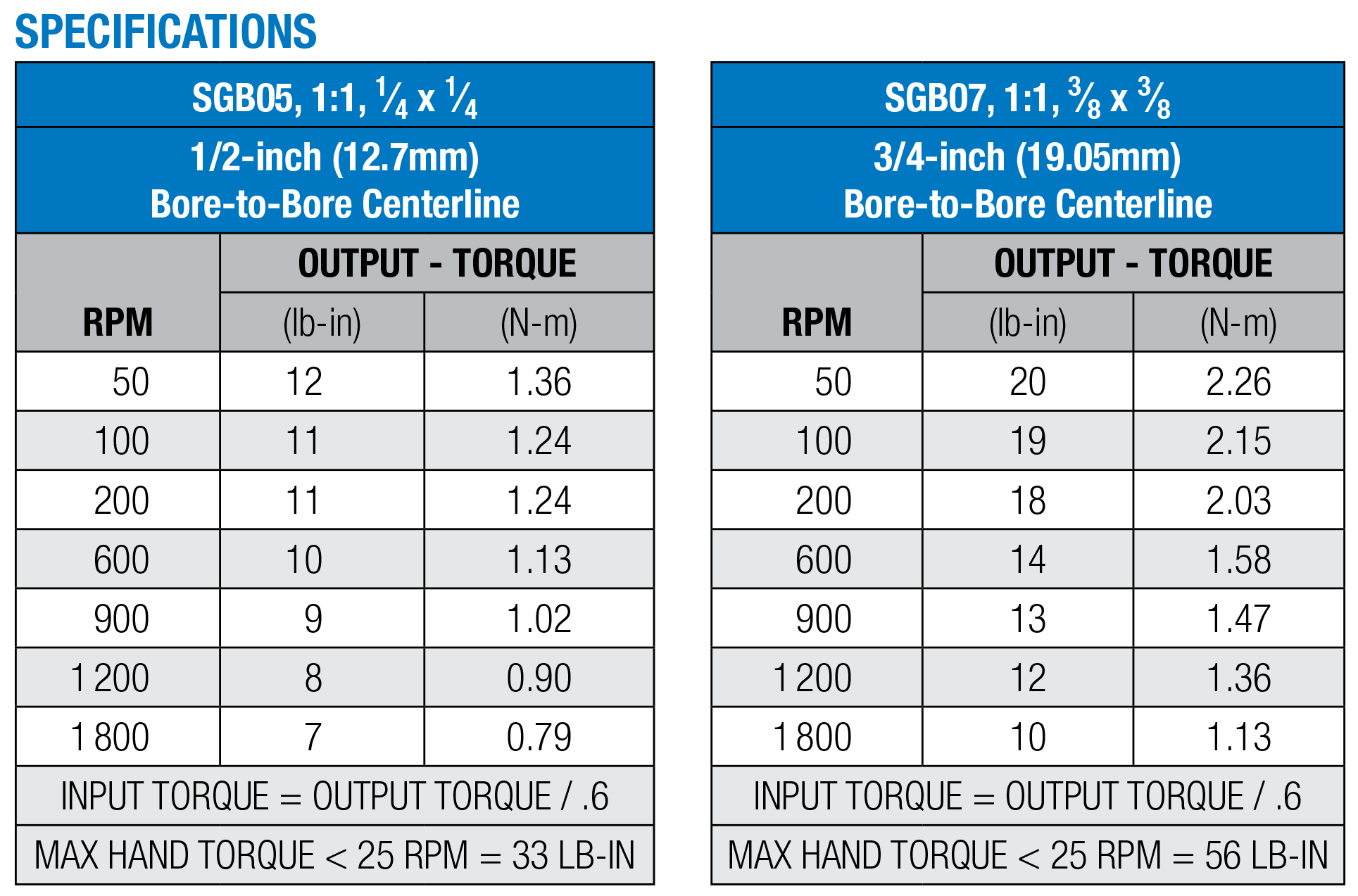

SGB Specifications

Online Ordering

Part # Description Mount TypeRotation"A" Bore Size"B" Bore SizeWeight Cart
0150-0600 Small Gearbox, SGB05, 1:1 Ratio StandardRH1/4"1/4"0.32 lb
0151-0600 Small Gearbox, SGB05, 1:1 Ratio StandardLH1/4"1/4"0.32 lb
0170-0600 Small Gearbox, SGB07, 1:1 Ratio StandardRH3/8"3/8"0.43 lb
0171-0600 Small Gearbox, SGB07, 1:1 Ratio StandardLH3/8"3/8"0.43 lb

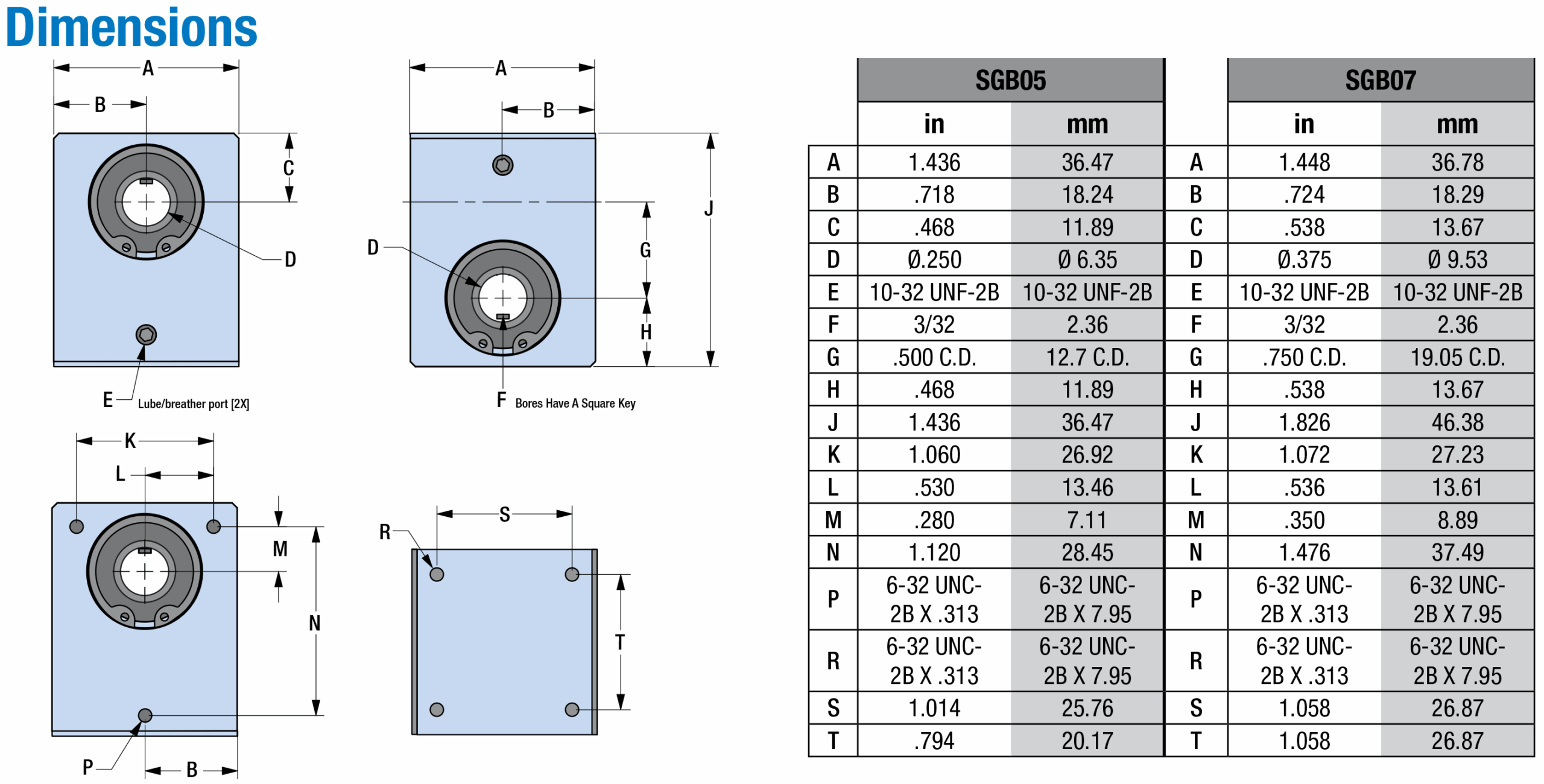

SGB Dimensions
