Float-A-Shaft® 3 to 2 Ratio Right Angle Gearboxes with Low Torque Journal Bearing

The Float-A-Shaft® 3 to 2 low torque right angle gearbox offers maximum torques up to  800 in-lbs (90.4 Nm) depending on input RPMs. Models available with standard mounts and flat mounts.

  • Slides along shafting limited only by keyway length
  • Precision finish on mating surfaces for tight metal-to-metal assembly
  • Case forming lubricant reservoir
  • Races are keyed to shaft for simultaneous rotation

Float-a-Shaft: Standard 3:2 Low Torque Features

Float-a-Shaft: Standard 3:2 Low Torque Specs

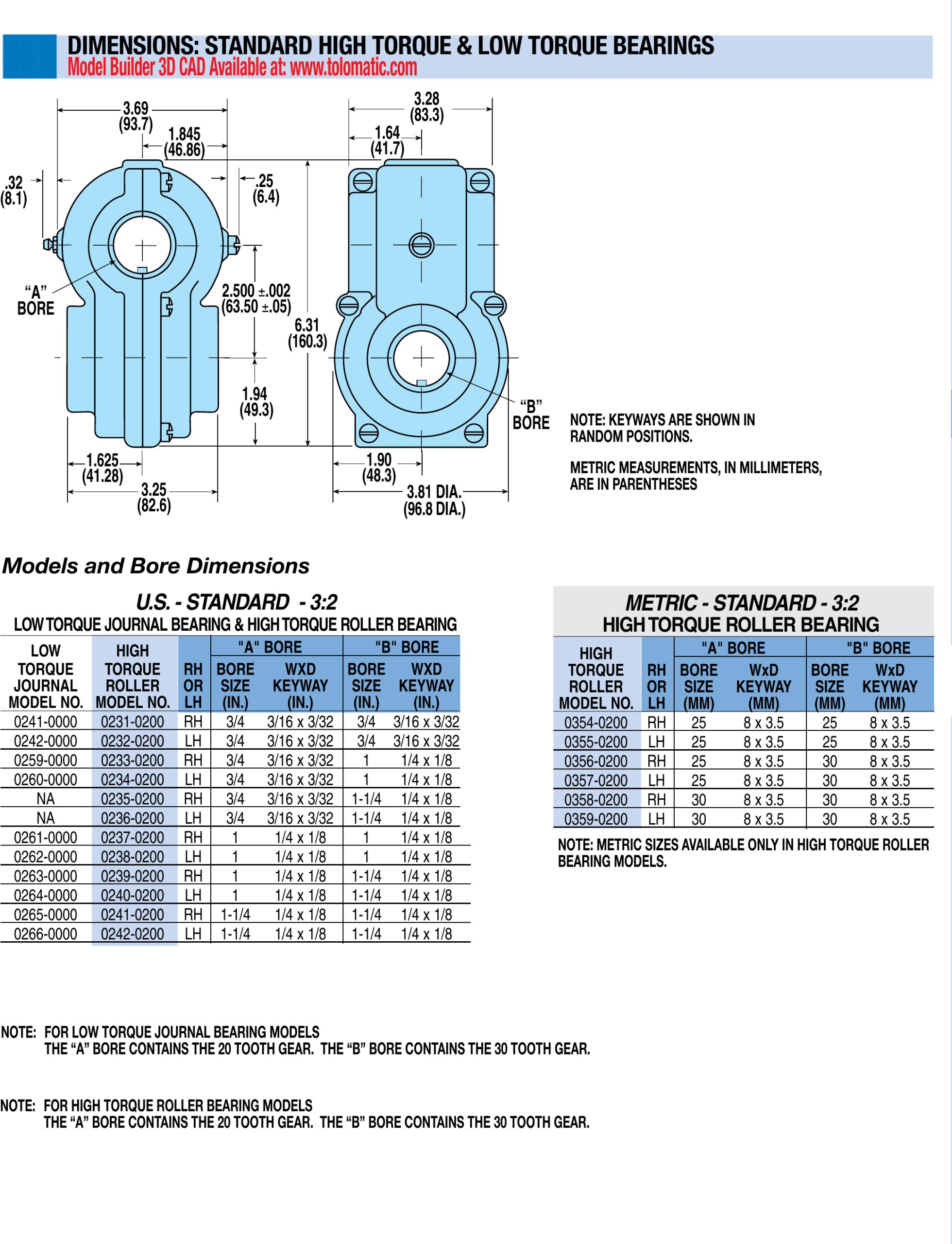

Float-a-Shaft: Standard 3:2 Low Torque Dimensions

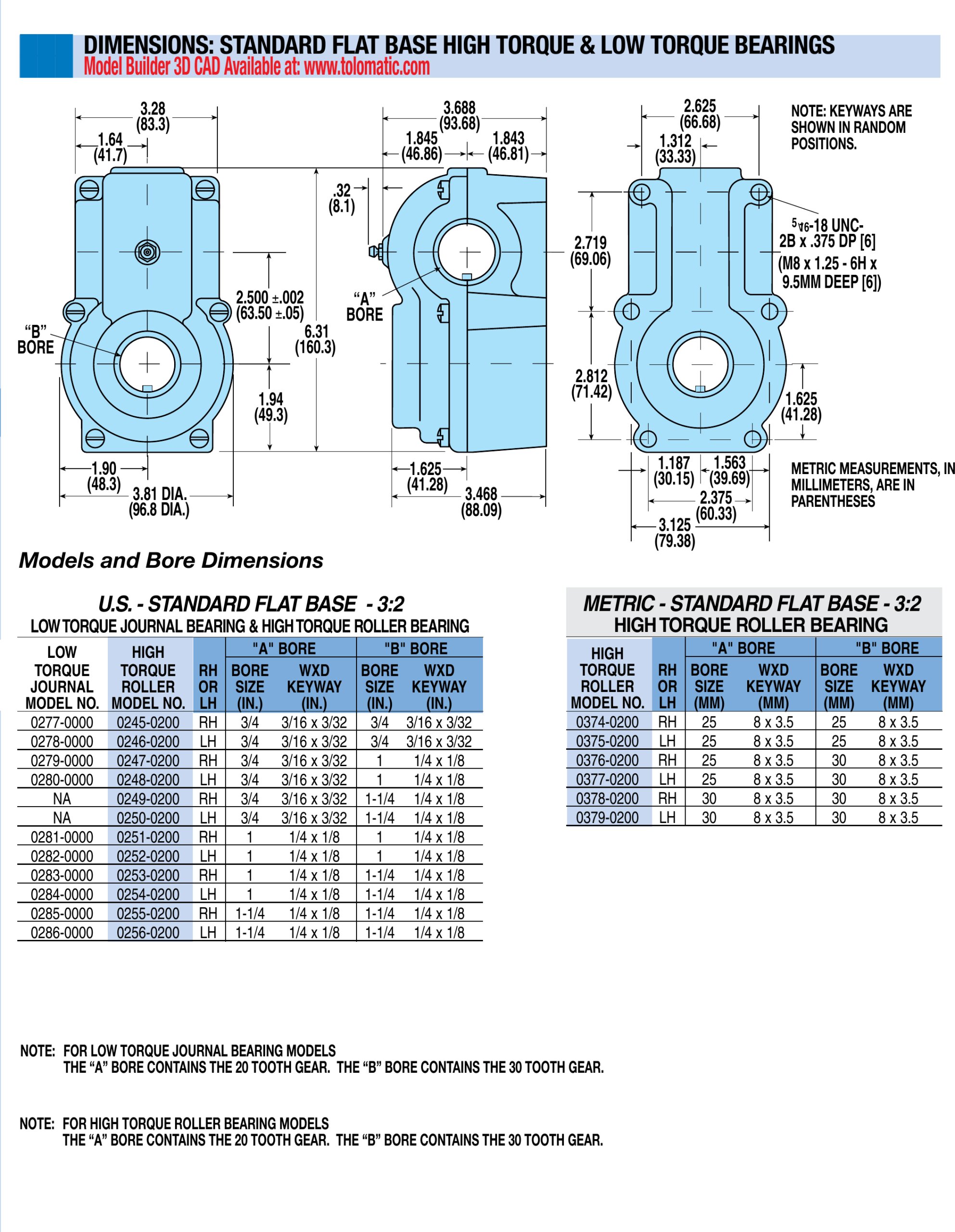

Float-a-Shaft: Standard 3:2 Low Torque Flat Base Dimensions

Float-a-Shaft Rotation & Installation Guidelines

Online Ordering

Part # Description Mount TypeRotation"A" Bore Size"A" Bore Keyway"B" Bore Size"B" Bore Keyway Cart
0241-0000 Float-a-Shaft: Standard 3:2 Ratio with Low Torque Journal Bearing (U.S. Customary) Standard MountRH3/4"3/16" x 3/32"3/4"3/16" x 3/32"
0242-0000 Float-a-Shaft: Standard 3:2 Ratio with Low Torque Journal Bearing (U.S. Customary) Standard MountLH3/4"3/16" x 3/32"3/4"3/16" x 3/32"
0259-0000 Float-a-Shaft: Standard 3:2 Ratio with Low Torque Journal Bearing (U.S. Customary) Standard MountRH3/4"3/16" x 3/32"1"1/4" x 1/8"
0260-0000 Float-a-Shaft: Standard 3:2 Ratio with Low Torque Journal Bearing (U.S. Customary) Standard MountLH3/4"3/16" x 3/32"1"1/4" x 1/8"
0261-0000 Float-a-Shaft: Standard 3:2 Ratio with Low Torque Journal Bearing (U.S. Customary) Standard MountRH1"1/4" x 1/8"1"1/4" x 1/8"
0262-0000 Float-a-Shaft: Standard 3:2 Ratio with Low Torque Journal Bearing (U.S. Customary) Standard MountLH1"1/4" x 1/8"1"1/4" x 1/8"
0263-0000 Float-a-Shaft: Standard 3:2 Ratio with Low Torque Journal Bearing (U.S. Customary) Standard MountRH1"1/4" x 1/8"1-1/4"1/4" x 1/8"
0264-0000 Float-a-Shaft: Standard 3:2 Ratio with Low Torque Journal Bearing (U.S. Customary) Standard MountLH1"1/4" x 1/8"1-1/4"1/4" x 1/8"
0265-0000 Float-a-Shaft: Standard 3:2 Ratio with Low Torque Journal Bearing (U.S. Customary) Standard MountRH1-1/4"1/4" x 1/8"1-1/4"1/4" x 1/8"
0266-0000 Float-a-Shaft: Standard 3:2 Ratio with Low Torque Journal Bearing (U.S. Customary) Standard MountLH1-1/4"1/4" x 1/8"1-1/4"1/4" x 1/8"
0277-0000 Float-a-Shaft: Standard 3:2 Ratio with Low Torque Journal Bearing (U.S. Customary) Flat Base MountRH3/4"3/16" x 3/32"3/4"3/16" x 3/32"
0278-0000 Float-a-Shaft: Standard 3:2 Ratio with Low Torque Journal Bearing (U.S. Customary) Flat Base MountLH3/4"3/16" x 3/32"3/4"3/16" x 3/32"
0279-0000 Float-a-Shaft: Standard 3:2 Ratio with Low Torque Journal Bearing (U.S. Customary) Flat Base MountRH3/4"3/16" x 3/32"1"1/4" x 1/8"
0280-0000 Float-a-Shaft: Standard 3:2 Ratio with Low Torque Journal Bearing (U.S. Customary) Flat Base MountLH3/4"3/16" x 3/32"1"1/4" x 1/8"
0281-0000 Float-a-Shaft: Standard 3:2 Ratio with Low Torque Journal Bearing (U.S. Customary) Flat Base MountRH1"1/4" x 1/8"1"1/4" x 1/8"
0282-0000 Float-a-Shaft: Standard 3:2 Ratio with Low Torque Journal Bearing (U.S. Customary) Flat Base MountLH1"1/4" x 1/8"1"1/4" x 1/8"
0283-0000 Float-a-Shaft: Standard 3:2 Ratio with Low Torque Journal Bearing (U.S. Customary) Flat Base MountRH1"1/4" x 1/8"1-1/4"1/4" x 1/8"
0284-0000 Float-a-Shaft: Standard 3:2 Ratio with Low Torque Journal Bearing (U.S. Customary) Flat Base MountLH1"1/4" x 1/8"1-1/4"1/4" x 1/8"
0285-0000 Float-a-Shaft: Standard 3:2 Ratio with Low Torque Journal Bearing (U.S. Customary) Flat Base MountRH1-1/4"1/4" x 1/8"1-1/4"1/4" x 1/8"
0286-0000 Float-a-Shaft: Standard 3:2 Ratio with Low Torque Journal Bearing (U.S. Customary) Flat Base MountLH1-1/4"1/4" x 1/8"1-1/4"1/4" x 1/8"
