![ME20-Mechanical-Disc-Brake](https://www.tolomatic.com/wp-content/uploads/2022/06/ff2a8333c6e64f7eaed12173872bd76b-orig.jpg)
ME20 Series Mechanical Disc Brake
The ME20 mechanical disc brake series provides up to 8500 in-lbs (960 Nm) of torque. ME20 mechanical disc brakes are single acting and available with long, short or machined cam levers.
- Durable aluminum construction
- Replaceable high-grade friction material
- Accommodates disc diameters up to 16 inches (406 mm)
- Optional floating bracket
Order ME20
Part Number
0731-0003
0731-0005
0731-0002
0731-0006
0726-0000
Model
ME20LA
ME20LB
ME20LAF
ME20LBF
ME20MA
Max. Dynamic Torque
16" Disc: 8,624 in-lb, 6-5/16" Disc: 2,761 in-lb
16" Disc: 8,624 in-lb, 6-5/16" Disc: 2,761 in-lb
16" Disc: 8,624 in-lb, 6-5/16" Disc: 2,761 in-lb
16" Disc: 8,624 in-lb, 6-5/16" Disc: 2,761 in-lb
16" Disc: 8,624 in-lb, 6-5/16" Disc: 2,761 in-lb
Max. Static Torque
16" Disc: 4,312 in-lb, 6-5/16" Disc: 1,380 in-lb
16" Disc: 4,312 in-lb, 6-5/16" Disc: 1,380 in-lb
16" Disc: 4,312 in-lb, 6-5/16" Disc: 1,380 in-lb
16" Disc: 4,312 in-lb, 6-5/16" Disc: 1,380 in-lb
16" Disc: 4,312 in-lb, 6-5/16" Disc: 1,380 in-lb
Disc Diameter
Any
Any
Any
Any
Any
Disc Thickness
5/32 in
1/4 in
5/32 in
1/4 in
5/32 in
Max. Lever Force
225 lbs
225 lbs
225 lbs
225 lbs
450 lbs
Lever Style
Long Lever
Long Lever
Long Lever
Long Lever
Machined Cam
Added Options
- - -
- - -
Floating Bracket
Floating Bracket
- - -
Weight
1.50 lbs
1.50 lbs
2.25 lbs
2.25 lbs
1.50 lbs
Price
$99.92
USD
USD
$109.77
USD
USD
$120.87
USD
USD
$130.64
USD
USD
$128.74
USD
USD

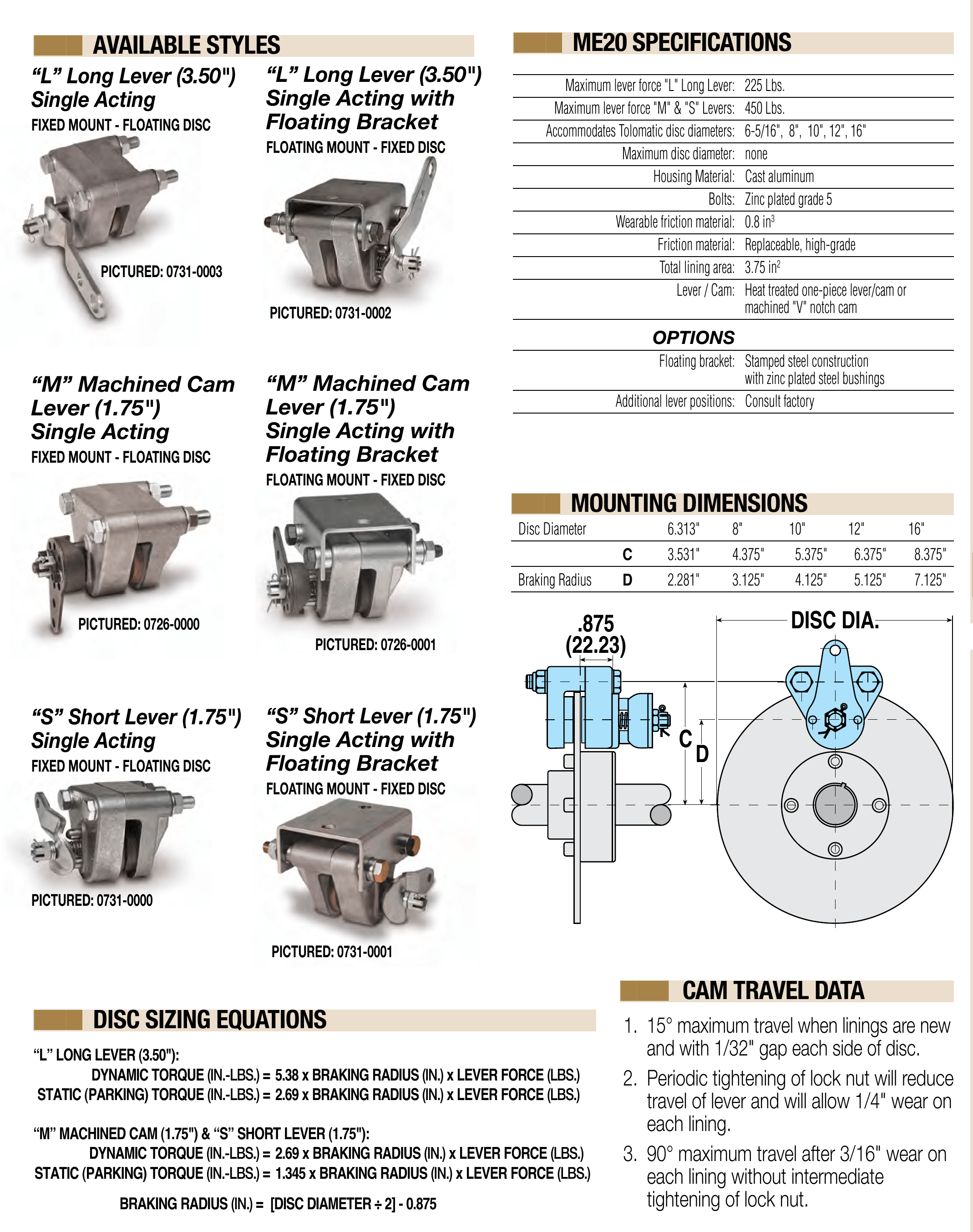

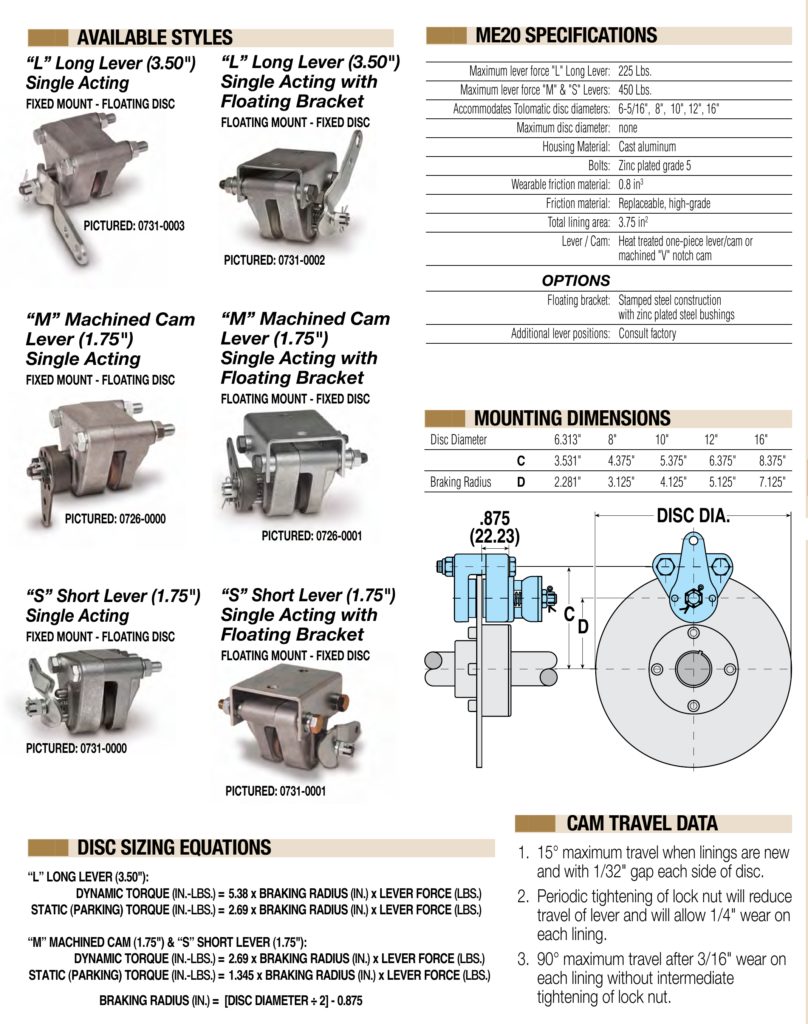

ME20 General Specs
![](https://www.tolomatic.com/wp-content/uploads/2022/06/9900-4009_09_PTcat-59-738x1024.png)
ME20 Performance Data
![](https://www.tolomatic.com/wp-content/uploads/2022/06/d85d2527036e4919a602c80e475f6066-orig-384x1024.jpg)
ME20 Long Lever Dimensions
![](https://www.tolomatic.com/wp-content/uploads/2022/06/9490ba8b9809418abe125336146beedc-orig-396x1024.jpg)
ME20 Machined CAM & Short Lever Dimensions
![](https://www.tolomatic.com/wp-content/uploads/2022/06/45c0ac5378da4f3a82527d4242dc0347-orig-782x1024.jpg)
