Fixed Hub & Disc Assemblies with QD Bushings
Tolomatic fixed hub and disc assemblies with quick disconnect bushings are available with 6-5/16-, 8-, 10-, 12-, and 16-inch discs. Fixed hub and disc assemblies with quick disconnect bushings can be used with pneumatic, hydraulic, mechanical, or spring applied disc brakes.
- Carbon 1010 steel disc material
- Upper lock quick disconnect bushings
- Includes socket head cap screws and keyway set screws

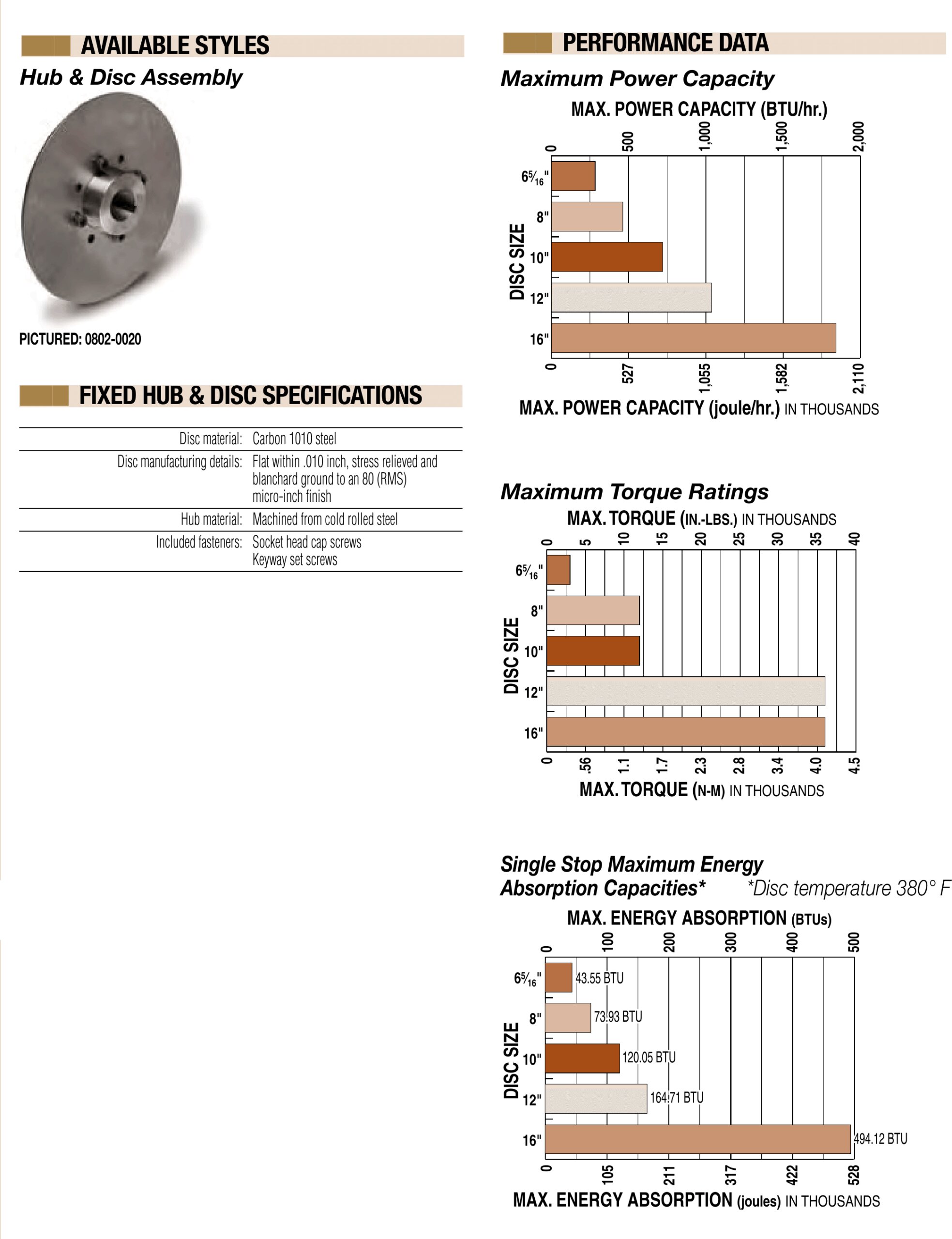

Fixed Hub & Disc Assemblies with QD Features

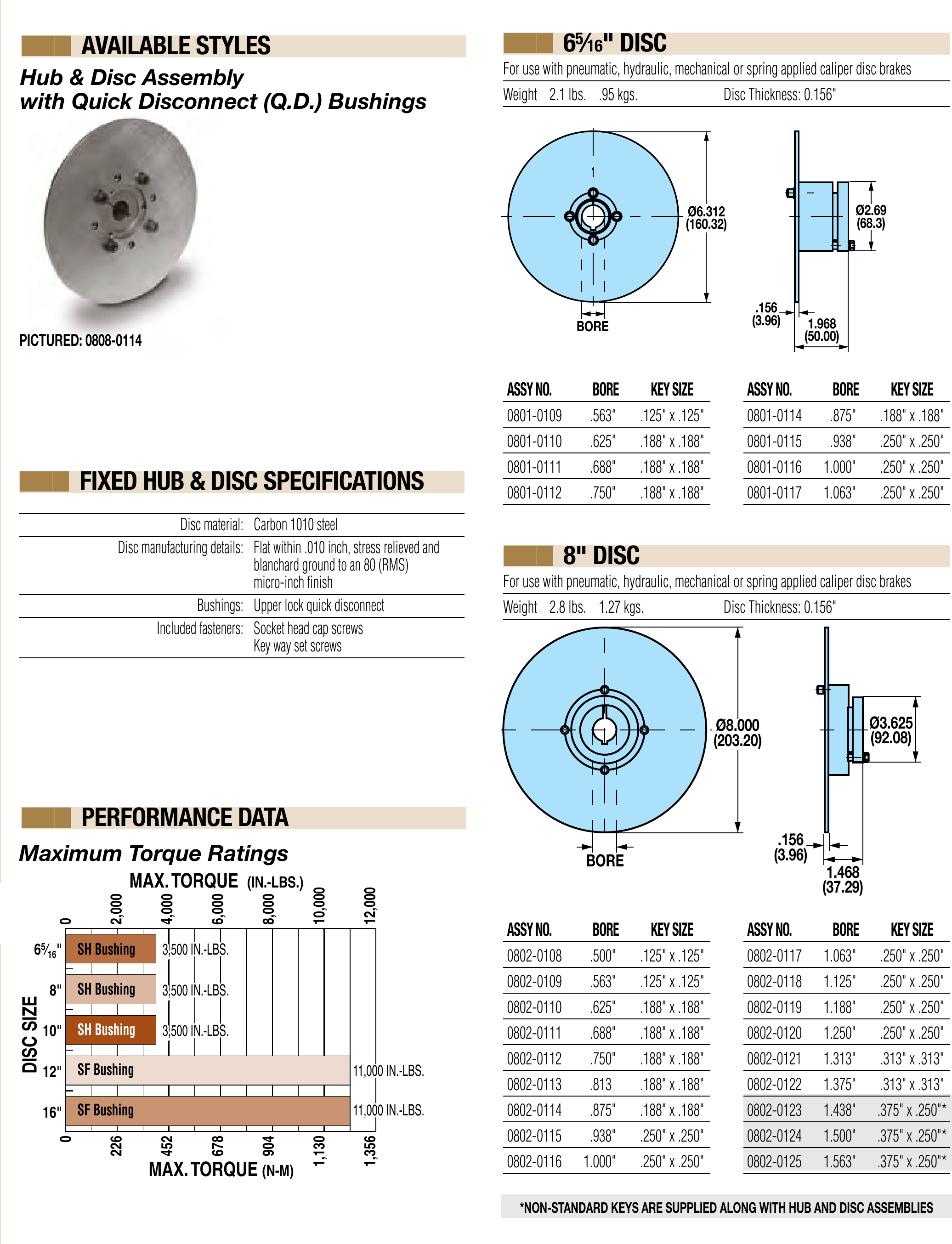

Fixed Hub & Disc Assemblies with QD Bushings: Specs and Dimensions for 6- & 8-inch Discs

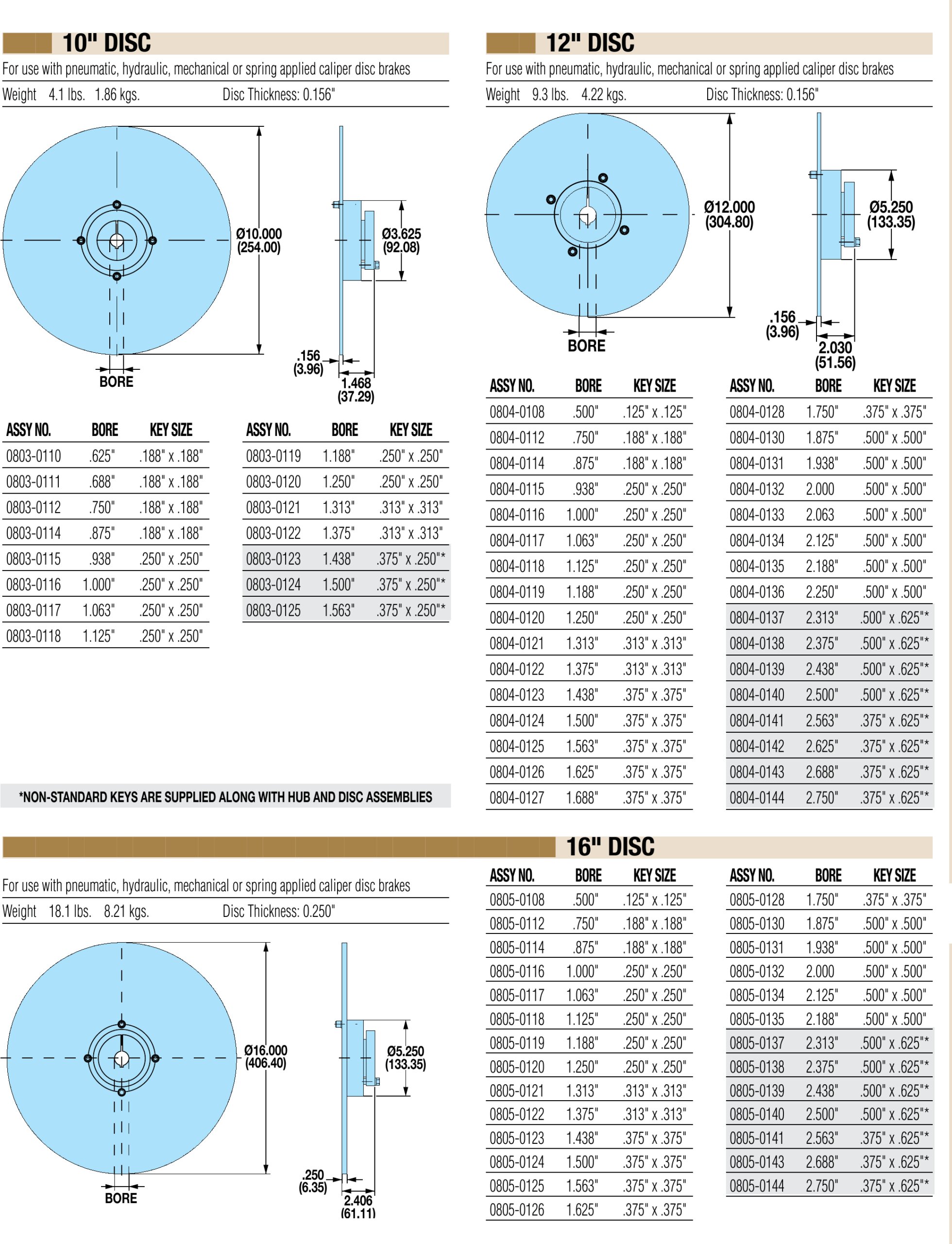

Fixed Hub & Disc Assemblies with QD Bushings: Dimensions for 10-, 12- & 16-inch Discs
Online Ordering
| Part # | Description | Bore (in) | Key Size (in) | Weight | Cart |
|---|---|---|---|---|---|
| 0801-0109 | Fixed Hub & Disc Assemblies with Quick Disconnect Bushings 6 5/16 Discs | 0.56 | .125 x .125 | 2.10 |  |
| 0801-0110 | Fixed Hub & Disc Assemblies with Quick Disconnect Bushings 6 5/16 Discs | 0.63 | .188 x .188 | 2.10 | |
| 0801-0112 | Fixed Hub & Disc Assemblies with Quick Disconnect Bushings 6 5/16 Discs | 0.75 | .188 x .188 | 2.10 | |
| 0801-0116 | Fixed Hub & Disc Assemblies with Quick Disconnect Bushings 6 5/16 Discs | 1.00 | .250 x .250 | 2.10 | |
| 0801-0117 | Fixed Hub & Disc Assemblies with Quick Disconnect Bushings 6 5/16 Discs | 1.06 | .250 x .250 | 2.10 | |
| 0802-0112 | Fixed Hub & Disc Assemblies with Quick Disconnect Bushings 8 Discs | 0.75 | .188 x .188 | 2.80 | |
| 0802-0113 | Fixed Hub & Disc Assemblies with Quick Disconnect Bushings 8 Discs | 0.81 | .188 x .188 | 2.80 | |
| 0802-0114 | Fixed Hub & Disc Assemblies with Quick Disconnect Bushings 8 Discs | 0.88 | .188 x .188 | 2.80 | |
| 0802-0115 | Fixed Hub & Disc Assemblies with Quick Disconnect Bushings 8 Discs | 0.94 | .250 x .250 | 2.80 | |
| 0802-0116 | Fixed Hub & Disc Assemblies with Quick Disconnect Bushings 8 Discs | 1.00 | .250 x .250 | 2.80 | |
| 0802-0118 | Fixed Hub & Disc Assemblies with Quick Disconnect Bushings 8 Discs | 1.13 | .250 x .250 | 2.80 | |
| 0802-0119 | Fixed Hub & Disc Assemblies with Quick Disconnect Bushings 8 Discs | 1.19 | .250 x .250 | 2.80 | |
| 0802-0120 | Fixed Hub & Disc Assemblies with Quick Disconnect Bushings 8 Discs | 1.25 | .250 x .250 | 2.80 | |
| 0802-0121 | Fixed Hub & Disc Assemblies with Quick Disconnect Bushings 8 Discs | 1.31 | .313 x .313 | 2.80 | |
| 0802-0122 | Fixed Hub & Disc Assemblies with Quick Disconnect Bushings 8 Discs | 1.38 | .313 x .313 | 2.80 | |
| 0802-0123 | Fixed Hub & Disc Assemblies with Quick Disconnect Bushings 8 Discs | 1.44 | .375 x .250 | 2.80 | |
| 0802-0124 | Fixed Hub & Disc Assemblies with Quick Disconnect Bushings 8 Discs | 1.50 | .375 x .250 | 2.80 | |
| 0802-0125 | Fixed Hub & Disc Assemblies with Quick Disconnect Bushings 8 Discs | 1.56 | .375 x .250 | 2.80 | |
| 0803-0110 | Fixed Hub & Disc Assemblies with Quick Disconnect Bushings 10 Discs | 0.63 | .188 x .188 | 4.10 | |
| 0803-0112 | Fixed Hub & Disc Assemblies with Quick Disconnect Bushings 10 Discs | 0.75 | .188 x .188 | 4.10 | |
| 0803-0115 | Fixed Hub & Disc Assemblies with Quick Disconnect Bushings 10 Discs | 0.94 | .250 x .250 | 4.10 | |
| 0803-0116 | Fixed Hub & Disc Assemblies with Quick Disconnect Bushings 10 Discs | 1.00 | .250 x .250 | 4.10 | |
| 0803-0118 | Fixed Hub & Disc Assemblies with Quick Disconnect Bushings 10 Discs | 1.13 | .250 x .250 | 4.10 | |
| 0803-0120 | Fixed Hub & Disc Assemblies with Quick Disconnect Bushings 10 Discs | 1.25 | .250 x .250 | 4.10 | |
| 0803-0122 | Fixed Hub & Disc Assemblies with Quick Disconnect Bushings 10 Discs | 1.38 | .313 x .313 | 4.10 | |
| 0803-0123 | Fixed Hub & Disc Assemblies with Quick Disconnect Bushings 10 Discs | 1.44 | .375 x .250 | 4.10 | |
| 0803-0124 | Fixed Hub & Disc Assemblies with Quick Disconnect Bushings 10 Discs | 1.50 | .375 x .250 | 4.10 | |
| 0803-0125 | Fixed Hub & Disc Assemblies with Quick Disconnect Bushings 10 Discs | 1.56 | .375 x .250 | 4.10 | |
| 0804-0112 | Fixed Hub & Disc Assemblies with Quick Disconnect Bushings 12 Discs | 0.75 | .188 x .188 | 9.30 | |
| 0804-0116 | Fixed Hub & Disc Assemblies with Quick Disconnect Bushings 12 Discs | 1.00 | .250 x .250 | 9.30 | |
| 0804-0117 | Fixed Hub & Disc Assemblies with Quick Disconnect Bushings 12 Discs | 1.06 | .250 x .250 | 9.30 | |
| 0804-0118 | Fixed Hub & Disc Assemblies with Quick Disconnect Bushings 12 Discs | 1.13 | .250 x .250 | 9.30 | |
| 0804-0119 | Fixed Hub & Disc Assemblies with Quick Disconnect Bushings 12 Discs | 1.19 | .250 x .250 | 9.30 | |
| 0804-0120 | Fixed Hub & Disc Assemblies with Quick Disconnect Bushings 12 Discs | 1.25 | .250 x .250 | 9.30 | |
| 0804-0122 | Fixed Hub & Disc Assemblies with Quick Disconnect Bushings 12 Discs | 1.38 | .313 x .313 | 9.30 | |
| 0804-0123 | Fixed Hub & Disc Assemblies with Quick Disconnect Bushings 12 Discs | 1.44 | .375 x .375 | 9.30 | |
| 0804-0124 | Fixed Hub & Disc Assemblies with Quick Disconnect Bushings 12 Discs | 1.50 | .375 x .375 | 9.30 | |
| 0804-0126 | Fixed Hub & Disc Assemblies with Quick Disconnect Bushings 12 Discs | 1.63 | .375 x .375 | 9.30 | |
| 0804-0127 | Fixed Hub & Disc Assemblies with Quick Disconnect Bushings 12 Discs | 1.69 | .375 x .375 | 9.30 | |
| 0804-0128 | Fixed Hub & Disc Assemblies with Quick Disconnect Bushings 12 Discs | 1.75 | .375 x .375 | 9.30 | |
| 0804-0130 | Fixed Hub & Disc Assemblies with Quick Disconnect Bushings 12 Discs | 1.88 | .500 x .500 | 9.30 | |
| 0804-0131 | Fixed Hub & Disc Assemblies with Quick Disconnect Bushings 12 Discs | 1.94 | .500 x .500 | 9.30 | |
| 0804-0132 | Fixed Hub & Disc Assemblies with Quick Disconnect Bushings 12 Discs | 2.00 | .500 x .500 | 9.30 | |
| 0804-0134 | Fixed Hub & Disc Assemblies with Quick Disconnect Bushings 12 Discs | 2.13 | .500 x .500 | 9.30 | |
| 0804-0135 | Fixed Hub & Disc Assemblies with Quick Disconnect Bushings 12 Discs | 2.19 | .500 x .500 | 9.30 | |
| 0804-0136 | Fixed Hub & Disc Assemblies with Quick Disconnect Bushings 12 Discs | 2.25 | .500 x .500 | 9.30 | |
| 0804-0137 | Fixed Hub & Disc Assemblies with Quick Disconnect Bushings 12 Discs | 2.31 | .500 x .625 | 9.30 | |
| 0804-0138 | Fixed Hub & Disc Assemblies with Quick Disconnect Bushings 12 Discs | 2.38 | .500 x .625 | 9.30 | |
| 0804-0139 | Fixed Hub & Disc Assemblies with Quick Disconnect Bushings 12 Discs | 2.44 | .500 x .625 | 9.30 | |
| 0804-0140 | Fixed Hub & Disc Assemblies with Quick Disconnect Bushings 12 Discs | 2.50 | .500 x .625 | 9.30 | |
| 0804-0143 | Fixed Hub & Disc Assemblies with Quick Disconnect Bushings 12 Discs | 2.69 | .375 x .625 | 9.30 | |
| 0804-0144 | Fixed Hub & Disc Assemblies with Quick Disconnect Bushings 12 Discs | 2.75 | .375 x .625 | 9.30 | |
| 0805-0108 | Fixed Hub & Disc Assemblies with Quick Disconnect Bushings 16 Discs | 0.50 | .125 x .125 | 18.10 | |
| 0805-0114 | Fixed Hub & Disc Assemblies with Quick Disconnect Bushings 16 Discs | 0.88 | .188 x .188 | 18.10 | |
| 0805-0116 | Fixed Hub & Disc Assemblies with Quick Disconnect Bushings 16 Discs | 1.00 | .250 x .250 | 18.10 | |
| 0805-0118 | Fixed Hub & Disc Assemblies with Quick Disconnect Bushings 16 Discs | 1.13 | .250 x .250 | 18.10 | |
| 0805-0120 | Fixed Hub & Disc Assemblies with Quick Disconnect Bushings 16 Discs | 1.25 | .250 x .250 | 18.10 | |
| 0805-0122 | Fixed Hub & Disc Assemblies with Quick Disconnect Bushings 16 Discs | 1.38 | .313 x .313 | 18.10 | |
| 0805-0123 | Fixed Hub & Disc Assemblies with Quick Disconnect Bushings 16 Discs | 1.44 | .375 x .375 | 18.10 | |
| 0805-0124 | Fixed Hub & Disc Assemblies with Quick Disconnect Bushings 16 Discs | 1.50 | .375 x .375 | 18.10 | |
| 0805-0128 | Fixed Hub & Disc Assemblies with Quick Disconnect Bushings 16 Discs | 1.75 | .375 x .375 | 18.10 | |
| 0805-0130 | Fixed Hub & Disc Assemblies with Quick Disconnect Bushings 16 Discs | 1.88 | .500 x .500 | 18.10 | |
| 0805-0131 | Fixed Hub & Disc Assemblies with Quick Disconnect Bushings 16 Discs | 1.94 | .500 x .500 | 18.10 | |
| 0805-0132 | Fixed Hub & Disc Assemblies with Quick Disconnect Bushings 16 Discs | 2.00 | .500 x .500 | 18.10 | |
| 0805-0138 | Fixed Hub & Disc Assemblies with Quick Disconnect Bushings 16 Discs | 2.38 | .500 x .625 | 18.10 | |
| 0805-0139 | Fixed Hub & Disc Assemblies with Quick Disconnect Bushings 16 Discs | 2.44 | .500 x .625 | 18.10 | |
| 0805-0140 | Fixed Hub & Disc Assemblies with Quick Disconnect Bushings 16 Discs | 2.50 | .500 x .625 | 18.10 | |
| 0805-0141 | Fixed Hub & Disc Assemblies with Quick Disconnect Bushings 16 Discs | 2.56 | .375 x .625 | 18.10 | |
| 0805-0143 | Fixed Hub & Disc Assemblies with Quick Disconnect Bushings 16 Discs | 2.69 | .375 x .625 | 18.10 | |
| 0805-0144 | Fixed Hub & Disc Assemblies with Quick Disconnect Bushings 16 Discs | 2.75 | .375 x .625 | 18.10 | |
