Slide-Rite® Standard 2 to 1 Ratio Right Angle Gearboxes

Tolomatic’s standard size 2 to 1 Slide-Rite® right angle gearbox delivers up to 541 in-lbs (61 Nm) of torque depending on input RPMs.

  • High torque ball bearing design
  • Solid one-piece aluminum housing seals gears from outside contaminants for smooth operation
  • Right- or left-hand rotation to convert power either direction
  • Easily slides axially along the drive or driven shaft for flexible positioning
  • Alloy steel helical gears for high performance

Slide-Rite: Standard 2:1 Features

Slide-Rite Rotation & Installation Guidelines

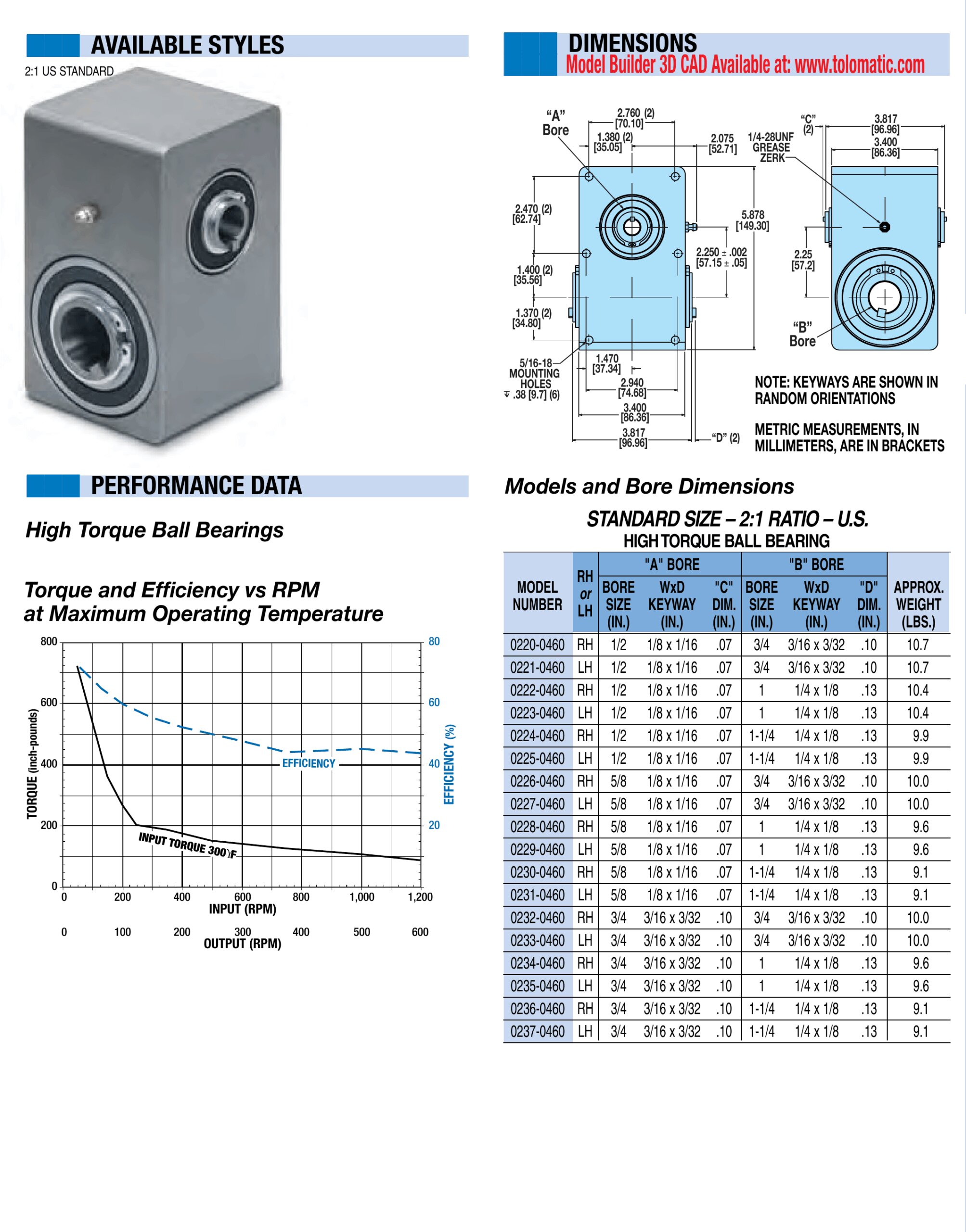

Slide-Rite: Standard 2:1 Specs & Dimensions

Online Ordering

Part # Description Rotation"A" Bore Size"A" Bore Keyway"B" Bore Size"B" Bore KeywayWeight"C" DIM"D" DIM Cart
0220-0460 Slide-Rite: Standard 2:1 (U.S. Customary) RH1/2"1/8" x 1/16"3/4"3/16" x 3/32"10.7 lbs.07".10"
0221-0460 Slide-Rite: Standard 2:1 (U.S. Customary) LH1/2"1/8" x 1/16"3/4"3/16" x 3/32"10.7 lbs.07".10"
0222-0460 Slide-Rite: Standard 2:1 (U.S. Customary) RH1/2"1/8" x 1/16"1"1/4" x 1/8"10.4 lbs.07".13"
0223-0460 Slide-Rite: Standard 2:1 (U.S. Customary) LH1/2"1/8" x 1/16"1"1/4" x 1/8"10.4 lbs.07".13"
0224-0460 Slide-Rite: Standard 2:1 (U.S. Customary) RH1/2"1/8" x 1/16"1-1/4"1/4" x 1/8"9.9 lbs.07".13"
0225-0460 Slide-Rite: Standard 2:1 (U.S. Customary) LH1/2"1/8" x 1/16"1-1/4"1/4" x 1/8"9.9 lbs.07".13"
0226-0460 Slide-Rite: Standard 2:1 (U.S. Customary) RH5/8"1/8" x 1/16"3/4"3/16" x 3/32"10.0 lbs.07".10"
0227-0460 Slide-Rite: Standard 2:1 (U.S. Customary) LH5/8"1/8" x 1/16"3/4"3/16" x 3/32"10.0 lbs.07".10"
0228-0460 Slide-Rite: Standard 2:1 (U.S. Customary) RH5/8"1/8" x 1/16"1"1/4" x 1/8"9.6 lbs.07".13"
0229-0460 Slide-Rite: Standard 2:1 (U.S. Customary) LH5/8"1/8" x 1/16"1"1/4" x 1/8"9.6 lbs.07".13"
0230-0460 Slide-Rite: Standard 2:1 (U.S. Customary) RH5/8"1/8" x 1/16"1-1/4"1/4" x 1/8"9.1 lbs.07".13"
0231-0460 Slide-Rite: Standard 2:1 (U.S. Customary) LH5/8"1/8" x 1/16"1-1/4"1/4" x 1/8"9.1 lbs.07".13"
0232-0460 Slide-Rite: Standard 2:1 (U.S. Customary) RH3/4"3/16" x 3/32"3/4"3/16" x 3/32"10.0 lbs.10".10"
0233-0460 Slide-Rite: Standard 2:1 (U.S. Customary) LH3/4"3/16" x 3/32"3/4"3/16" x 3/32"10.0 lbs.10".10"
0234-0460 Slide-Rite: Standard 2:1 (U.S. Customary) RH3/4"3/16" x 3/32"1"1/4" x 1/8"9.6 lbs.10".13"
0235-0460 Slide-Rite: Standard 2:1 (U.S. Customary) LH3/4"3/16" x 3/32"1"1/4" x 1/8"9.6 lbs.10".13"
0236-0460 Slide-Rite: Standard 2:1 (U.S. Customary) RH3/4"3/16" x 3/32"1-1/4"1/4" x 1/8"9.1 lbs.10".13"
0237-0460 Slide-Rite: Standard 2:1 (U.S. Customary) LH3/4"3/16" x 3/32"1-1/4"1/4" x 1/8"9.1 lbs.10".13"

Application Checklists

Use the links below to locate a Tolomatic distributor in your area, find out more information on how to specify, service parts information, and selection guidelines and tips.

Find a Tolomatic distributor

Slide-Rite Rotation & Selection Guidelines
