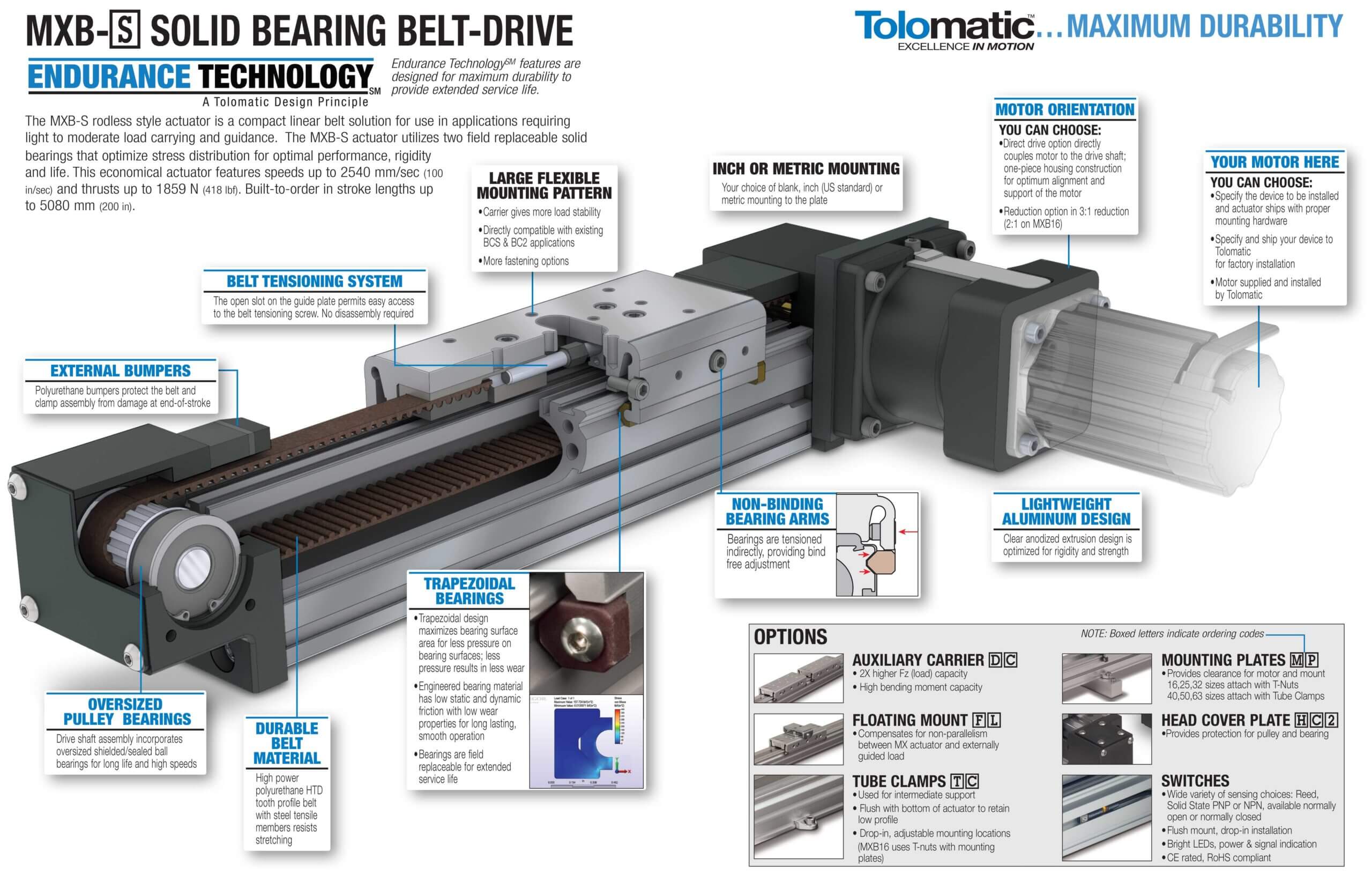

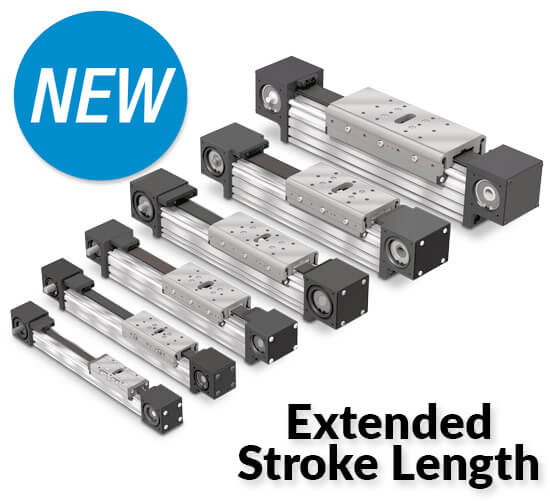

MXB-S Actuators
MXB-S linear belt drive actuators provide optimal performance, rigidity and life.
New Capabilities: Stroke Lengths 400 inches +
The MXB-S is a compact belt drive linear actuator for use in applications requiring light to moderate load carrying and guidance. The bearing system of the MXB-S linear belt drive utilizes two field-replaceable solid bearings that optimize performance, rigidity and life. Featuring a trapezoidal, self-cleaning bearing system, the MXB-s linear belt drive a good choice for applications in paper production or sawmills. This low-cost, economical belt drive actuator features speeds up to 100 in/sec (2540 mm/sec) and thrusts up to 418 lbf (1860 N). All MXB-S linear belt drive actuators are built-to-order in stroke lengths up to 414 inches (10,516 mm).
- 6 body sizes
- Oversized pulley bearings for longer life
- High-power polyurethan belt resists stretching
- Easy access belt tensioning system with no disassembly required
- Field replaceable bearings for extended service life
- Large, flexible carrier mounting surface
- Your Motor Here® compatible for easy direct drive motor installation
Size | MXB-S 16 | MXB-S 25 | MXB-S 32 | MXB-S 40 | MXB-S 50 | MXB-S 63 |
---|---|---|---|---|---|---|
Standard | 200 in | 414 in | 413 in | 412 in | 410 in | 217 in |
Metric | 5,080 mm | 10,516 mm | 10,490 mm | 10,465 mm | 10,414 mm | 5,512 mm |
Size | MXB-S 16 | MXB-S 25 | MXB-S 32 | MXB-S 40 | MXB-S 50 | MXB-S 63 |
---|---|---|---|---|---|---|
Standard | 38 lbf | 151 lbf | 209 lbf | 250 lbf | 325 lbf | 418 lbf |
Metric | 169 N | 672 N | 930 N | 1,112 N | 1,446 N | 1,859 N |
Size | MXB-S 16 | MXB-S 25 | MXB-S 32 | MXB-S 40 | MXB-S 50 | MXB-S 63 |
---|---|---|---|---|---|---|
Standard | 35 lbs | 70 lbs | 150 lbs | 225 lbs | 315 lbs | 520 lbs |
Metric | 16 kg | 32 kg | 68 kg | 102 kg | 143 kg | 236 kg |
Size | MXB-S 16 | MXB-S 25 | MXB-S 32 | MXB-S 40 | MXB-S 50 | MXB-S 63 |
---|---|---|---|---|---|---|
Standard | 100 in/sec | 100 in/sec | 100 in/sec | 100 in/sec | 100 in/sec | 100 in/sec |
Metric | 2,540 mm/sec | 2,540 mm/sec | 2,540 mm/sec | 2,540 mm/sec | 2,540 mm/sec | 2,540 mm/sec |

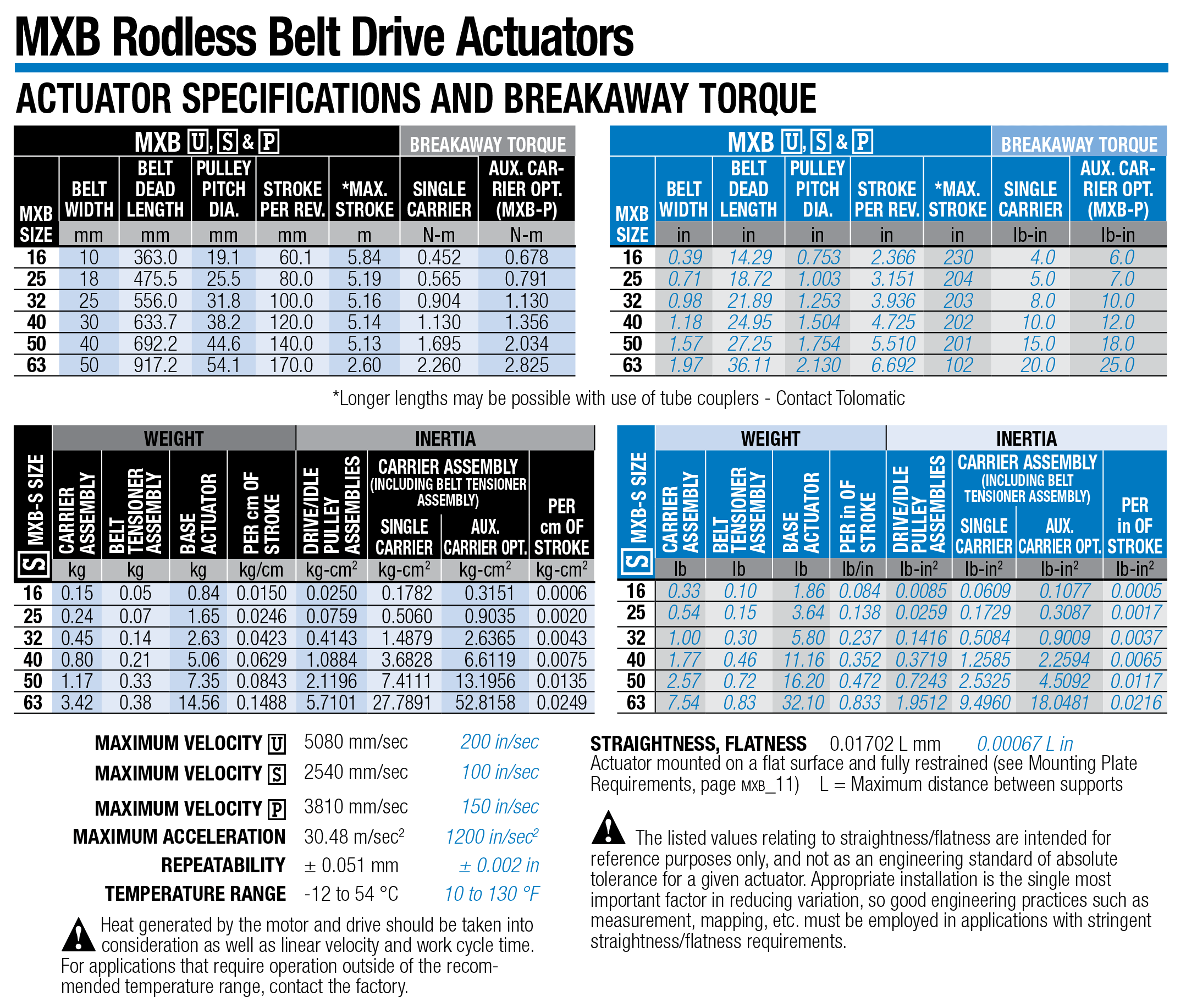

MXB Specifications and Breakaway Torque
![](https://www.tolomatic.com/wp-content/uploads/2022/06/8500-4000_13_MXB_cat-10-727x1024.png)
MXB-S Tube Clamp Requirement
![](https://www.tolomatic.com/wp-content/uploads/2022/06/9e9832d2ecb7499dae7fa1d2ed4a3da0-orig-1024x637.jpg)

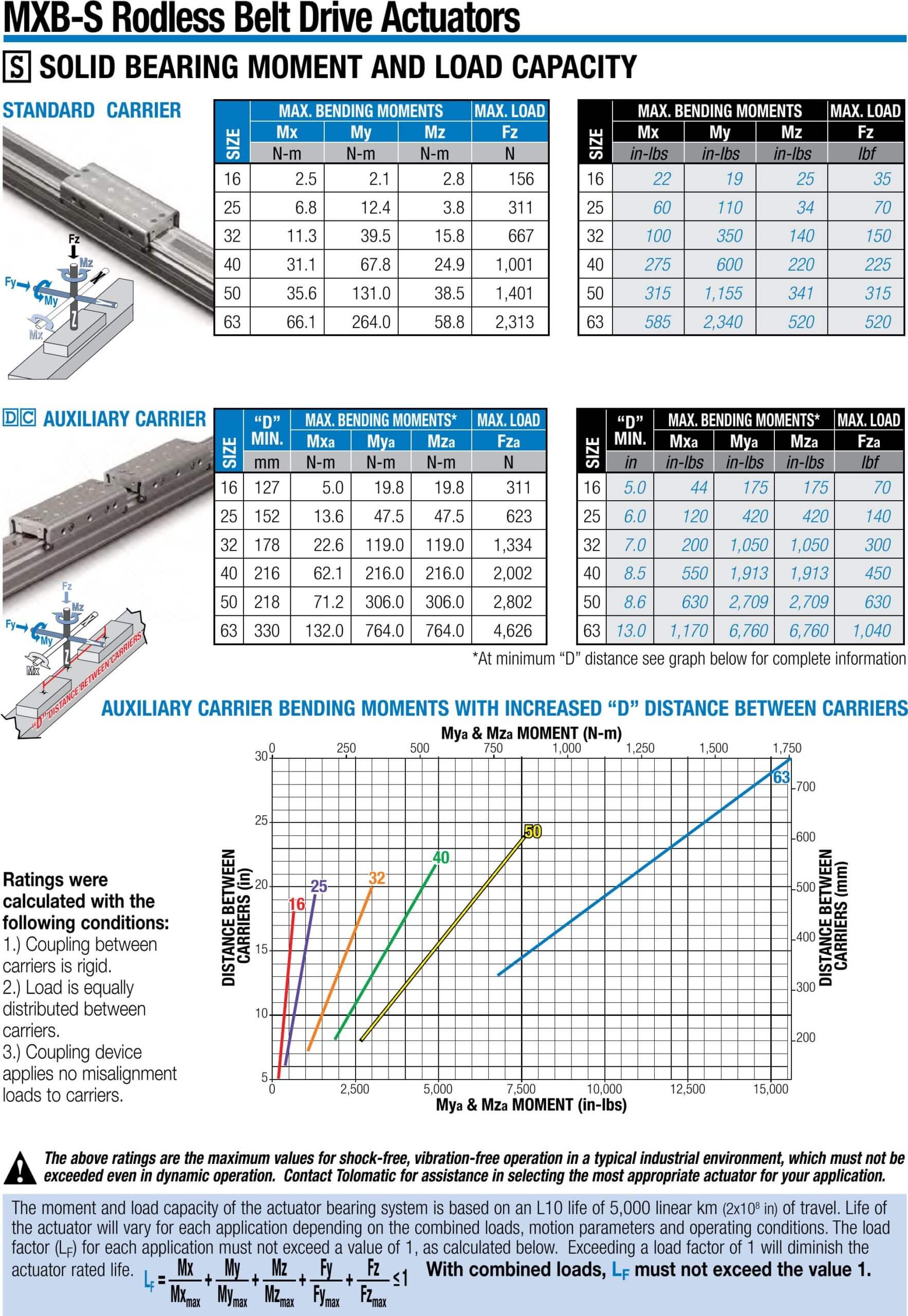

MXB-S Moment and Load Capacity
![](https://www.tolomatic.com/wp-content/uploads/2022/06/8500-4000_15_MXB_cat-12-716x1024.png)
MXB-S Direct Drive Motor Mounting
![](https://www.tolomatic.com/wp-content/uploads/2022/06/4623a9e20d7f4cc7877f72c55eed9379-orig.jpg)
MXB-S Reduction Drive Motor Mounting
![](https://www.tolomatic.com/wp-content/uploads/2022/06/75ce5a14a7e44348a206e9321445a7c3-orig-1024x391.jpg)
MXB-S Switch Specifications
![](https://www.tolomatic.com/wp-content/uploads/2022/06/ec8220b4ecbe420b9b3db41e0c8ed39d-orig-714x1024.jpg)
MXB-S Switch Wiring Diagrams & Dimensions
![](https://www.tolomatic.com/wp-content/uploads/2022/06/598c9983cacf485a95725ad922e4e13e-orig-707x1024.jpg)
MXB-S Actuator Dimensions
![](https://www.tolomatic.com/wp-content/uploads/2022/06/de35d0eec8cc4e3f91f0a3b5e41f7955-orig-758x1024.jpg)
MXB-S Actuator Option Dimensions
![](https://www.tolomatic.com/wp-content/uploads/2022/06/2e66e704d02d4e328cd858a5df249802-orig-760x1024.jpg)
Information Center:
English
Chinese
German
Spanish
Catalogs & Brochures
- Corporate Overview-Linear Motion Solutions Brochure (English)
- SOLUCIONES DE CONTROL DE MOVIMIENTO (Spanish, Corporate Overview-Motion Control Solutions Brochure)
- Unternehmensübersicht (German, Corporate Overview brochure)
- 公司概述 (Chinese, Corporate Overview Brochure)
- Brochure sur l'entreprise Tolomatic (French, Corporate Overview-Linear Motion Solutions Brochure)
- MXB Belt-Driven Linear Actuator Product Catalog
- Gantry & Multi-Axis Solutions Brochure
- Soluciones Gantry y Multieje (^ES Gantry brochure)
- OEM Actuator Solutions Brochure
Certifications
E-Books
Guides
Parts & Maintenance Sheets
Tech Bulletins
Terms & Conditions
Videos
White Papers
- Elektrische Stangenantriebe vs. Hydraulikzylinder: Ein Vergleich der Vor- und Nachteile beider Technologien weißes Papier (Electric vs Hydraulic WP, German)
- Elektrische Antriebe und Pneumatikzylinder: Ein Vergleich basierend auf den Gesamtbetriebskosten weißes Papier (GERMAN, TCO WhitePaper)
- Elektrische Stangenantriebe vs. Hydraulikzylinder: Ein Vergleich der Vor- und Nachteile beider Technologien weißes Papier (GERMAN, Electric vs Hydraulic WP)
- Designing Gantry and Multi-Axis Automation Systems
Application Checklists

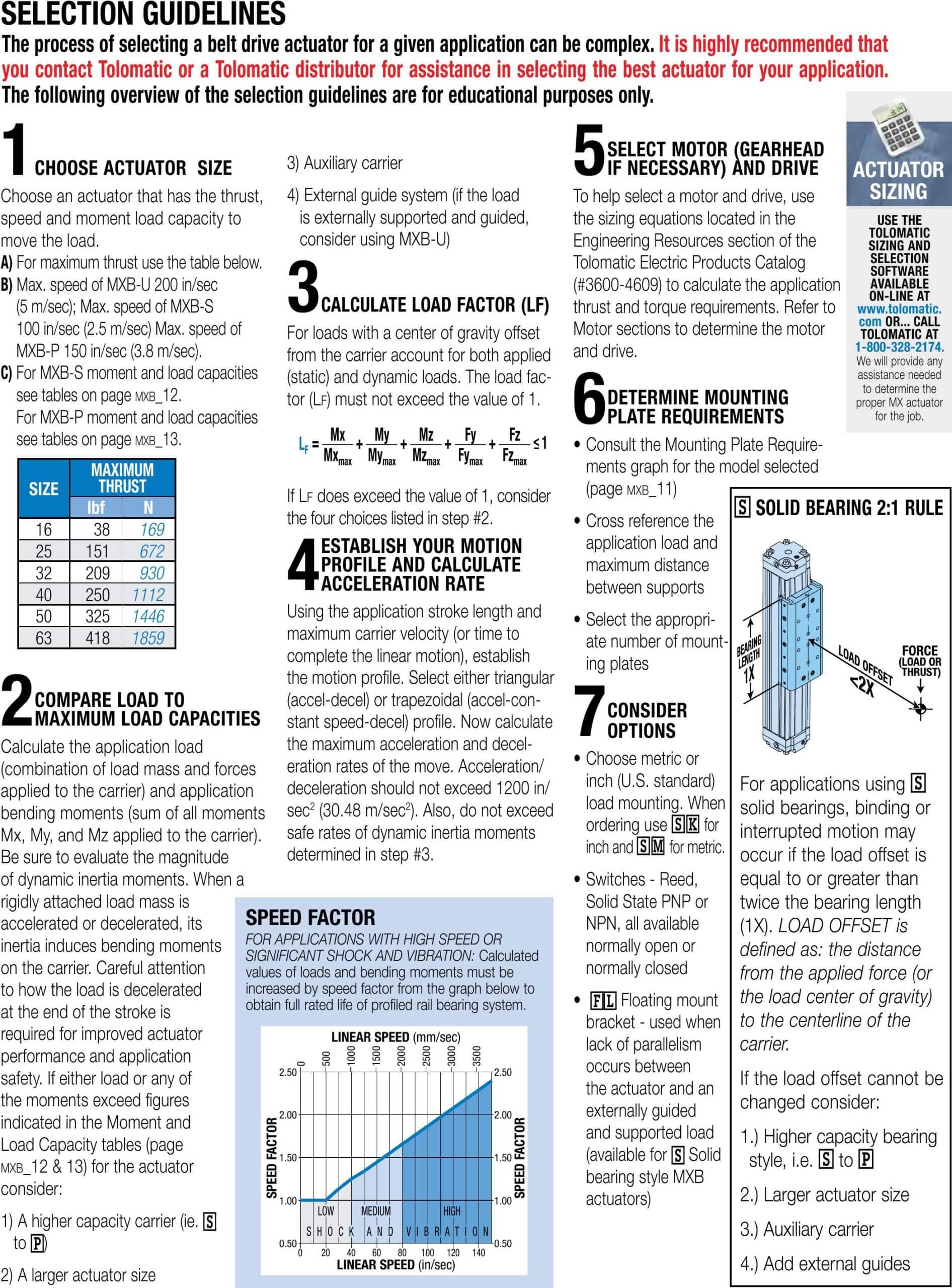

MXB Selection Guidelines
![](https://www.tolomatic.com/wp-content/uploads/2022/06/8500-4000_15_MXB_cat-25-768x1024.png)

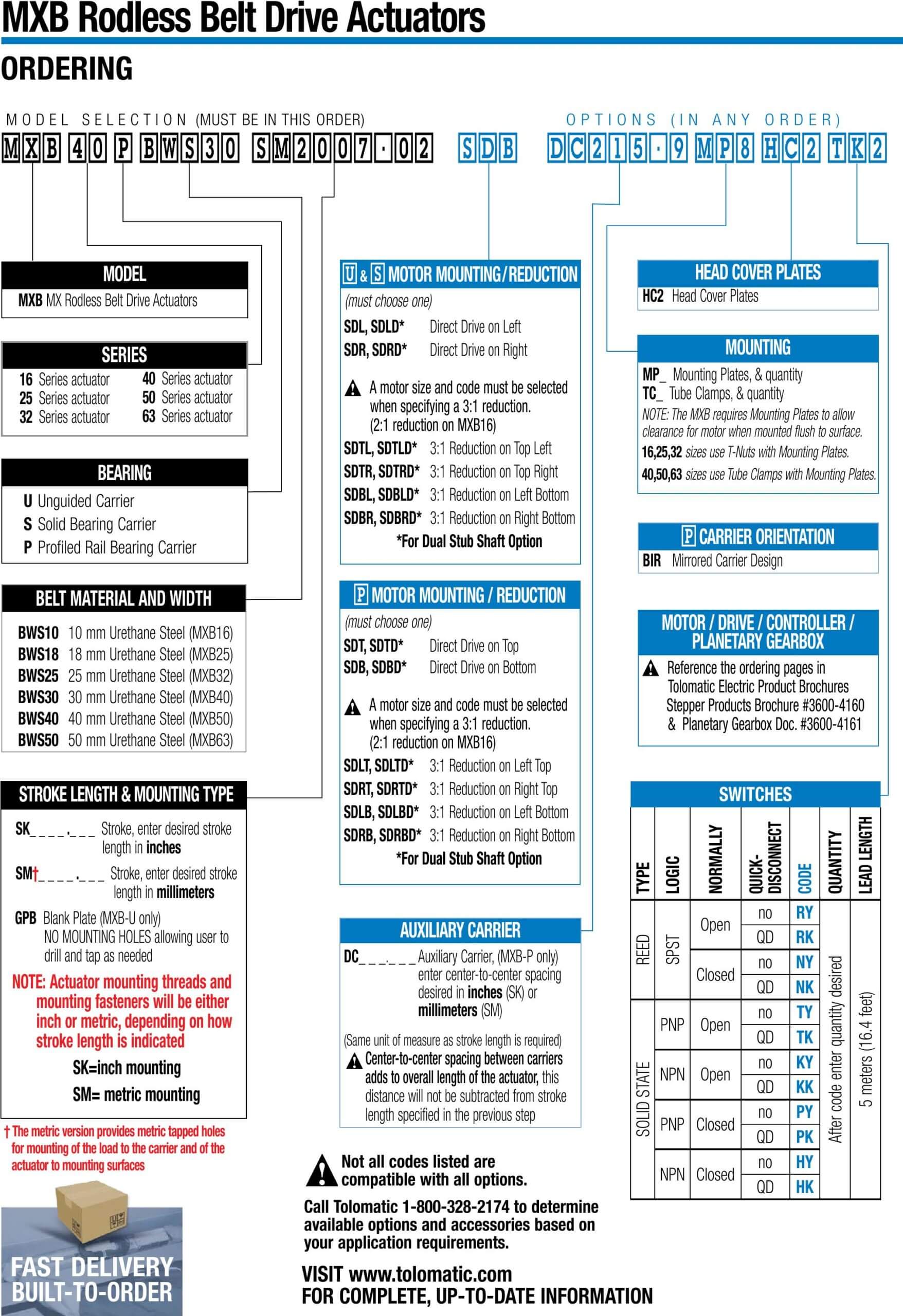

MXB-S Actuator Ordering
![](https://www.tolomatic.com/wp-content/uploads/2022/06/8500-4000_15_MXB_cat-27-736x1024.png)

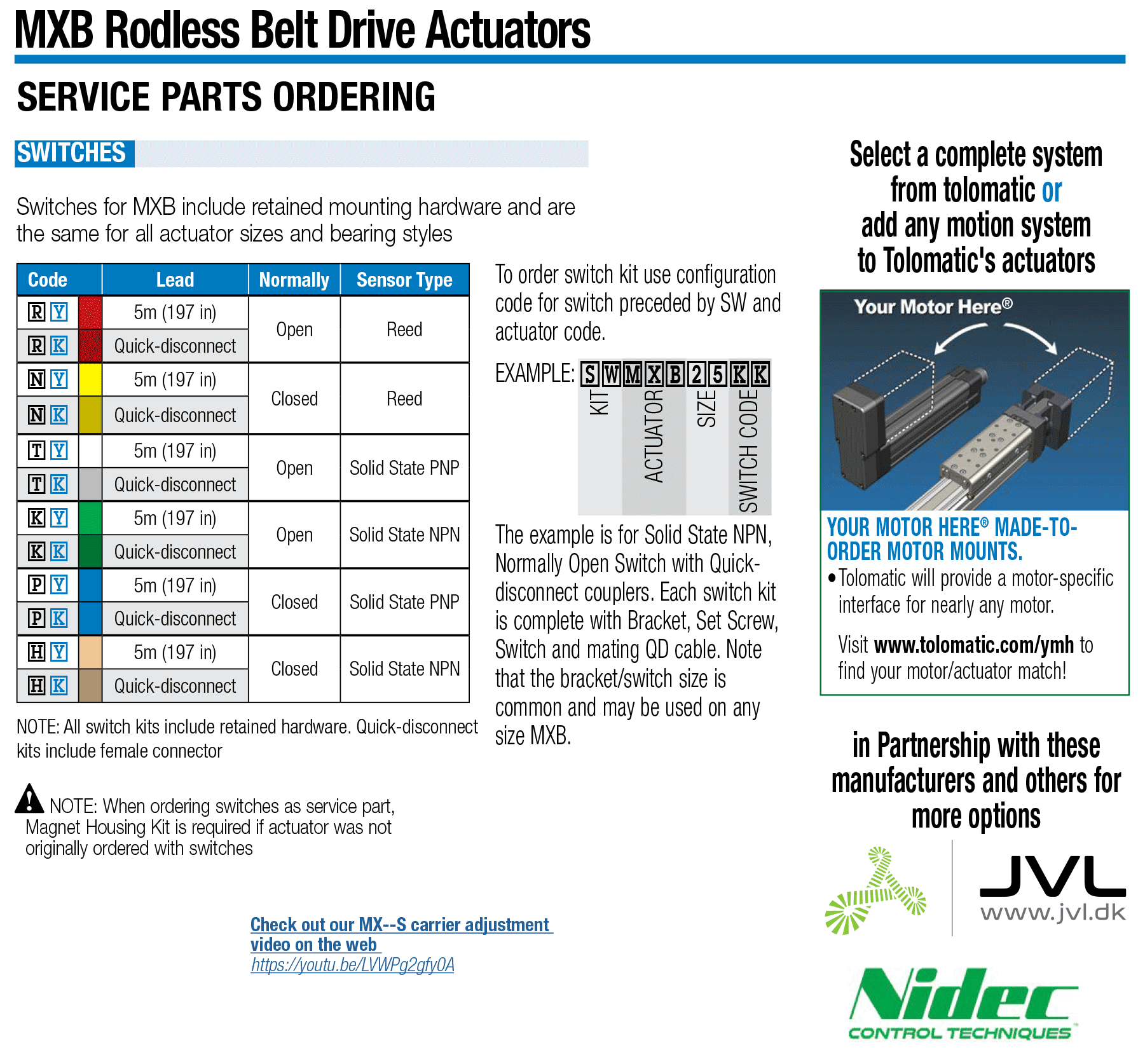

MXB-S Actuator Service Parts Ordering
