1309C Series Pneumatic Cone Clutches

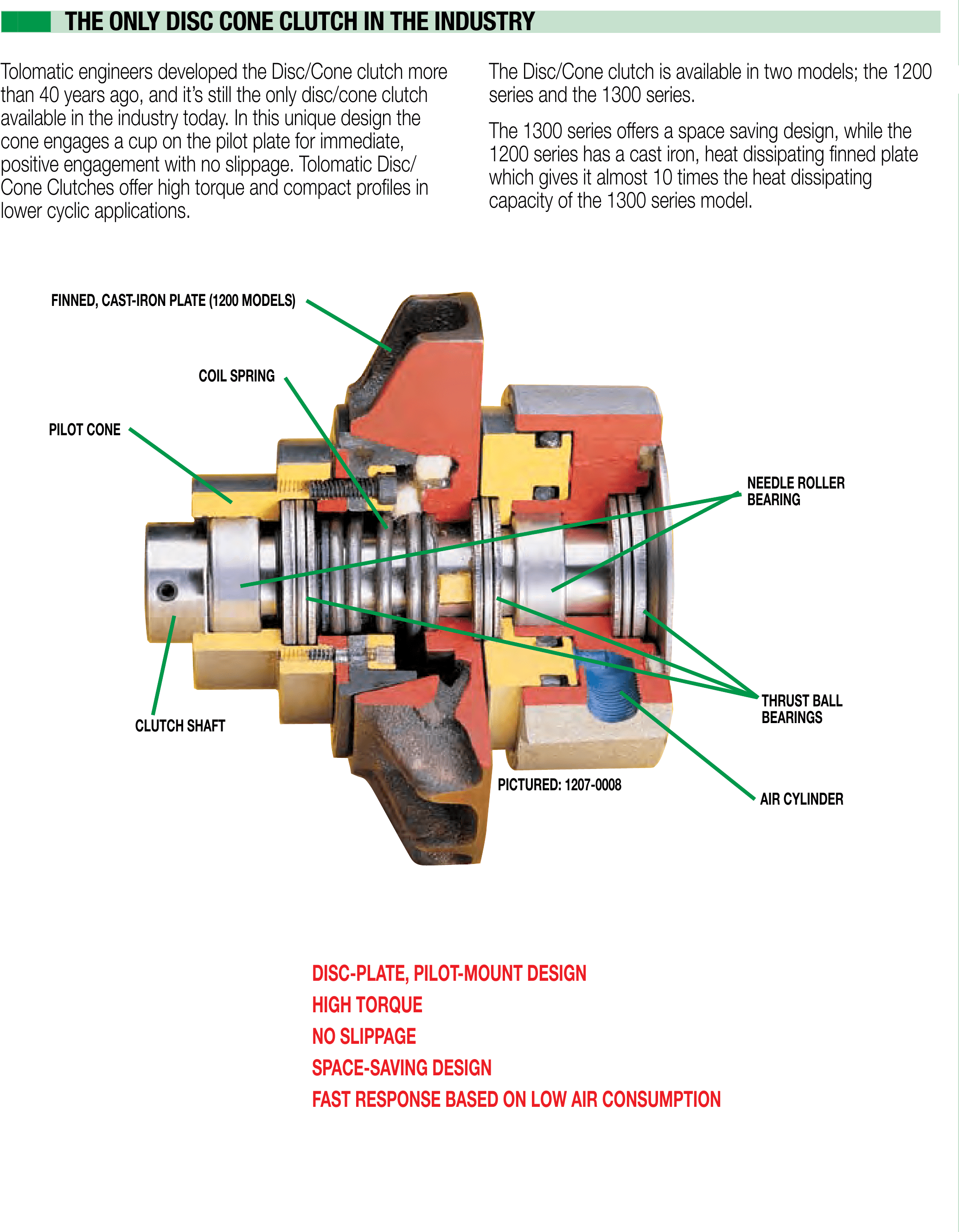

The 1309C series pneumatic cone clutch has a space-saving design that offers torque ranges from 210 to 1000 in-lbs (23.7 to 113 Nm) depending on cycle rate and RPMs.
- 1-, 1-1/8-, 1-1/4-, and 1-3/8-inch bore sizes (25.4, 28.6, 31.8 and 34.9 mm)
- High torque with no slippage
- Fast response based on low air consumption
1309C Clutch Features
1309C Clutch Specs & Torque
1309C Clutch Response Times & Dimensions
Clutch Performance Comparsions
Online Ordering
| Part # | Description | "A" Keyway (in) | "B" Bore Diameter (in) | "C" Bore Diameter (in) | Cart |
|---|---|---|---|---|---|
| 1309-0316 | Clutch 1309C-16 | 1/4 x 1/8 | 1.00 | - |  |
| 1309-0318 | Clutch 1309C-18 | 1/4 x 1/8 | 1.13 | - | |
| 1309-0320 | Clutch 1309C-20 | 1/4 x 1/8 | 1.25 | - | |
| 1309-0322 | Clutch 1309C-22 | 5/16 x 5/32 | 1.38 | 2.50 | |
