H960 Series Ductile Iron Hydraulic Disc Brake
The H960 ductile iron hydraulic disc brake series provides up to 66,000 in-lbs (7458 Nm) of torque at a maximum pressure of 1000 PSI (68.95 bar). The H960 ductile iron hydraulic disc brake series offers single acting and double acting models.
- Durable ductile iron construction
- Replaceable high-grade friction material
- Buna-N seals are standard with Viton® seals as optional
- Maximum disc diameter of 18 inches (457 mm)
Order Now
Order H960 – Double Acting
Part Number
0778-0000
0778-0003
0778-0004
0778-0005
0778-0011
0778-0012
Model
H960DXCI
H960DECI
H960DECIG
H960DEVI
H960DNCI
H960DTCI
Max. Dynamic Torque
12" Disc: 45,672 in-lb, 16" Disc: 66,432 in-lb
12" Disc: 45,672 in-lb, 16" Disc: 66,432 in-lb
12" Disc: 45,672 in-lb, 16" Disc: 66,432 in-lb
12" Disc: 45,672 in-lb, 16" Disc: 66,432 in-lb
12" Disc: 45,672 in-lb, 16" Disc: 66,432 in-lb
12" Disc: 45,672 in-lb, 16" Disc: 66,432 in-lb
Max. Static Torque
12" Disc: 26,664 in-lb, 16" Disc: 38,784 in-lb
12" Disc: 26,664 in-lb, 16" Disc: 38,784 in-lb
12" Disc: 26,664 in-lb, 16" Disc: 38,784 in-lb
12" Disc: 26,664 in-lb, 16" Disc: 38,784 in-lb
12" Disc: 26,664 in-lb, 16" Disc: 38,784 in-lb
12" Disc: 26,664 in-lb, 16" Disc: 38,784 in-lb
Disc Diameter
12" to 18"
12" to 18"
12" to 18"
12" to 18"
12" to 18"
12" to 18"
Disc Thickness
1 1/8 in
1/2 in
1/2 in
1/2 in
1 in
3/16" in
Maximum Pressure
1,000 PSI
1,000 PSI
1,000 PSI
1,000 PSI
1,000 PSI
1,000 PSI
Added Options
- - -
- - -
EPR Seals
Viton (R) Seals
- - -
- - -
Weight
35.00 lbs
35.00 lbs
35.00 lbs
35.00 lbs
35.00 lbs
35.00 lbs
Price
$983.16
USD
USD
$905.94
USD
USD
$910.12
USD
USD
$1,004.09
USD
USD
$1,113.14
USD
USD
$1,102.06
USD
USD
Features & Ordering

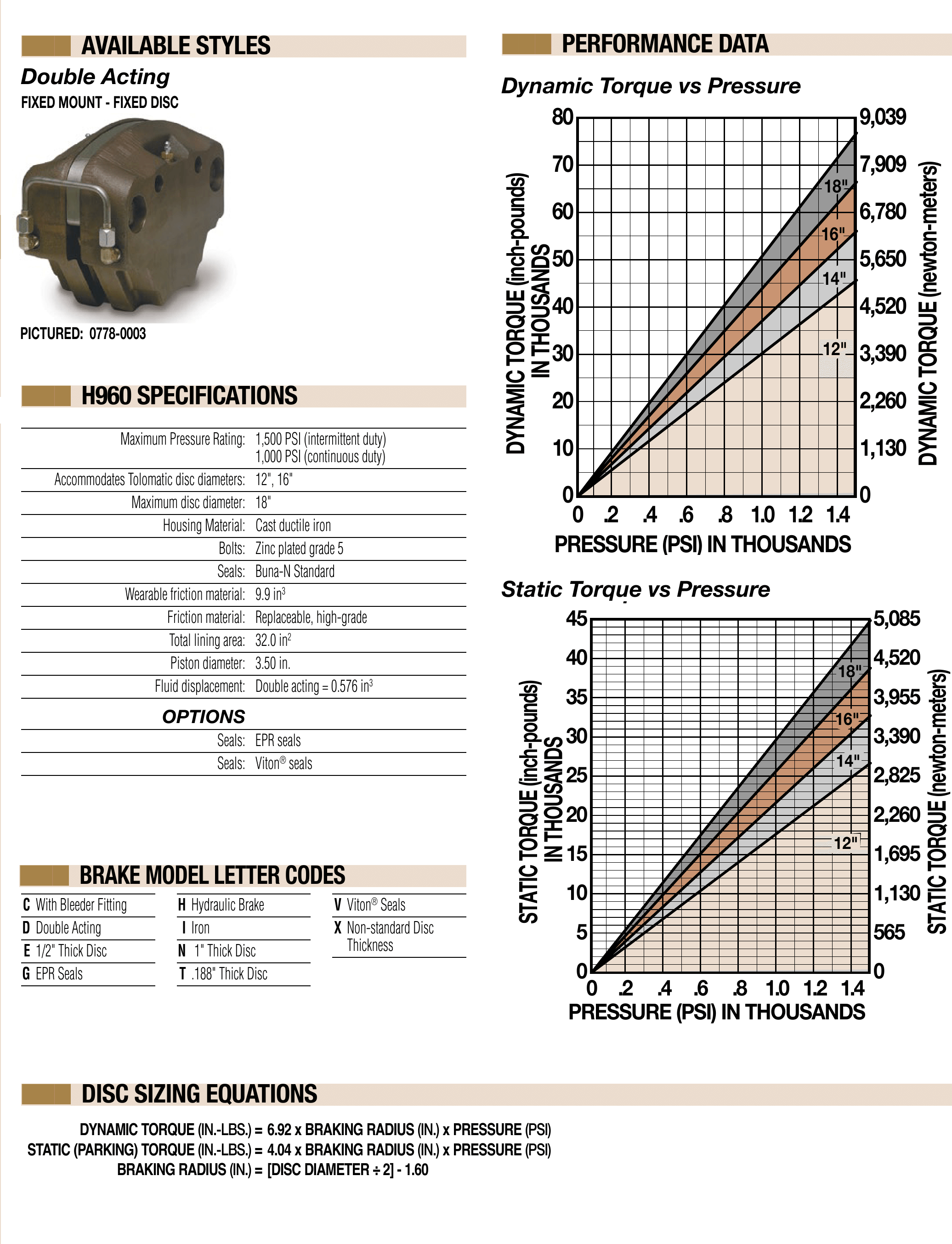

Download the H960 Brochure for full details on features
Specifications
H960 Specs & Torque
Dimensions
H960 Dimensions
