Quick Disconnect Bushings & Hubs
Tolomatic quick disconnect bushings and hubs are designed to be used together. Bushings and hubs are available for use with 6-5/16-, 8- and 10-, 12- and 16-inch Tolomatic disc sizes.
- Fast, easy installation
- Easily disconnect disc sizes
- Accommodates a larger range of shaft sizes
Use the links below to locate a Tolomatic distributor in your area, find out more information on how to specify, service parts information, and selection guidelines and tips.
Find a Tolomatic distributor
QD Bushings & Hubs Features

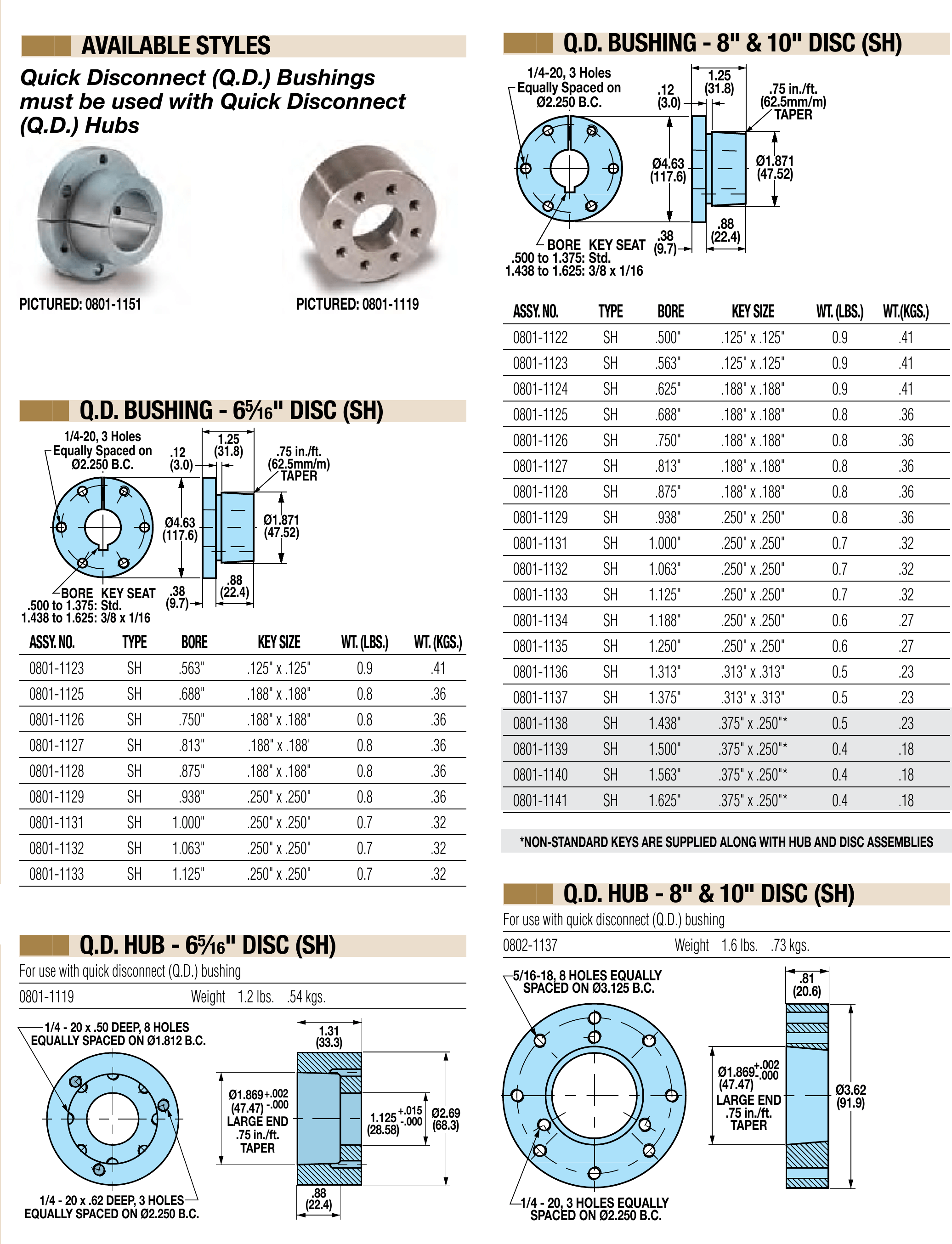

QD Bushings & Hubs: Specs and Dimensions for 6-, 8- and 10-inch Discs
QD Bushings & Hubs: Dimensions for 12- and 16-inch Discs
Online Ordering
| Part # | Description | Bushing Type | Bore (in) | Key Size (in) | Weight | Cart |
|---|---|---|---|---|---|---|
| 0801-1123 | Quick Disconnect Bushings 6 5/16, 8 & 10 Discs | SH | 0.56 | .125 x .125 | 0.90 |  |
| 0801-1125 | Quick Disconnect Bushings 6 5/16, 8 & 10 Discs | SH | 0.69 | .188 x .188 | 0.80 | |
| 0801-1126 | Quick Disconnect Bushings 6 5/16, 8 & 10 Discs | SH | 0.75 | .188 x .188 | 0.80 | |
| 0801-1127 | Quick Disconnect Bushings 6 5/16, 8 & 10 Discs | SH | 0.81 | .188 x .188 | 0.80 | |
| 0801-1128 | Quick Disconnect Bushings 6 5/16, 8 & 10 Discs | SH | 0.88 | .188 x .188 | 0.80 | |
| 0801-1129 | Quick Disconnect Bushings 6 5/16, 8 & 10 Discs | SH | 0.94 | .250 x .250 | 0.80 | |
| 0801-1131 | Quick Disconnect Bushings 6 5/16, 8 & 10 Discs | SH | 1.00 | .250 x .250 | 0.70 | |
| 0801-1132 | Quick Disconnect Bushings 6 5/16, 8 & 10 Discs | SH | 1.06 | .250 x .250 | 0.70 | |
| 0801-1133 | Quick Disconnect Bushings 6 5/16, 8 & 10 Discs | SH | 1.13 | .250 x .250 | 0.70 | |
| 0801-1122 | Quick Disconnect Bushings 8 & 10 Discs | SH | 0.50 | .125 x .125 | 0.90 | |
| 0801-1119 | Quick Disconnect Hub 6 5/16 Discs | - | - | - | 1.20 | |
| 0802-1137 | Quick Disconnect Hub 8 & 10 Discs | - | - | - | 1.60 | |
| 0801-1124 | Quick Disconnect Bushing 8 & 10 Discs | SH | 0.63 | .188 x .188 | 0.90 | |
| 0801-1134 | Quick Disconnect Bushing 8 & 10 Discs | SH | 1.19 | .250 x .250 | 0.60 | |
| 0801-1135 | Quick Disconnect Bushing 8 & 10 Discs | SH | 1.25 | .250 x .250 | 0.60 | |
| 0801-1137 | Quick Disconnect Bushing 8 & 10 Discs | SH | 1.38 | .313 x .313 | 0.50 | |
| 0801-1138 | Quick Disconnect Bushing 8 & 10 Discs | SH | 1.44 | .375 x .250 | 0.50 | |
| 0801-1139 | Quick Disconnect Bushing 8 & 10 Discs | SH | 1.50 | .375 x .250 | 0.40 | |
| 0801-1140 | Quick Disconnect Bushing 8 & 10 Discs | SH | 1.56 | .375 x .250 | 0.40 | |
| 0801-1141 | Quick Disconnect Bushing 8 & 10 Discs | SH | 1.63 | .375 x .250 | 0.40 | |
| 0804-1141 | Quick Disconnect Hub 12 & 16 Discs | - | - | - | 4.70 | |
| 0801-1142 | Quick Disconnect Bushing 12 & 16 Discs | SF | 0.50 | .125 x .125 | 4.90 | |
| 0801-1144 | Quick Disconnect Bushing 12 & 16 Discs | SF | 0.63 | .188 x .188 | 4.80 | |
| 0801-1146 | Quick Disconnect Bushing 12 & 16 Discs | SF | 0.75 | .188 x .188 | 4.80 | |
| 0801-1148 | Quick Disconnect Bushing 12 & 16 Discs | SF | 0.88 | .188 x .188 | 4.70 | |
| 0801-1150 | Quick Disconnect Bushing 12 & 16 Discs | SF | 1.00 | .250 x .250 | 4.60 | |
| 0801-1151 | Quick Disconnect Bushing 12 & 16 Discs | SF | 1.06 | .250 x .250 | 4.50 | |
| 0801-1152 | Quick Disconnect Bushing 12 & 16 Discs | SF | 1.13 | .250 x .250 | 4.50 | |
| 0801-1153 | Quick Disconnect Bushing 12 & 16 Discs | SF | 1.19 | .250 x .250 | 4.40 | |
| 0801-1154 | Quick Disconnect Bushing 12 & 16 Discs | SF | 1.25 | .250 x .250 | 4.40 | |
| 0801-1155 | Quick Disconnect Bushing 12 & 16 Discs | SF | 1.31 | .313 x .313 | 4.30 | |
| 0801-1156 | Quick Disconnect Bushing 12 & 16 Discs | SF | 1.38 | .313 x .313 | 4.20 | |
| 0801-1157 | Quick Disconnect Bushing 12 & 16 Discs | SF | 1.44 | .375 x .375 | 4.10 | |
| 0801-1158 | Quick Disconnect Bushing 12 & 16 Discs | SF | 1.50 | .375 x .375 | 4.00 | |
| 0801-1159 | Quick Disconnect Bushing 12 & 16 Discs | SF | 1.56 | .375 x .375 | 4.00 | |
| 0801-1160 | Quick Disconnect Bushing 12 & 16 Discs | SF | 1.63 | .375 x .375 | 3.90 | |
| 0801-1161 | Quick Disconnect Bushing 12 & 16 Discs | SF | 1.69 | .375 x .375 | 3.80 | |
| 0801-1162 | Quick Disconnect Bushing 12 & 16 Discs | SF | 1.75 | .375 x .375 | 3.70 | |
| 0801-1163 | Quick Disconnect Bushing 12 & 16 Discs | SF | 1.88 | .500 x .500 | 3.50 | |
| 0801-1164 | Quick Disconnect Bushing 12 & 16 Discs | SF | 1.94 | .500 x .500 | 3.40 | |
| 0801-1165 | Quick Disconnect Bushing 12 & 16 Discs | SF | 2.00 | .500 x .500 | 3.30 | |
| 0801-1166 | Quick Disconnect Bushing 12 & 16 Discs | SF | 2.06 | .500 x .500 | 3.20 | |
| 0801-1167 | Quick Disconnect Bushing 12 & 16 Discs | SF | 2.13 | .500 x .500 | 3.10 | |
| 0801-1168 | Quick Disconnect Bushing 12 & 16 Discs | SF | 2.19 | .500 x .500 | 3.00 | |
| 0801-1169 | Quick Disconnect Bushing 12 & 16 Discs | SF | 2.25 | .500 x .500 | 2.90 | |
| 0801-1170 | Quick Disconnect Bushing 12 & 16 Discs | SF | 2.31 | .500 x .625 | 2.90 | |
| 0801-1171 | Quick Disconnect Bushing 12 & 16 Discs | SF | 2.38 | .500 x .625 | 2.80 | |
| 0801-1172 | Quick Disconnect Bushing 12 & 16 Discs | SF | 2.44 | .500 x .625 | 2.70 | |
| 0801-1173 | Quick Disconnect Bushing 12 & 16 Discs | SF | 2.50 | .500 x .625 | 2.60 | |
| 0801-1174 | Quick Disconnect Bushing 12 & 16 Discs | SF | 2.56 | .375 x .625 | 2.40 | |
| 0801-1175 | Quick Disconnect Bushing 12 & 16 Discs | SF | 2.63 | .375 x .625 | 2.30 | |
| 0801-1176 | Quick Disconnect Bushing 12 & 16 Discs | SF | 2.69 | .375 x .625 | 2.20 | |
| 0801-1177 | Quick Disconnect Bushing 12 & 16 Discs | SF | 2.75 | .375 x .625 | 2.00 | |
| 0801-1179 | Quick Disconnect Bushing 12 & 16 Discs | SF | 2.94 | NONE | 1.50 | |
