MG Magnetic Linear Cylinders

Magnetic cylinders are an excellent choice for applications with environmental concerns.

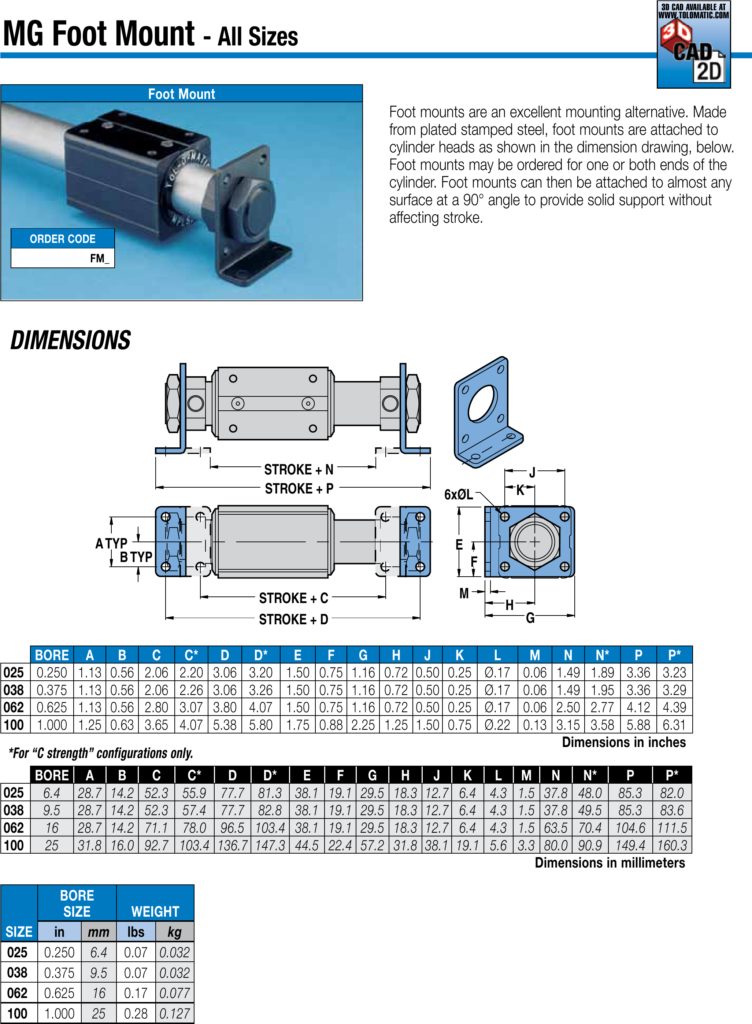

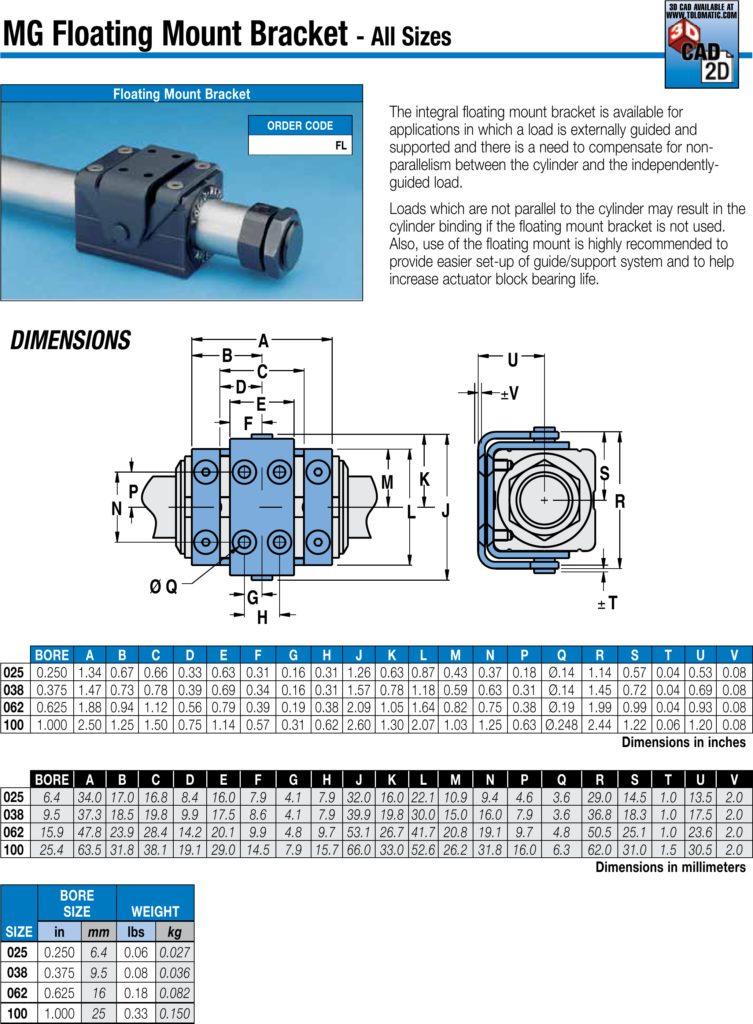

The MG magnetic linear cylinder has no mechanical connection of the carrier to the piston resulting in easy rotation of its mounting block for mounting flexibility.

  • 3 magnetic coupling strengths for a maximum of 100 lbs (45.4 kg)
  • Field repairable design minimizes downtime
  • Fully enclosed actuator body for contaminant prevention

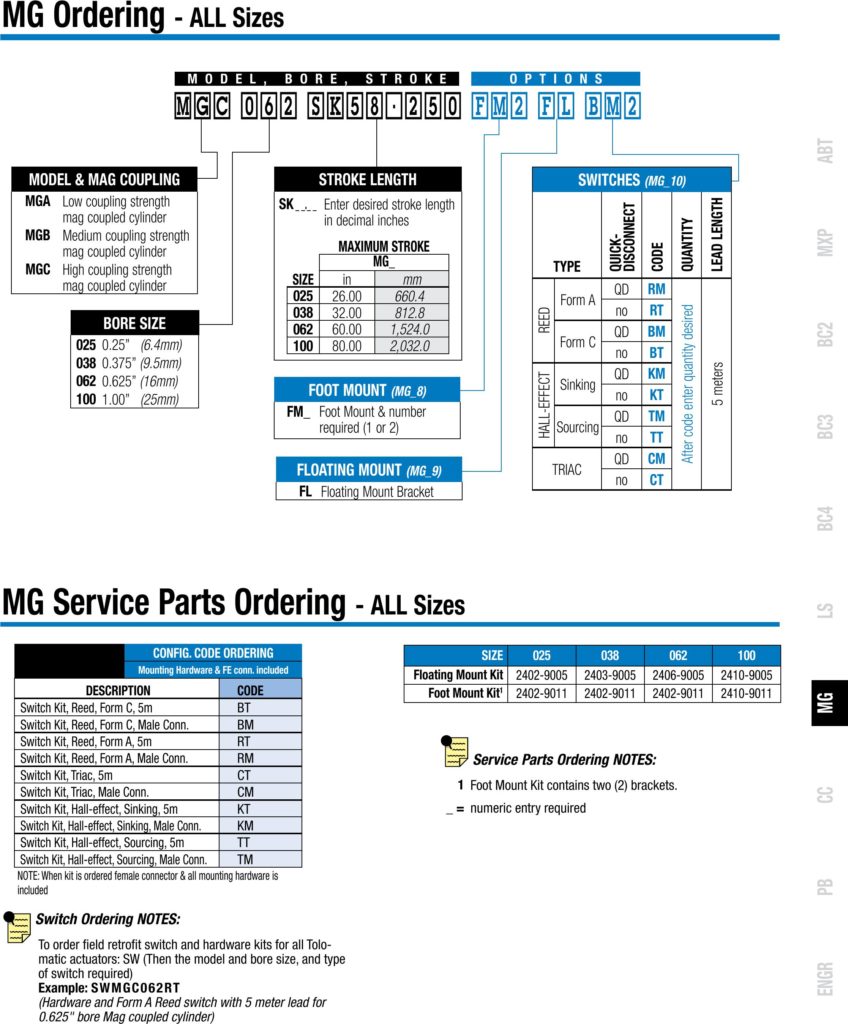

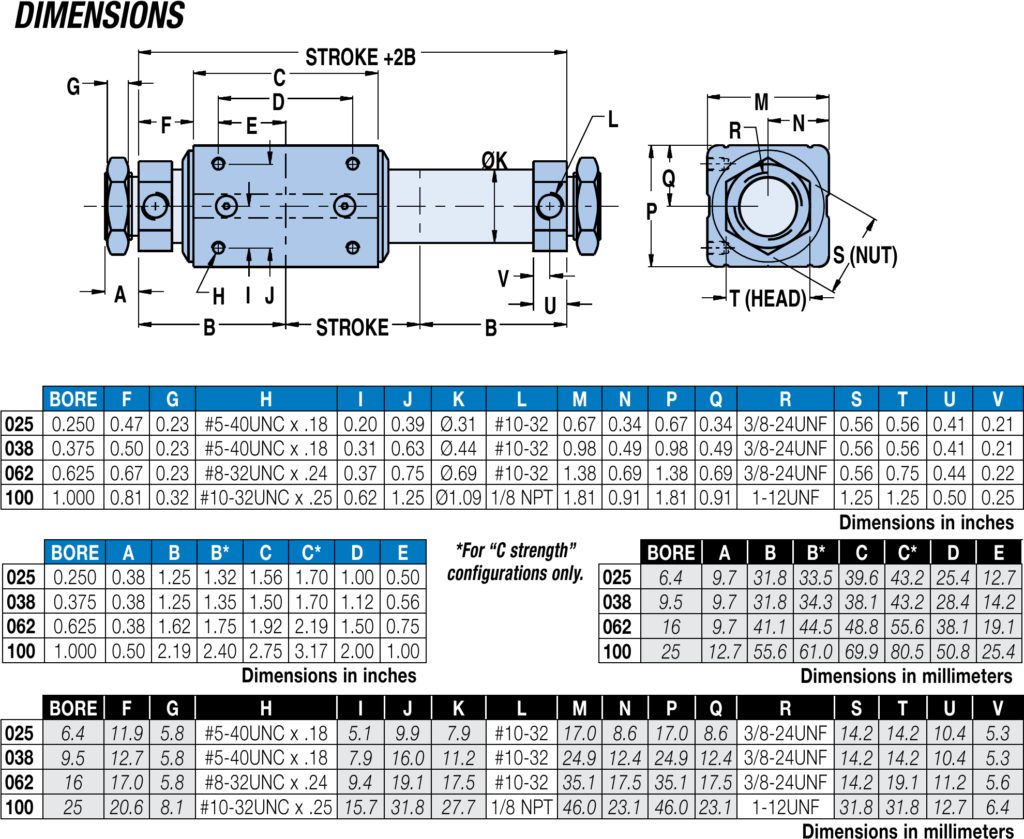

MG Magnetic Linear Cylinder Bore Size

Size MG 025 MG 038 MG 062 MG 100
Standard 0.25 in 0.38 in 0.62 in 1.00 in
Metric 6 mm 10 mm 16 mm 25 mm

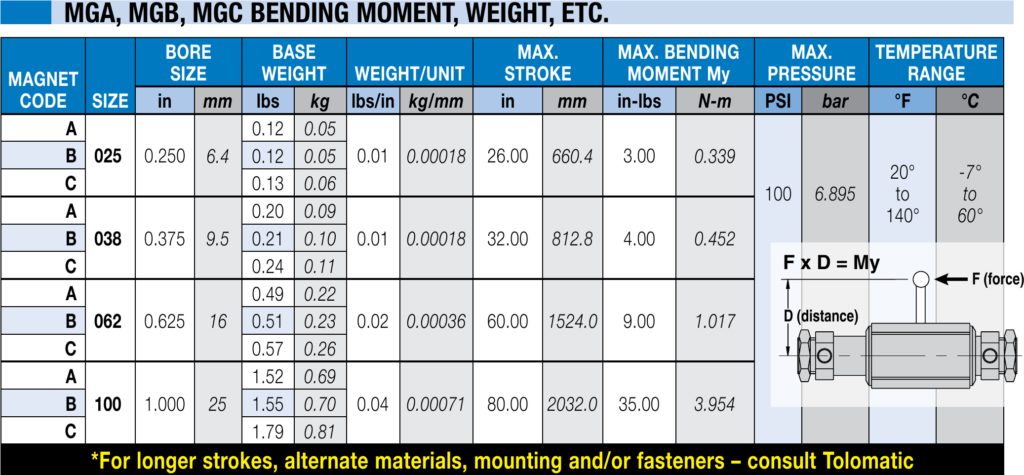

MG Magnetic Linear Cylinder Max Stroke

Size MG 025 MG 038 MG 062 MG 100
Standard 26 in 32 in 80 in 80 in
Metric 660 mm 813 mm 2,032 mm 2,032 mm

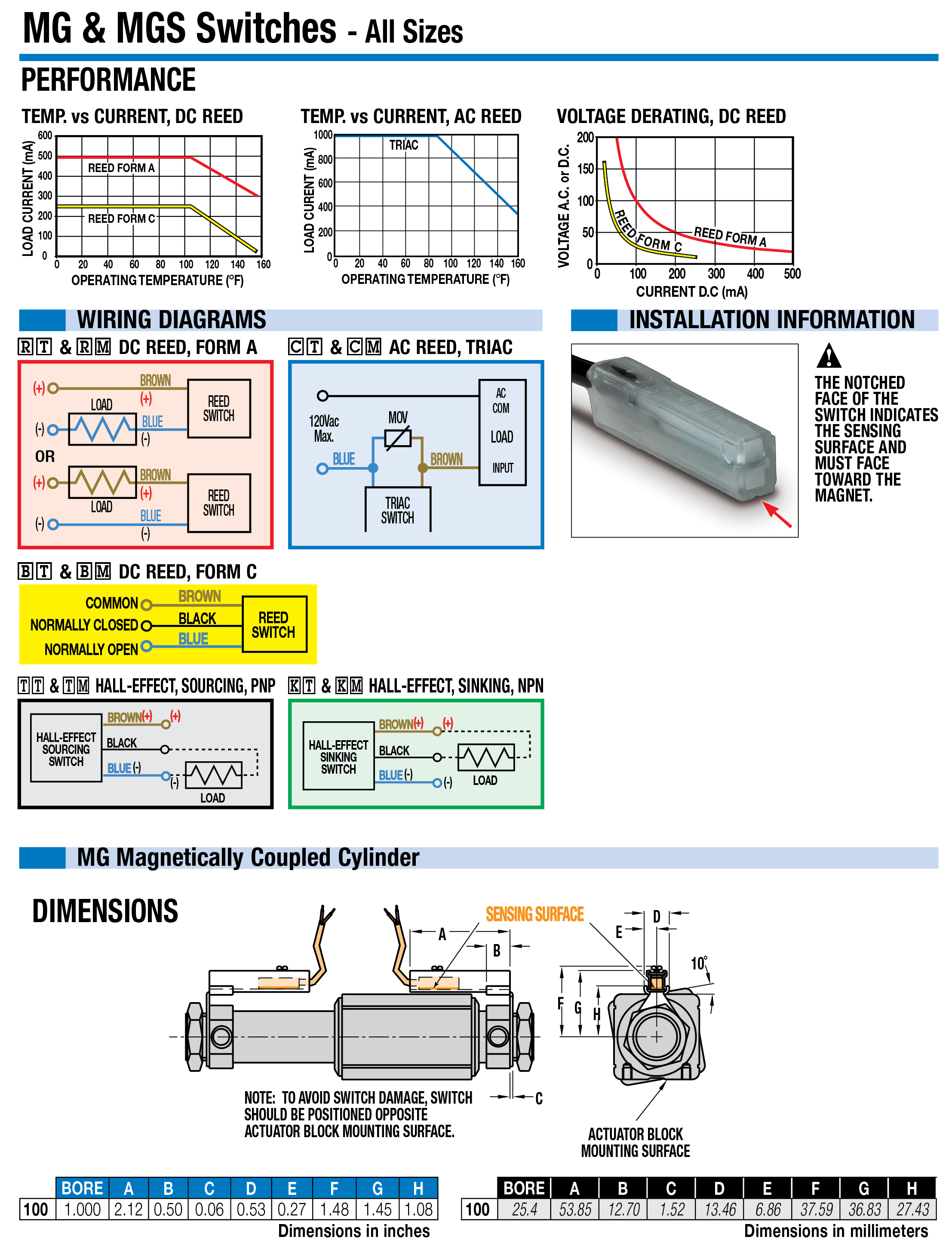

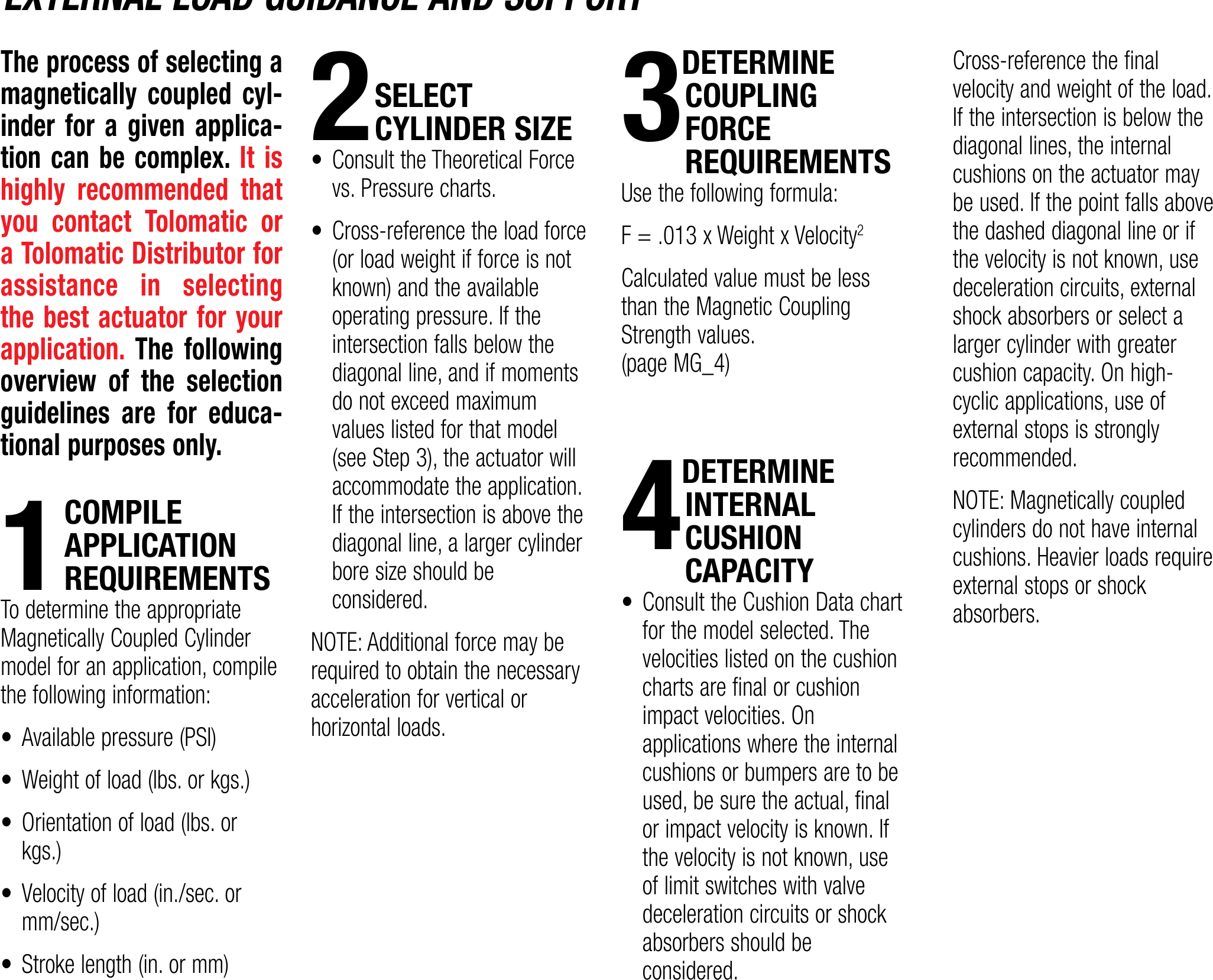

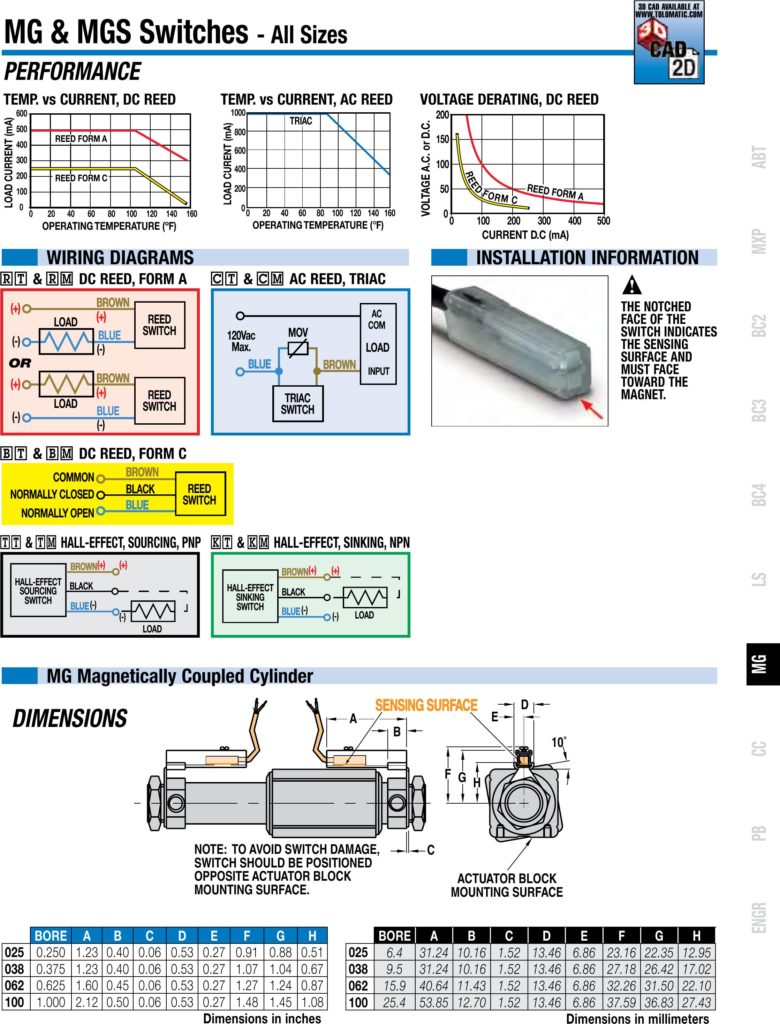

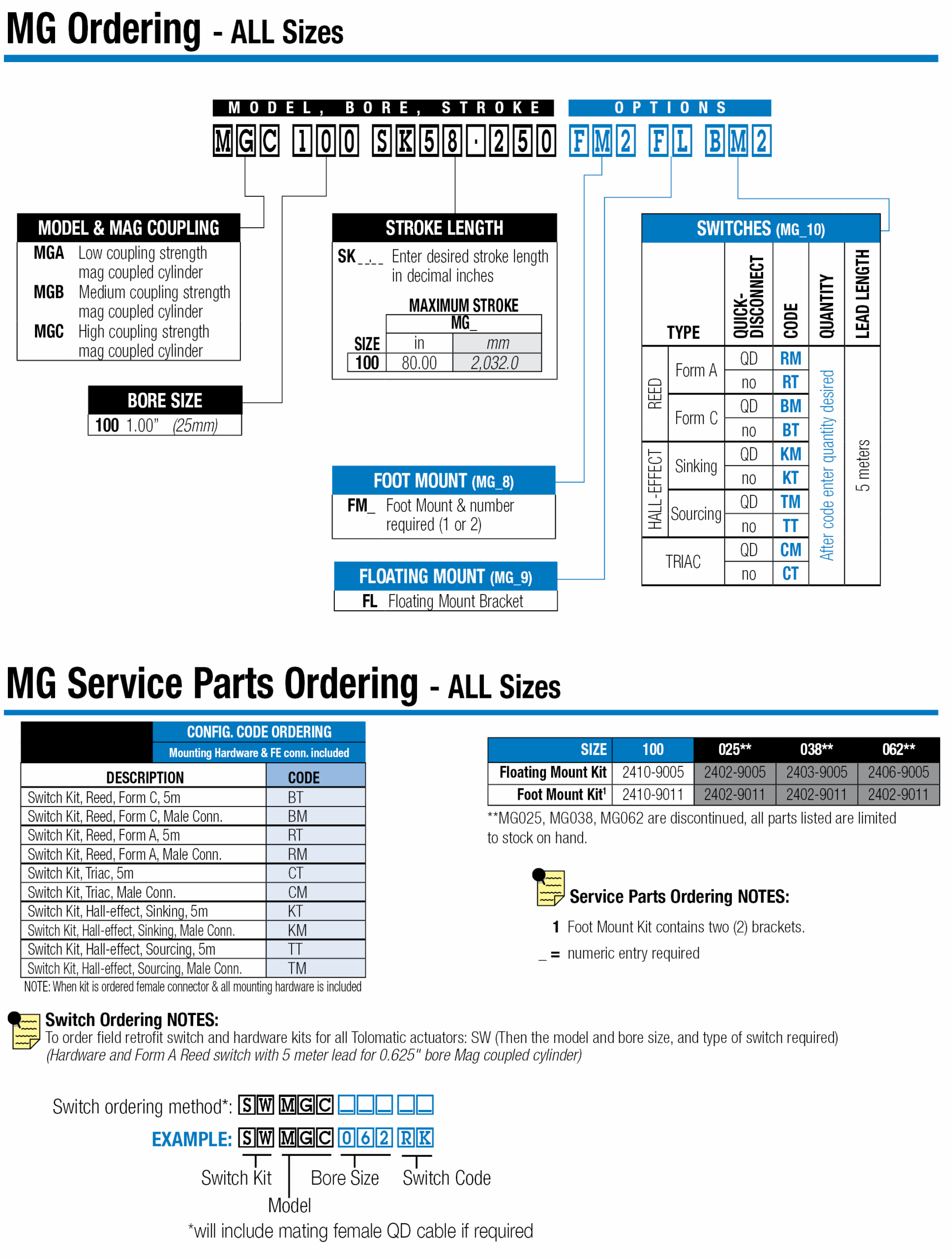

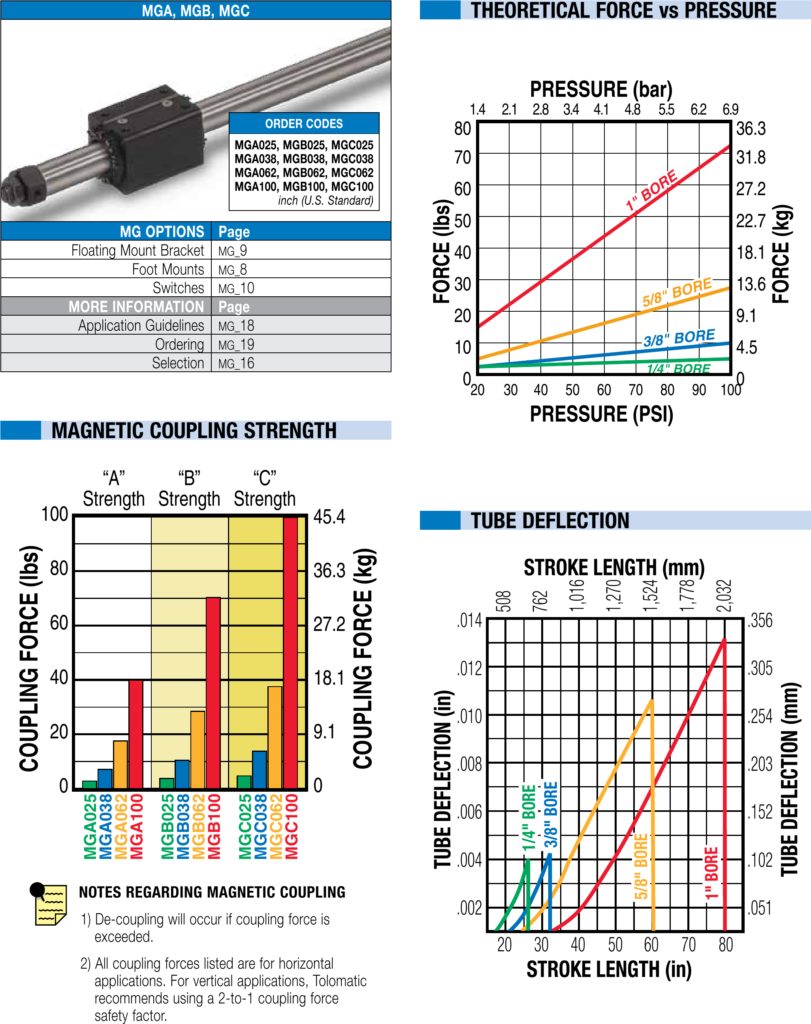

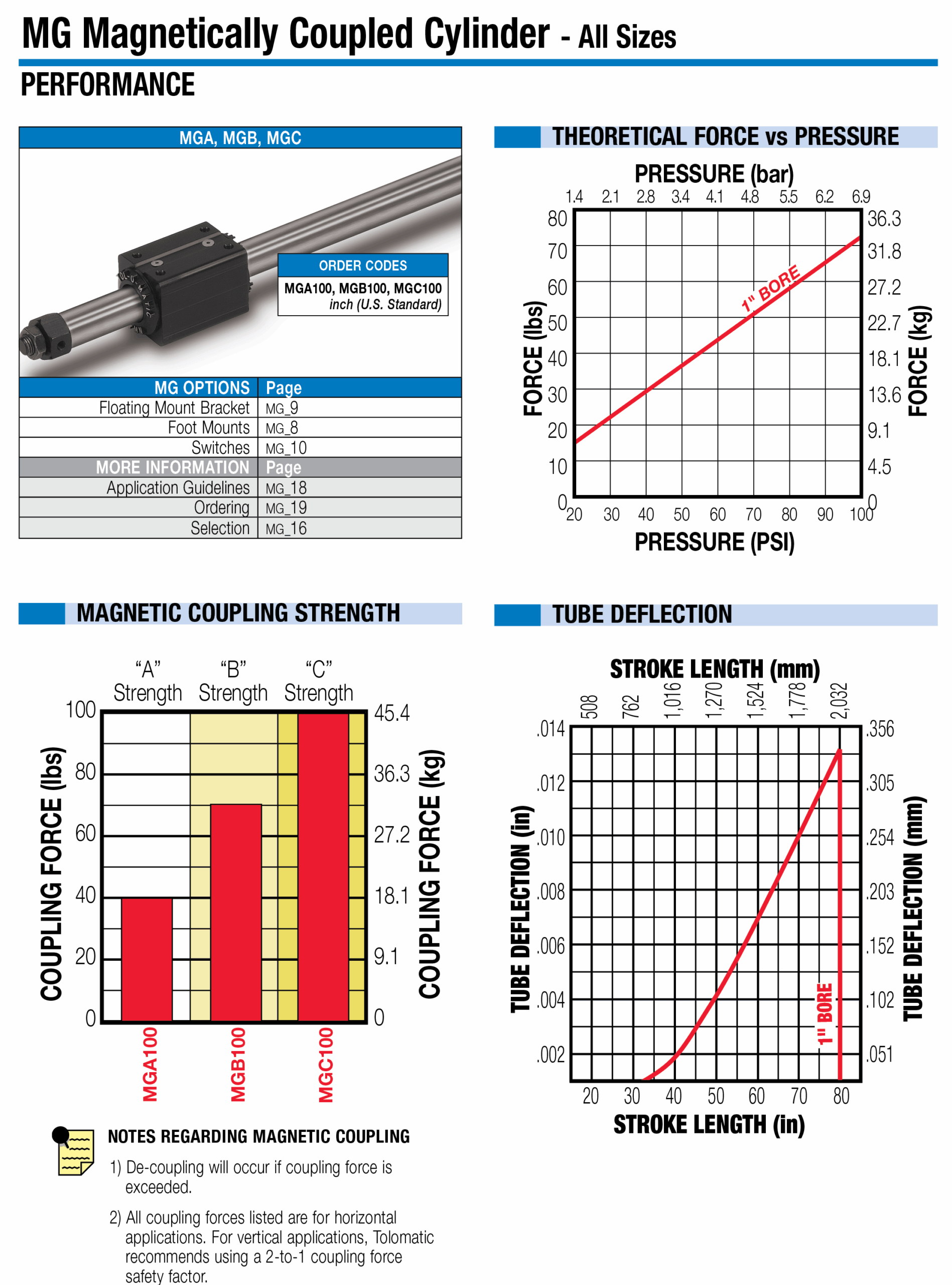

MG Magnetic Linear Cylinder Max Force

Size MG 025 MG 038 MG 062 MG 100
Standard 5 lbf 11 lbf 30 lbf 78 lbf
Metric 22 N 49 N 133 N 347 N

MG Magnetic Linear Cylinder Magnetic Strength

Size MG 025 MG 038 MG 062 MG 100
Standard 5 lb 14 lb 38 lb 100 lb
Metric 22 N 62 N 169 N 445 N
