Slide-Rite® Standard 3 to 2 Ratio Right Angle Gearboxes

Tolomatic’s standard size 3 to 2 Slide-Rite® right angle gearbox delivers up to 876 in-lbs (99 Nm) of torque depending on input RPMs.

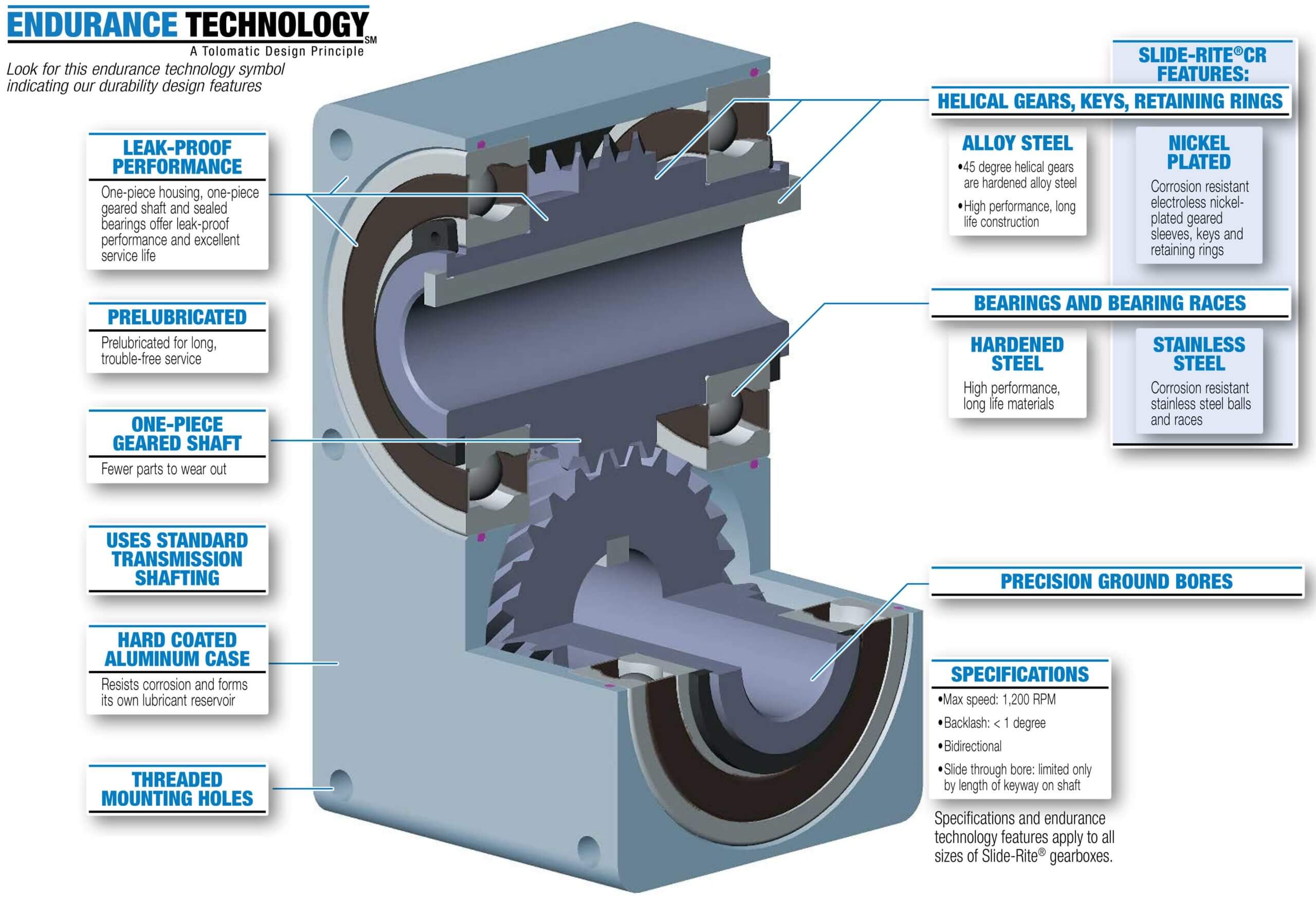

  • High torque ball bearing design
  • Solid one-piece aluminum housing seals gears from outside contaminants for smooth operation
  • Right- or left-hand rotation to convert power either direction
  • Easily slides axially along the drive or driven shaft for flexible positioning
  • Alloy steel helical gears for high performance

Slide-Rite: Standard 3:2 Features

Slide-Rite: Standard 3:2 Specs & Dimensions

Slide-Rite Rotation & Installation Guidelines

Online Ordering

Part # Description WeightRotation"A" Bore Size"A" Bore Keyway"C" DIM"B" Bore Size"B" Bore Keyway"D" DIM Cart
0320-0460 Slide-Rite: Standard 3:2 (U.S. Customary) 10.3 lbs-RH-3/4"-3/16" x 3/32"-.10"-3/4"-3/16" x 3/32"-.10"-
0321-0460 Slide-Rite: Standard 3:2 (U.S. Customary) 10.3 lbs-LH-3/4"-3/16" x 3/32"-.10"-3/4"-3/16" x 3/32"-.10"-
0322-0460 Slide-Rite: Standard 3:2 (U.S. Customary) 10.0 lbs-RH-3/4"-3/16" x 3/32"-.10"-1"-1/4" x 1/8"-.13"-
0323-0460 Slide-Rite: Standard 3:2 (U.S. Customary) 10.0 lbs-LH-3/4"-3/16" x 3/32"-.10"-1"-1/4" x 1/8"-.13"-
0324-0460 Slide-Rite: Standard 3:2 (U.S. Customary) 9.5 lbs-RH-3/4"-3/16" x 3/32"-.10"-1-1/4"-1/4" x 1/8"-.13"-
0325-0460 Slide-Rite: Standard 3:2 (U.S. Customary) 9.5 lbs-LH-3/4"-3/16" x 3/32"-.10"-1-1/4"-1/4" x 1/8"-.13"-
0326-0460 Slide-Rite: Standard 3:2 (U.S. Customary) 9.6 lbs-RH-1"-1/4" x 1/8"-.13"-1"-1/4" x 1/8"-.13"-
0327-0460 Slide-Rite: Standard 3:2 (U.S. Customary) 9.6 lbs-LH-1"-1/4" x 1/8"-.13"-1"-1/4" x 1/8"-.13"-
0328-0460 Slide-Rite: Standard 3:2 (U.S. Customary) 9.1 lbs-RH-1"-1/4" x 1/8"-.13"-1-1/4"-1/4" x 1/8"-.13"-
0329-0460 Slide-Rite: Standard 3:2 (U.S. Customary) 9.1 lbs-LH-1"-1/4" x 1/8"-.13"-1-1/4"-1/4" x 1/8"-.13"-
0330-0460 Slide-Rite: Standard 3:2 (U.S. Customary) 8.7 lbs-RH-1-1/4"-1/4" x 1/8"-.13"-1-1/4"-1/4" x 1/8"-.13"-
0331-0460 Slide-Rite: Standard 3:2 (U.S. Customary) 8.7 lbs-LH-1-1/4"-1/4" x 1/8"-.13"-1-1/4"-1/4" x 1/8"-.13"-
