Slide-Rite® CR Corrosion Resistant Standard 1 to 1 Ratio Right Angle Gearboxes
The Slide-Rite® CR corrosion resistant standard size 1 to 1 gearbox offers the same performance as the standard 1:1 gearbox but with corrosion resistant components.
- High torque ball bearing design
- Solid one-piece aluminum housing seals gears from outside contaminants for smooth operation
- Corrosion resistant nickel plated geared sleeves, keys and retaining rings
- Corrosion resistant stainless steel balls and races
- Right- or left-hand rotation to convert power either direction
- Easily slides axially along the drive or driven shaft for flexible positioning
- Leakproof performance for excellent service life
Slide-Rite CR: Standard 1:1 Features
Slide-Rite CR Rotation & Installation Guidelines

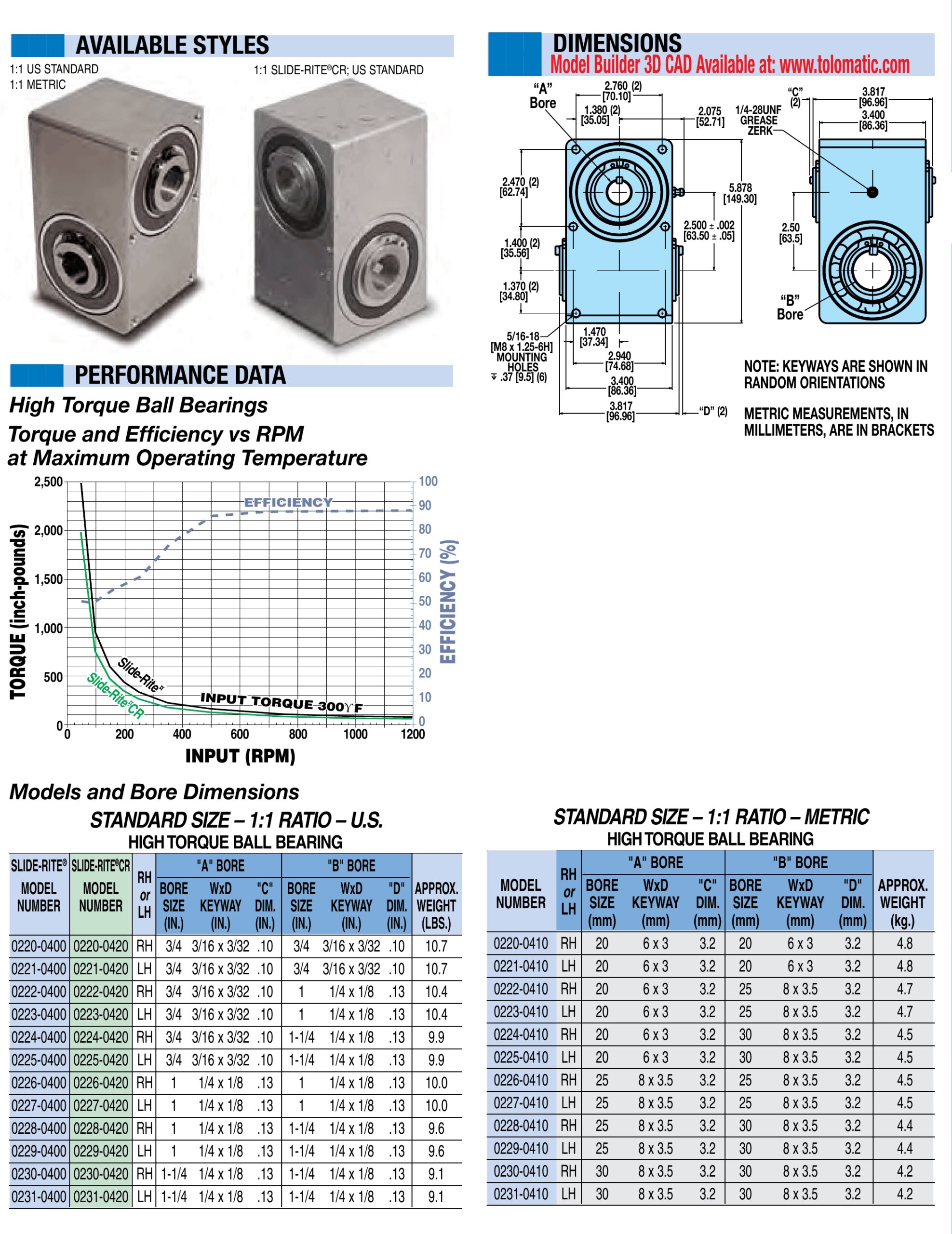

Slide-Rite CR: Standard 1:1 Specs & Dimensions
Online Ordering
| Part # | Description | Rotation | "A" Bore Size | "B" Bore Size | Weight | Cart |
|---|---|---|---|---|---|---|
| 0220-0420 | Slide-Rite CR: Standard 1:1 (U.S. Customary) | RH | 3/4" | 3/4" | 10.7 lbs |  |
| 0221-0420 | Slide-Rite CR: Standard 1:1 (U.S. Customary) | LH | 3/4" | 3/4" | 10.7 lbs | |
| 0222-0420 | Slide-Rite CR: Standard 1:1 (U.S. Customary) | RH | 3/4" | 1" | 10.4 lbs | |
| 0223-0420 | Slide-Rite CR: Standard 1:1 (U.S. Customary) | LH | 3/4" | 1" | 10.4 lbs | |
| 0224-0420 | Slide-Rite CR: Standard 1:1 (U.S. Customary) | RH | 3/4" | 1-1/4" | 9.9 lbs | |
| 0225-0420 | Slide-Rite CR: Standard 1:1 (U.S. Customary) | LH | 3/4" | 1-1/4" | 9.9 lbs | |
| 0226-0420 | Slide-Rite CR: Standard 1:1 (U.S. Customary) | RH | 1" | 1" | 10.0 lbs | |
| 0227-0420 | Slide-Rite CR: Standard 1:1 (U.S. Customary) | LH | 1" | 1" | 10.0 lbs | |
| 0228-0420 | Slide-Rite CR: Standard 1:1 (U.S. Customary) | RH | 1" | 1-1/4" | 9.6 lbs | |
| 0229-0420 | Slide-Rite CR: Standard 1:1 (U.S. Customary) | LH | 1" | 1-1/4" | 9.6 lbs | |
| 0230-0420 | Slide-Rite CR: Standard 1:1 (U.S. Customary) | RH | 1-1/4" | 1-1/4" | 9.1 lbs | |
| 0231-0420 | Slide-Rite CR: Standard 1:1 (U.S. Customary) | LH | 1-1/4" | 1-1/4" | 9.1 lbs | |
