ERD-SS2 Actuators with Integrated Motor
ERD SS2 has been transitioned to the improved designs of the IMA-S or RSH. Contact Tolomatic for support.
ERD stainless steel electric actuators are IP69k rated and are washdown ready.
The all stainless steel ERD actuator with integrated motor in protective enclosure (ERD-SS2) accommodates both servo (23-frame) and stepper (NEMA 17 and NEMA 23-frame) motors. Combine any ERD-SS2 with the Tolomatic ACS servo or stepper motor for a high performance actuator assembly at a competitive price.
- IP69k, clean-in-place compatible
- 3 body sizes
- Ball and acme screw choices
- Force/thrust capabilities up to 315 lbf (1.4 kN)
- Stroke lengths up to 24 inches (610 mm)
- Enclosed stepper and servo motor
- Simplified (lower cost) machine design by eliminating protective
enclosures guards for standard actuators

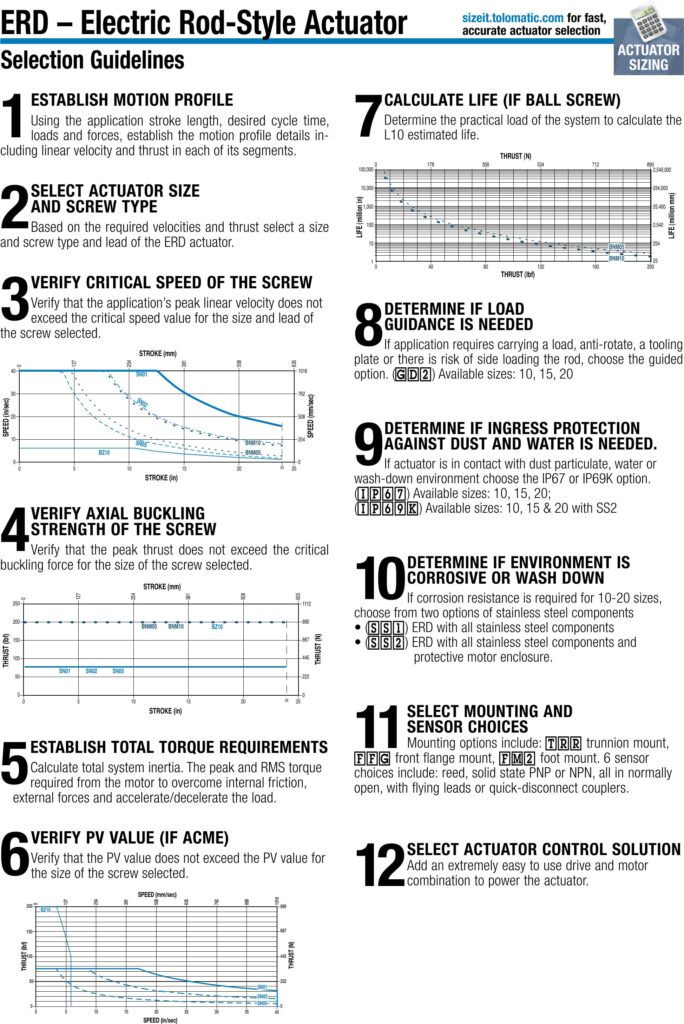

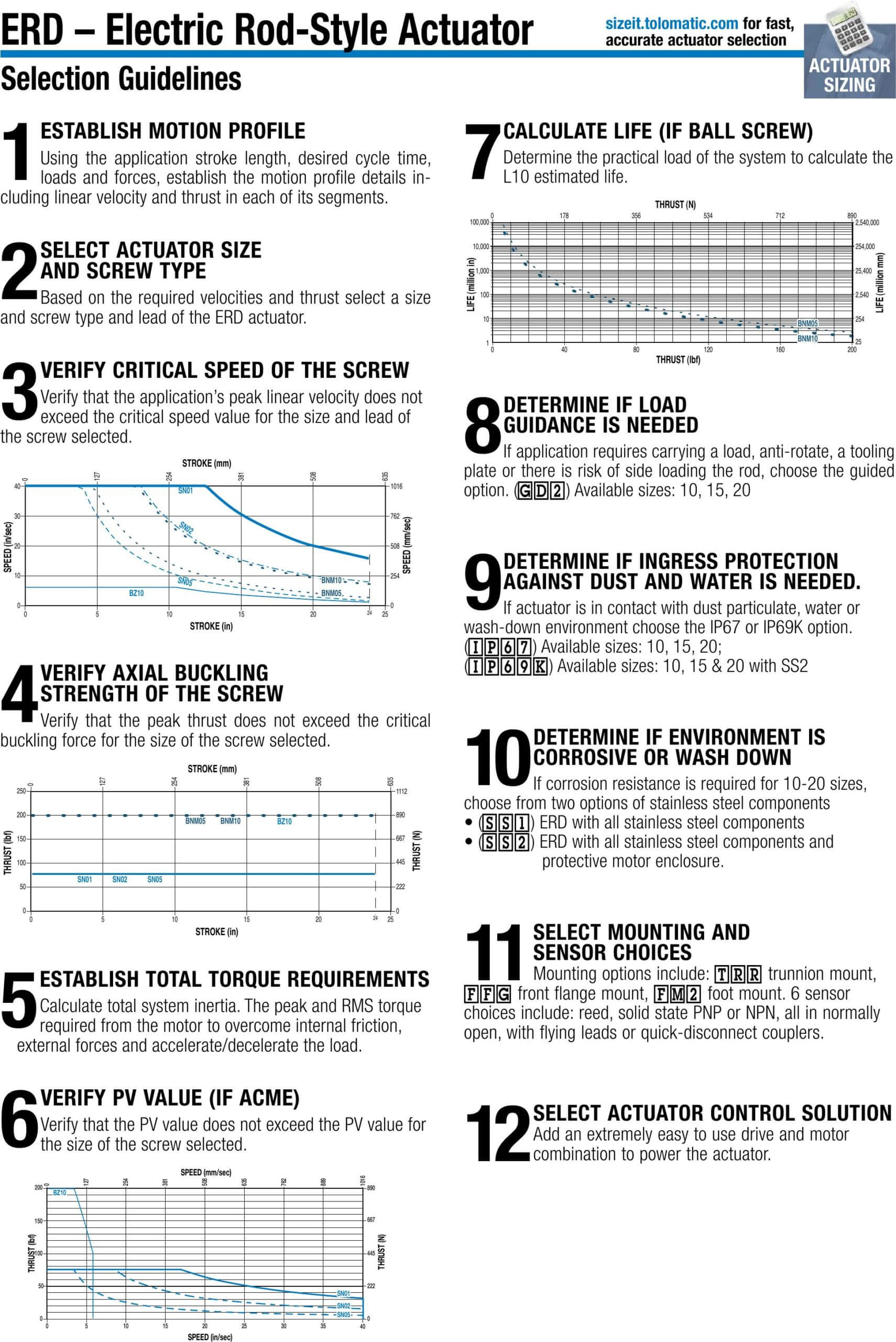

Features & Ordering
Download the ERD-SS2 Brochure for full details on features
ERD SS2 Features

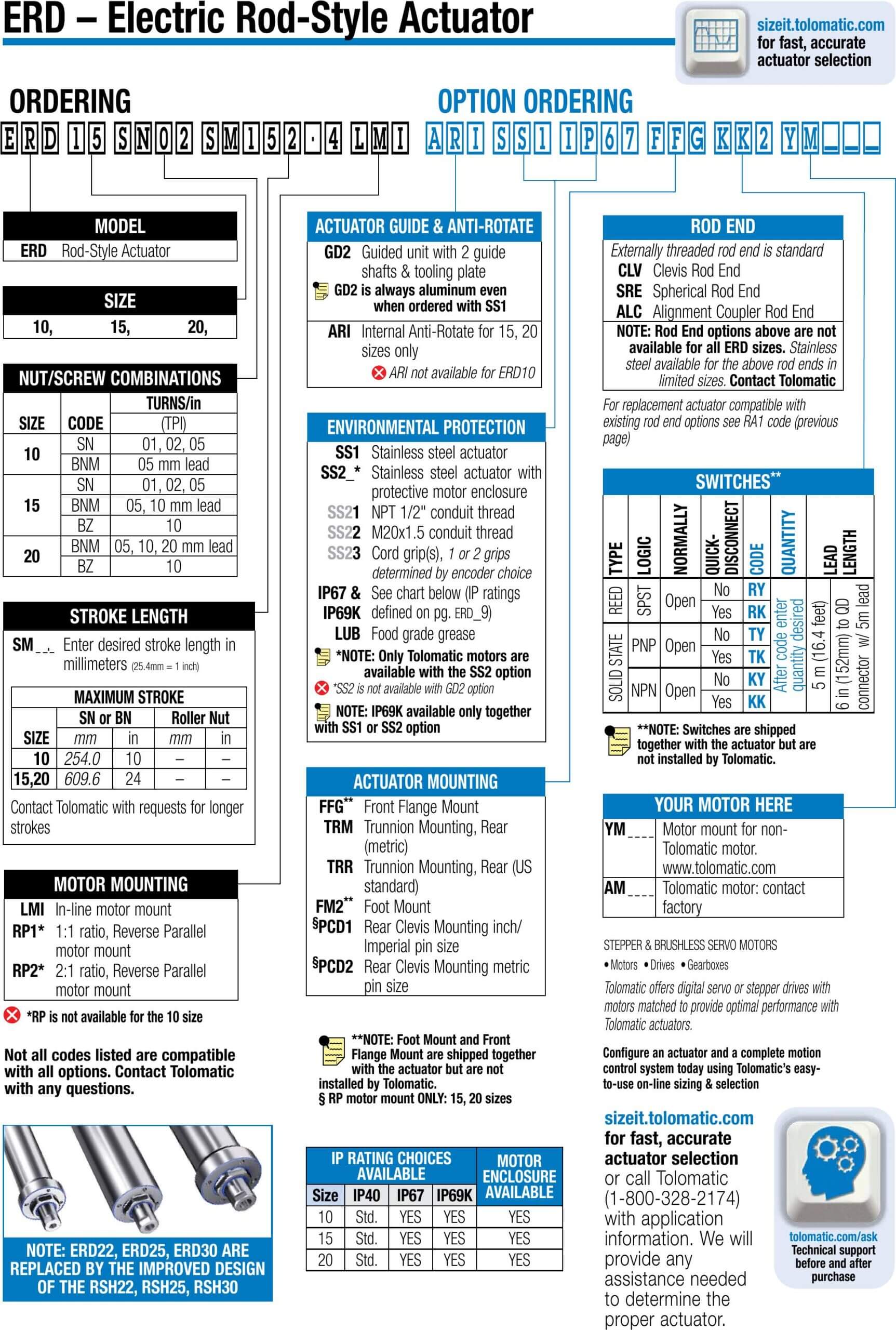

ERD & Option Ordering

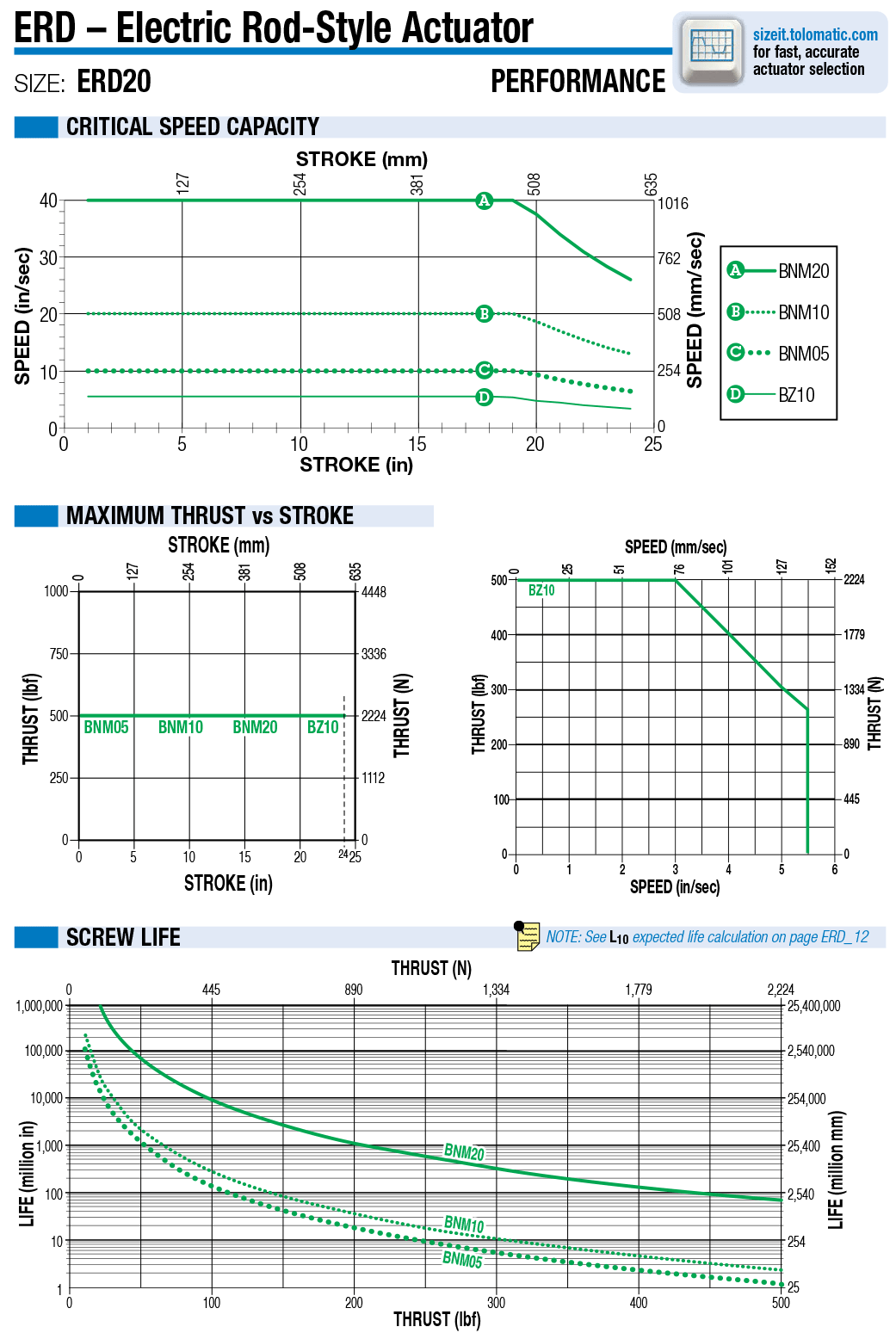

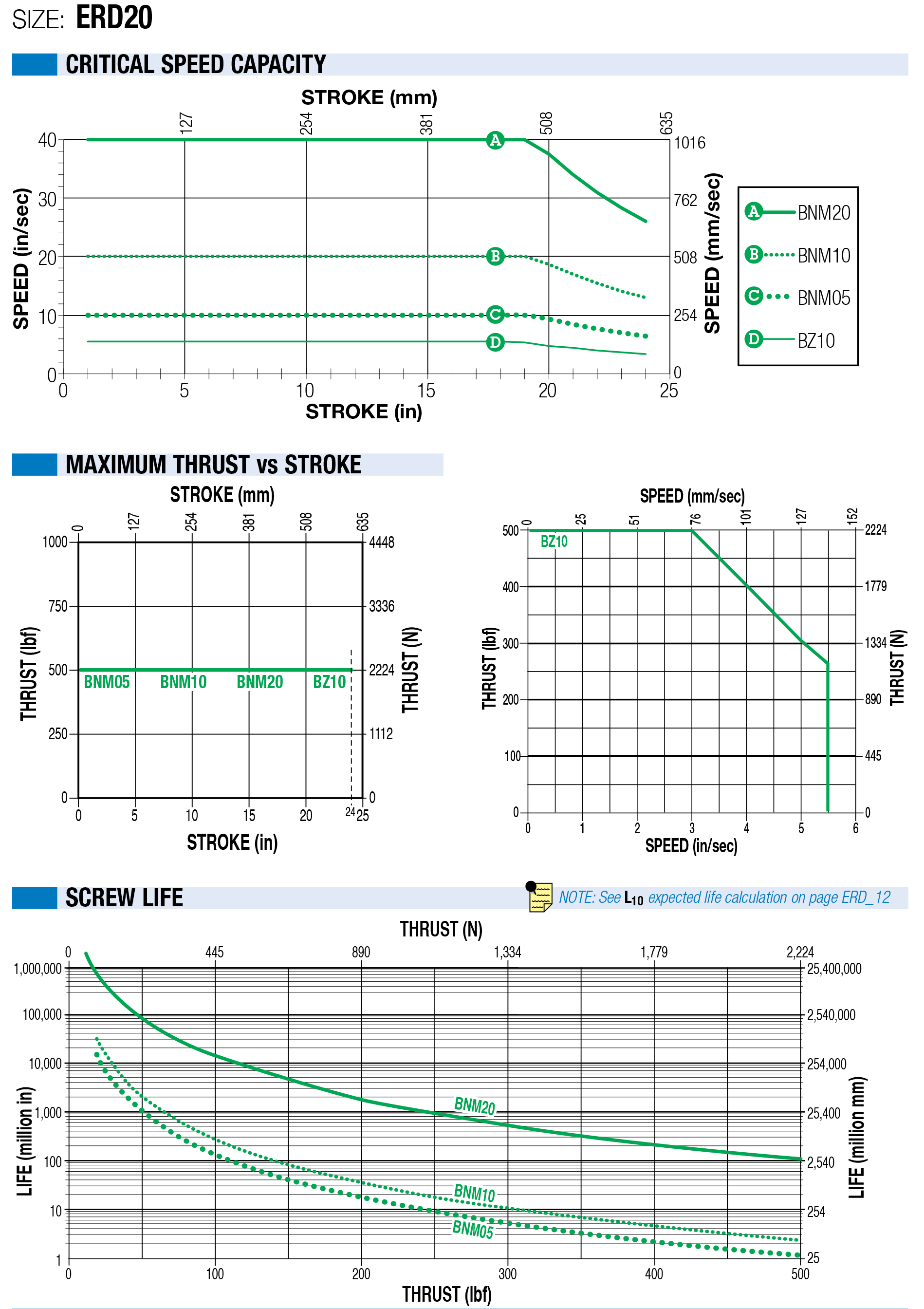

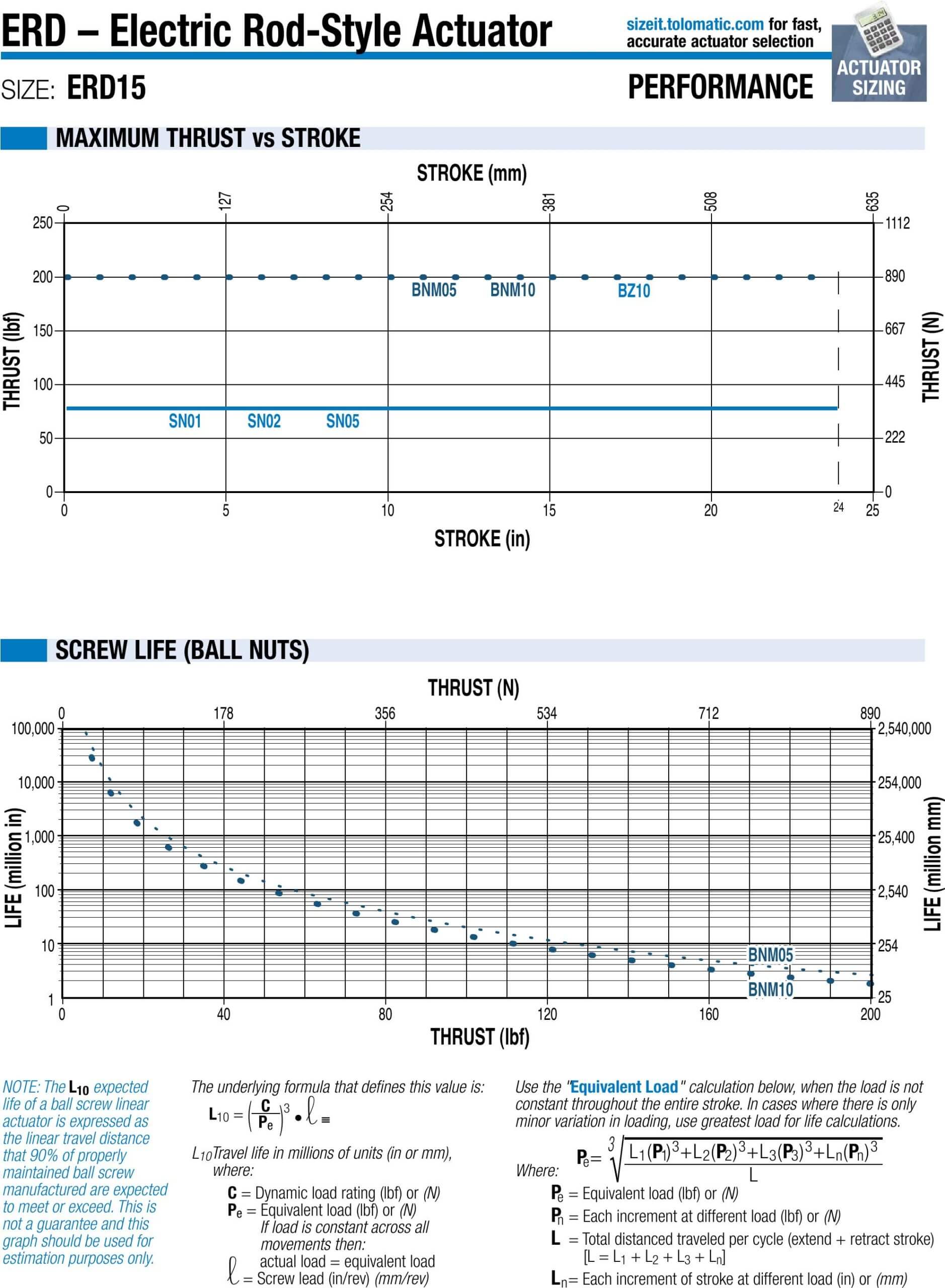

Specifications
| Specification | Units | ERDSS210 | ERDSS215 | ERDSS220 |
|---|---|---|---|---|
| Maximum Stroke | in (mm) | 10 (254) | 24 (609) | 24 (609) |
| Maximum Force | lbf (N) | 100 (445) | 200 (890) | 315 (1,401) |

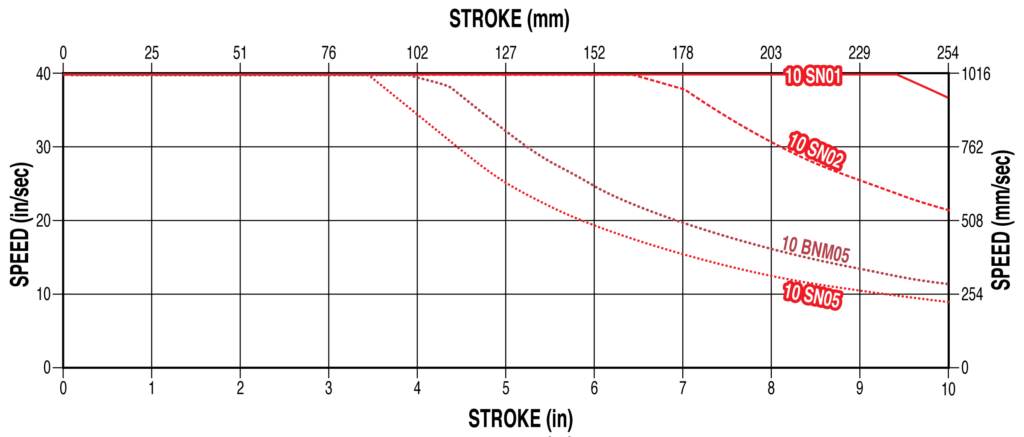

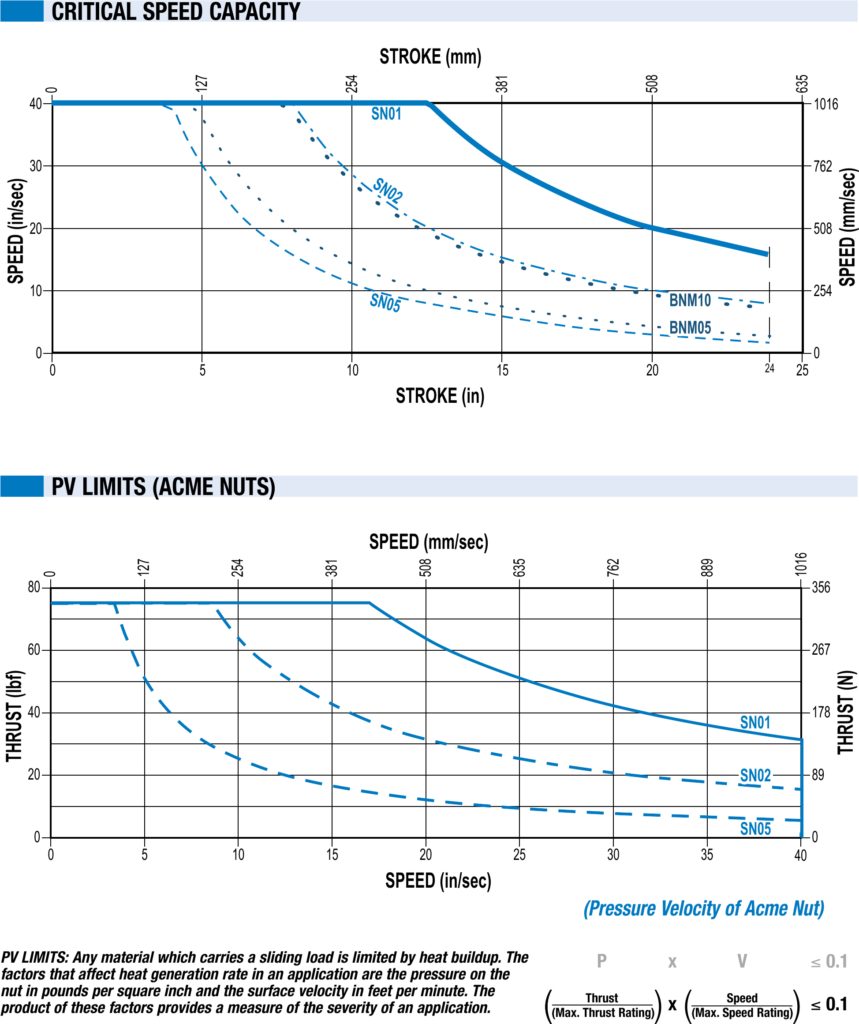

| Maximum Speed | in/sec (mm/sec) | 40 (1,016) | 40 (1,016) | 38 (965) |

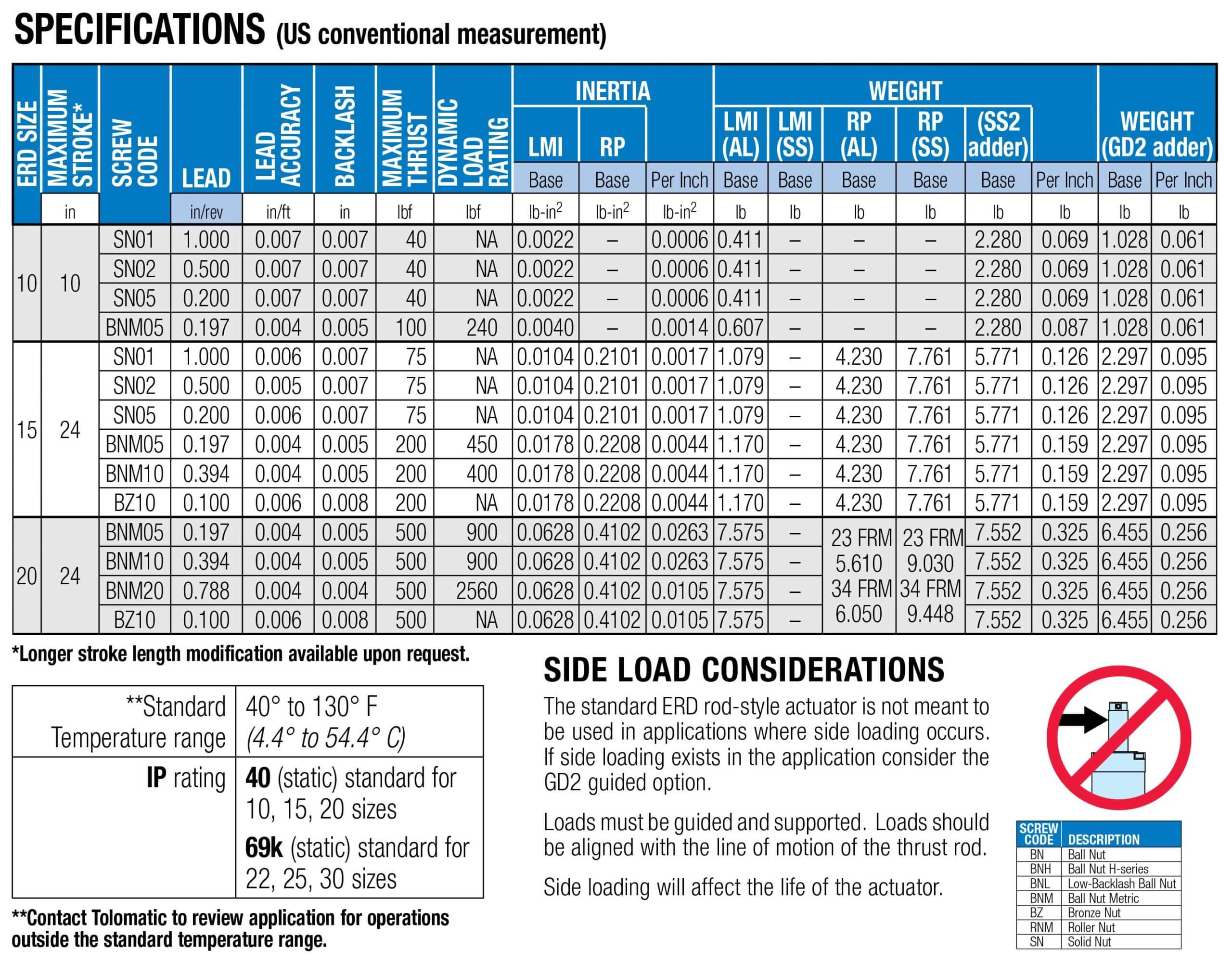

ERD-SS2 Specifications US Standard
ERD-SS2 Specifications Metric

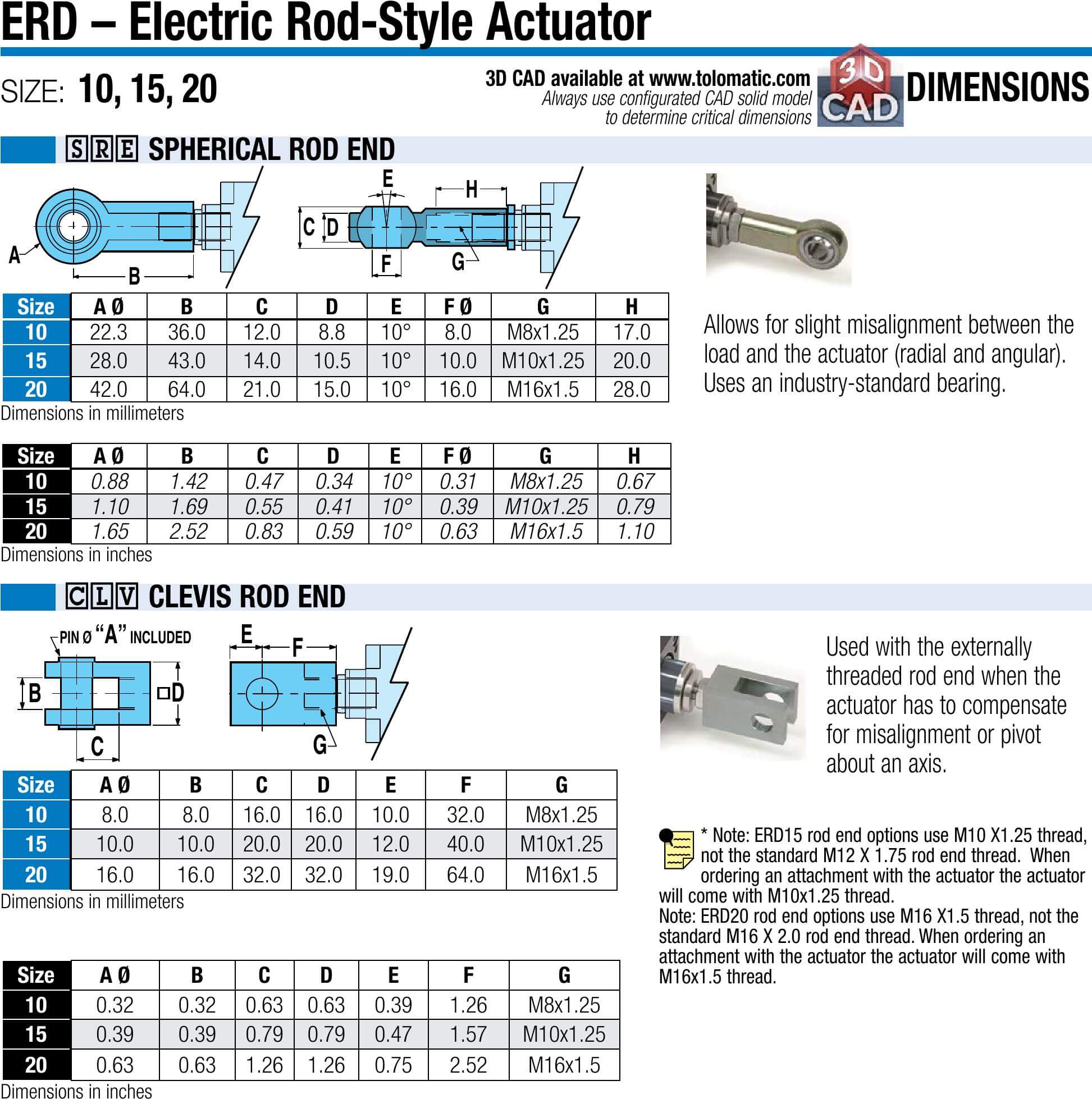

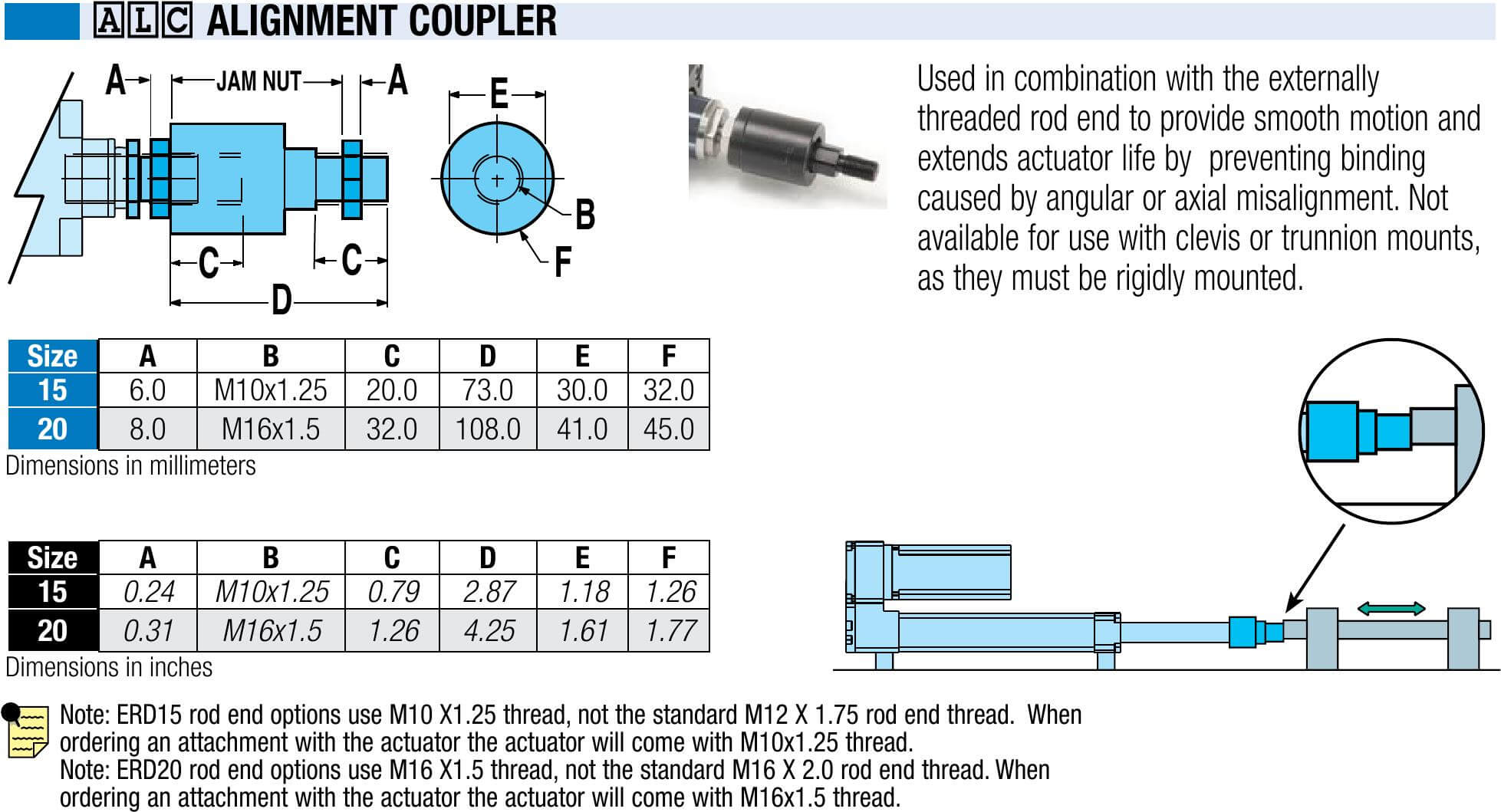

Dimensions

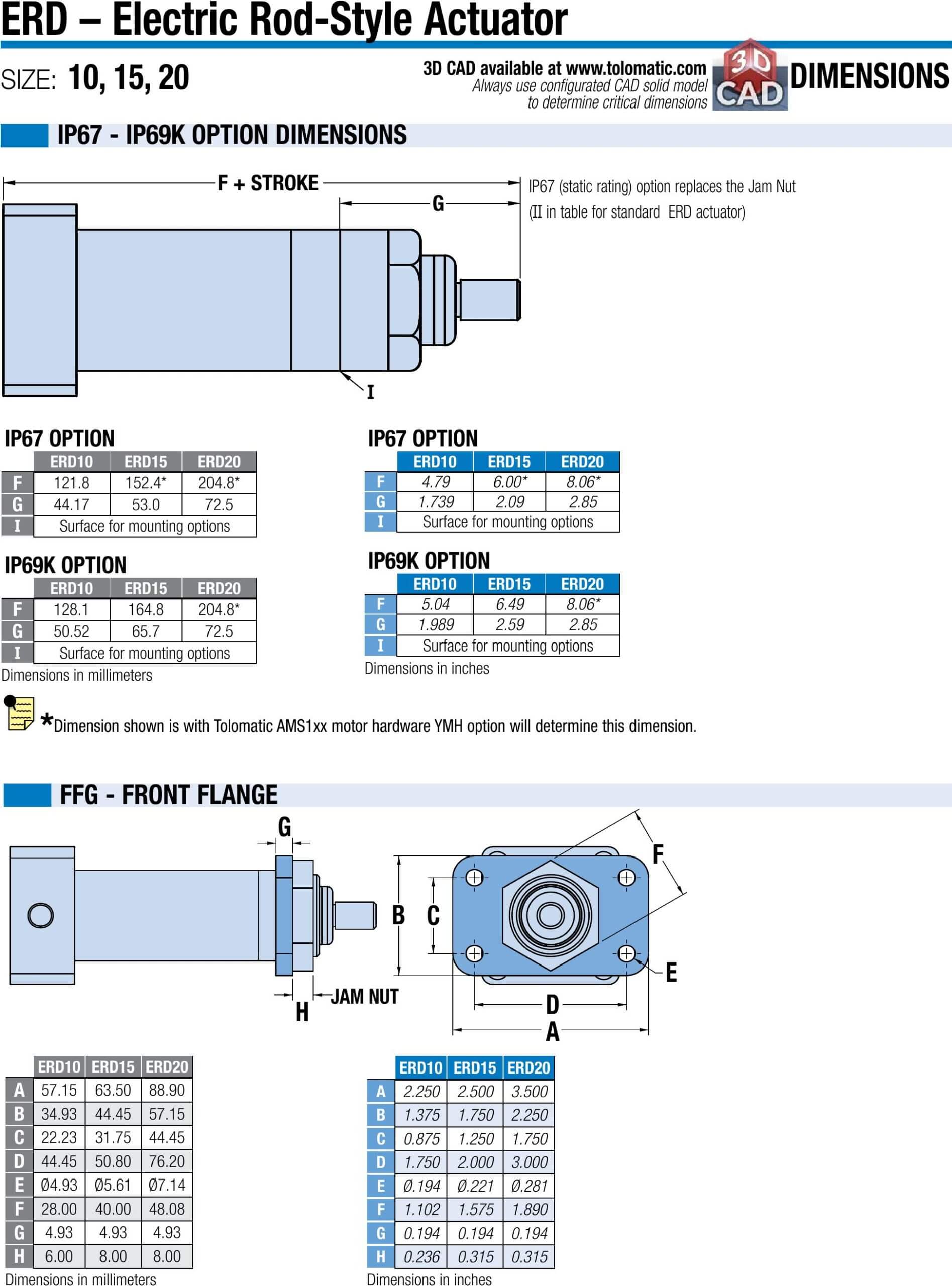

ERD SS2 Dimensions
ERD Switch Wiring Diagrams & Dimensions
Get CAD

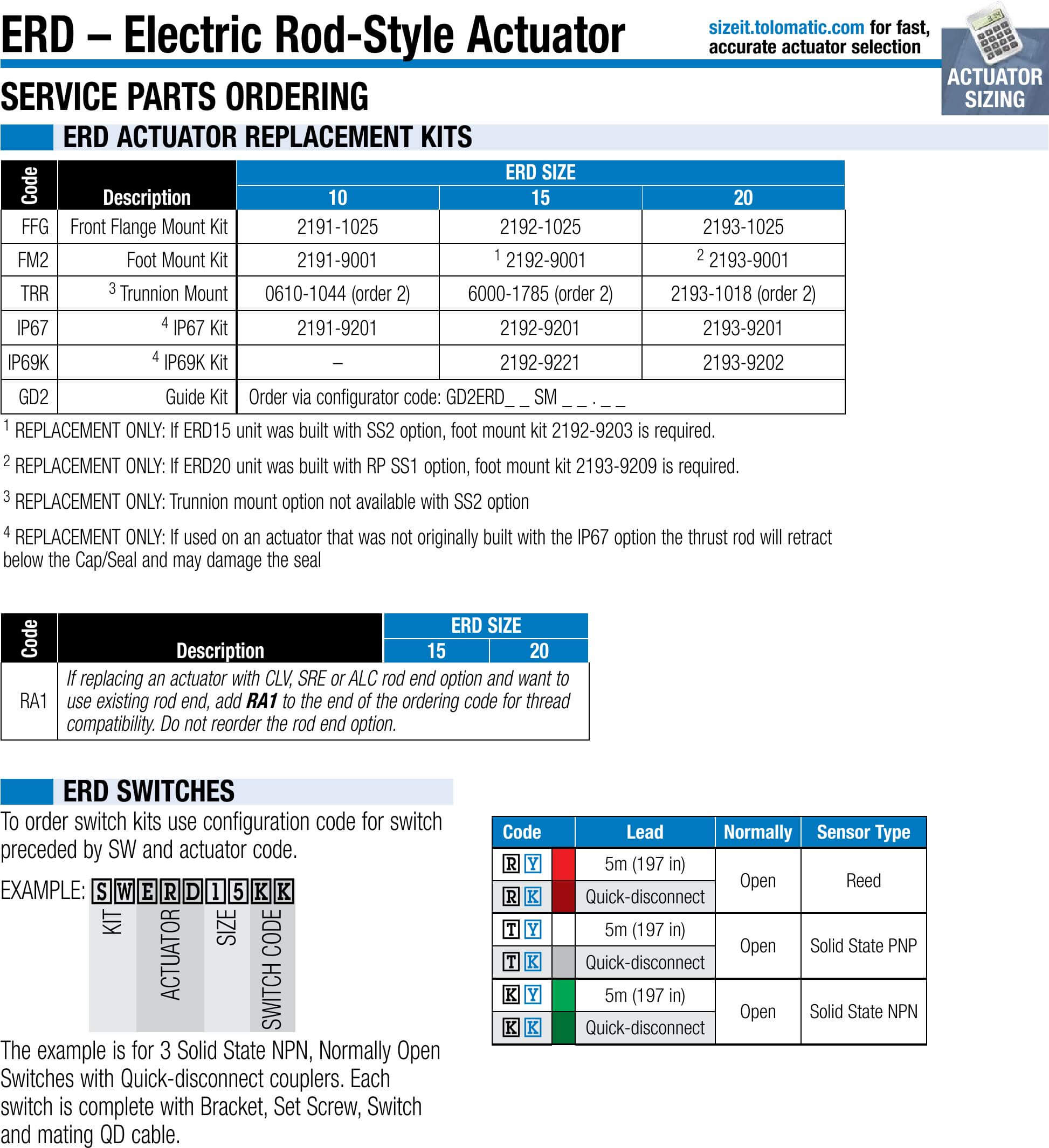

Manuals & Part Sheets
