B3W Actuators

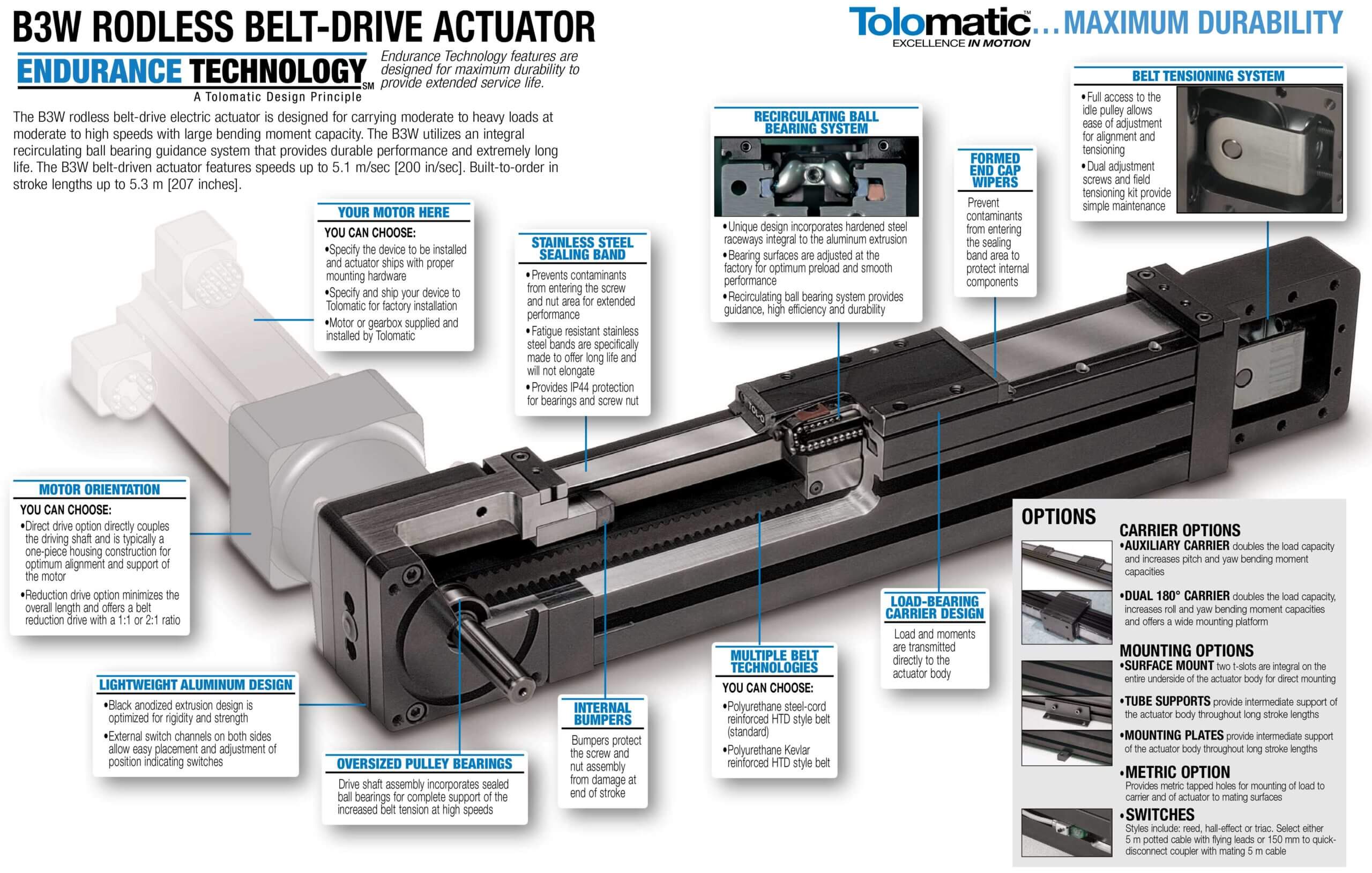

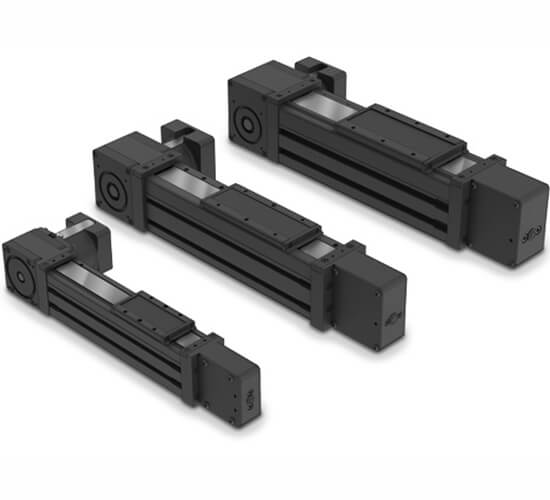

The B3W features a robust integrated and enclosed bearing design for the toughest environments.

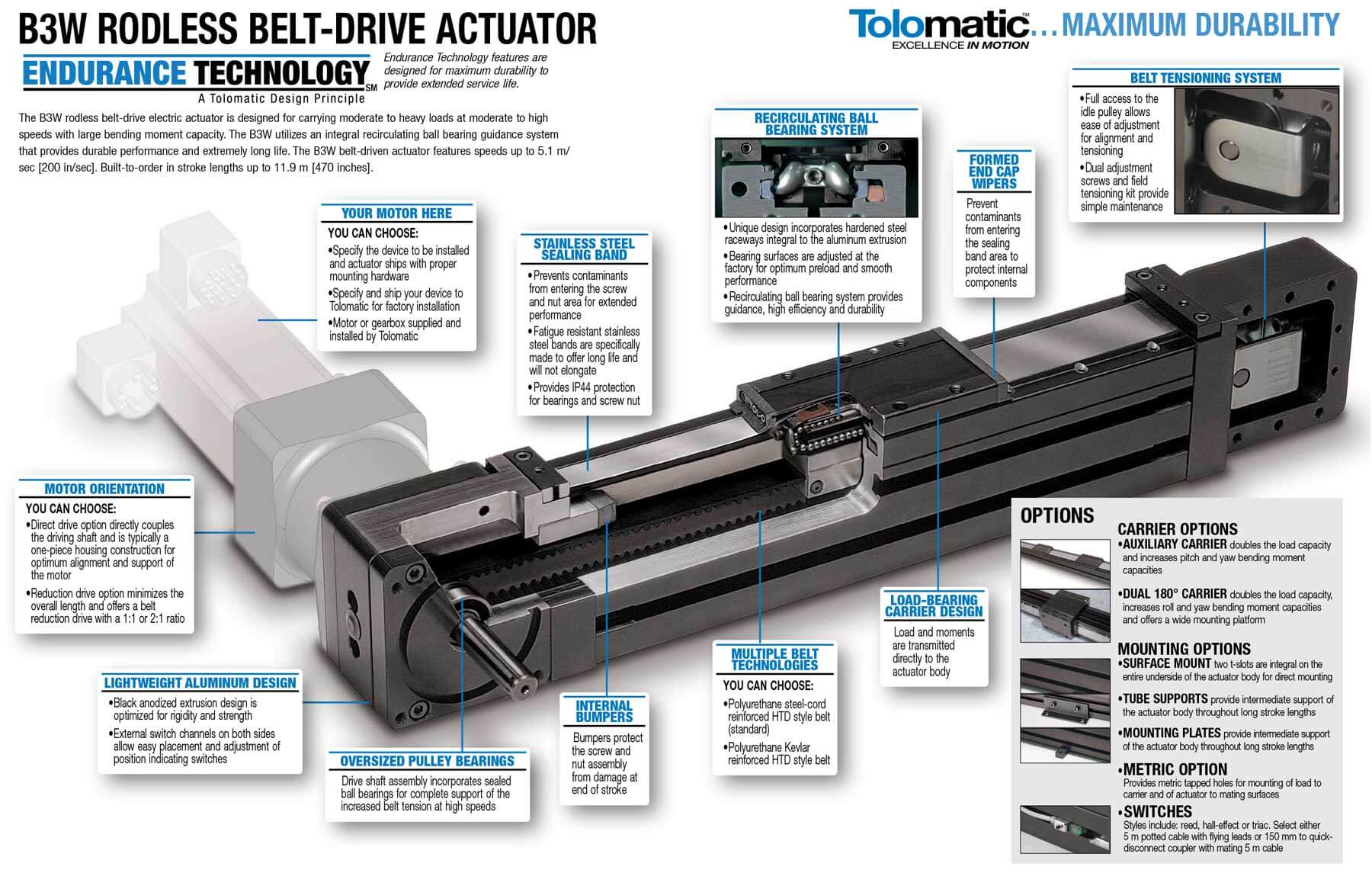

Tolomatic’s B3W is a linear belt driven rodless actuator series that has a enclosed carrier support bearing design that provides long life and high load capability. The bearings and belt are protected by a stainless steel dust band that provides a IP44 rating against dust and debris. The B3W is the ideal choice for tough environments, especially those with high amounts of particulate and require long operating life.

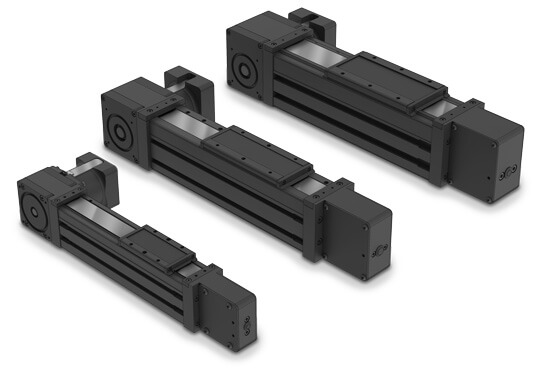

- 3 body sizes
- Maximum Load carrying capacity up to 8,032 lbf (3,642 kg)
- Stroke lengths up to 574 in (15.6m)
- Travel speeds up to 200 in/s (5 m/s)
- IP44 rating against dust and debris
- Auxiliary carrier and dual wraparound carrier options available for increased load capability
Features & Ordering
Download the B3W Brochure for full details on features
B3W Features

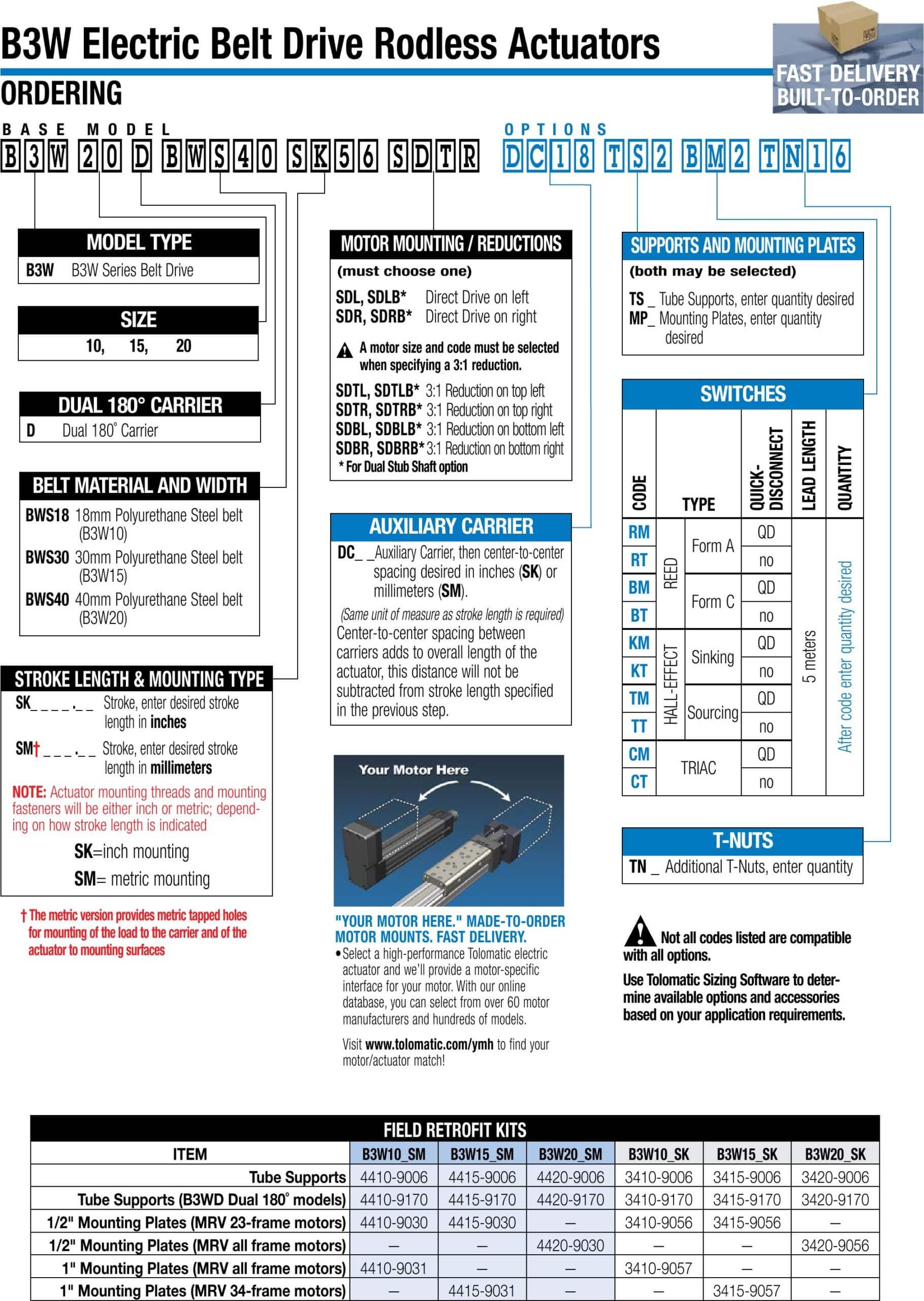

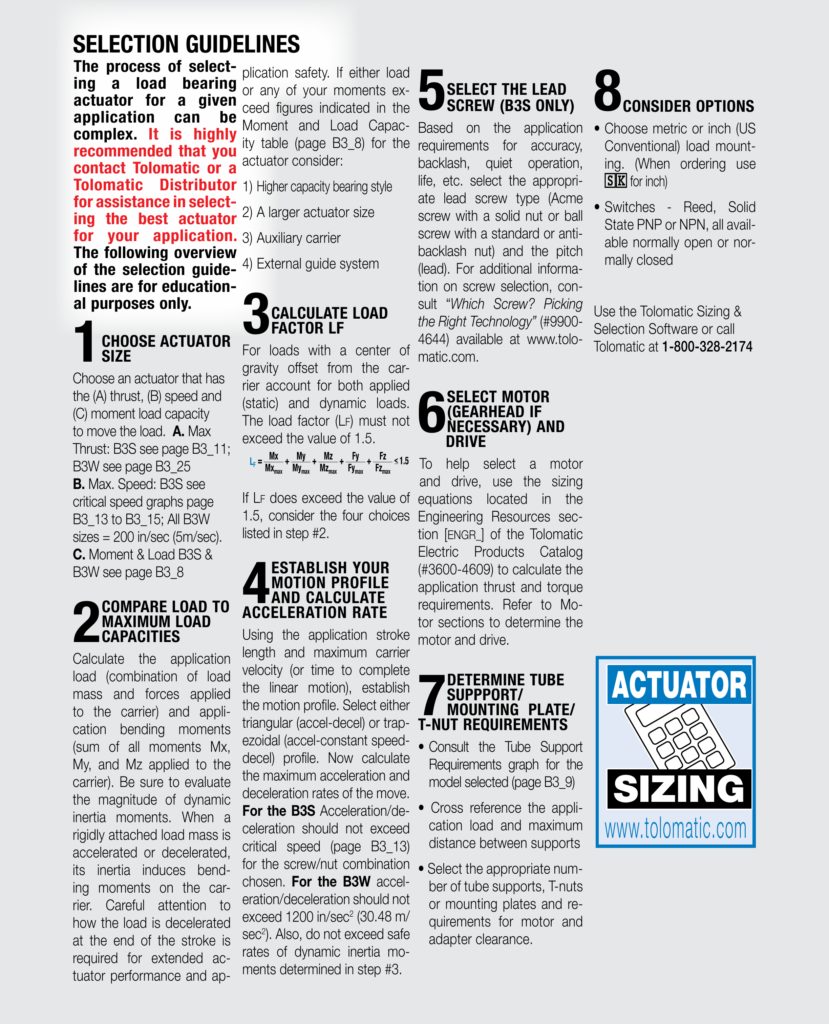

B3W Ordering

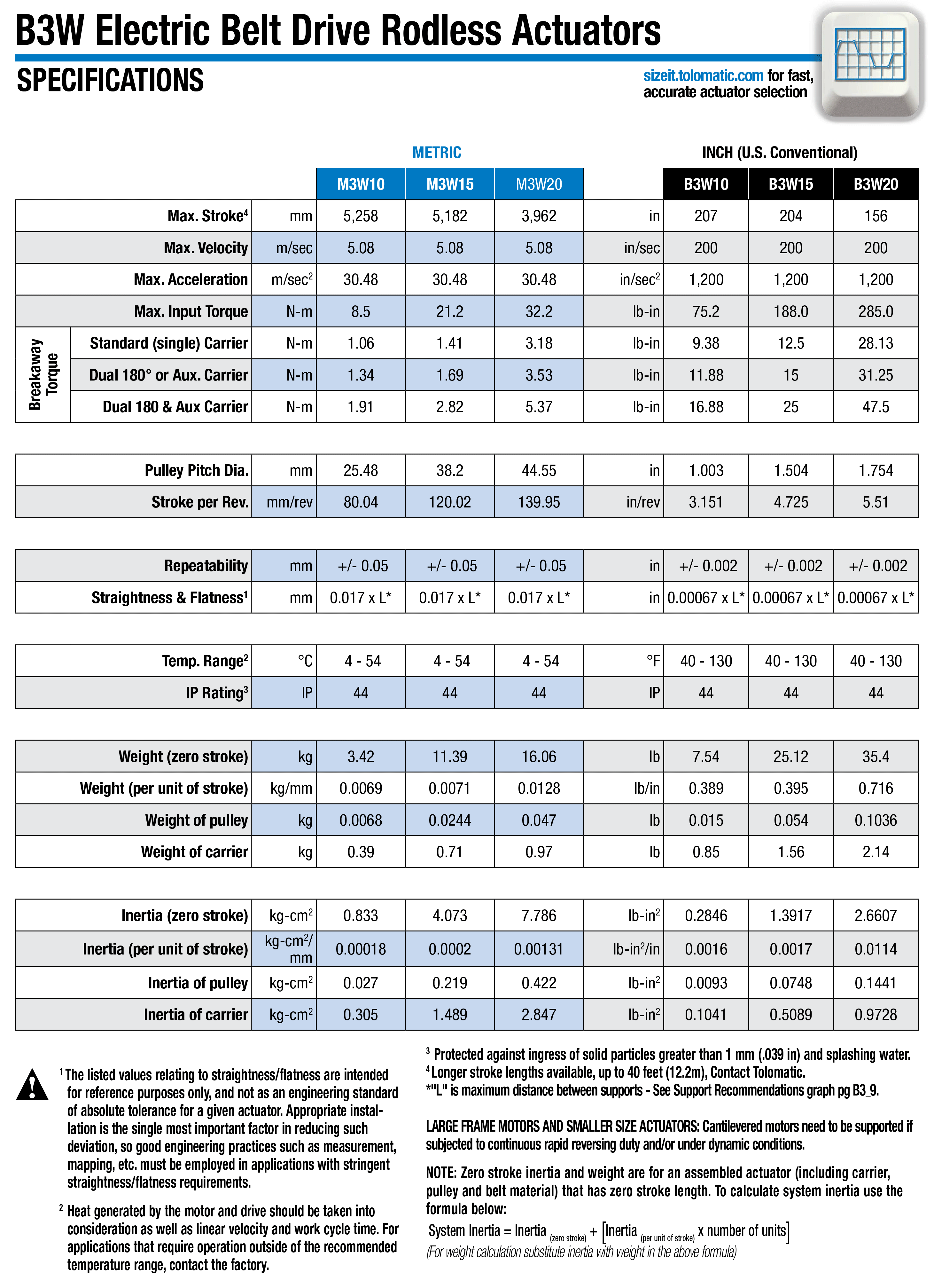

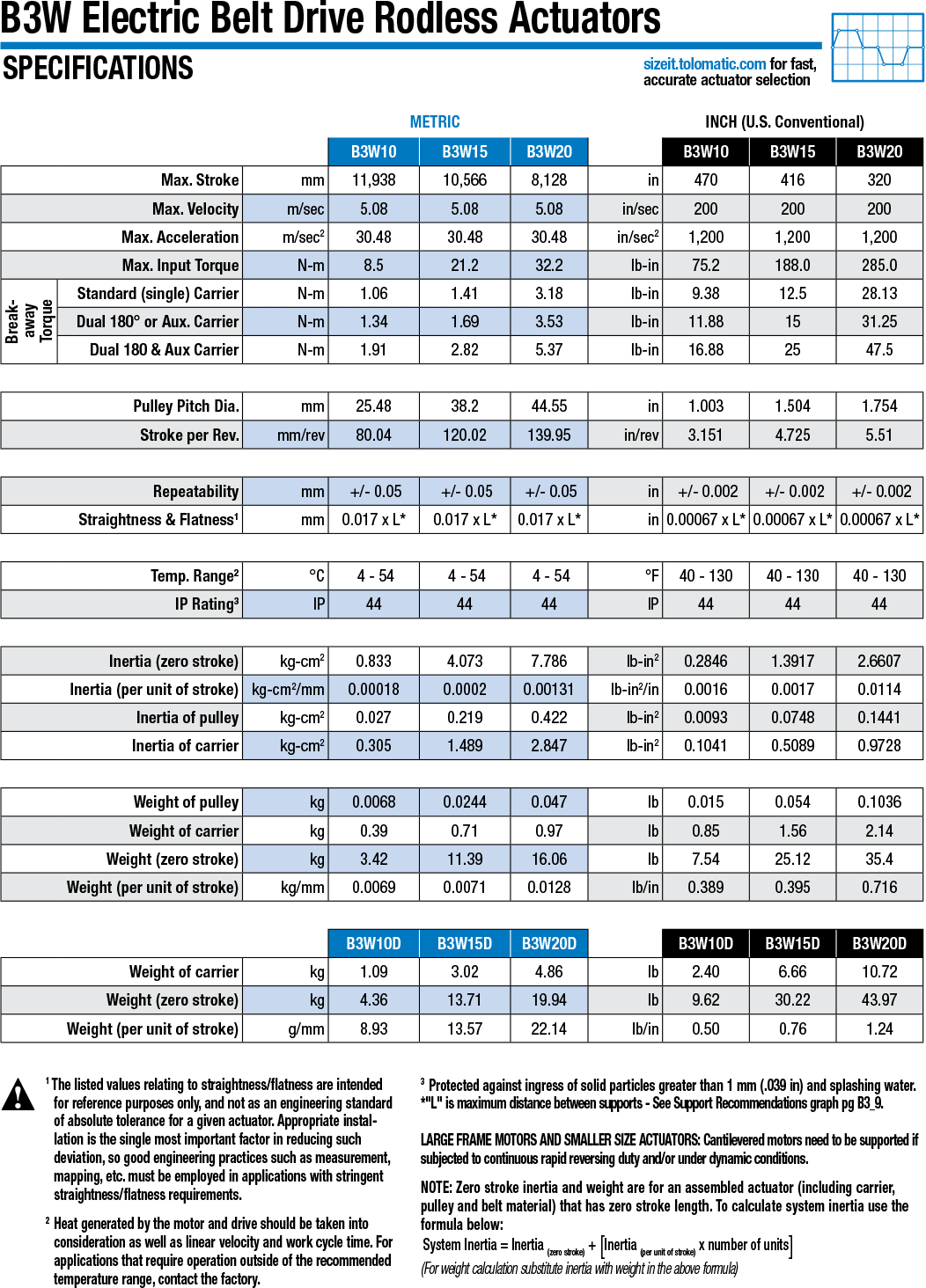

Specifications
| Specifications | Units | B3W10 | B3W15 | B3W20 |
|---|---|---|---|---|
| Maximum Stroke | in (mm) | 574 (14,579) | 416 (10,566) | 320 (8,128) |
| Maximum Force | lbf (N) | 150 (667) | 250 (1,112) | 325 (1,446) |
| Maximum Load | lbs (kg) | 591 (286) | 1,454 (660) | 2,008 (911) |
| Maximum Speed | in/sec (mm/sec) | 157 (3,988) | 200 (5,080) | 200 (5,080) |
B3W Specifications in US & Metric
Dimensions

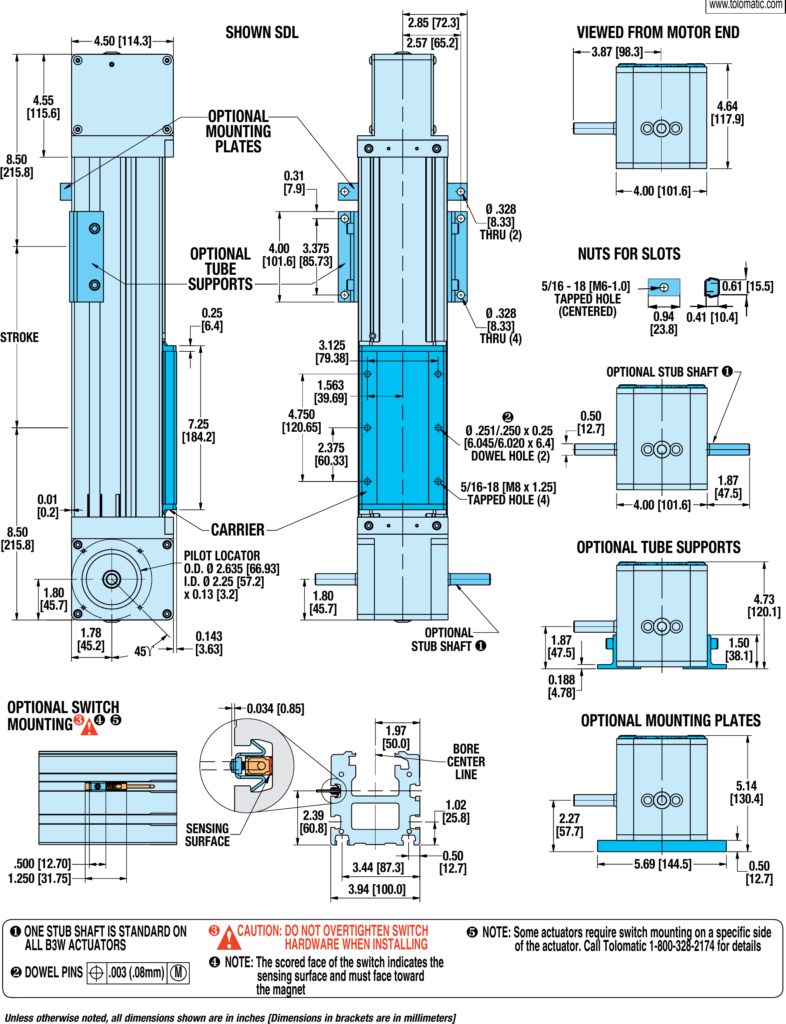

B3W10 Actuator & Options Dimensions

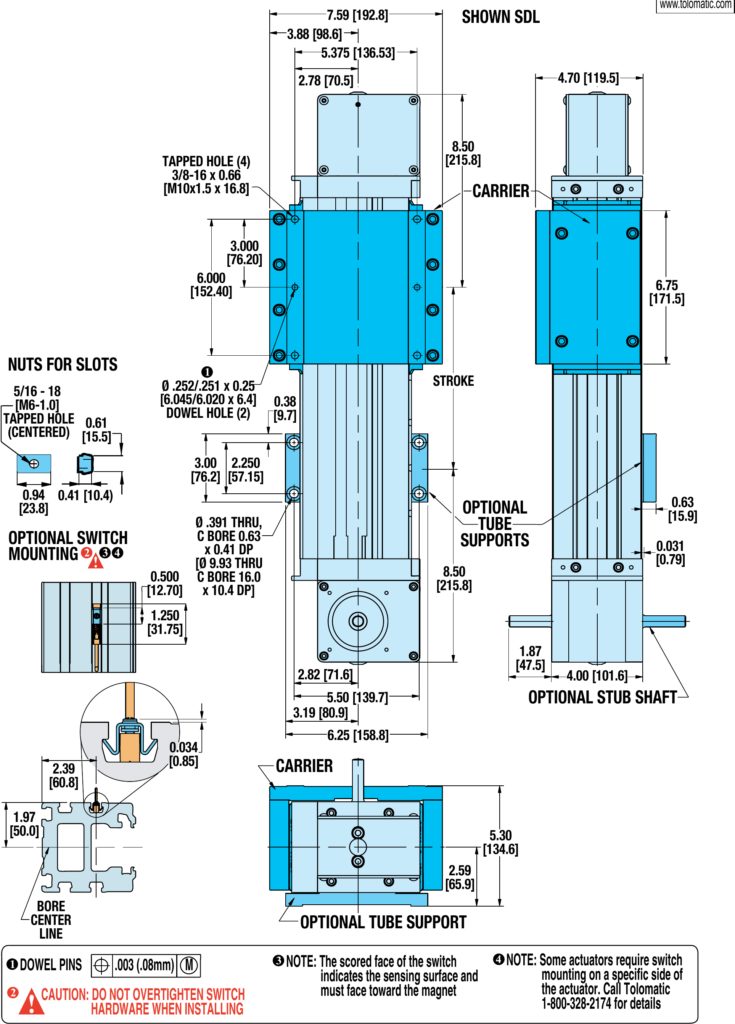

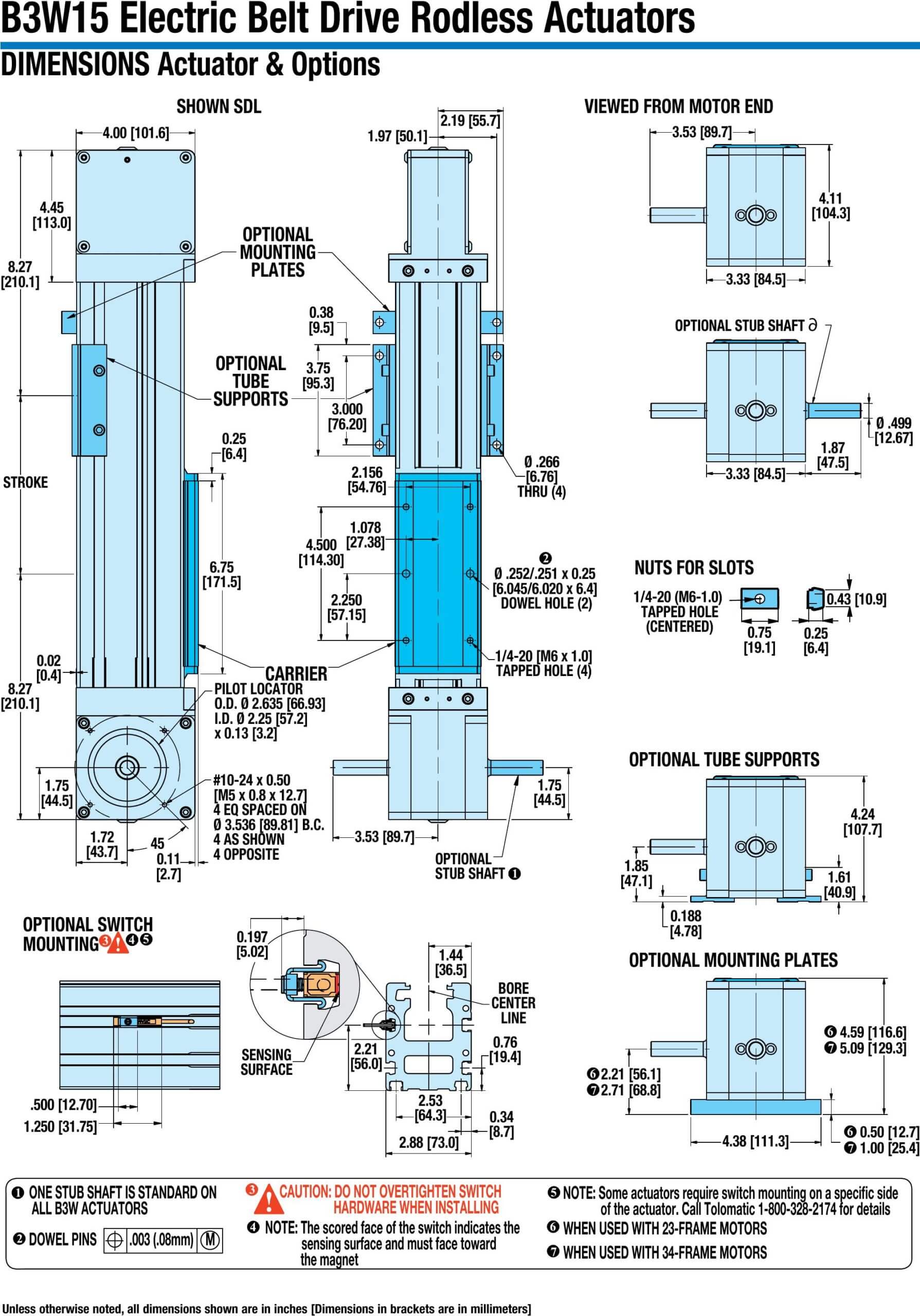

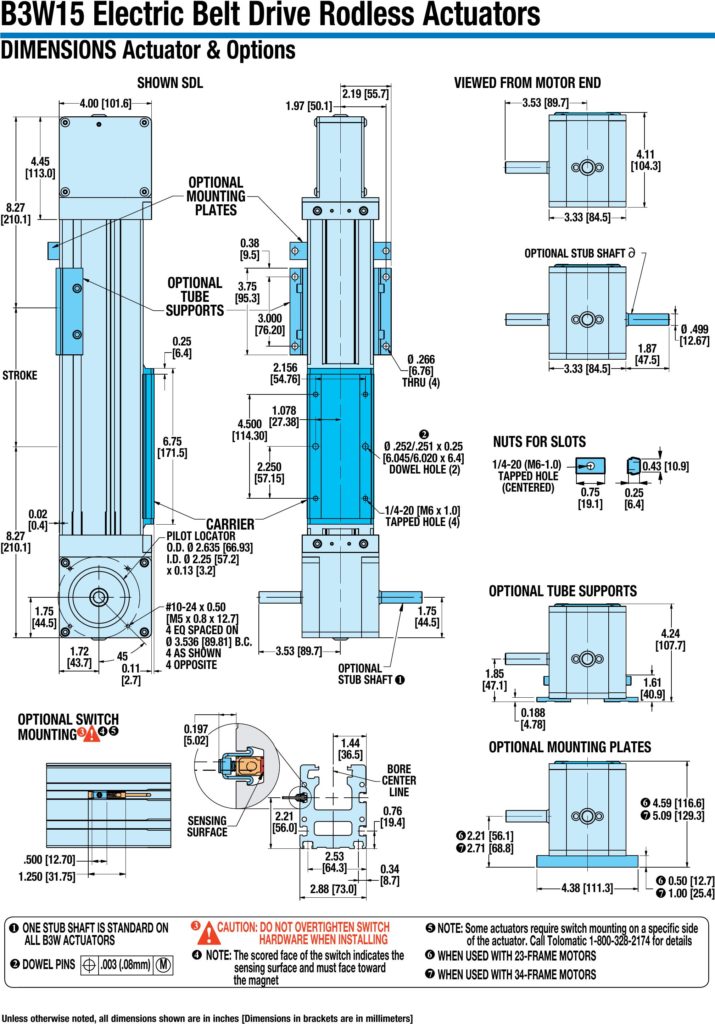

B3W15 Actuator & Options Dimensions

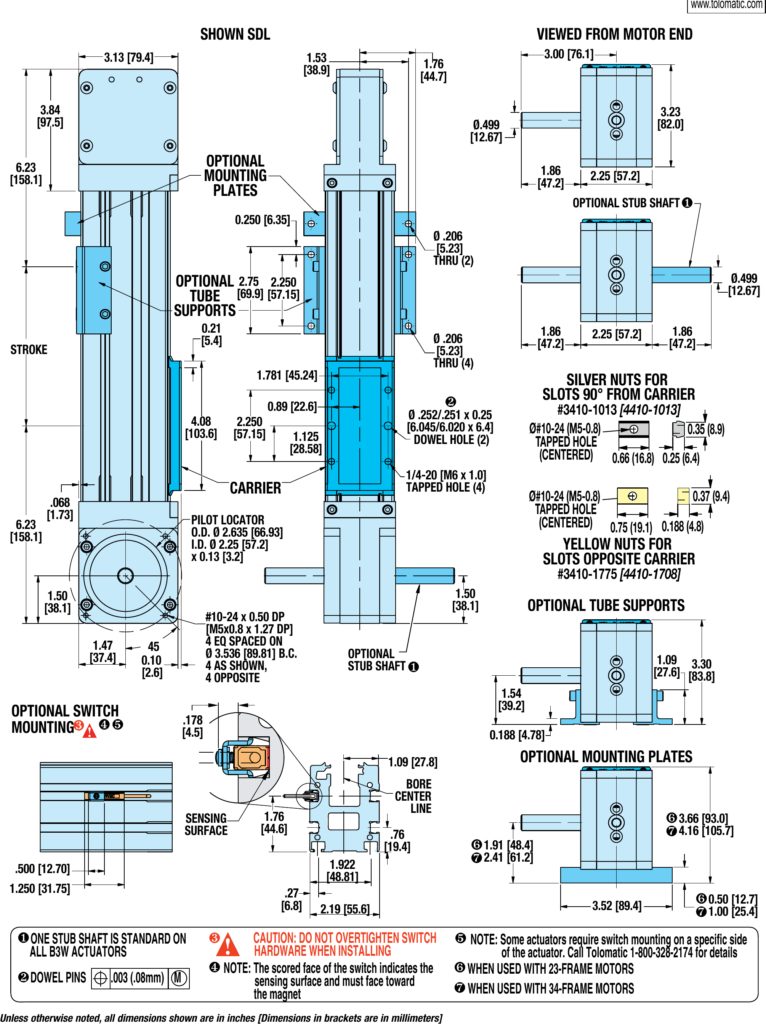

B3W20 Actuator & Options Dimensions
