MXP-N Compact Air Cylinders
MXP-N internal bearing compact air cylinder is a low-cost solution for applications requiring limited loads and bending moments.
The Tolomatic MXP-N internal bearing compact air cylinder offers a space-saving design over typical rod type air cylinders.
- Lowest breakaway pressure of the MXP line of cylinders
- Perfect for use in vertical applications
- Permanently lubricated internal bearing for reduced maintenance
Features & Ordering
MXP-N Features

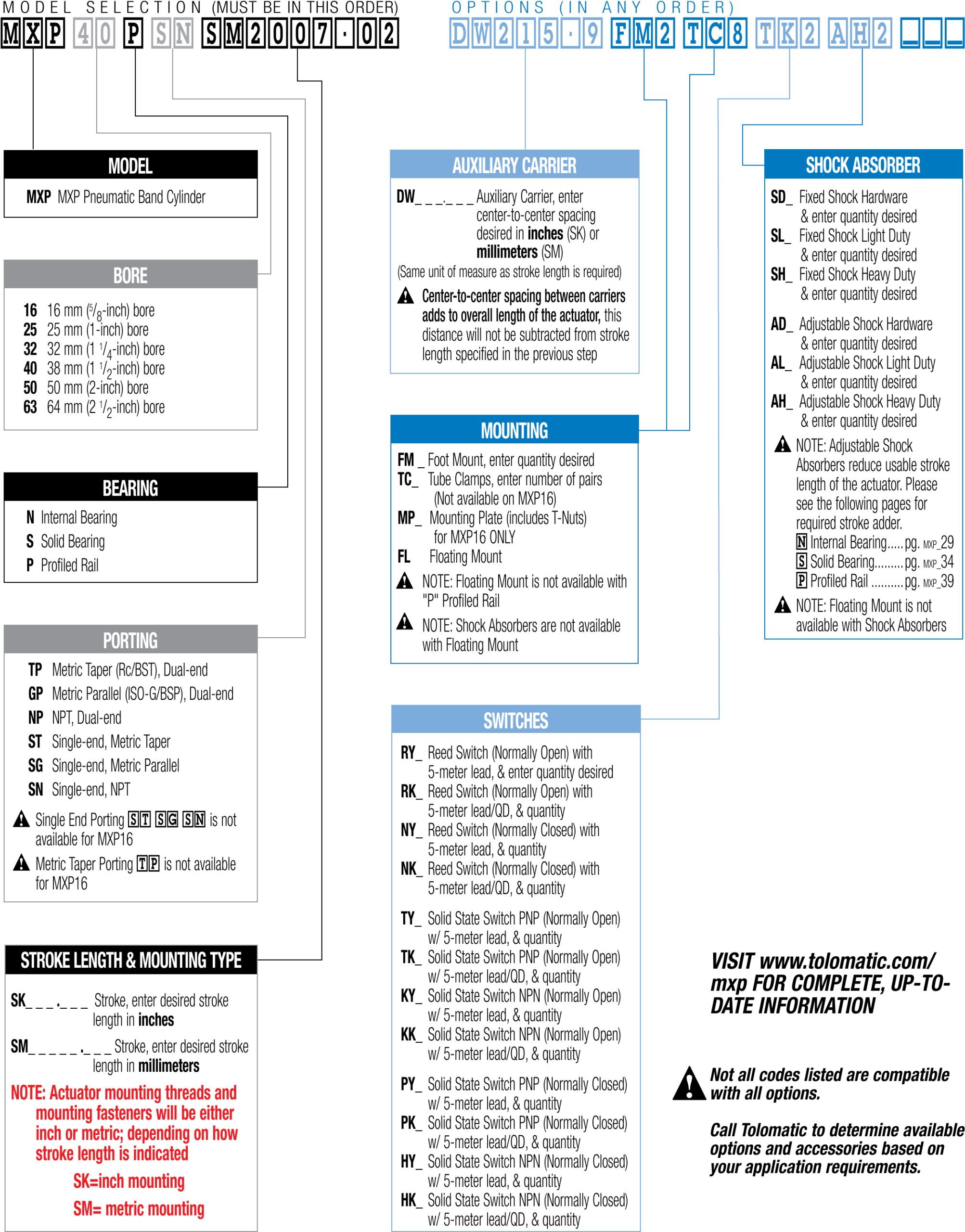

MXP-N Ordering
Specifications
| Specifications | Units | MXP16N | MXP25N | MXP32N | MXP40N | MXP50N | MXP63N |
|---|---|---|---|---|---|---|---|
| Bore Size | in (mm) | 0.63 (16) | 1.00 (25) | 1.25 (32) | 1.50 (38) | 2.00 (50) | 2.50 (64) |
| Max Stroke | in (mm) | 206 (5,232) | 206 (5,232) | 205 (5,207) | 203 (5,156) | 203 (5,156) | 103 (2,616) |
| Max Force | lbf (N) | 31 (136) | 79 (349) | 123 (546) | 177 (786) | 305 (1,356) | 491 (2,184) |
| Max Load | lb (kg) | 30 (14) | 65 (30) | 115 (52) | 195 (88) | 270 (122) | 370 (168) |

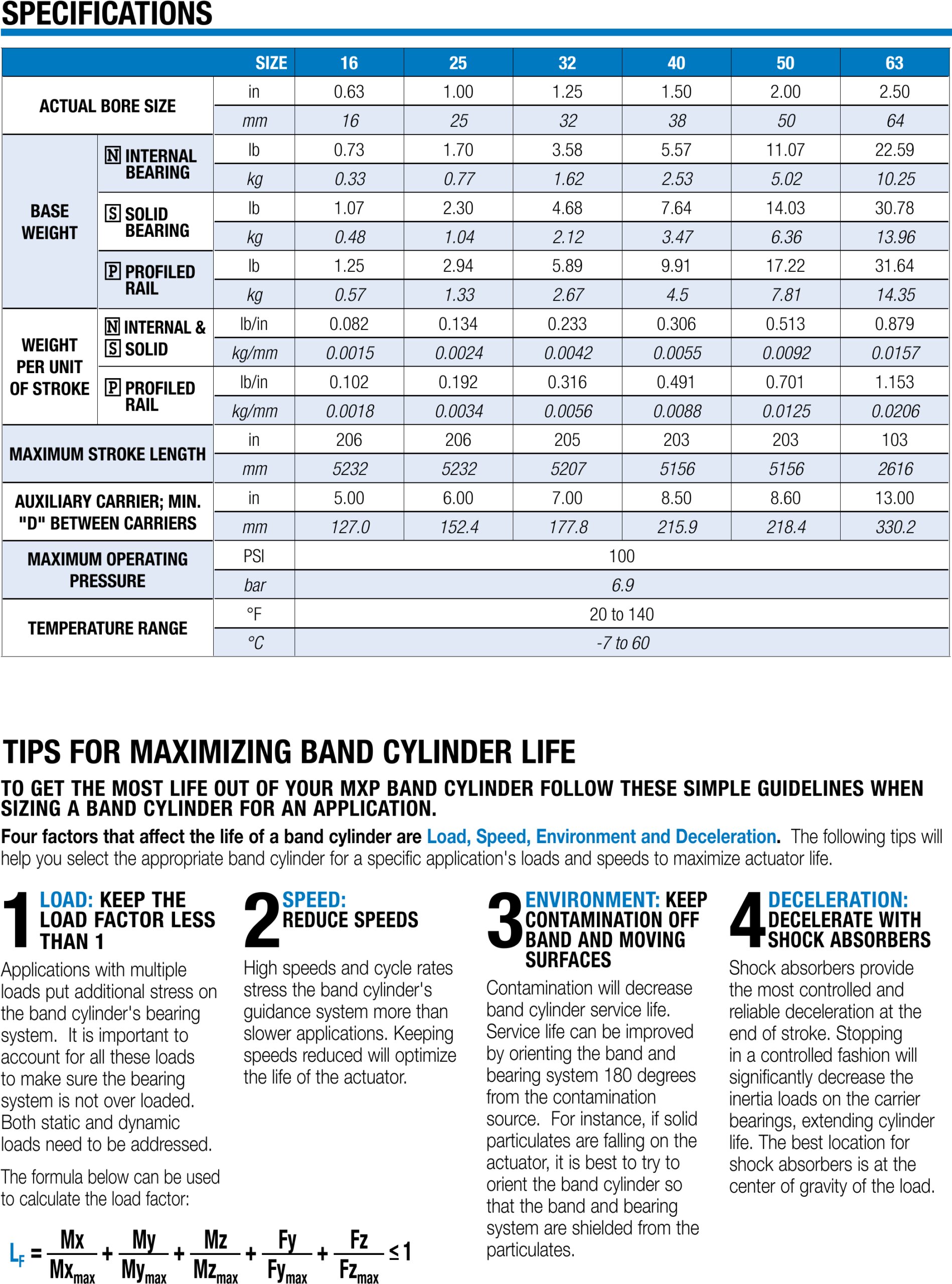

MXP-N General Specifications
Dimensions
MXP-N Actuator Dimensions
Get CAD
Manuals & Part Sheets
- MXP16N Internal Bearing Compact Air Cylinder Part Sheet
- MXP25N Internal Bearing Compact Air Cylinder Part Sheet
- MXP32N Internal Bearing Compact Air Cylinder Part Sheet
- MXP40N Internal Bearing Compact Air Cylinder Part Sheet
- MXP50N Internal Bearing Compact Air Cylinder Part Sheet
- MXP63N Internal Bearing Compact Air Cylinder Part Sheet
- Conversion Sheet from BC406 to MXP16N
- Conversion Sheet from BC410 to MXP25N
- Conversion Sheet from BC412 to MXP32N
- Conversion Sheet from BC415 to MXP40N
- Conversion Sheet from BC420 to MXP50N
- Conversion Sheet from BC425 to MXP63N
