Tolomatic Motor Orientation Guide



Screw Drive Actuators

Tolomatic offers 6 varieties of Rod Style Actuators and 5 varieties of Rodless Actuators


Belt Drive Actuators

Tolomatic offers 4 varieties of Rodless Belt Drive Actuators


Rod Style Screw Drive Electric Actuators:

Tolomatic offers 6 varieties of Rod Style actuators

ERD ERD-GD2 RSH RSA RSX GSA

Motors may be mounted 2 ways: LMI (Inline, motor mounted concentric with the lead-screw that transfers thrust to actuator rod)
Advantages: • Low profile, • Fewer parts; Disadvantages: • Longer total actuator length

RP (Reverse Parallel, motor mounted parallel to the lead-screw that transfers thrust to the actuator rod via pulleys and belt)
Advantages: • Shorter total actuator length, • 2 to 1 Ratio available; Disadvantages: • Higher (or wider) profile • More parts required

ERD Rod Style Screw Drive Electric Actuators

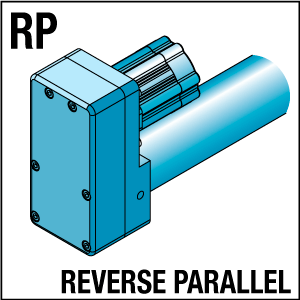

rsa-lmi erd-rp



ERD-GD2 GuidedRod Style Screw Drive Electric Actuators

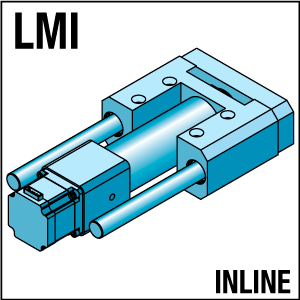

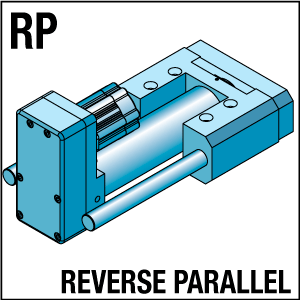

erd-gd2 erd-gd2-rp



RSH Hygienic Rod Style Screw Drive Electric Actuators

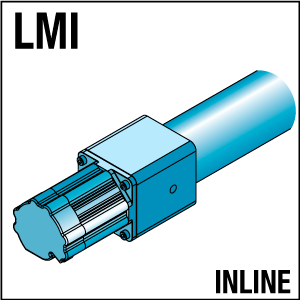

erd-lmi erd-rp



RSA Rod Style Screw Drive Electric Actuators

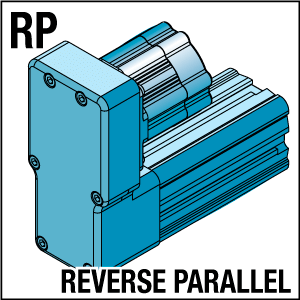

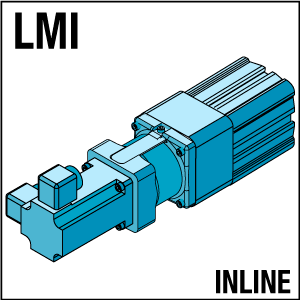

rsa-lmi rsa-rp

RSX Rod Style Screw Drive Electric Actuators

rsa-lmi rsa-rp



GSA Guided Rod Style Screw Drive Electric Actuators

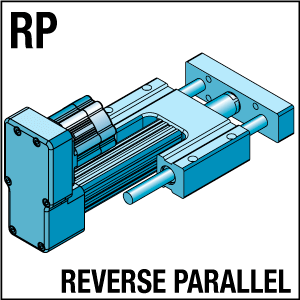

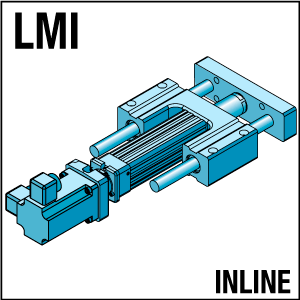

gsa-lmi gsa-rp

Rodless Screw Drive Electric Actuators

Tolomatic offers 7 varieties of Rodless Screw Drive Electric Actuators

BCS B3S B3SD MXES MXEP TKS TRS

Motors may be mounted 2 ways: LMI (Inline, motor mounted concentric with the lead-screw that transfers thrust to actuator rod)
Advantages: • Low profile, • Fewer parts; Disadvantages: • Longer total actuator length

RP (Reverse Parallel, motor mounted parallel to the lead-screw that transfers thrust to the actuator rod via pulleys and belt)
Advantages: • Shorter total actuator length, • 2 to 1 Ratio available; Disadvantages: • Higher (or wider) profile • More parts required

BCS Rodless Screw Drive Electric Actuators

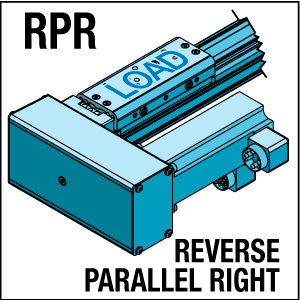

mxes-lmi mxes-rpl mxes-rpr
mxes-rpb mxes-rpt Caution: this orientation may cause the motor to interfere with the load attached to the carrier



B3S Rodless Screw Drive Electric Actuators

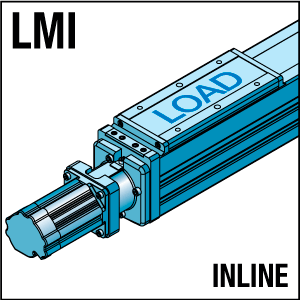

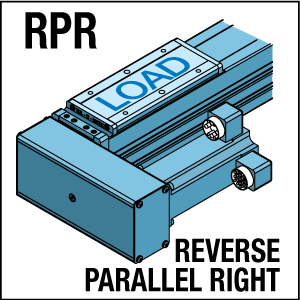

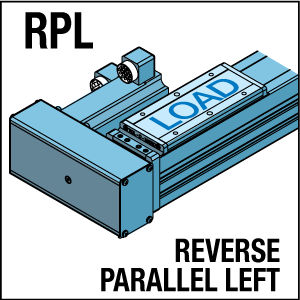

b3s-lmi b3s-rpl b3s-rpr

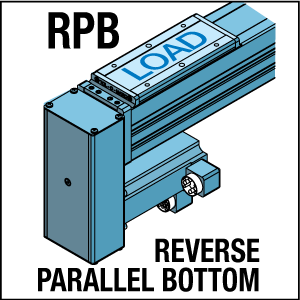

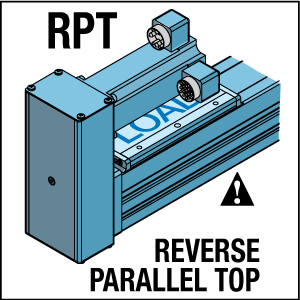

b3s-rpb b3s-rpt Caution: this orientation may cause the motor to interfere with the load attached to the carrier

B3SD Rodless Screw Drive Electric Actuators

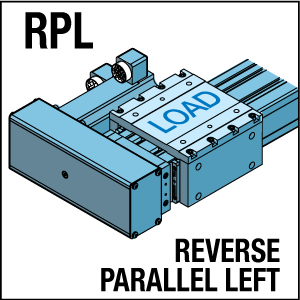

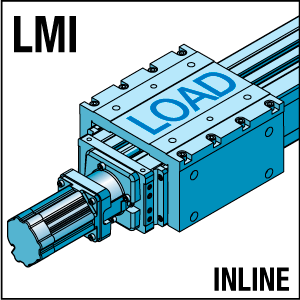

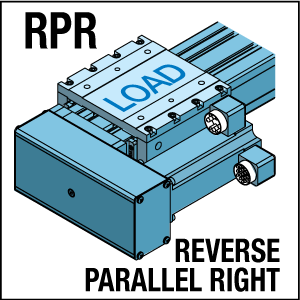

b3sd-lmi b3sd-rpl b3sd-rpr

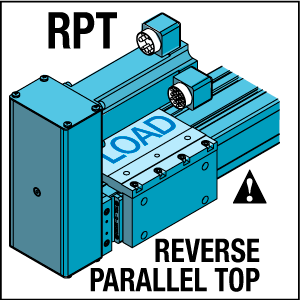

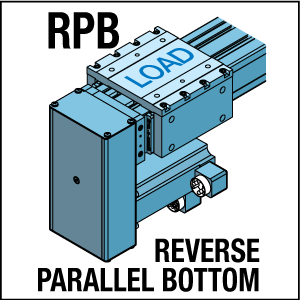

b3sd-rpb b3sd-rpt Caution: this orientation may cause the motor to interfere with the load attached to the carrier



MXES Rodless Screw Drive Electric Actuators

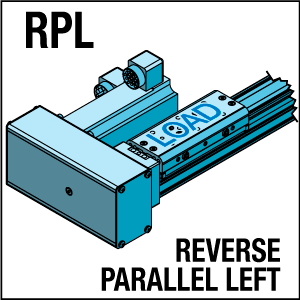

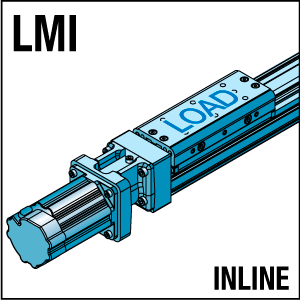

mxes-lmi mxes-rpl mxes-rpr

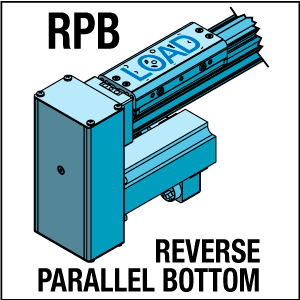

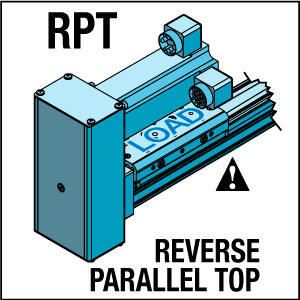

mxes-rpb mxes-rpt Caution: this orientation may cause the motor to interfere with the load attached to the carrier



MXEP Rodless Screw Drive Electric Actuators

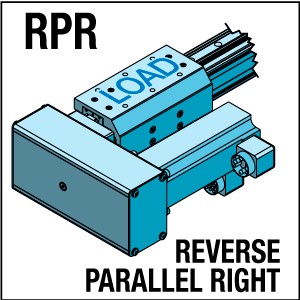

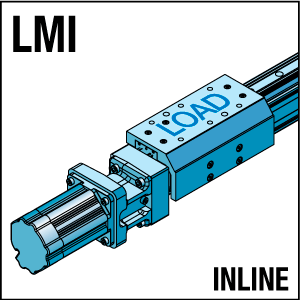

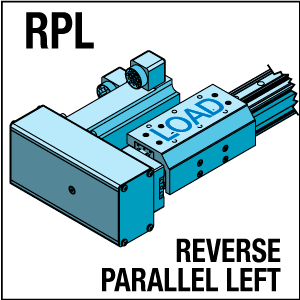

mxep-lmi mxep-rpl mxep-rpr

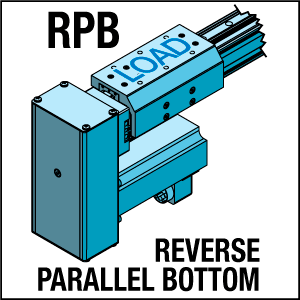

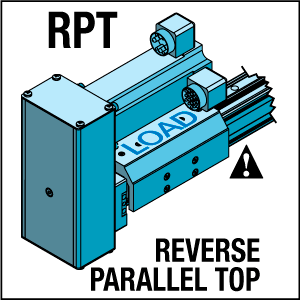

mxep-rpb mxep-rpt Caution: this orientation may cause the motor to interfere with the load attached to the carrier



TKS & TRS Rodless Screw Drive Electric Actuators

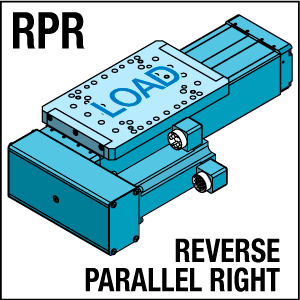

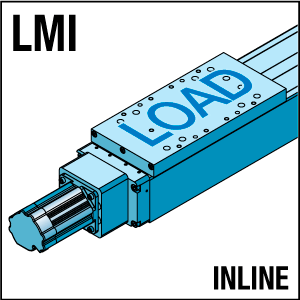

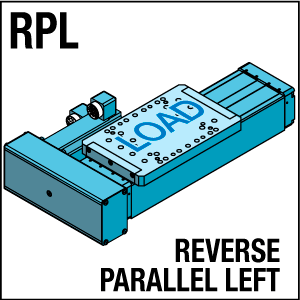

trs-lmi trs-rpl trs-rpr

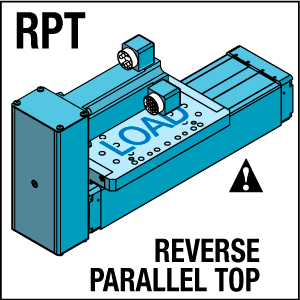

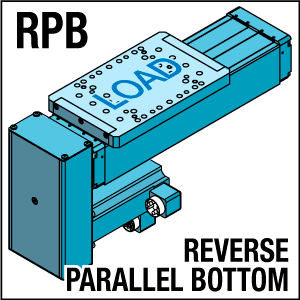

trs-rpb trs-rpt Caution: this orientation may cause the motor to interfere with the load attached to the carrier

Rodless Belt Drive Electric Actuators:

Tolomatic offers 5 varieties of Rodless Actuators

B3W B3WD MXBU MXBS MXBP

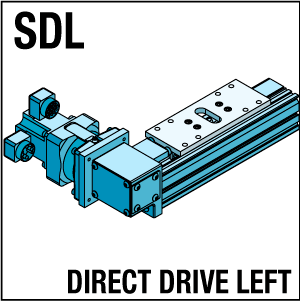

Motors may be mounted 2 ways: SDL, SDR, SDB, SDT (Direct Drive, motor mounted to the pulley that transfers thrust to the carrier)
Advantages: • Low profile, • Fewer parts

SDBL, SDBR, SDTL, SDTR (Reduction drive, motor mounted parallel to the pulley that transfers thrust to the actuator rod via addition pulleys and belt)
Advantages: • 2 to 1 Ratio available; Disadvantages: • Higher (or wider) profile • More parts required

B3W Rodless Belt Drive Electric Actuator

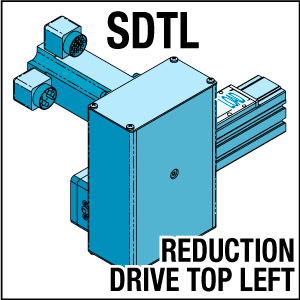

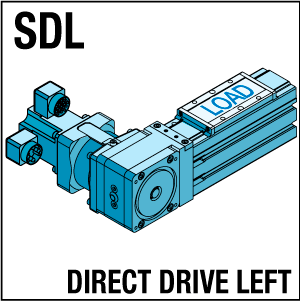

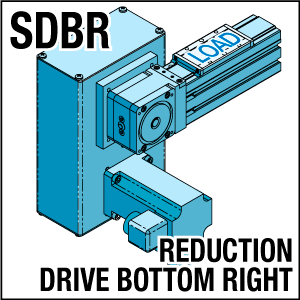

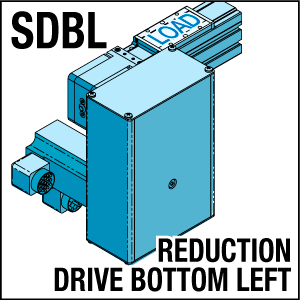

b3w-sdl b3w-sdbl b3w-sdbr

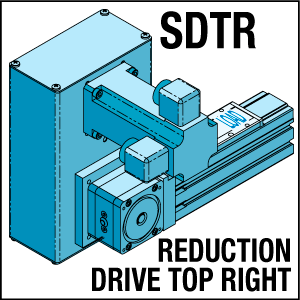

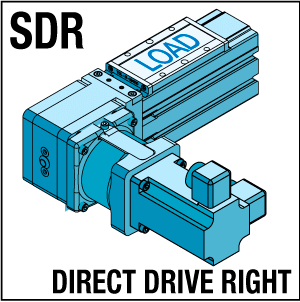

b3w-sdr b3w-sdtl b3w-sdtr



B3WD Rodless Belt Drive Electric Actuator

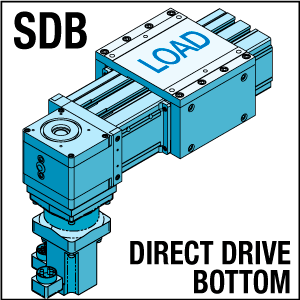

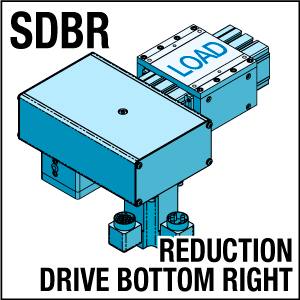

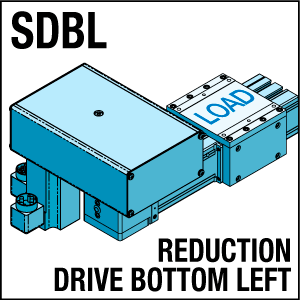

b3wd-sdb b3wd-sdbl b3wd-sdbr

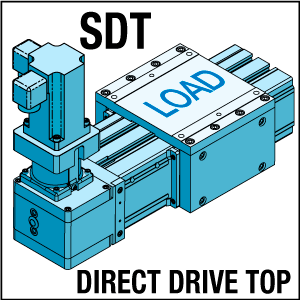

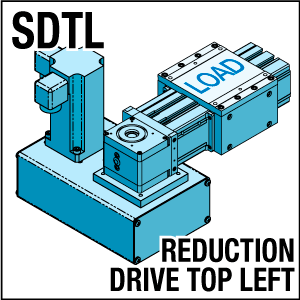

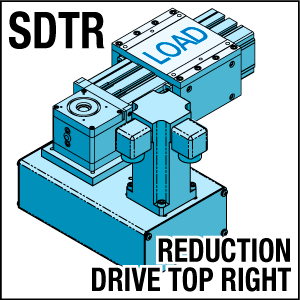

b3wd-sdt b3wd-sdtl b3wd-sdtr

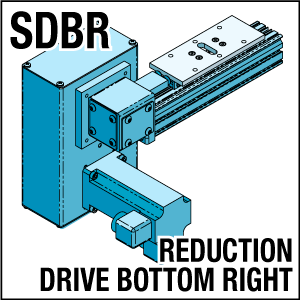

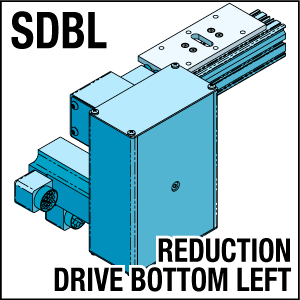

” width=”200″ height=”35%” >mxbu-sdblmxbu-sdbr

MXBU Rodless Belt Drive Electric Actuator

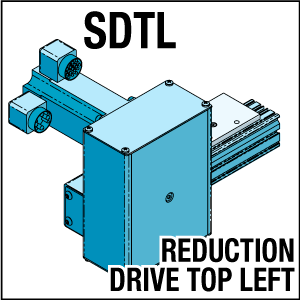

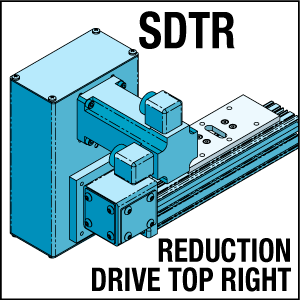

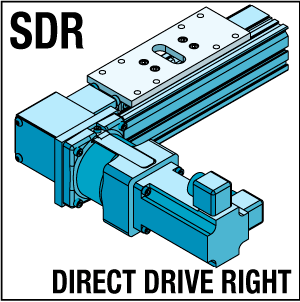

mxbu-sdr mxbu-sdtl mxbu-sdtr



MXBS Rodless Belt Drive Electric Actuator

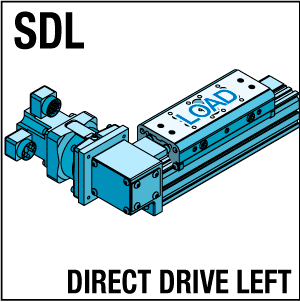

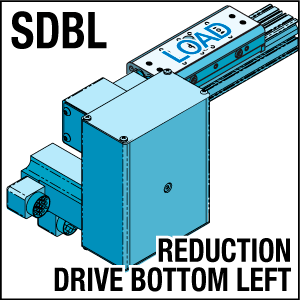

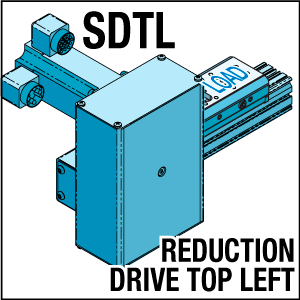

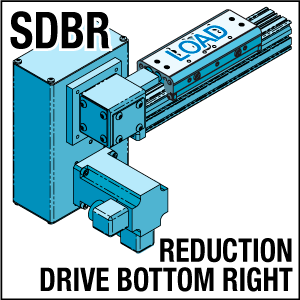

mxbs-sdl mxbs-sdbl mxbs-sdbr

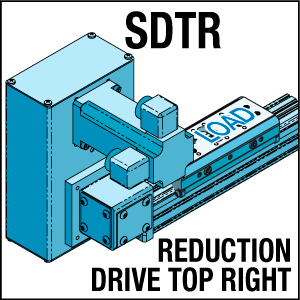

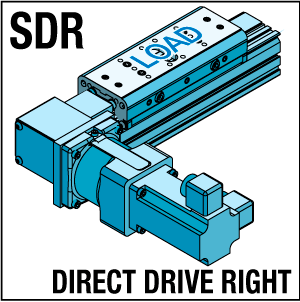

mxbs-sdr mxbs-sdtl mxbs-sdtr



MXBP Rodless Belt Drive Electric Actuator

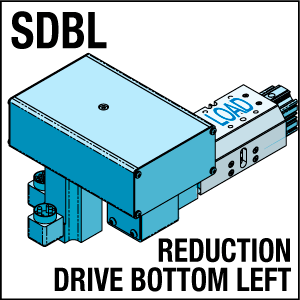

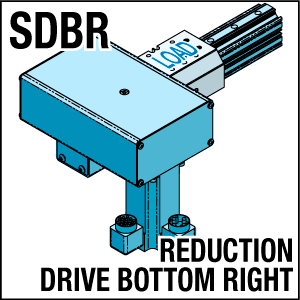

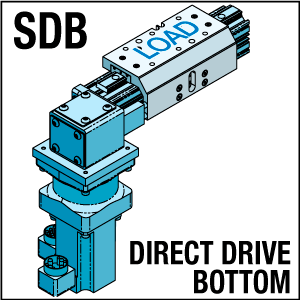

mxbp-sdb mxbp-sdbl mxbp-sdbr

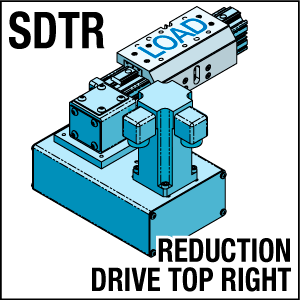

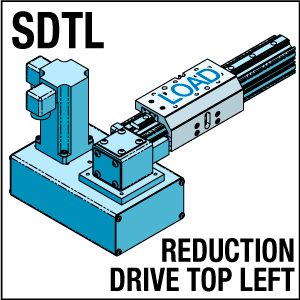

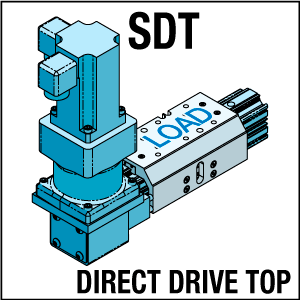

mxbp-sdt mxbp-sdtl mxbp-sdtr
