MG Magnetic Linear Cylinders
Magnetic cylinders are an excellent choice for applications with environmental concerns.

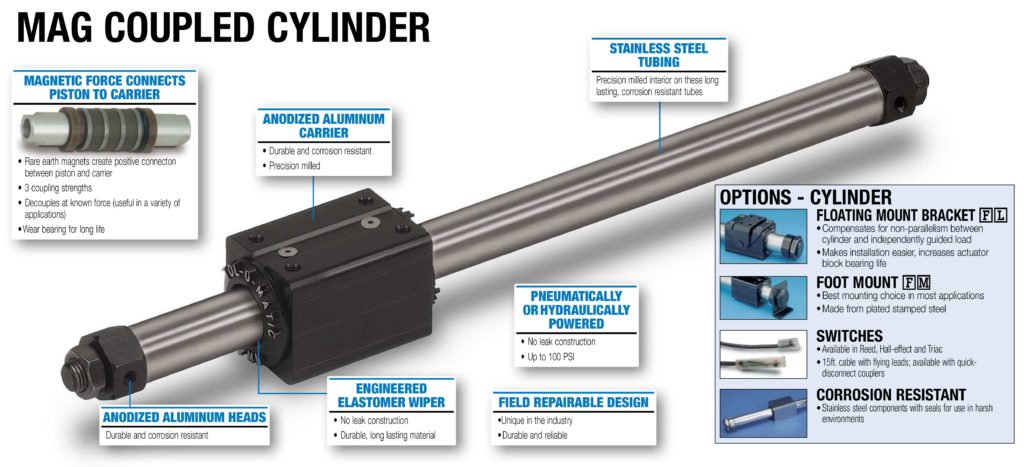

The MG magnetic linear cylinder has no mechanical connection of the carrier to the piston resulting in easy rotation of its mounting block for mounting flexibility.
- Magnetic coupling strengths up to 100 lbs (45.4 kg)
- Field repairable design minimizes downtime
- Fully enclosed actuator body for contaminant prevention
Features & Ordering
Download the Magnetic Linear Cylinder Brochure for full details on features
MG Features
MG Ordering
Specifications
| Specifications | Units | MG100 |
|---|---|---|
| Bore Size | in (mm) | 1.00 (25) |
| Max Stroke | in (mm) | 80 (2,032) |
| Max Force | lbf (N) | 78 (347) |
| Magnetic Strength | lb (N) | 100 (445) |
MG Specs
MG Performance Specs
Dimensions
MG Dimensions
