Rechtwinklige Float-a-Shaft® Getriebe mit 2:1 Übersetzung und Rollenlager mit hohem Drehmoment

Das rechtwinklige Float-A-Shaft® Getriebe mit 2:1 Übersetzung und hohem Drehmoment bietet ein maximales Drehmoment von 81,4 Nm (720 in-lb).

  • Mechanisch gehaltenes Rollenlager für lange Lebensdauer
  • Ermöglicht die Verwendung von Standard-Getriebewellen
  • Druckringe und -lager aus gehärtetem Stahl
  • Die Laufringe sind mit der Welle verbunden, um eine gleichzeitige Drehung zu ermöglichen.

Float-a-Shaft: Standard 2:1 mit hohem Drehmoment, Funktionen

View and Print

Float-a-Shaft: Standard 2:1 mit hohem Drehmoment, Spezifikationen

View and Print

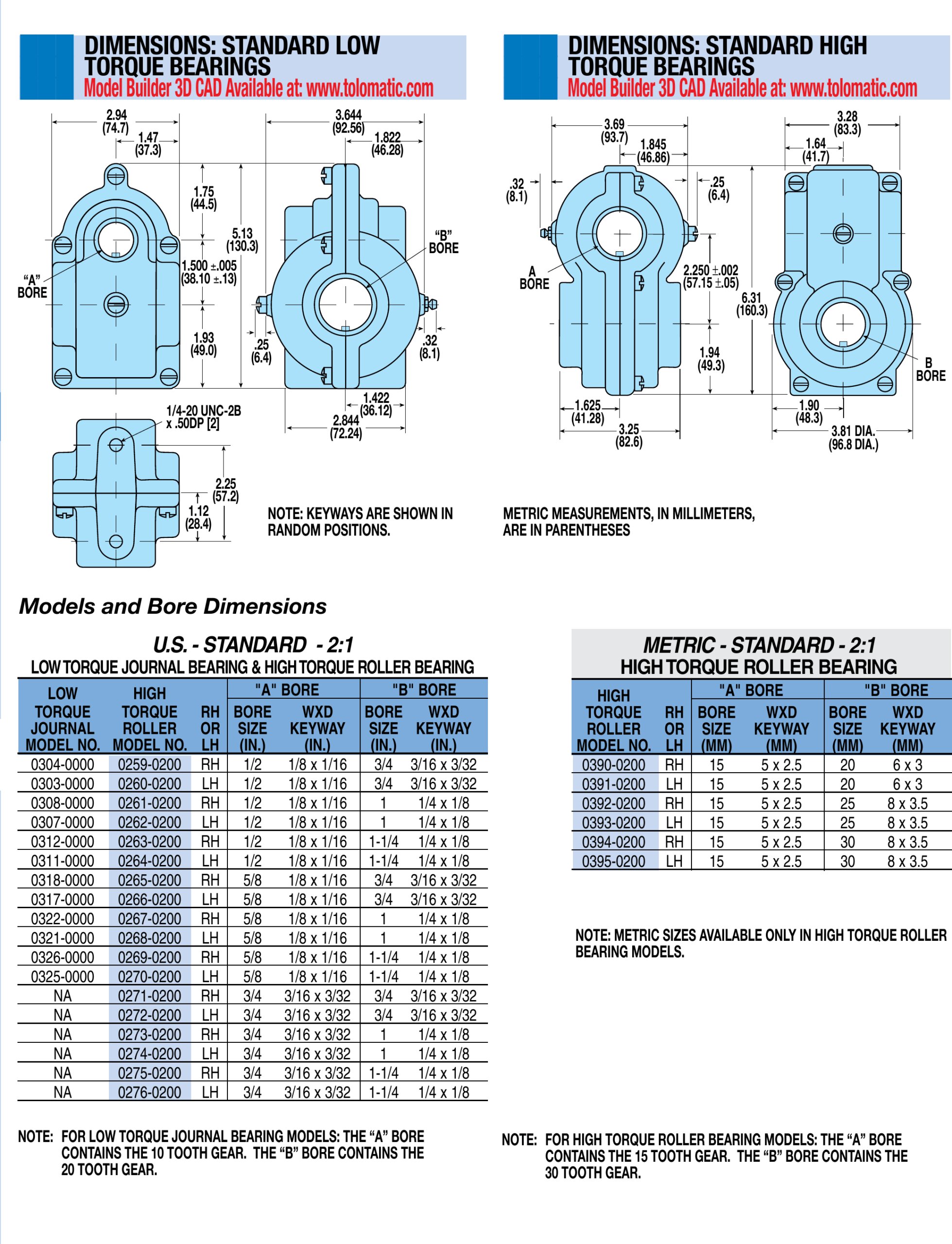

Float-a-Shaft: Standard 2:1 mit hohem Drehmoment, Abmessungen

View and Print

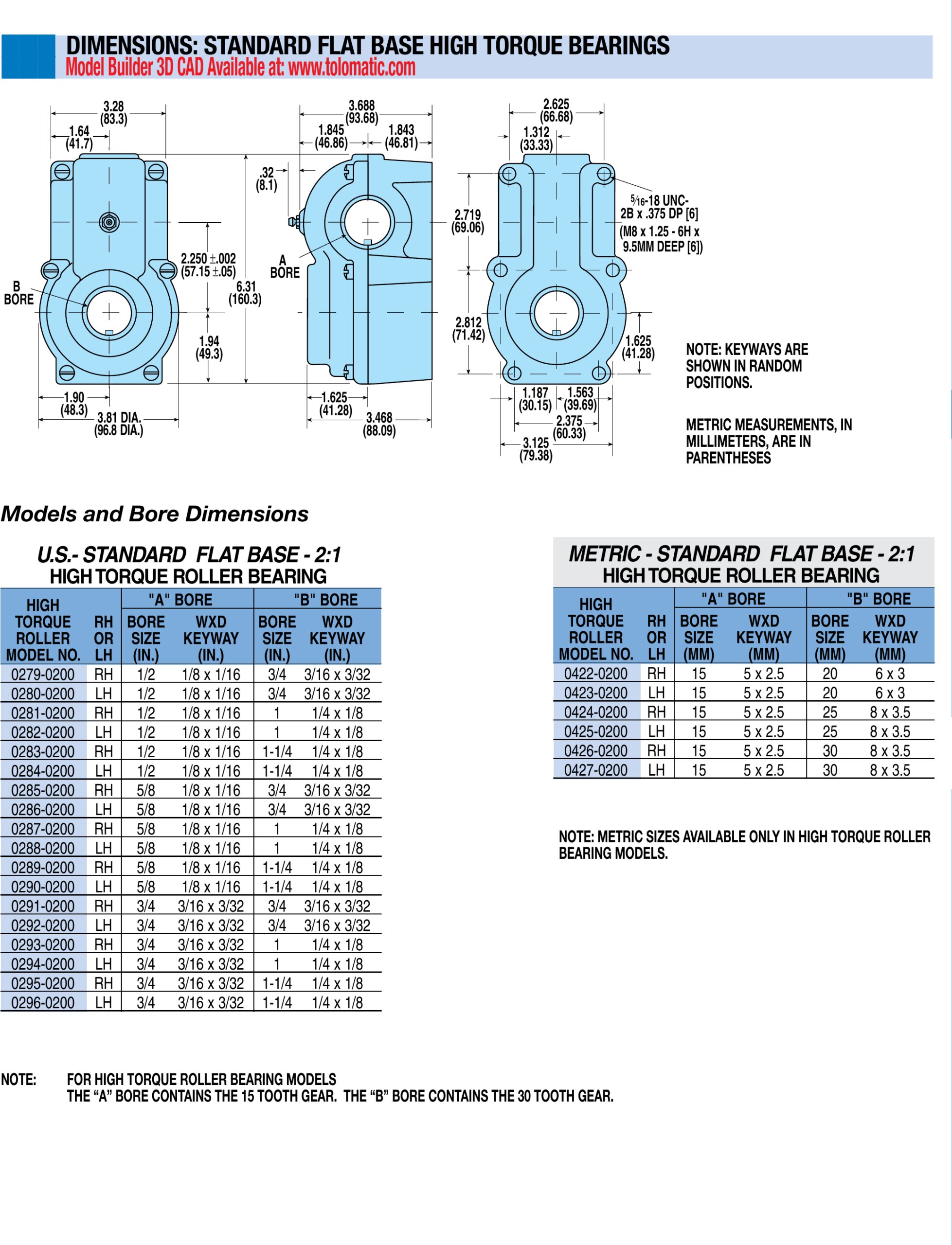

Float-a-Shaft: Standard 2:1 mit Flachboden und hohem Drehmoment, Abmessungen

View and Print

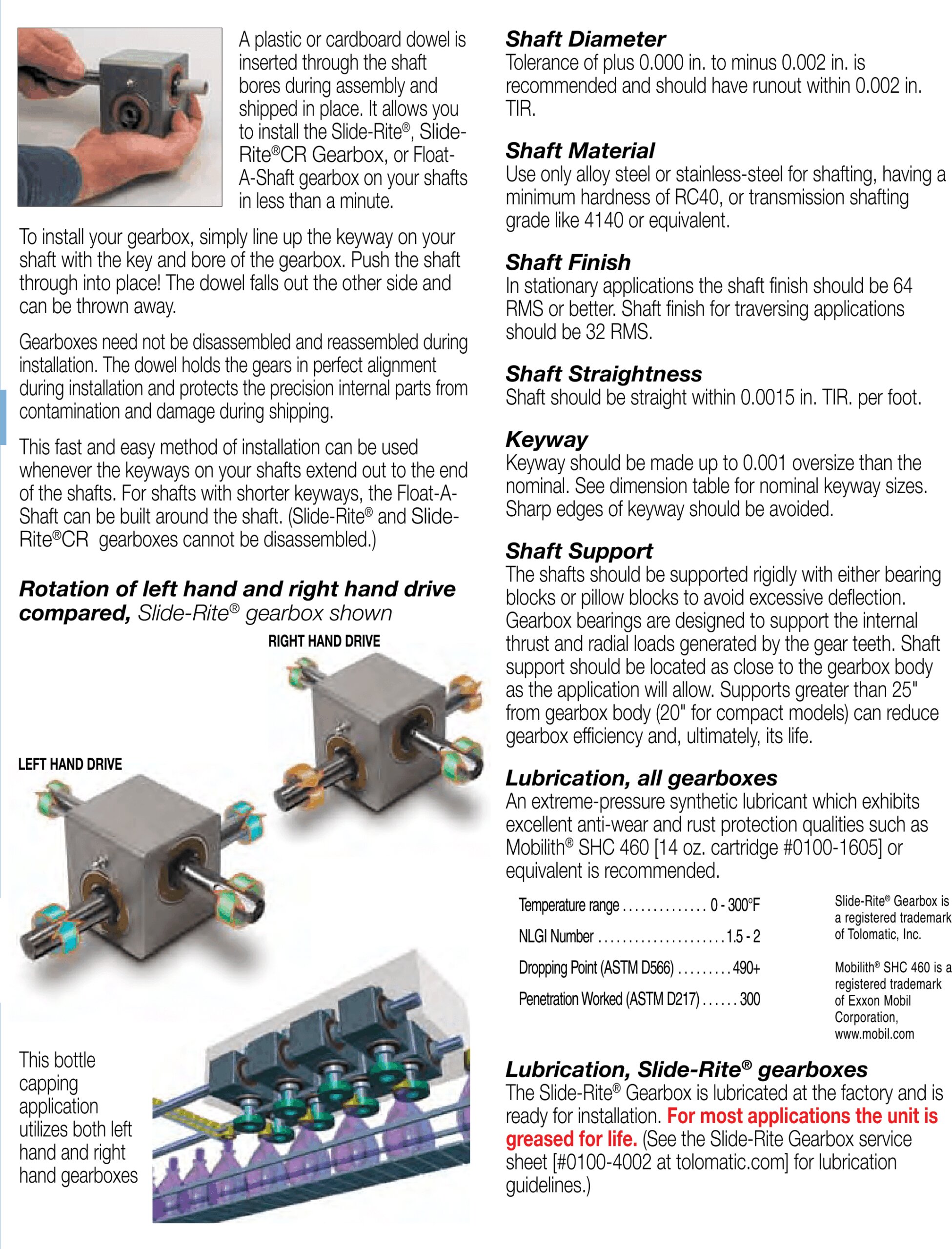

Float-a-Shaft: Rotation und Installationsrichtlinien

View and Print

Online Ordering

Part # Description Cart
0259-0200 Float-a-Shaft: Standard 2:1 Ratio with High Torque Roller Bearing (U.S. Customary)
0260-0200 Float-a-Shaft: Standard 2:1 Ratio with High Torque Roller Bearing (U.S. Customary)
0261-0200 Float-a-Shaft: Standard 2:1 Ratio with High Torque Roller Bearing (U.S. Customary)
0262-0200 Float-a-Shaft: Standard 2:1 Ratio with High Torque Roller Bearing (U.S. Customary)
0263-0200 Float-a-Shaft: Standard 2:1 Ratio with High Torque Roller Bearing (U.S. Customary)
0264-0200 Float-a-Shaft: Standard 2:1 Ratio with High Torque Roller Bearing (U.S. Customary)
0265-0200 Float-a-Shaft: Standard 2:1 Ratio with High Torque Roller Bearing (U.S. Customary)
0266-0200 Float-a-Shaft: Standard 2:1 Ratio with High Torque Roller Bearing (U.S. Customary)
0267-0200 Float-a-Shaft: Standard 2:1 Ratio with High Torque Roller Bearing (U.S. Customary)
0268-0200 Float-a-Shaft: Standard 2:1 Ratio with High Torque Roller Bearing (U.S. Customary)
0269-0200 Float-a-Shaft: Standard 2:1 Ratio with High Torque Roller Bearing (U.S. Customary)
0270-0200 Float-a-Shaft: Standard 2:1 Ratio with High Torque Roller Bearing (U.S. Customary)
0271-0200 Float-a-Shaft: Standard 2:1 Ratio with High Torque Roller Bearing (U.S. Customary)
0272-0200 Float-a-Shaft: Standard 2:1 Ratio with High Torque Roller Bearing (U.S. Customary)
0273-0200 Float-a-Shaft: Standard 2:1 Ratio with High Torque Roller Bearing (U.S. Customary)
0274-0200 Float-a-Shaft: Standard 2:1 Ratio with High Torque Roller Bearing (U.S. Customary)
0275-0200 Float-a-Shaft: Standard 2:1 Ratio with High Torque Roller Bearing (U.S. Customary)
0276-0200 Float-a-Shaft: Standard 2:1 Ratio with High Torque Roller Bearing (U.S. Customary)
0390-0200 Float-a-Shaft: Standard 2:1 Ratio with High Torque Roller Bearing (Metric)
0391-0200 Float-a-Shaft: Standard 2:1 Ratio with High Torque Roller Bearing (Metric)
0392-0200 Float-a-Shaft: Standard 2:1 Ratio with High Torque Roller Bearing (Metric)
0393-0200 Float-a-Shaft: Standard 2:1 Ratio with High Torque Roller Bearing (Metric)
0394-0200 Float-a-Shaft: Standard 2:1 Ratio with High Torque Roller Bearing (Metric)
0395-0200 Float-a-Shaft: Standard 2:1 Ratio with High Torque Roller Bearing (Metric)
0279-0200 Float-a-Shaft: Standard 2:1 Ratio with High Torque Roller Bearing (U.S. Customary)
0280-0200 Float-a-Shaft: Standard 2:1 Ratio with High Torque Roller Bearing (U.S. Customary)
0281-0200 Float-a-Shaft: Standard 2:1 Ratio with High Torque Roller Bearing (U.S. Customary)
0282-0200 Float-a-Shaft: Standard 2:1 Ratio with High Torque Roller Bearing (U.S. Customary)
0283-0200 Float-a-Shaft: Standard 2:1 Ratio with High Torque Roller Bearing (U.S. Customary)
0284-0200 Float-a-Shaft: Standard 2:1 Ratio with High Torque Roller Bearing (U.S. Customary)
0285-0200 Float-a-Shaft: Standard 2:1 Ratio with High Torque Roller Bearing (U.S. Customary)
0286-0200 Float-a-Shaft: Standard 2:1 Ratio with High Torque Roller Bearing (U.S. Customary)
0287-0200 Float-a-Shaft: Standard 2:1 Ratio with High Torque Roller Bearing (U.S. Customary)
0288-0200 Float-a-Shaft: Standard 2:1 Ratio with High Torque Roller Bearing (U.S. Customary)
0289-0200 Float-a-Shaft: Standard 2:1 Ratio with High Torque Roller Bearing (U.S. Customary)
0290-0200 Float-a-Shaft: Standard 2:1 Ratio with High Torque Roller Bearing (U.S. Customary)
0291-0200 Float-a-Shaft: Standard 2:1 Ratio with High Torque Roller Bearing (U.S. Customary)
0292-0200 Float-a-Shaft: Standard 2:1 Ratio with High Torque Roller Bearing (U.S. Customary)
0293-0200 Float-a-Shaft: Standard 2:1 Ratio with High Torque Roller Bearing (U.S. Customary)
0294-0200 Float-a-Shaft: Standard 2:1 Ratio with High Torque Roller Bearing (U.S. Customary)
0295-0200 Float-a-Shaft: Standard 2:1 Ratio with High Torque Roller Bearing (U.S. Customary)
0296-0200 Float-a-Shaft: Standard 2:1 Ratio with High Torque Roller Bearing (U.S. Customary)
0422-0200 Float-a-Shaft: Standard 2:1 Ratio with High Torque Roller Bearing (Metric)
0423-0200 Float-a-Shaft: Standard 2:1 Ratio with High Torque Roller Bearing (Metric)
0424-0200 Float-a-Shaft: Standard 2:1 Ratio with High Torque Roller Bearing (Metric)
0425-0200 Float-a-Shaft: Standard 2:1 Ratio with High Torque Roller Bearing (Metric)
0426-0200 Float-a-Shaft: Standard 2:1 Ratio with High Torque Roller Bearing (Metric)
0427-0200 Float-a-Shaft: Standard 2:1 Ratio with High Torque Roller Bearing (Metric)

Infozentrum

English
Chinese
German
Spanish

Kataloge und Broschüren

Ersatzteile und Instandhaltung

Terms & Conditions

Benutzen Sie die unten stehenden Links, um einen Tolomatic-Händler in Ihrer Nähe zu finden, mehr darüber zu erfahren, wie Sie Ihr Produkt spezifizieren können, und Informationen zu Ersatzteilen, Richtlinien und Tipps zur Auswahl zu erhalten.

 Tolomatic-Händler finden

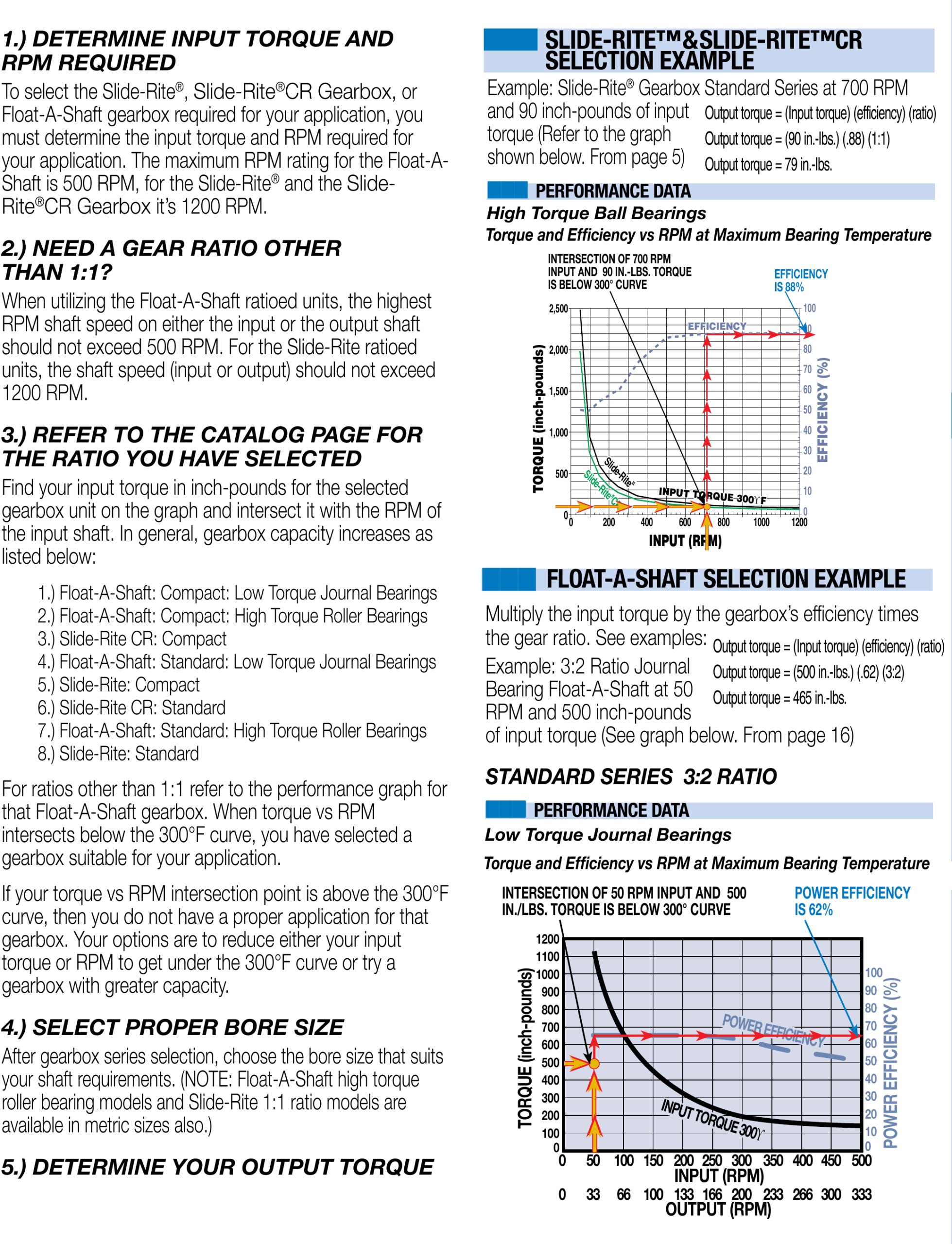

Float-a-Shaft: Rotation und Auswahlrichtlinien
