Rechtwinklige Float-A-Shaft® Getriebe mit 1:1 Übersetzung und Gleitlager mit geringem Drehmoment

Das rechtwinklige Float-A-Shaft® Getriebe mit 1:1 Übersetzung und geringem Drehmoment bietet je nach Eingangsdrehzahl ein maximales Drehmoment von 90,4 Nm (800 in-lb). Die Modelle sind mit Standardhalterung und Flachboden erhältlich.

  • Gleitet auf der Welle (Länge der Keilnut als einzige Begrenzung)
  • Präzises Finish der Gegenlaufflächen für eine dichte Metall-zu-Metall-Konstruktion
  • Gehäuseformender Schmierstoffbehälter
  • Die Laufringe sind mit der Welle verbunden, um eine gleichzeitige Drehung zu ermöglichen.

Float-a-Shaft: Standard 1:1 mit geringem Drehmoment, Funktionen

Float-a-Shaft: Standard 1:1 mit geringem Drehmoment, Spezifikationen

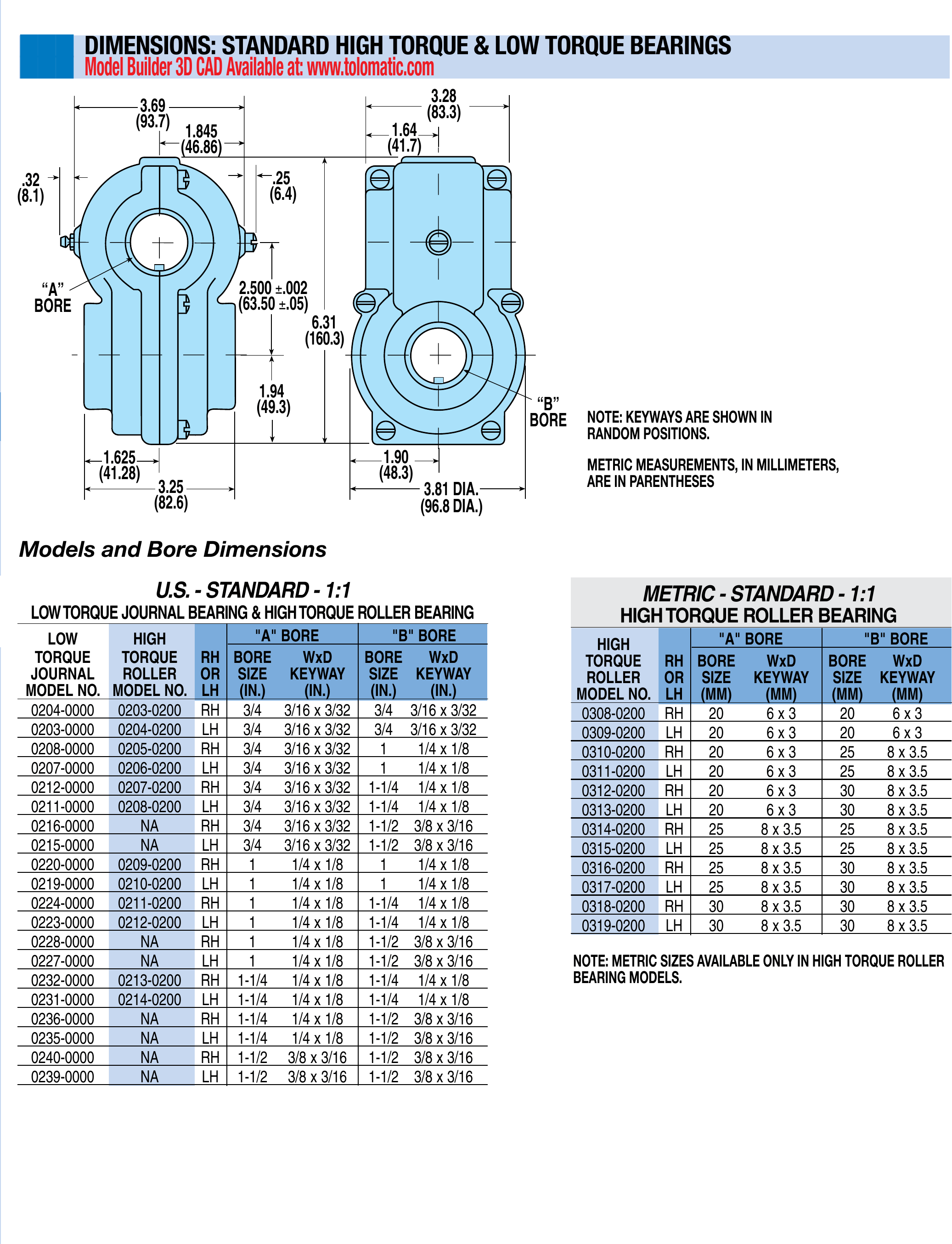

Float-a-Shaft: Standard 1:1 mit geringem Drehmoment, Abmessungen

Float-a-Shaft: Standard 1:1 mit Flachboden und geringem Drehmoment, Abmessungen

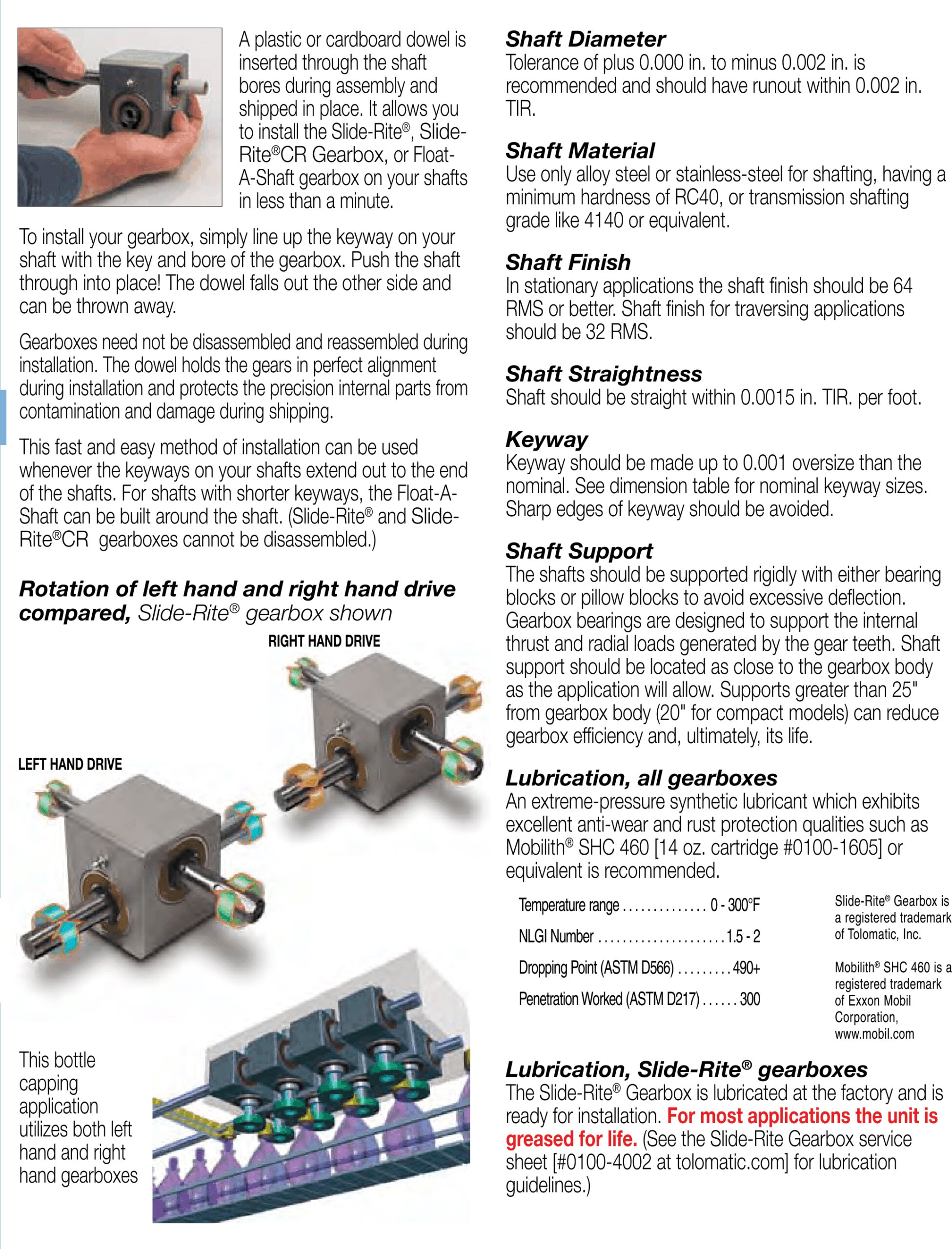

Float-a-Shaft: Rotation und Installationsrichtlinien

Online Ordering

Part # Description MontagetypDrehungA BohrungsgrößeA Bohrung KeilnutB BohrungsgrößeB Bohrung Keilnut Cart
0204-0000 Float-a-Shaft: Standard 1:1 Ratio with Low Torque Journal Bearing (U.S. Customary) Standard MountRH3/4"3/16" x 3/32"3/4"3/16" x 3/32"
0203-0000 Float-a-Shaft: Standard 1:1 Ratio with Low Torque Journal Bearing (U.S. Customary) Standard MountLH3/4"3/16" x 3/32"3/4"3/16" x 3/32"
0208-0000 Float-a-Shaft: Standard 1:1 Ratio with Low Torque Journal Bearing (U.S. Customary) Standard MountRH3/4"3/16" x 3/32"1"1/4" x 1/8"
0207-0000 Float-a-Shaft: Standard 1:1 Ratio with Low Torque Journal Bearing (U.S. Customary) Standard MountLH3/4"3/16" x 3/32"1"1/4" x 1/8"
0212-0000 Float-a-Shaft: Standard 1:1 Ratio with Low Torque Journal Bearing (U.S. Customary) Standard MountRH3/4"3/16" x 3/32"1-1/4"1/4" x 1/8"
0211-0000 Float-a-Shaft: Standard 1:1 Ratio with Low Torque Journal Bearing (U.S. Customary) Standard MountLH3/4"3/16" x 3/32"1-1/4"1/4" x 1/8"
0216-0000 Float-a-Shaft: Standard 1:1 Ratio with Low Torque Journal Bearing (U.S. Customary) Standard MountRH3/4"3/16" x 3/32"1-1/2"3/8" x 3/16"
0215-0000 Float-a-Shaft: Standard 1:1 Ratio with Low Torque Journal Bearing (U.S. Customary) Standard MountLH3/4"3/16" x 3/32"1-1/2"3/8" x 3/16"
0220-0000 Float-a-Shaft: Standard 1:1 Ratio with Low Torque Journal Bearing (U.S. Customary) Standard MountRH1"1/4" x 1/8"1"1/4" x 1/8"
0219-0000 Float-a-Shaft: Standard 1:1 Ratio with Low Torque Journal Bearing (U.S. Customary) Standard MountLH1"1/4" x 1/8"1"1/4" x 1/8"
0224-0000 Float-a-Shaft: Standard 1:1 Ratio with Low Torque Journal Bearing (U.S. Customary) Standard MountRH1"1/4" x 1/8"1-1/4"1/4" x 1/8"
0223-0000 Float-a-Shaft: Standard 1:1 Ratio with Low Torque Journal Bearing (U.S. Customary) Standard MountLH1"1/4" x 1/8"1-1/4"1/4" x 1/8"
0228-0000 Float-a-Shaft: Standard 1:1 Ratio with Low Torque Journal Bearing (U.S. Customary) Standard MountRH1"1/4" x 1/8"1-1/2"3/8" x 3/16"
0227-0000 Float-a-Shaft: Standard 1:1 Ratio with Low Torque Journal Bearing (U.S. Customary) Standard MountLH1"1/4" x 1/8"1-1/2"3/8" x 3/16"
0232-0000 Float-a-Shaft: Standard 1:1 Ratio with Low Torque Journal Bearing (U.S. Customary) Standard MountRH1-1/4"1/4" x 1/8"1-1/4"1/4" x 1/8"
0231-0000 Float-a-Shaft: Standard 1:1 Ratio with Low Torque Journal Bearing (U.S. Customary) Standard MountLH1-1/4"1/4" x 1/8"1-1/4"1/4" x 1/8"
0236-0000 Float-a-Shaft: Standard 1:1 Ratio with Low Torque Journal Bearing (U.S. Customary) Standard MountRH1-1/4"1/4" x 1/8"1-1/2"3/8" x 3/16"
0235-0000 Float-a-Shaft: Standard 1:1 Ratio with Low Torque Journal Bearing (U.S. Customary) Standard MountLH1-1/4"1/4" x 1/8"1-1/2"3/8" x 3/16"
0240-0000 Float-a-Shaft: Standard 1:1 Ratio with Low Torque Journal Bearing (U.S. Customary) Standard MountRH1-1/2"3/8" x 3/16"1-1/2"3/8" x 3/16"
0239-0000 Float-a-Shaft: Standard 1:1 Ratio with Low Torque Journal Bearing (U.S. Customary) Standard MountLH1-1/2"3/8" x 3/16"1-1/2"3/8" x 3/16"
0245-0000 Float-a-Shaft: Standard 1:1 Ratio with Low Torque Journal Bearing (U.S. Customary) Flat Base MountRH3/4"3/16" x 3/32"3/4"3/16" x 3/32"
0246-0000 Float-a-Shaft: Standard 1:1 Ratio with Low Torque Journal Bearing (U.S. Customary) Flat Base MountLH3/4"3/16" x 3/32"3/4"3/16" x 3/32"
0247-0000 Float-a-Shaft: Standard 1:1 Ratio with Low Torque Journal Bearing (U.S. Customary) Flat Base MountRH3/4"3/16" x 3/32"1"1/4" x 1/8"
0248-0000 Float-a-Shaft: Standard 1:1 Ratio with Low Torque Journal Bearing (U.S. Customary) Flat Base MountLH3/4"3/16" x 3/32"1"1/4" x 1/8"
0249-0000 Float-a-Shaft: Standard 1:1 Ratio with Low Torque Journal Bearing (U.S. Customary) Flat Base MountRH3/4"3/16" x 3/32"1-1/4"1/4" x 1/8"
0250-0000 Float-a-Shaft: Standard 1:1 Ratio with Low Torque Journal Bearing (U.S. Customary) Flat Base MountLH3/4"3/16" x 3/32"1-1/4"1/4" x 1/8"
0251-0000 Float-a-Shaft: Standard 1:1 Ratio with Low Torque Journal Bearing (U.S. Customary) Flat Base MountRH3/4"3/16" x 3/32"1-1/23/8" x 3/16"
0252-0000 Float-a-Shaft: Standard 1:1 Ratio with Low Torque Journal Bearing (U.S. Customary) Flat Base MountLH3/4"3/16" x 3/32"1-1/2"3/8" x 3/16"
0253-0000 Float-a-Shaft: Standard 1:1 Ratio with Low Torque Journal Bearing (U.S. Customary) Flat Base MountRH1"1/4" x 1/8"1"1/4" x 1/8"
0254-0000 Float-a-Shaft: Standard 1:1 Ratio with Low Torque Journal Bearing (U.S. Customary) Flat Base MountLH1"1/4" x 1/8"1"1/4" x 1/8"
0255-0000 Float-a-Shaft: Standard 1:1 Ratio with Low Torque Journal Bearing (U.S. Customary) Flat Base MountRH1"1/4" x 1/8"1-1/4"1/4" x 1/8"
0256-0000 Float-a-Shaft: Standard 1:1 Ratio with Low Torque Journal Bearing (U.S. Customary) Flat Base MountLH1"1/4" x 1/8"1-1/4"1/4" x 1/8"
0257-0000 Float-a-Shaft: Standard 1:1 Ratio with Low Torque Journal Bearing (U.S. Customary) Flat Base MountRH1"1/4" x 1/8"1-1/2"3/8" x 3/16"
0258-0000 Float-a-Shaft: Standard 1:1 Ratio with Low Torque Journal Bearing (U.S. Customary) Flat Base MountLH1"1/4" x 1/8"1-1/2"3/8" x 3/16"
0269-0000 Float-a-Shaft: Standard 1:1 Ratio with Low Torque Journal Bearing (U.S. Customary) Flat Base MountRH1-1/4"1/4" x 1/8"1-1/4"1/4" x 1/8"
0270-0000 Float-a-Shaft: Standard 1:1 Ratio with Low Torque Journal Bearing (U.S. Customary) Flat Base MountLH1-1/4"1/4" x 1/8"1-1/4"1/4" x 1/8"
0271-0000 Float-a-Shaft: Standard 1:1 Ratio with Low Torque Journal Bearing (U.S. Customary) Flat Base MountRH1-1/4"1/4" x 1/8"1-1/2"3/8" x 3/16"
0272-0000 Float-a-Shaft: Standard 1:1 Ratio with Low Torque Journal Bearing (U.S. Customary) Flat Base MountLH1-1/4"1/4" x 1/8"1-1/2"3/8" x 3/16"
0273-0000 Float-a-Shaft: Standard 1:1 Ratio with Low Torque Journal Bearing (U.S. Customary) Flat Base MountRH1-1/2"3/8" x 3/16"1-1/2"3/8" x 3/16"
0274-0000 Float-a-Shaft: Standard 1:1 Ratio with Low Torque Journal Bearing (U.S. Customary) Flat Base MountLH1-1/2"3/8" x 3/16"1-1/2"3/8" x 3/16"

Benutzen Sie die unten stehenden Links, um einen Tolomatic-Händler in Ihrer Nähe zu finden, mehr darüber zu erfahren, wie Sie Ihr Produkt spezifizieren können, und Informationen zu Ersatzteilen, Richtlinien und Tipps zur Auswahl zu erhalten.

 Tolomatic-Händler finden

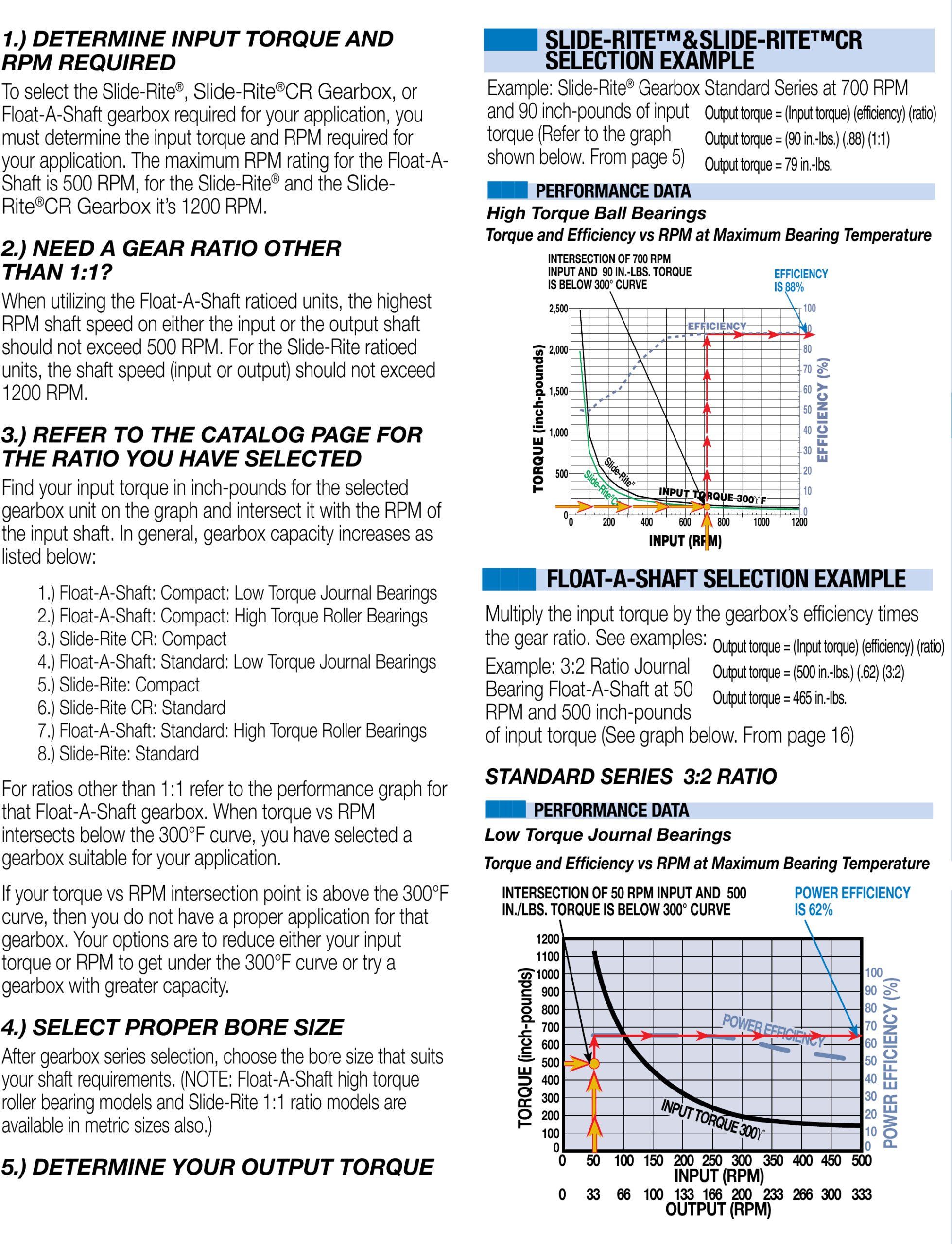

Float-a-Shaft: Rotation und Auswahlrichtlinien
