RSA-HT Heavy Duty, High Force Electric Rod Linear Actuators
Heavy duty electric rod actuator ideal for applications requiring high force performance in tough environments.
The RSA-HT heavy duty electric rod actuator accommodates larger motors and delivers high force with excellent accuracy. These high force electric linear actuators feature ball or roller screw selections, an enhanced high thrust bearing and heavy duty internal bumpers. The standard grease zerk extends screw life by making relubrication easy and convenient without dissassembly. RSA-HT actuators are suitable for valve actuation, punch press, injection molding applications and many more.

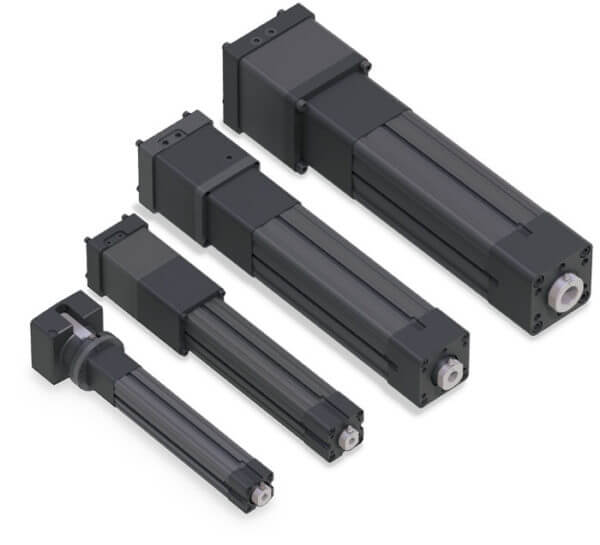

- 4 body sizes with upgraded force/torque transmission components (bearings, couplers, belts, pulleys)
- Roller and ball screw choices
- Forces up to 13,039 lbf (58,001 N)
- Stroke lengths up to 60 inches (1,524 mm)
- IP67 option to protect against dust and water ingress
- Low-backlash ball screw option
- Flexible mounting options
| Size | 24 RSA-HT | 32 RSA-HT | 50 RSA-HT | 64 RSA-HT |
|---|---|---|---|---|
| Standard | 24 in. | 36 in. | 48 in. | 60 in. |
| Metric | 610 mm | 914 mm | 1,219 mm | 1,524 mm |
| Size | 24 RSA-HT | 32 RSA-HT | 50 RSA-HT | 64 RSA-HT |
|---|---|---|---|---|
| Standard | 1,700 lbf | 4,159 lbf | 7,868 lbf | 13,039 lbf |
| Metric | 7,562 N | 18,500 N | 34,999 N | 58,001 N |
| Size | 24 RSA-HT | 32 RSA-HT | 50 RSA-HT | 64 RSA-HT |
|---|---|---|---|---|
| Standard | 50 in/sec | 50 in/sec | 50 in/sec | 58 in/sec |
| Metric | 1,270 mm/sec | 1,270 mm/sec | 1,270 mm/sec | 1,473 mm/sec |

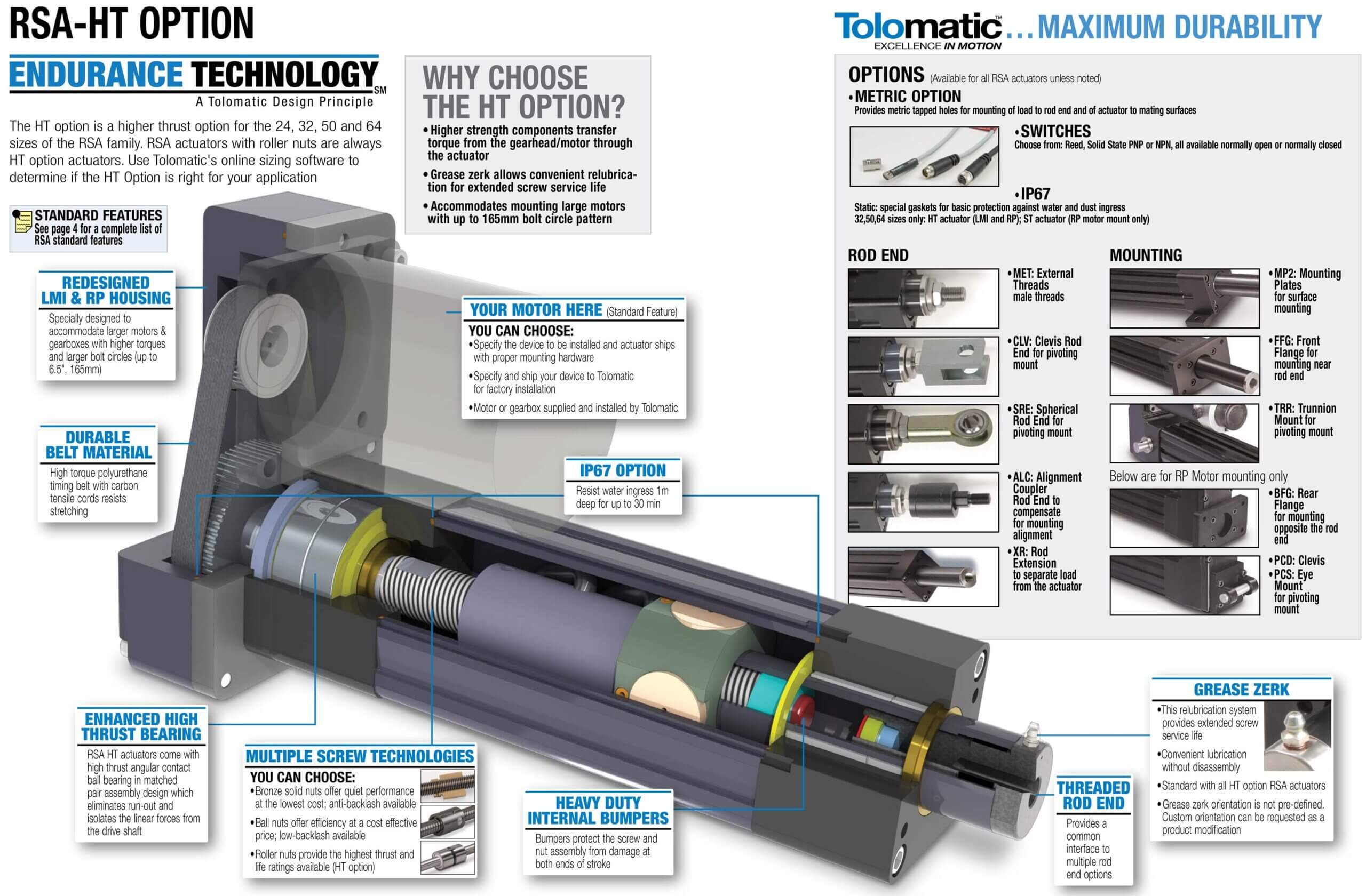

RSA-HT Electric Rod Actuator Features

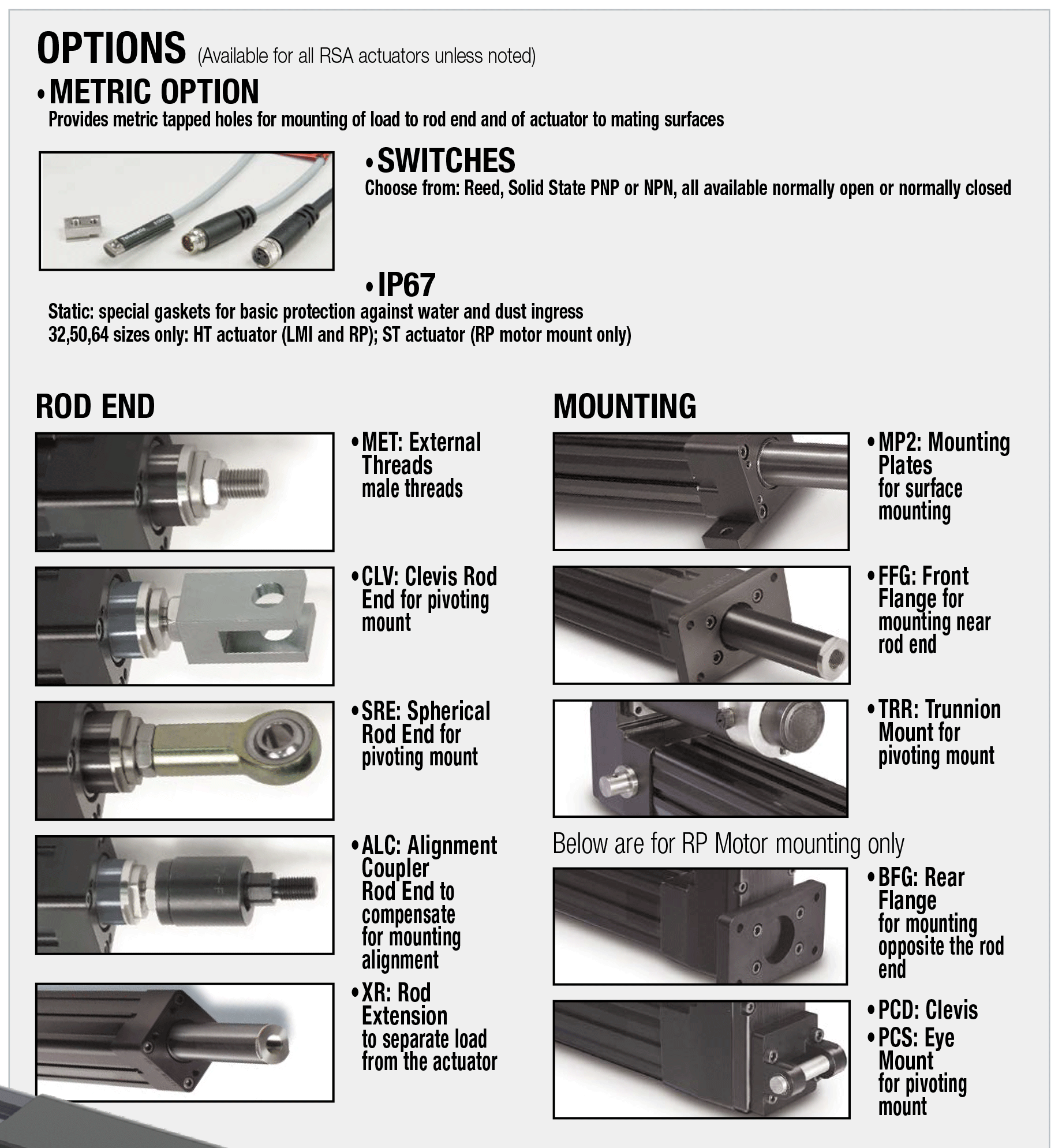

RSA Options
RSA-HT 32, 50, 64 PV Limits (Bronze Nuts)
RSA Switch Specifications
RSA Switch Wiring Diagrams and Dimensions
Re-Lubrication Recommendation

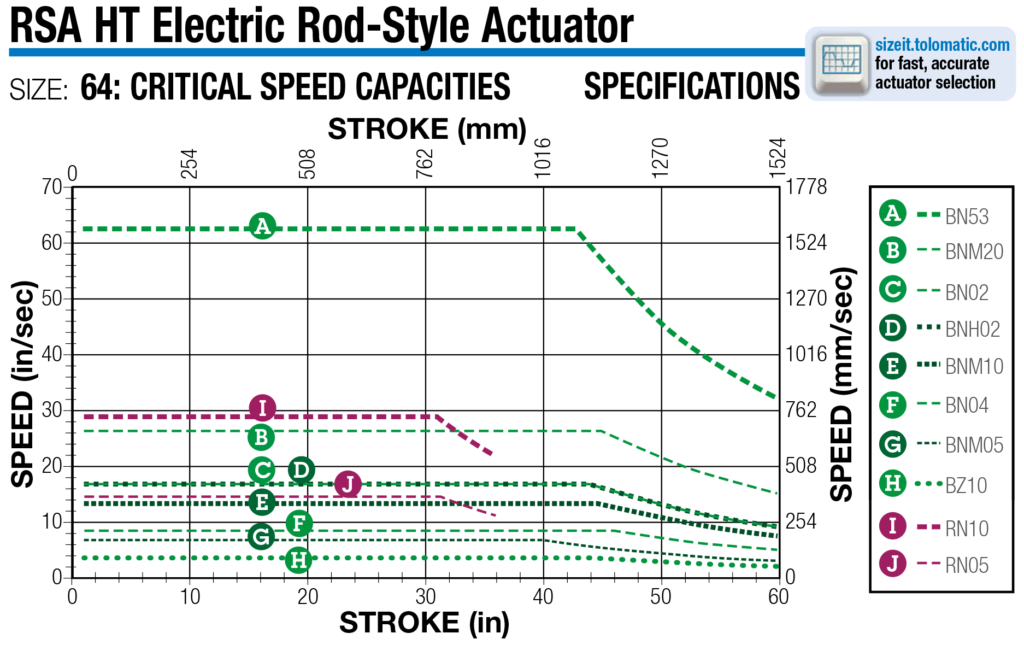

RSA-HT 64 Critical Speed Capacities
RSA-HT Actuator Weights

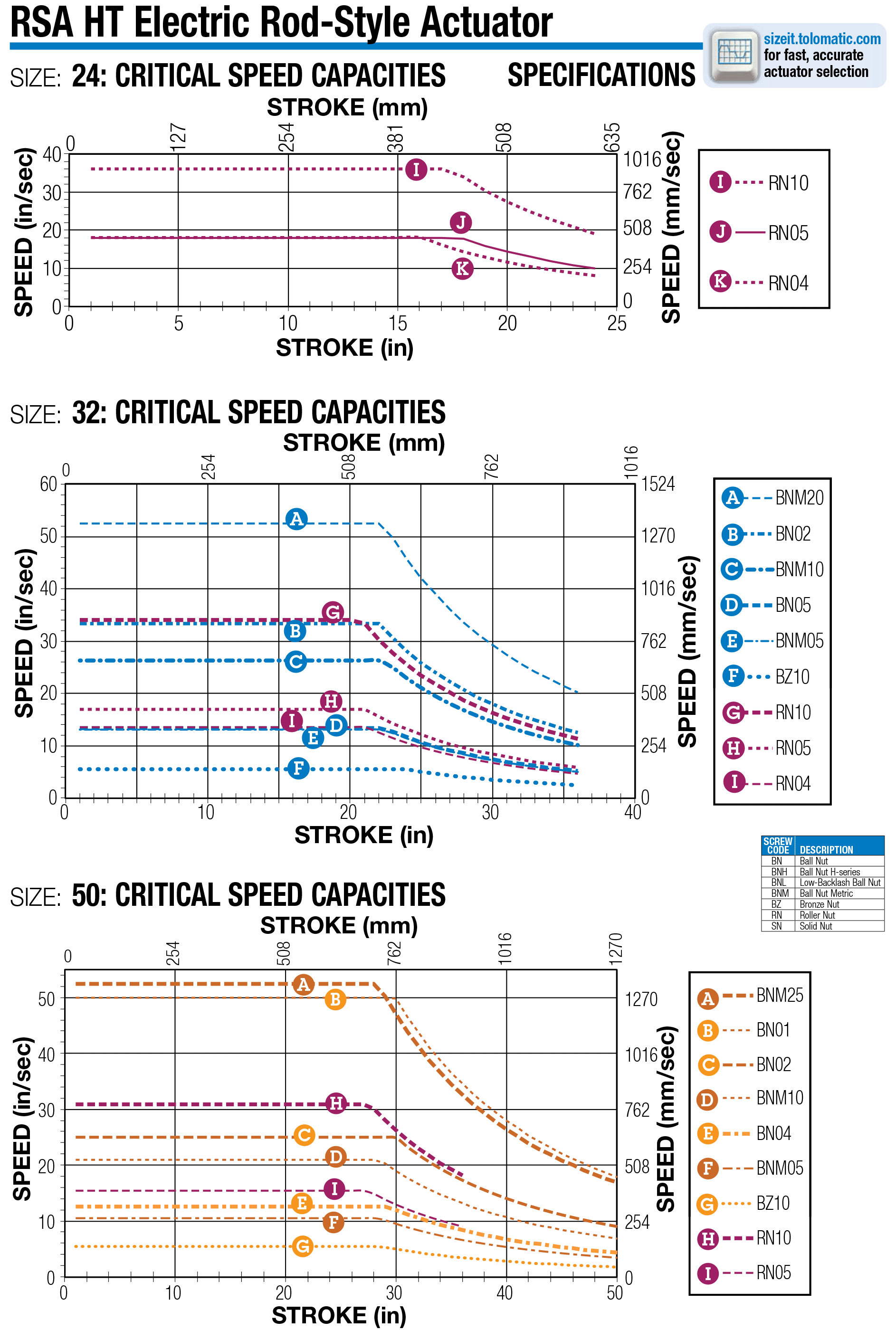

RSA-HT 24, 32, 50 Critical Speed Capacities
RSA-HT Ball & Roller Screw Life Graphs

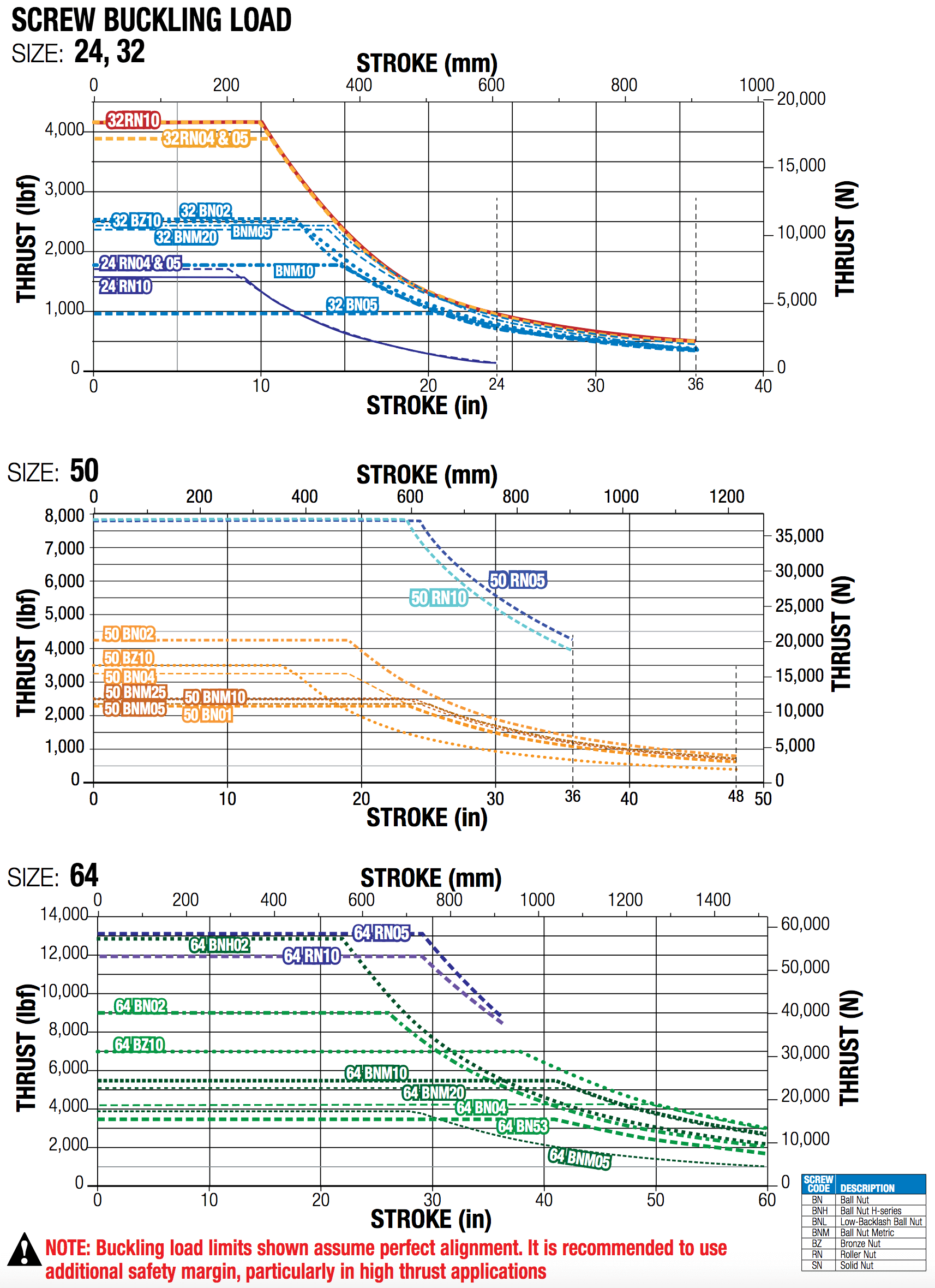

RSA-HT Screw Buckling Load

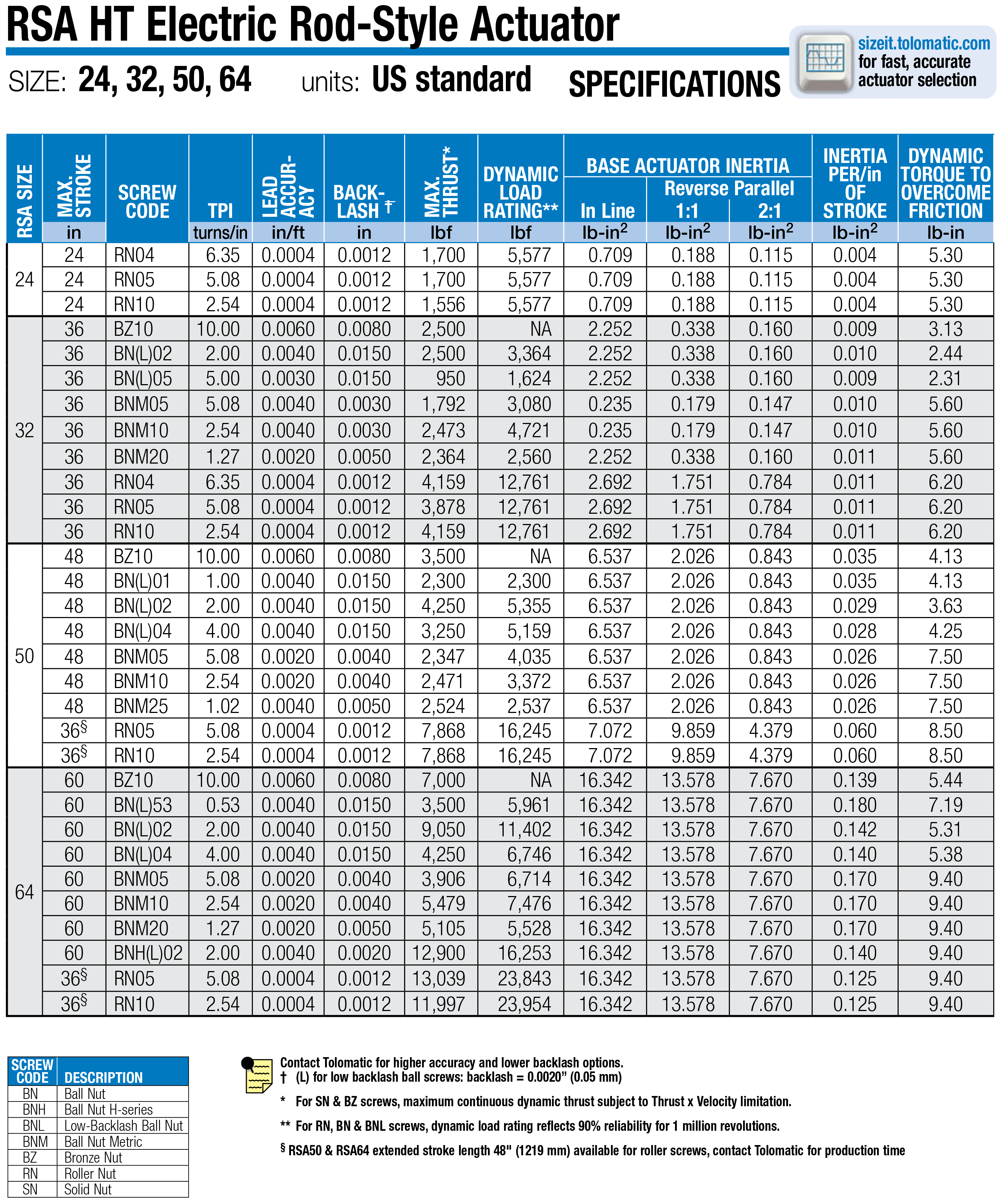

RSA-HT Actuator Specifications (US Conv.)

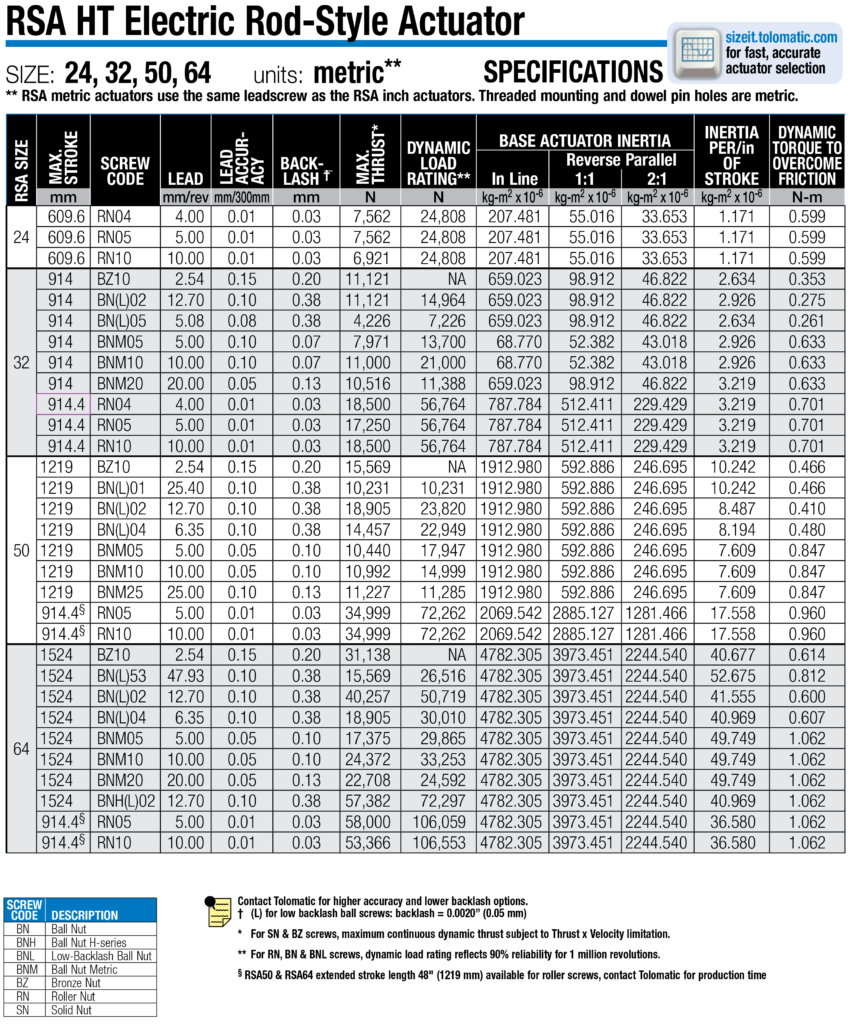

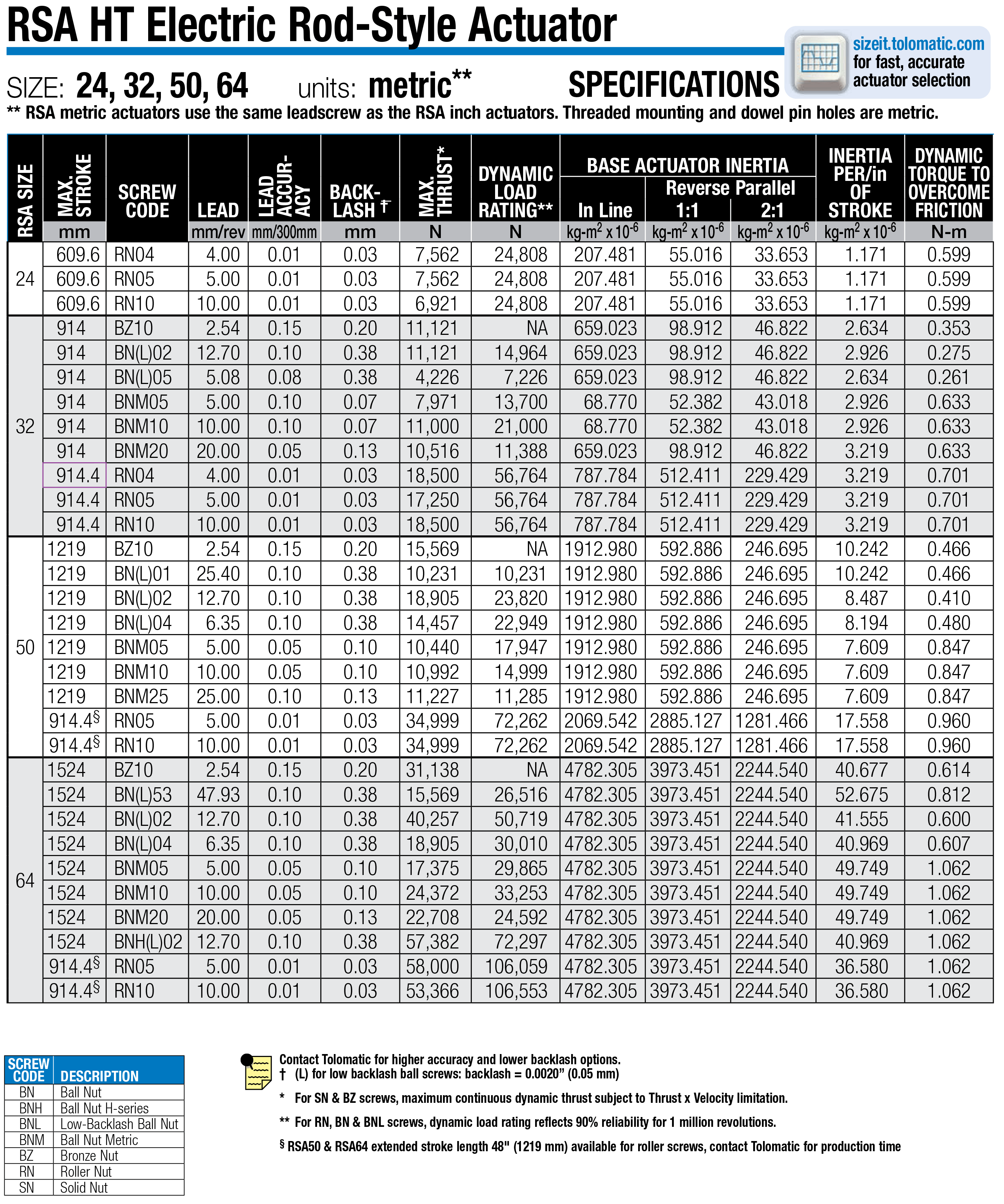

RSA-HT Actuator Specifications (Metric)

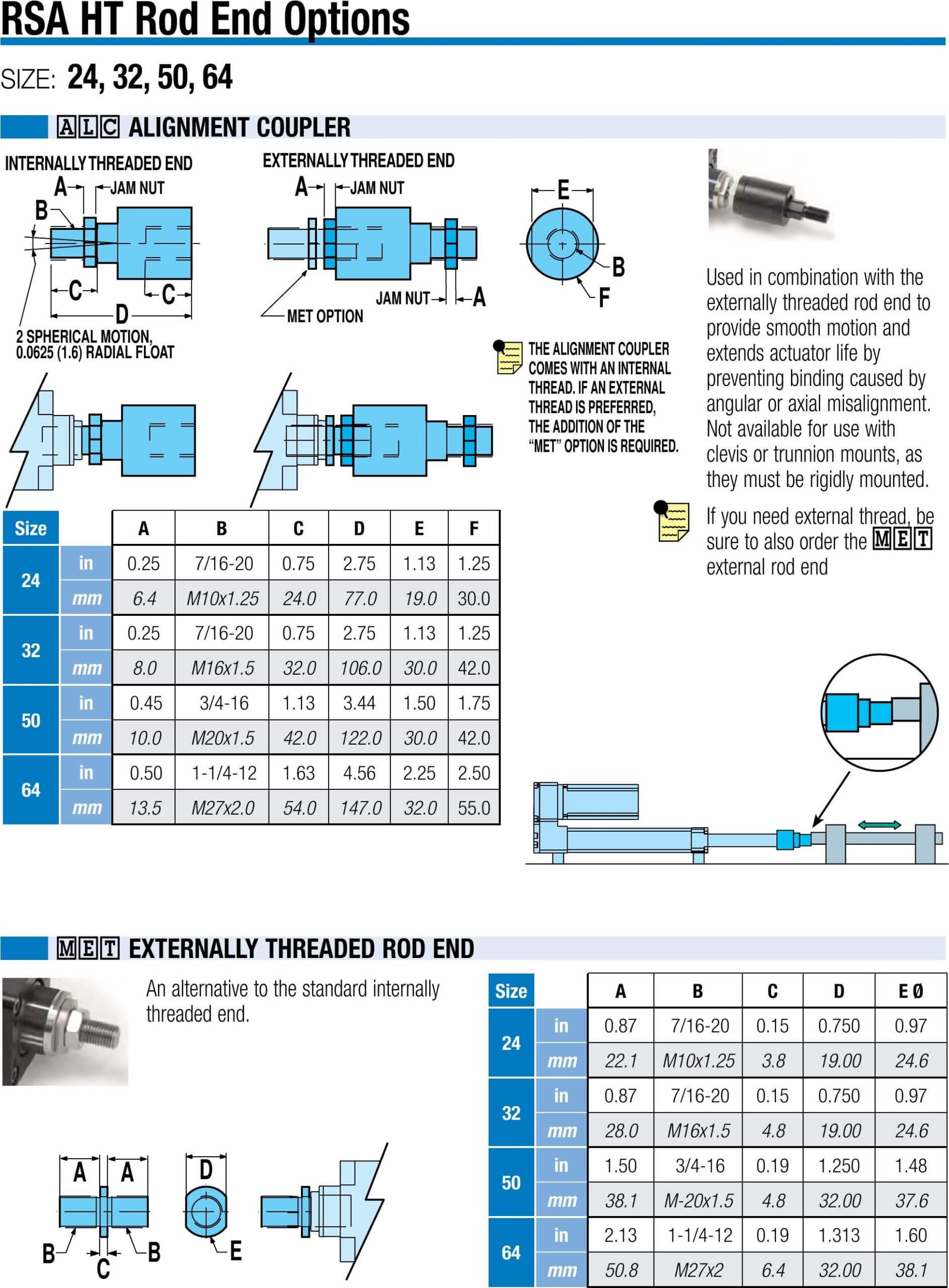

RSA-HT Rod End Options: Spherical & Clevis
RSA-HT Rod End Options: Alignment Coupler & Externally Threaded
RSA-HT Mounting Options: Eye & Clevis
RSA-HT Optional Rod Extension
RSA-HT Mounting Options: Trunnion & Back Flange
RSA-HT Actuator Dimensions - 1
RSA-HT Mounting Options: Front Flange & Mounting Plate
RSA-HT Actuator Dimensions - 2
RSA-RP Mounting Codes
Z12 Zerk Orientation
Information Center:
Catalogs & Brochures
- SOLUCIONES DE CONTROL DE MOVIMIENTO (Spanish, Corporate Overview-Motion Control Solutions Brochure)
- 公司概述 (Chinese, Corporate Overview Brochure)
- Corporate Overview-Linear Motion Solutions Brochure (English)
- RSA-GSA Electric Linear Rod Actuators Catalog
- Gantry & Multi-Axis Solutions Brochure
- OEM Actuator Solutions Brochure
- Brochure sur l'entreprise Tolomatic (French, Corporate Overview-Linear Motion Solutions Brochure)
- Elektrischer RSA/GSA Kolbenstangenantrieb – Katalog (RSA/GSA Actuator brochure, German)
- Automotive Applications Brochure
- 汽车行业应用手册 Brochure (Chinese: Automotive Applications Brochure)
- Aplicaciounes de la Ind. Automotriz (Auto Appl SP)
- Medical and Life Sciences brochure
- Unternehmensübersicht (German, Corporate Overview brochure)
- Electric Pressing Solutions Brochure
Certifications
E-Books
Flyers
Guides
- Selecting the Optimal Screw Technology
- Actuator Life: How to estimate for ball and roller screw actuators
- INFOGRAPHIC: Accuracy and Repeatability in Linear Actuators
- INFOGRAPHIC: Calculating Total Cost of Ownership
- INFOGRAPHIC: Ten Tips for Specifying Electric Rod Actuators
- INFOGRAPHIC: Electric vs. Servo-hydraulic vs. Hydraulic Actuators
- INFOGRAPHIC: Pneumatic, traditional electric, and integrated electric rod actuators
- 如何选择 螺杆？ 甄选 正确的技术 (Chinese, How to select the right lead screw for an electric actuator)
- Rod Style Roller Screw Actuator Comparison
- A Guide to Converting Hydraulics to Electric Actuators
- Abschnitt: Welches Gewinde? Die richtige Technologie auswählen (German - Which Screw)
- Guide to Third Party Motor Integration
- Switch Reference Guide
Parts & Maintenance Sheets
- RSA24 Electric Rod Actuator Part Sheet
- RSA32 Electric Rod Actuator Part Sheet
- RSA50 Electric Rod Actuator Part Sheet
- RSA64 Electric Rod Actuator Part Sheet
- Specifying a Customer Motor
- Material Safety Data Sheet: Mobil SHC Polyrex 462 Grease (PN: 27331303)
- Material Safety Data Sheet: SAF-T-EZE Food/Drug Lubricant (PN: 09121112)
- Belt Tension Procedure, RSX & RSA Rod Cylinders
Tech Bulletins
Terms & Conditions
White Papers
- High-force linear motion: How to convert from hydraulic cylinders to electric actuators and why.
- Elektrische Stangenantriebe vs. Hydraulikzylinder: Ein Vergleich der Vor- und Nachteile beider Technologien weißes Papier (Electric vs Hydraulic WP, German)
- A technical comparison: Performance of pneumatic cylinders and electric rod actuators
- Electric actuator technology comparison: Integrated and traditional designs
- Utilizzo degli attuatori elettrici nelle applicazioni di processo (WP: IT: Actuators for F&B processing applications)
- How roller-screw and ball-screw actuators compare in high-force applications:
- Actuadores eléctricos con vástago frente a cilindros hidráulicos: una comparación de los pros y los contras de cada tecnología (Spanish - White paper - Electric vs Hydraulic Actuators)
- Top 5 best practices for designing electric actuators into food processing equipment
- Elektrische Antriebe und Pneumatikzylinder: Ein Vergleich basierend auf den Gesamtbetriebskosten weißes Papier (GERMAN, TCO WhitePaper)
- Elektrische Stangenantriebe vs. Hydraulikzylinder: Ein Vergleich der Vor- und Nachteile beider Technologien weißes Papier (GERMAN, Electric vs Hydraulic WP)
- Designing Gantry and Multi-Axis Automation Systems
- Diez Consejos Óptimos: Cómo especificar los actuadores eléctricos de vástago para obtener rendimiento, confiabilidad y eficiencia óptimos
- Medical Device Motion Design Considerations
Product Family: Electric
Product Used: RSA50
Product Family: Electric
Product Used: ACSI Servo Motor and RSA Actuator
Product Family: Electric
Product Used: RSA Rod Actuator
Product Family: Electric
Product Used: RSA32
Challenge: Moving saw blade for log cutting
Product Family: RSA
Product Used: RSA64
Challenge: Eliminate hydraulics to position rollers on a timber planer
Product Family: Electric
Product Used: RSA64 HT
Challenge: Fluid injection machine required very precise, consistent movement (speed & thrust) to meter injection of fluid.
Product Family: RSA
Product Used: RSA12
Challenge: Pulling sides of pork and beef through the chilling process
Product Family: RSA-HT
Product Used: RSA-HT
Challenge: Directing product to secondary conveyor line.
Product Family: RSA Rod-Style Screw Drive Actuator
Product Used: RSA32
Challenge: Product feeding in automotive tire manufacturing.
Product Family: Electric
Product Used: RSA32 Screw-Drive Electric Rod-Style Actuators
Challenge: Turn up fabric reinforced and gum plies around the bead of the green (raw) tire
Product Family: Electric
Product Used: RSA64 Screw-Drive Electric Rod-Style Actuators
Challenge: Transferring tire in & out of curing station during automotive tire manufacturing
Product Family: Electric
Product Used: RSA32 Screw-Drive Electric Rod-Style Actuators
Challenge: Positioning a plastic welding head.
Product Family: Electric
Product Used: RSA Electric Linear Actuator
Product Family: Electric
Product Used: RSA & RSX Actuators
Challenge: A manufacturer of fiberglass automation equipment was using pneumatic cylinders to control the vertical roller and the winding roller used to package fiberglass insulation into rolls.
Product Family: Electric Rod-Style Actuator
Product Used: RSA
Challenge: Steam injection
Product Family: Electric Actuator
Product Used: RSA12
Application Description
Articulate the concrete slurry dispensing head forming exterior/interior walls used in residential construction.
Application Description:
Convert the conveyor packer, located at the end of the conveyor, from pneumatic cylinders to electric actuators. Motions required include: several high-speed push operations, a centering operation, a tipping operation, and a container lift operation.
Application Description:
OEM of automated baking equipment for dough pressing
Application Description
Open and close door on a clam shell vacuum sealer used for plastics thermoforming.
Application Description: Pull Tester Assembly – Pull test for steering/strut linkage assemblies
Application Checklists
- Electric Rod-Style Actuator Application Checklist
- _HOJA DE TRABAJO - DATOS DE APLICACIÓN (Electric Rod-Style Actuator Application Checklist-Spanish Translation)
- _FICHE TECHNIQUE DES DONNÉES D'APPLICATION (Electric Rod-Style Actuator Application Checklist-French Translation)
- _FOGLIO DI LAVORO - DATI APPLICATVI (Electric Rod-Style Actuator Application Checklist-Italian Translation)
- Anwendungsdatenarbeitsblatt (Electric Rod-Style Actuator Application Checklist-German)
- Hydraulic Cylinder Replacement Worksheet
RSA Selection Guidelines

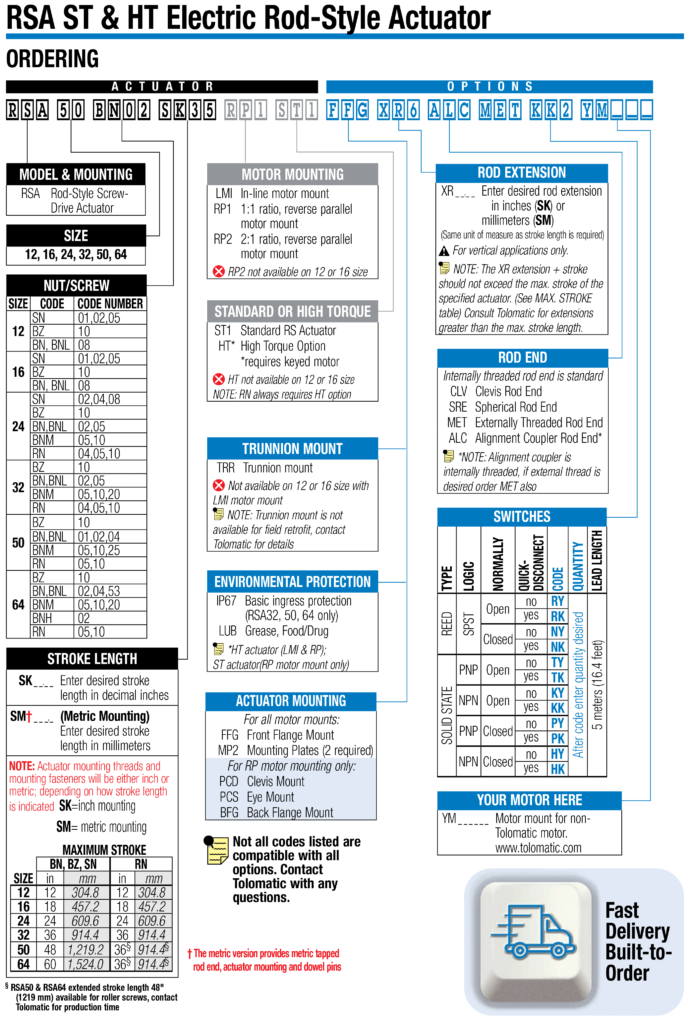

RSA Ordering

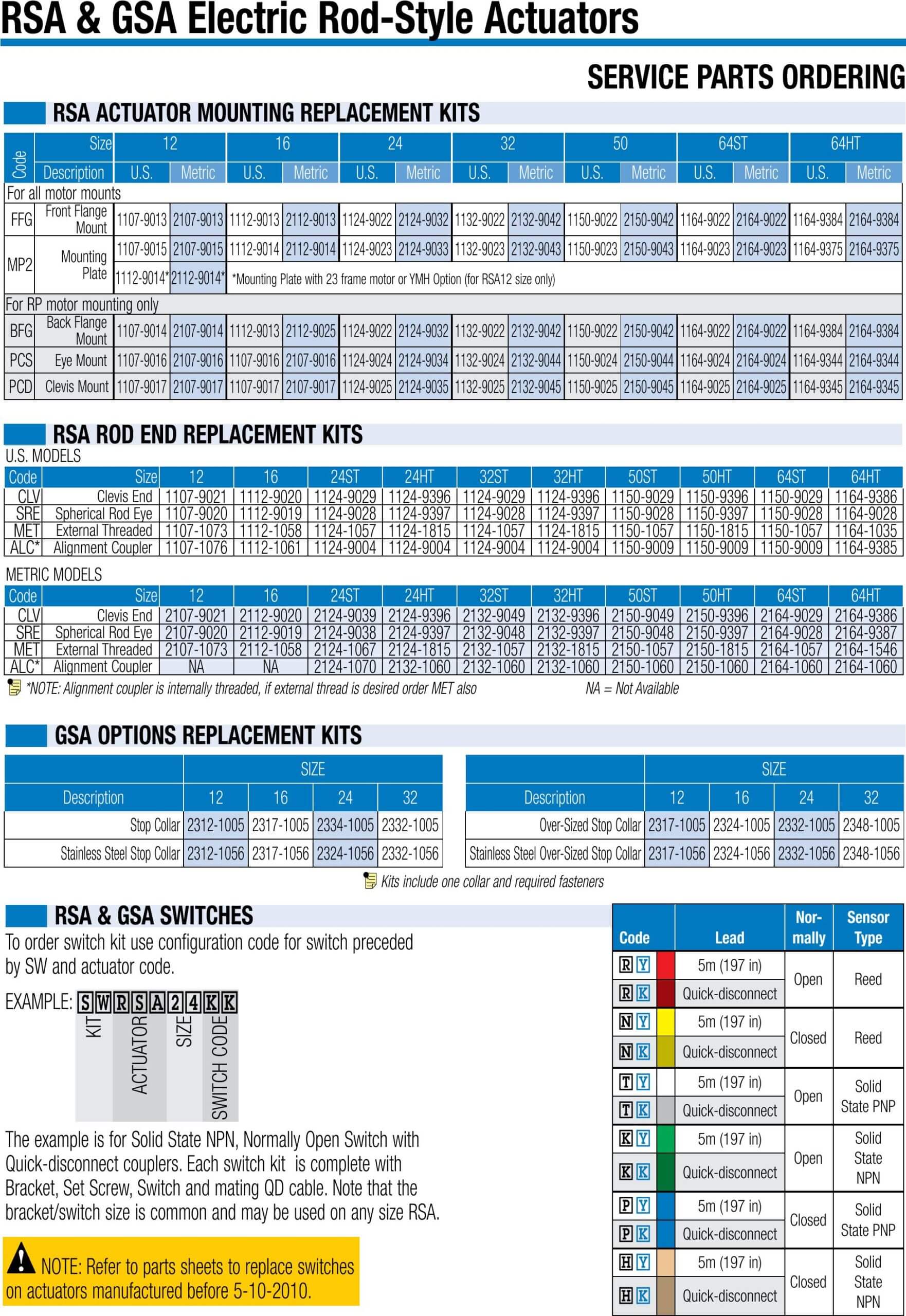

RSA & GSA Service Parts Ordering
